Shophouse Transformation by all(zone)

| 2 comments

Bangkok studio all(zone) added a patterned concrete facade to two disused Bangkok shophouses to create a live-work unit on each floor.

Shophouse Transformation by allzone

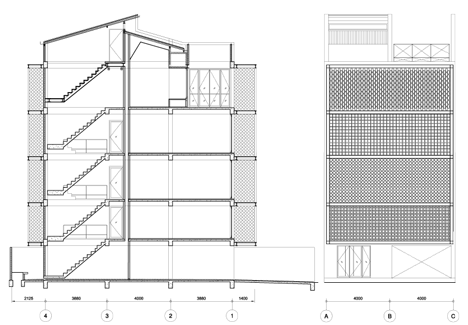

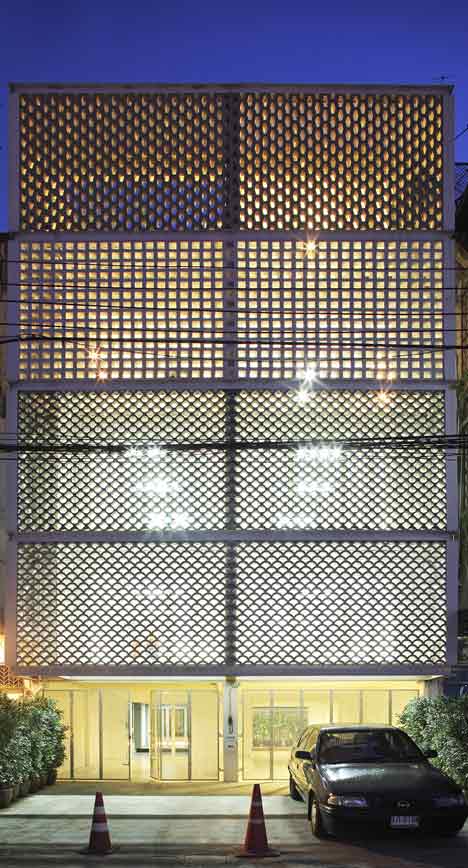

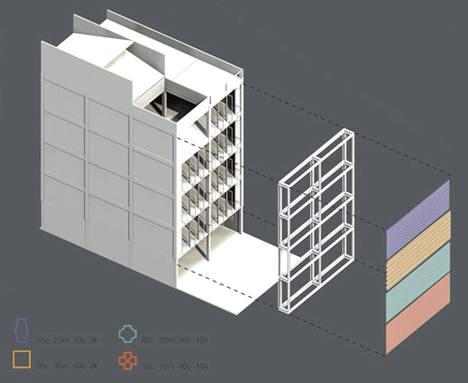

The architects have transformed the 5-storey buildings by adding a façade of patterned concrete bricks at the front and back, creating balconies between the existing building and old facades.

Shophouse Transformation by allzone

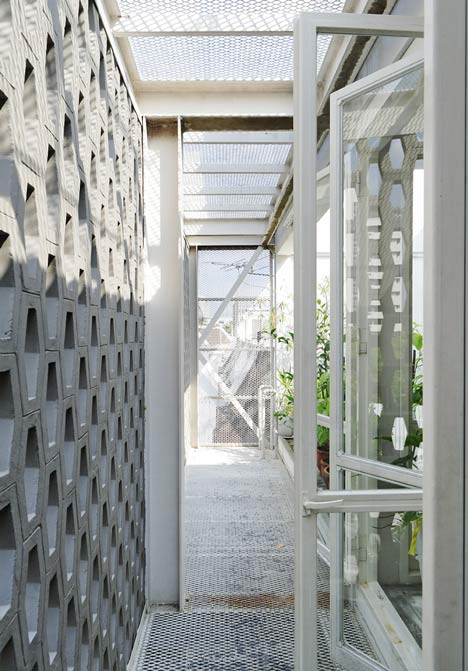

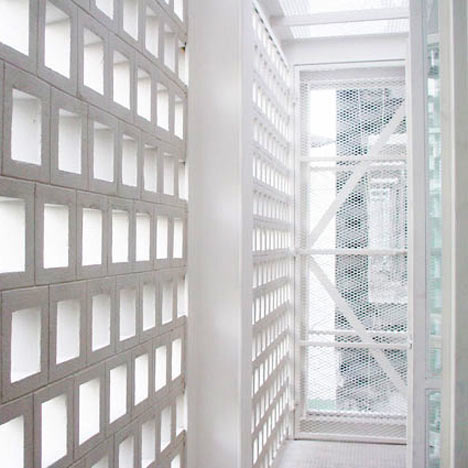

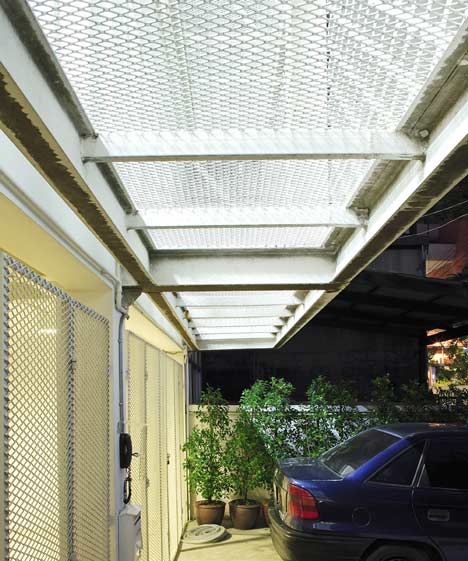

Metal mesh screens are used as walls and flooring for these in-between spaces.

Shophouse Transformation by allzone

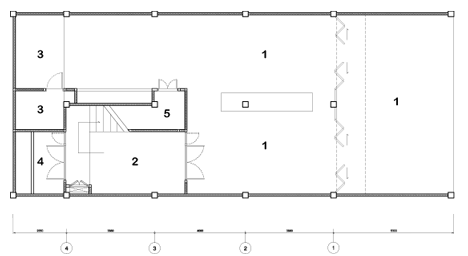

A car park is located on the ground floor, with the 2nd, 3rd and 4th used for offices and living spaces.

Shophouse Transformation by allzone

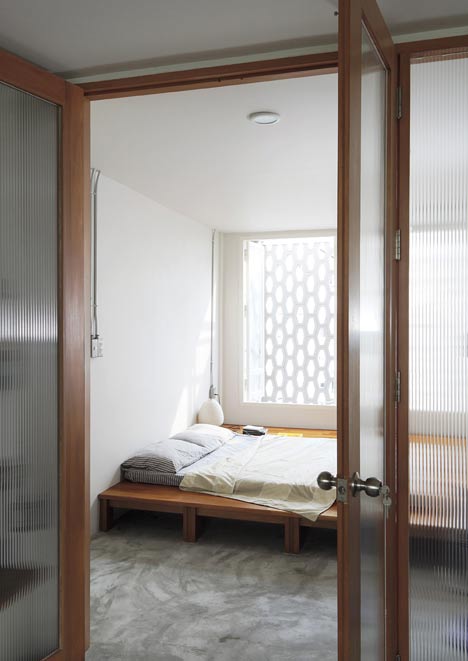

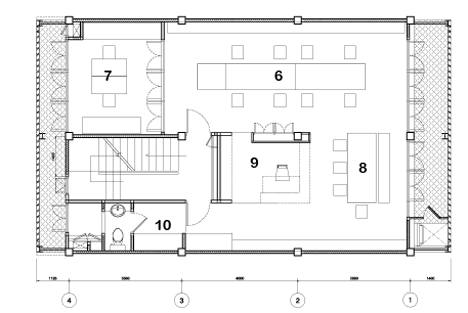

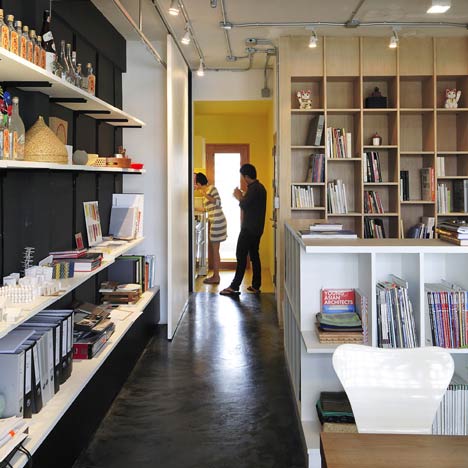

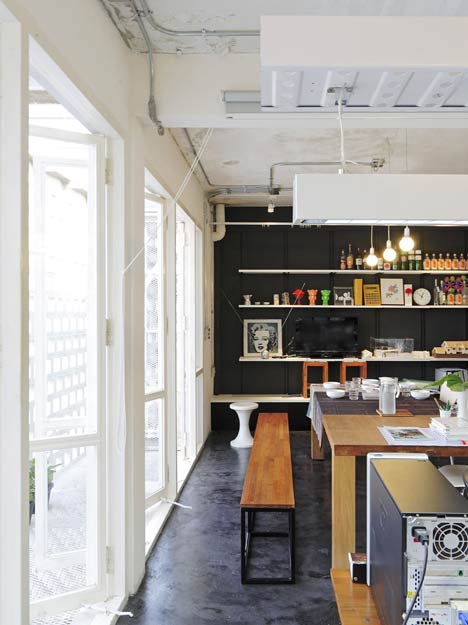

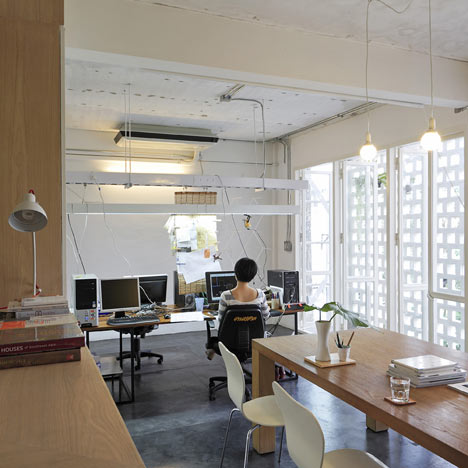

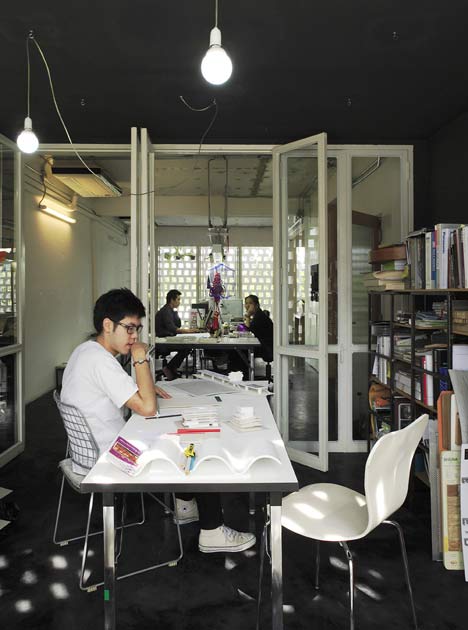

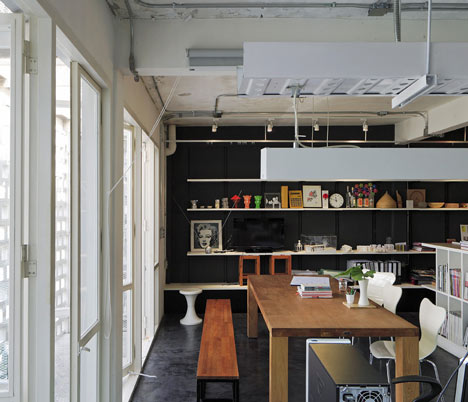

The architects' offices are located on the 4th floor and the 5th is used as an apartment for one of the designers.

Shophouse Transformation by allzone

More about Bangkok's shophouses in Peter Nitsch's photography project.

Shophouse Transformation by allzone

More residential architecture on Dezeen »
More office buildings on Dezeen »

Shophouse Transformation by allzone

Photographs are by Piyawut Srisakul.

Shophouse Transformation by allzone

The following information is from the architects:


Shophouse Transformation
Sukhumvit 49, Bangkok

Shophouse was the most common building typology of Bangkok during the process of urbanization of the city in the past century.

Shophouse Transformation by allzone

However they are getting obsoleted nowadays because of city’s the transformation.

Shophouse Transformation by allzone

Bangkok urban fabric is, nowadays, full of not-properly-utilized shophouses in most of the prime areas.

Shophouse Transformation by allzone

The project is an attempt to experiment with shophouse typology’s transformation.

Shophouse Transformation by allzone

The existing condition were two not-in-use units of shophouse in one of crowded area of Bangkok.

Shophouse Transformation by allzone

Every floor is transformed into a working-living unit, a new typology for a small business or live-in studio, that is quite rare type in Bangkok.

Shophouse Transformation by allzone

While the ground level is completely open for parking and plants. (The 4th and the 5th floors are finally occupied by the architects).

Shophouse Transformation by allzone

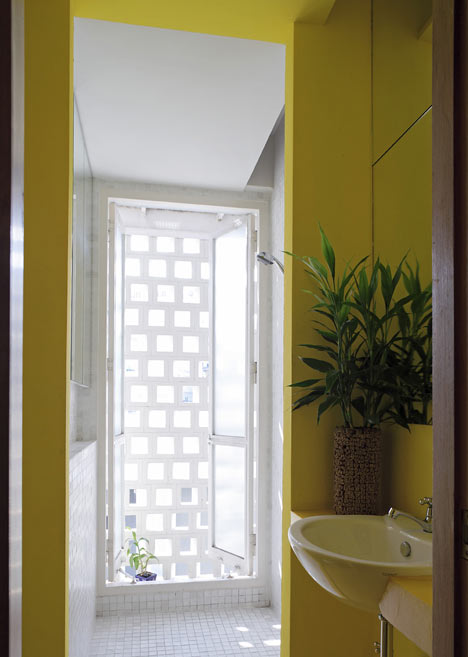

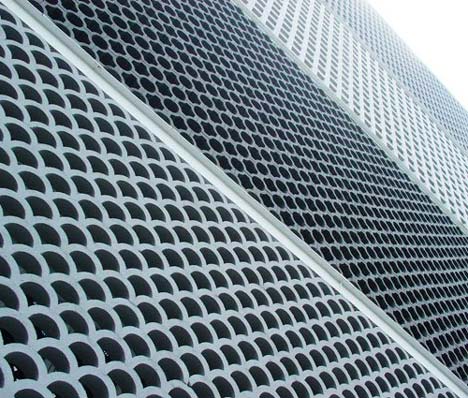

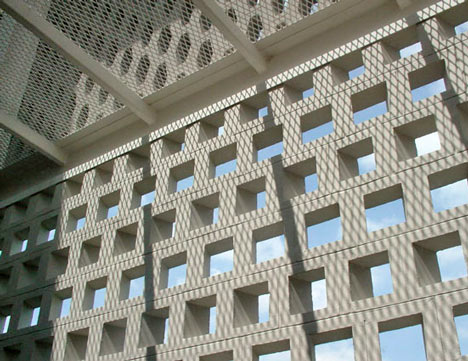

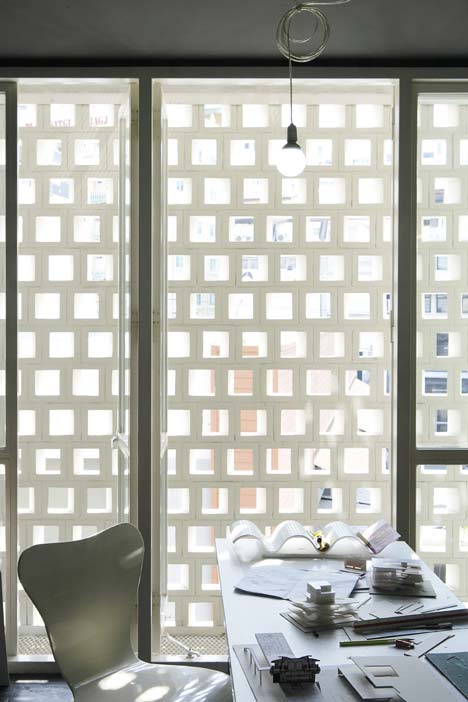

The addition parts are the new facades on both front and back made out of the prefabricated concrete blocks - the most common and cheapest construction materials found in the market - which is also acting as a sun shading, a curtain for privacy as well as thief protection device.

Shophouse Transformation by allzone

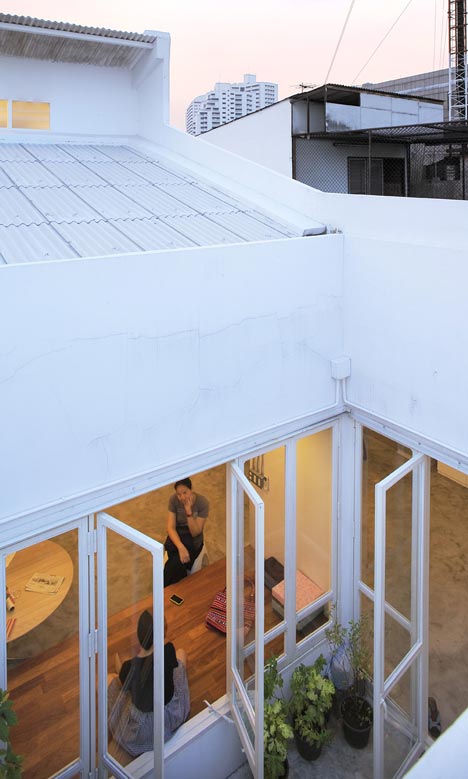

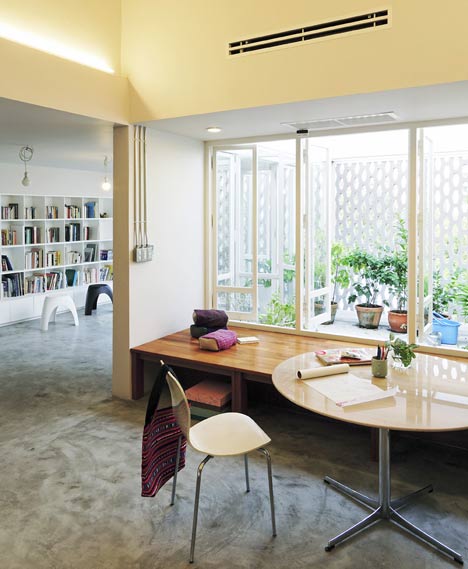

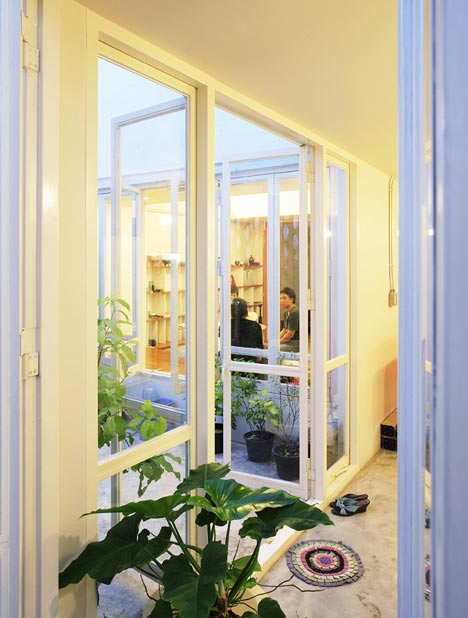

The facades also create 'a breathing space', the space between the big windows and concrete blocks, for smoking, relaxing in the outdoor, plantings as well as air condensing units and service.

Shophouse Transformation by allzone

Project DATA

type: shophouse transformation to live-in studio units.
location: Sukhumvit 49, Bangkok
total area: 650 sq.m.
architect: allzone, co.,ltd. with Stefano Mirti
project team: Rachaporn Choochuey, Sorawit Klaimak, Isara Chanpoldee, Namkhang Anomarisi, Tharit Tossanaitada
engineer: cm one co.,ltd.
contractor: Terdsak Tassayarn

Shophouse Transformation by allzone

Shophouse Transformation by allzone

Shophouse Transformation by allzone

Shophouse Transformation by allzone

Shophouse Transformation by allzone

Click for larger image

Shophouse Transformation by allzone

Click for larger image
