X House by
Cadaval & Solà-Morales

| 7 comments

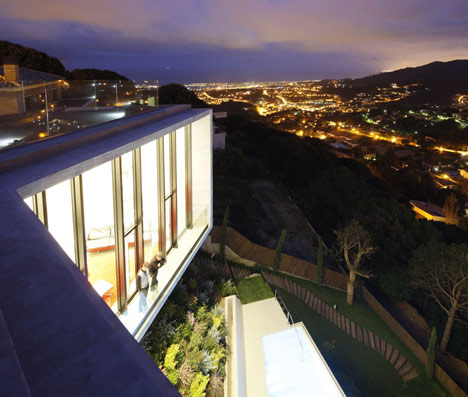

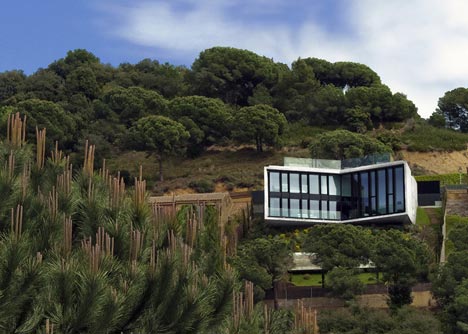

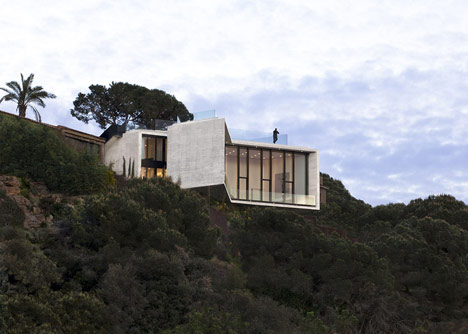

This X-shaped house by architects Cadaval & Sola-Morales hangs over the edge of a hillside on the outskirts of Barcelona (+ slideshow).

X House by Cadaval & Solà-Morales

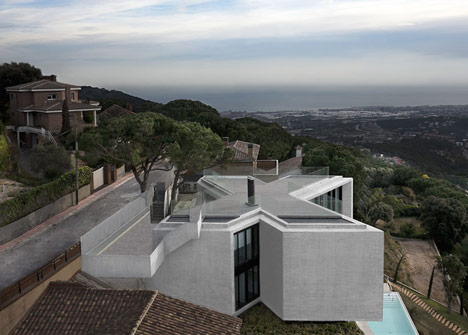

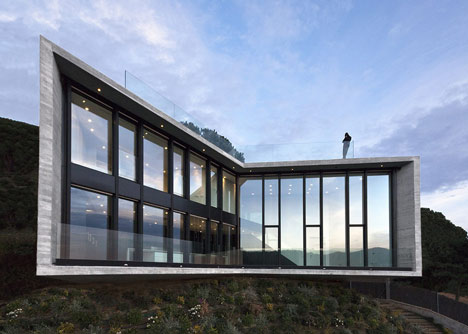

Aptly named X House, the two-storey residence is based on a simple rectilinear form but features four triangular recesses that create the X-shaped plan. One of these recesses allows the structure to avoid a nearby tree, while two others provide windows that avoid overlooking neighbouring houses and the fourth lengthens the glazed facade to offer a wider view of the surrounding landscape.

X House by Cadaval & Solà-Morales

"The form is not a priori, but an effort to give a unitary response that satisfies each of the questions that rose up in the design process," explains Cadaval & Solà-Morales.

X House by Cadaval & Solà-Morales

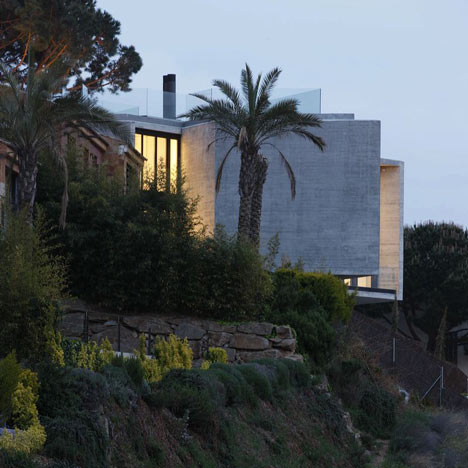

The walls without glazing appear as solid, undecorated concrete and were set using a single-sided formwork. "[The house] accumulates in its skin the diverse and continuous knowledge acquired within the process of construction," say the architects.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

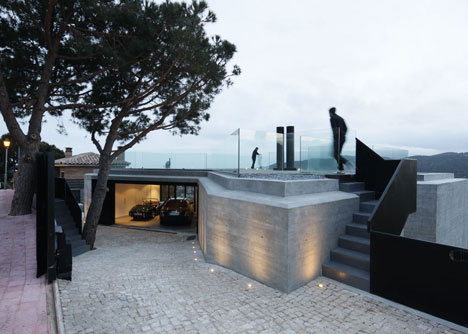

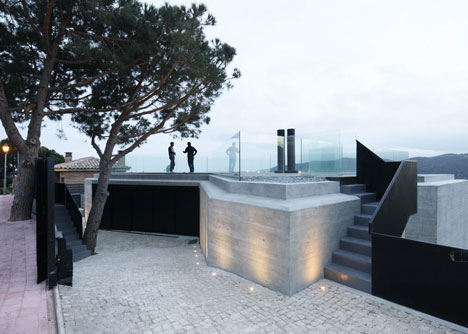

Residents enter the house on the top floor by following a staircase around the edge of the pine tree and locating a door that is two metres below street level, alongside a garage for parking two cars.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

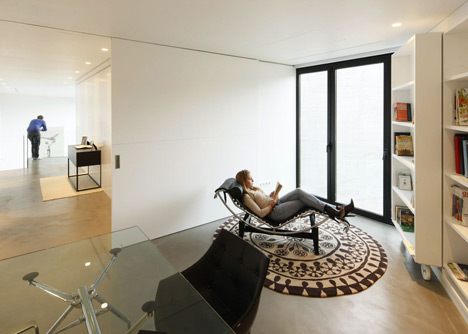

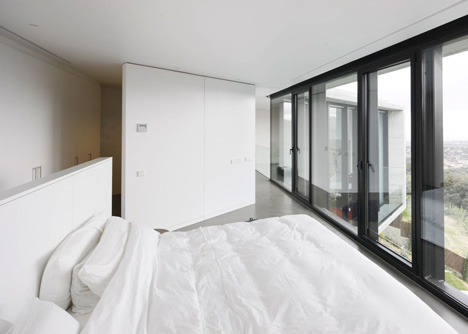

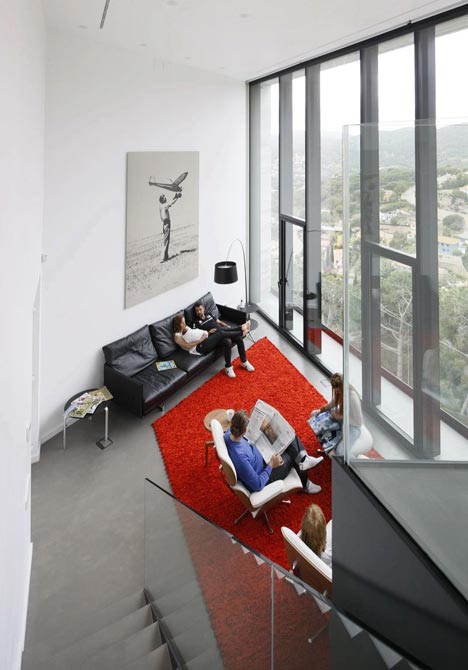

A bedroom, bathroom and study occupy two arms of the cross on this floor and overlook a double-height living room on the storey below.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

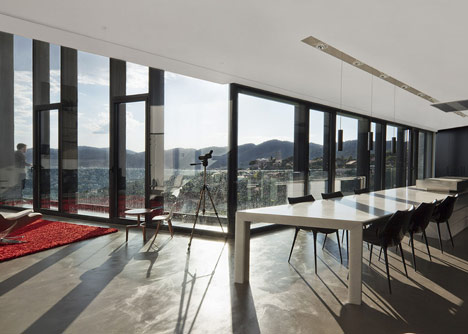

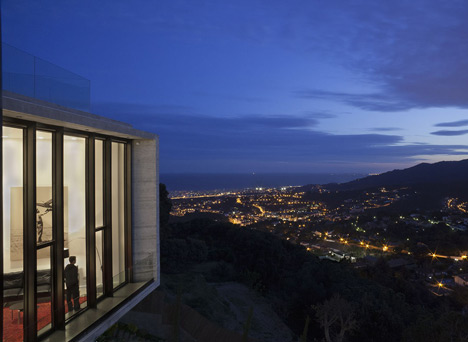

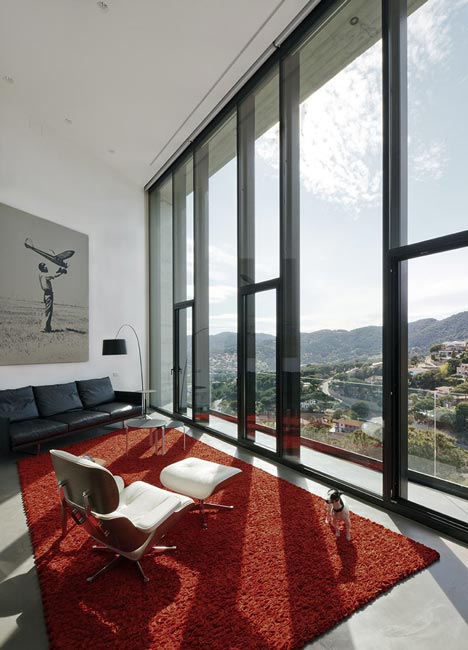

Downstairs, the living room and kitchen wrap around the facade to offer views out across over the hillside.

X House by Cadaval & Solà-Morales

"X House uses form to qualify spaces of very different nature and provide them with an individual character, always incorporating landscape as a main actor," add the architects.

X House by Cadaval & Solà-Morales

Photography is by Sandra Pereznieto, apart from where otherwise stated.

X House by Cadaval & Solà-Morales

Here's some more information from Cadaval & Solà-Morales:


The Power of Form

The X House project aims to solve by the definition of a system, language, or even through a unique form, a number of inquiries that rise up when we read the specific given site: how to protect and give protagonism to an impressive pine, that is located on the top of the site, and that makes access and approximation to the house extremely complex from the street; how to avoid deciding between the views to the sea and those to the mountains, and allow both visions in opposite directions; how to neutralize through form the presence of the contiguous constructions, to build up a fake isolation that denies the neighbours; how to double the main views, permitting quality frontal views from the front and the rear of the house; how to resolve so many a priories with a simple movement that answers to all of the previous aims without prioritizing nor explicitly formulating a response to any of them.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

The form, a unique form, is the result of a long process of search of individual answers to each of those challenges; thus, the form is not a priori, but an effort to give a unitary response that satisfies each of the questions that rose up in the design process. The X House is also a constructive exploration: a technique regularly used for the infrastructural construction such as bridges and tunnels, is here developed to meet the architectural scale, aiming to incorporate efficiency, and reduction of costs to the construction.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

The use of a mixed technique based on the application of a high-density concrete allows projecting the material at a high pressure to a single-sided formwork, and to acquire high structural resistance in extremely short periods of time. Thus, it is possible to project continuous 6m high walls without the need to use a two-sided formwork (which would be the regular construction procedure). The house is therefore a living expression of the specific technique, and accumulates in its skin the diverse and continuous knowledge acquired within the process of construction.

X House by Cadaval & Solà-Morales

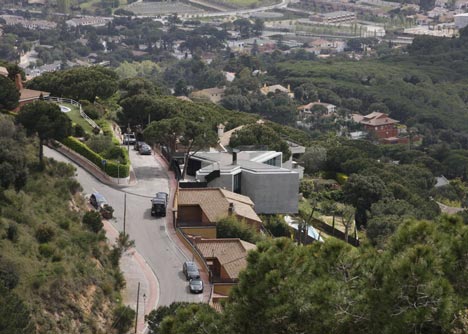

The house is located on the upper part of a hill in Cabrils, in the outskirts of Barcelona. The site, with remarkable views and an important slope, is accessed from a single street located at the top of the site. The location of the house within the site responds to the aim to minimize excavation and optimize, within possible, the use of the non-occupied land.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

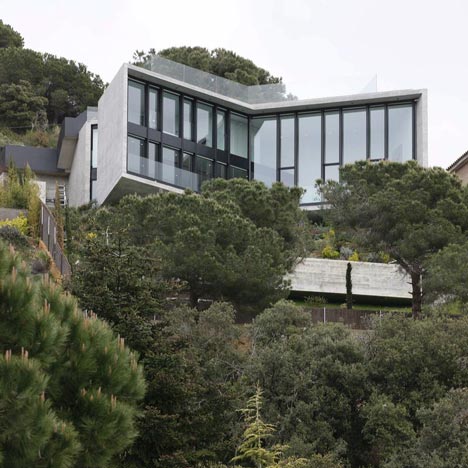

The access to the house is two meters depressed from the street, and the project searches to empathise through the use of blank walls the desire to be anchored in the site and to disappear from the street; the project clearly prioritizes the façades and views overseeing the valley.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

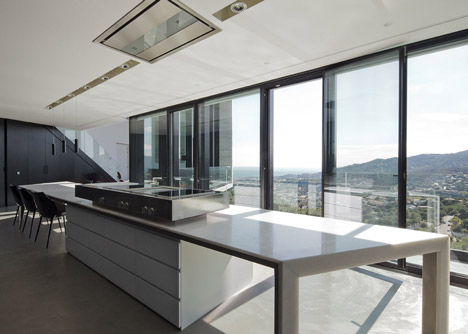

The house has two floors. The top floor, beyond incorporating a parking and allowing the access to the house, is conceived as a private suite of the owners: main room, with dresser and washroom / toilet, and spacious studio. In the lower floor there is a clear distinction between the front and the rear of the house; the front part has a totally open and public nature, build up with a living area in a double high space next to a kitchen-dining room articulated around a significant marble table, 8m long.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

The rear part of the lower floor holds the rooms and service areas, which through the patios are given direct and protected views to the valley, the sea and the mountain.

X House by Cadaval & Solà-Morales

Mainly, the project of the X House uses form to qualify spaces of very different nature and provide them with an individual character, always incorporating landscape as a main actor. Beyond the effective spatial arrangement at the front of the house, the views are the protagonist in each space. And learning from Dan Graham’s reflections, the image of the sea is always present when observing the mountain, and the mountain appears as a reflection when looking at the sea: a perceptive quality that enriches the experience of the house.

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

Name of the project: X House
Name of the Office: Cadaval & Solà-Morales
Project: Eduardo Cadaval & Clara Solà-Morales

X House by Cadaval & Solà-Morales

Above: photograph is by Iwan Baan

Collaborators: Bruno Pereira, Pamela Diaz De Leon, Daniela Tramontozzi, Manuel Tojal Building Engineering: Joaquin Pelaez
Structural Engineering: Carles Gelpi.
Construction Company: TOPCRET constructions

X House by Cadaval & Solà-Morales

Location: Cabrils, Barcelona, España
Area: 300sqm
Date: Project: 2009. Construction 2012

X House by Cadaval & Solà-Morales

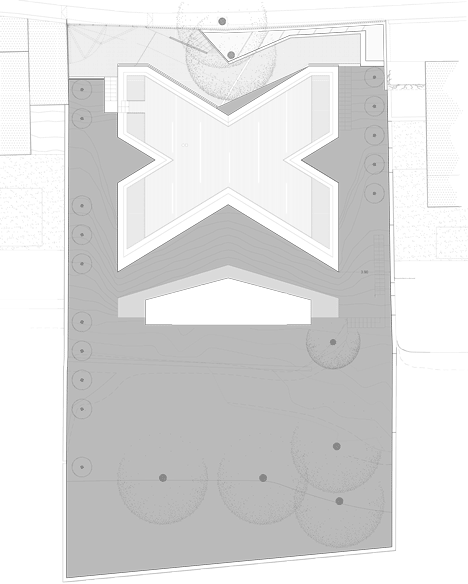

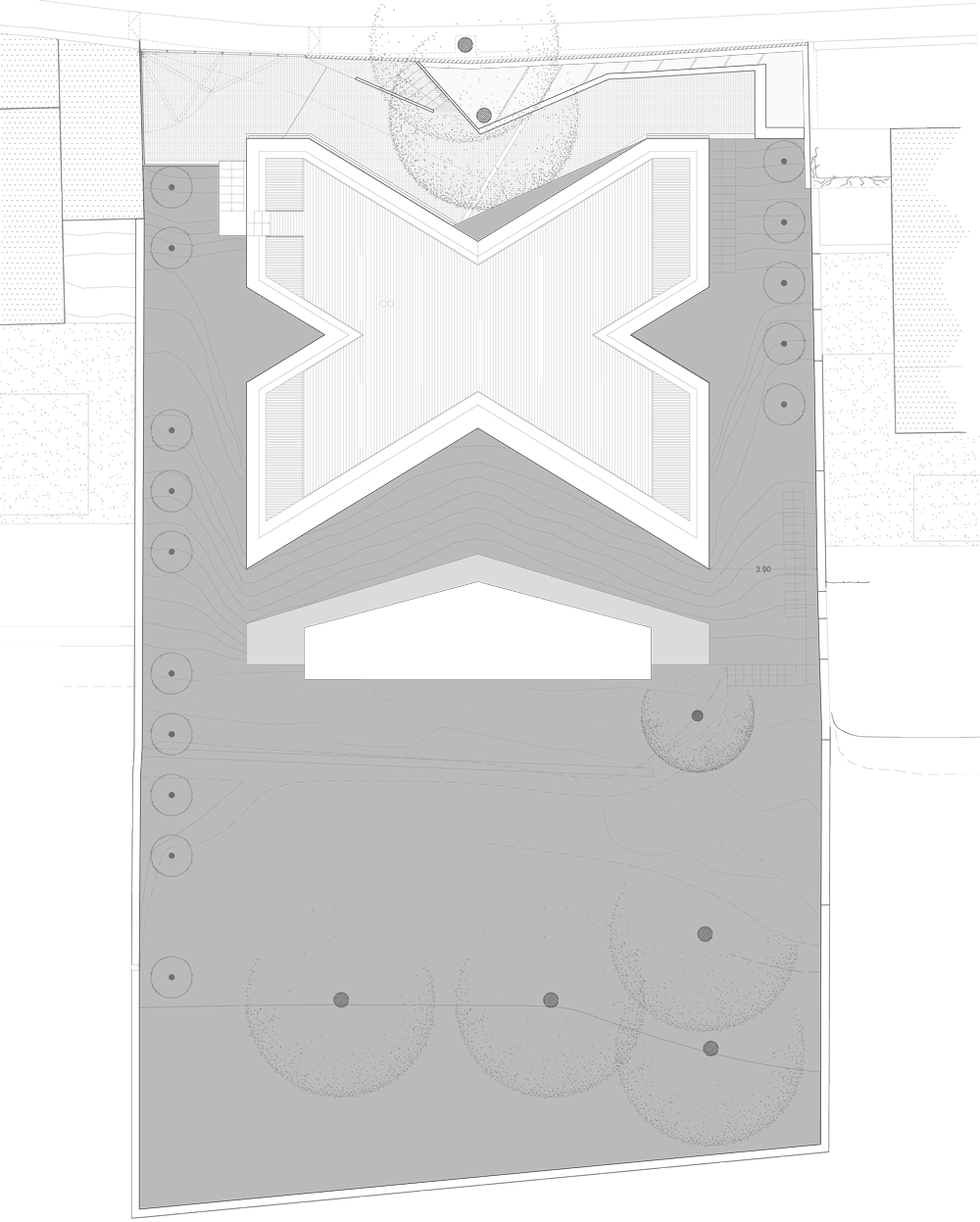

Above: site plan

X House by Cadaval & Solà-Morales

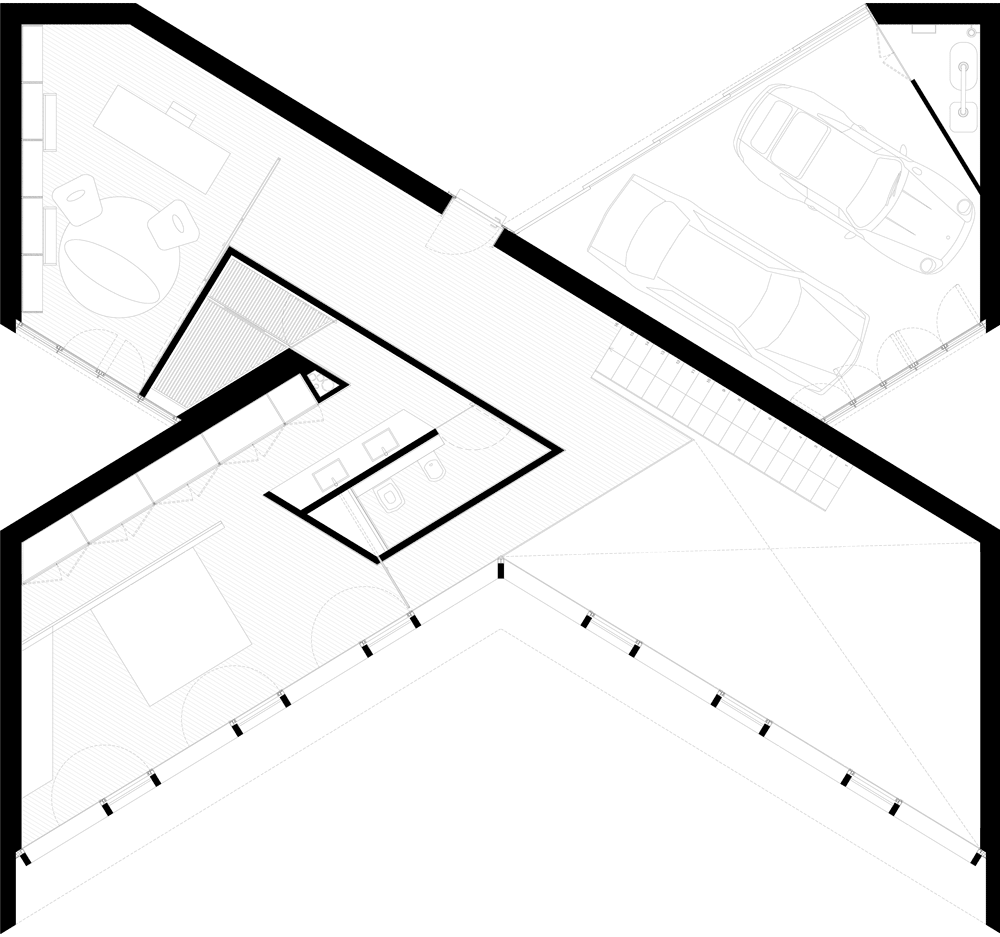

Above: upper floor plan

X House by Cadaval & Solà-Morales

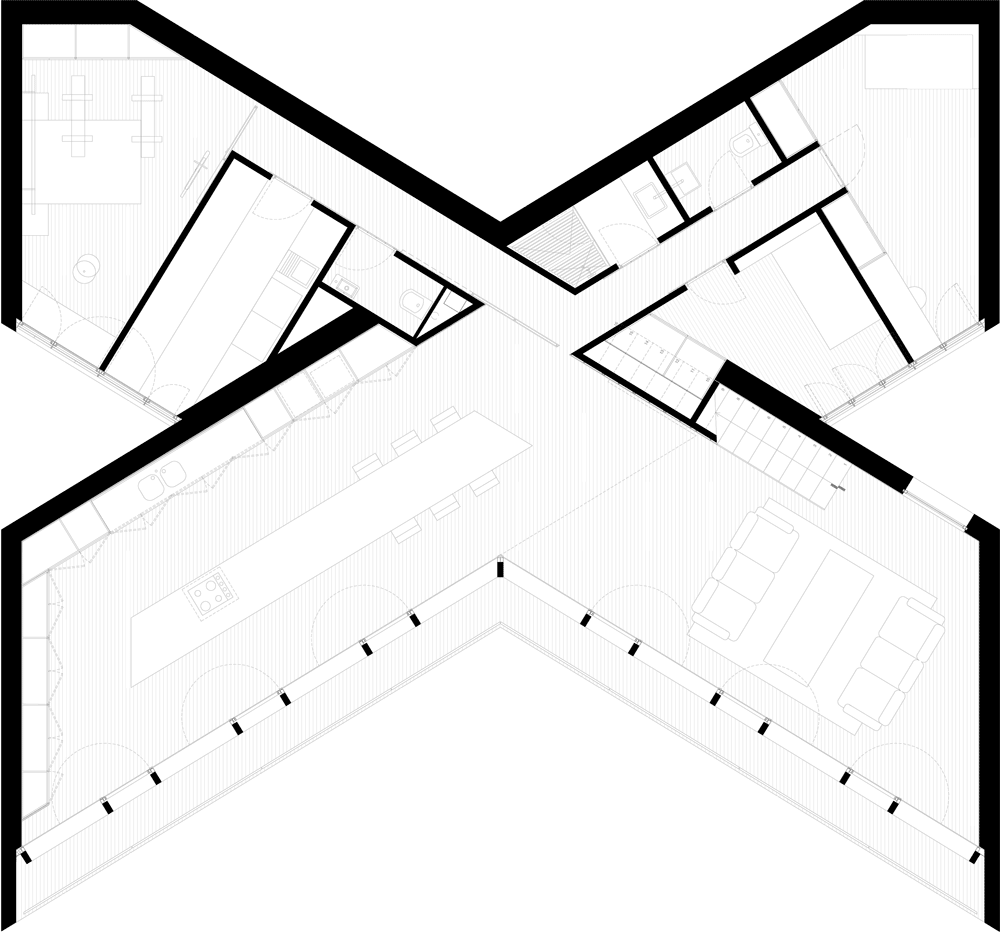

Above: lower floor plan

X House by Cadaval & Solà-Morales

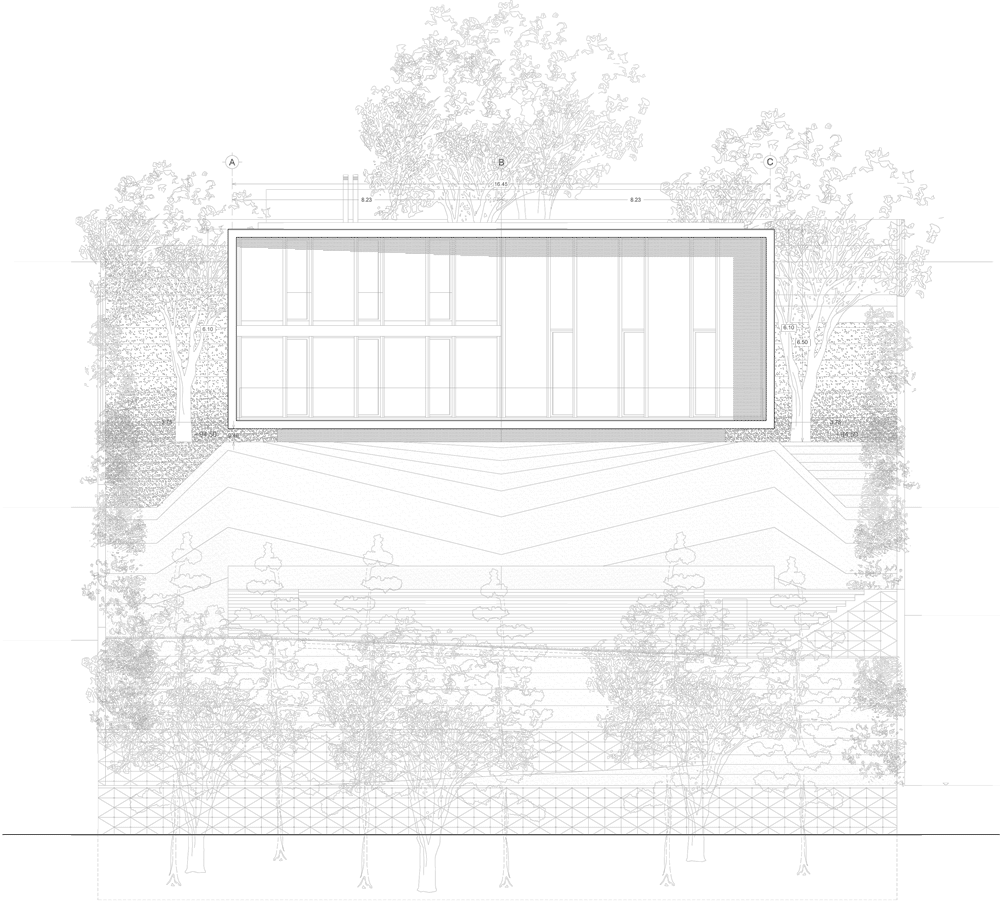

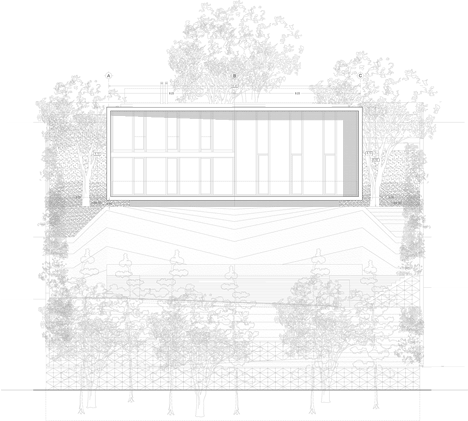

Above: front elevation

X House by Cadaval & Solà-Morales

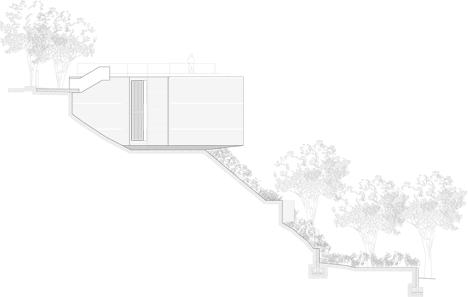

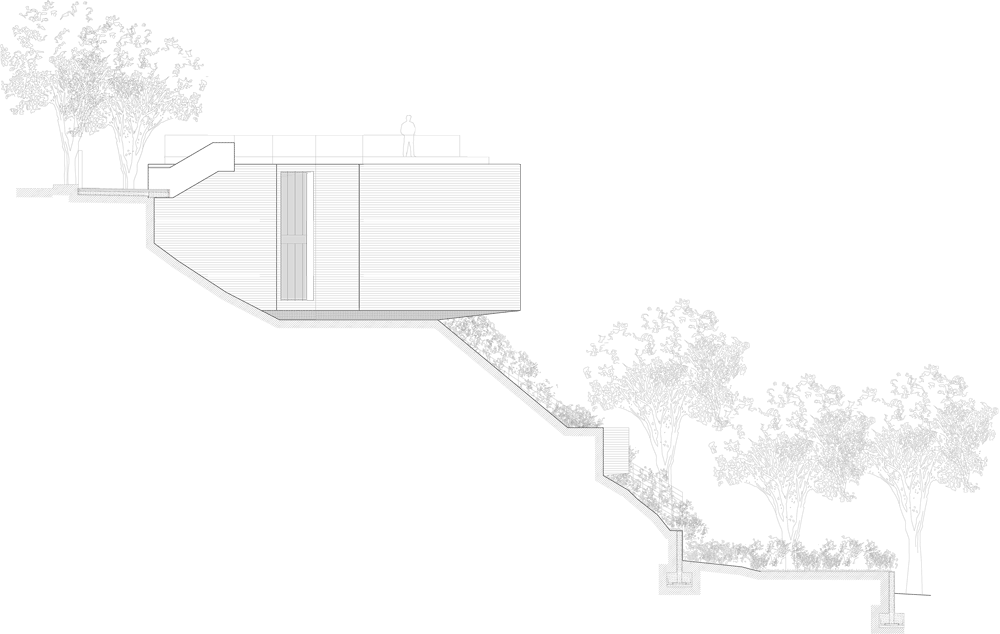

Above: side elevation

X House by Cadaval & Solà-Morales

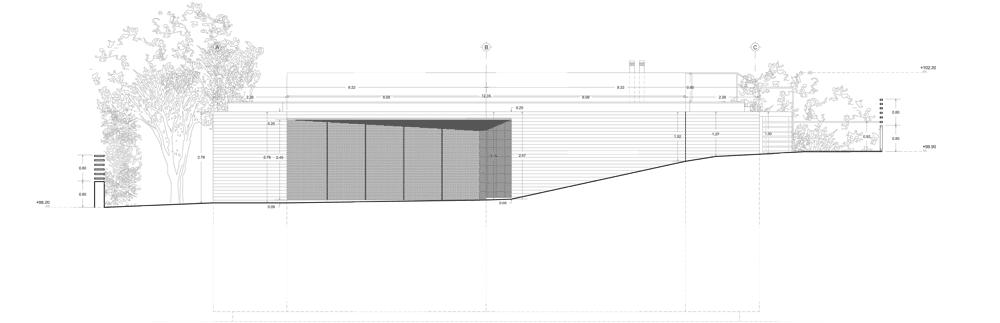

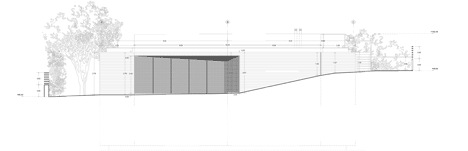

Above: rear elevation

X House by Cadaval & Solà-Morales

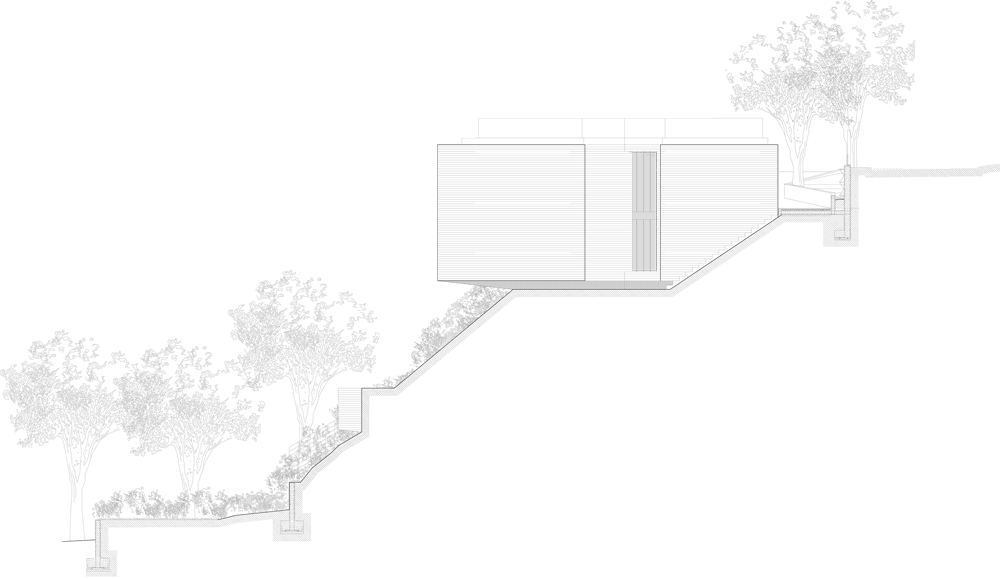

Above: side elevation
