Wine bottles are displayed in rainbow-coloured cages in this wine shop in Stuttgart, Germany, by local studio Furch Gestaltung + Produktion (+ slideshow).

Weinhandlung Kreis by Furch Design and Production

The branch of Weinhandlung Kreis had no storage area, so Furch Gestaltung + Production was asked to squeeze 12,000 bottles of wine into the 70-square-metre space.

Weinhandlung Kreis by Furch Design and Production

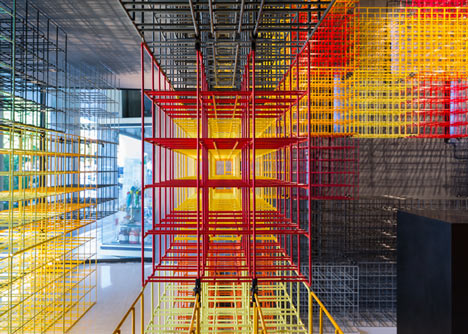

They came up with a new shelving system by welding wire-grid mats into cubes.

Weinhandlung Kreis by Furch Design and Production

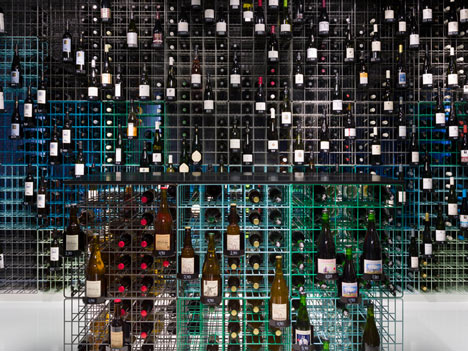

Each cube has slots for 25 bottles of wine, and each slot can hold almost any shape of bottle. Clip-on holders display selected bottles in an upright position.

Weinhandlung Kreis by Furch Design and Production

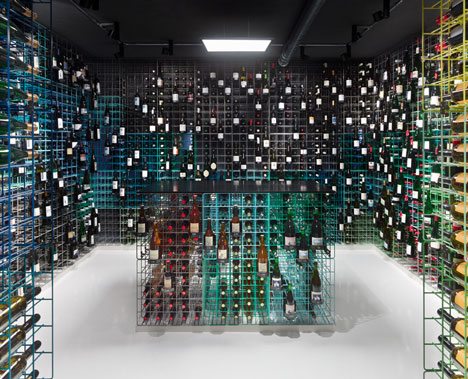

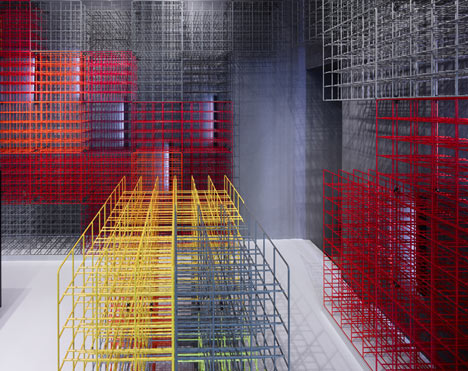

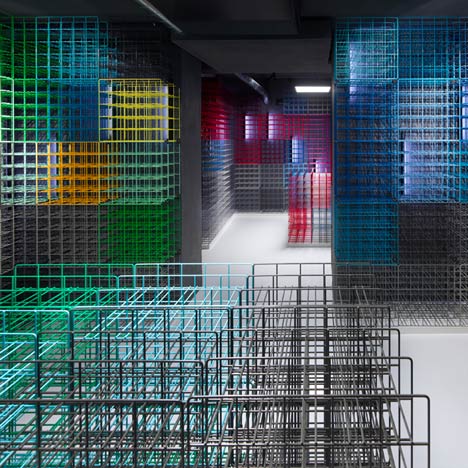

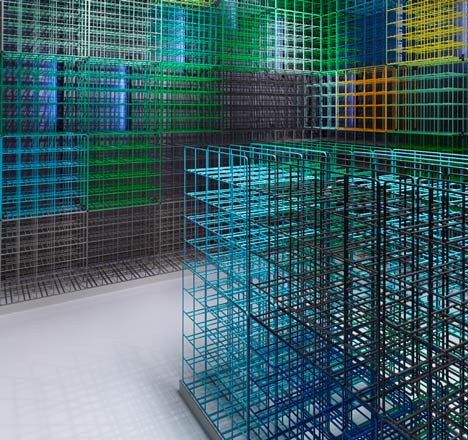

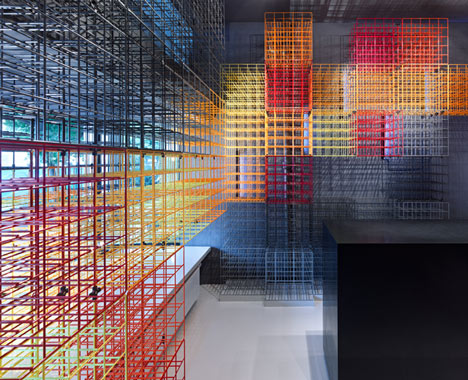

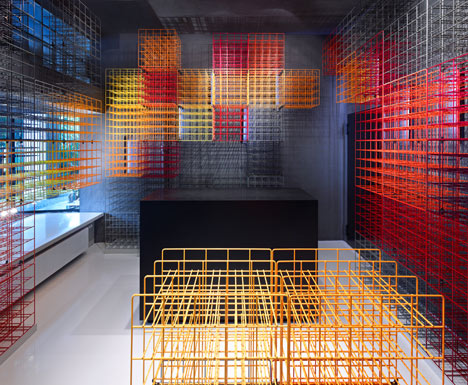

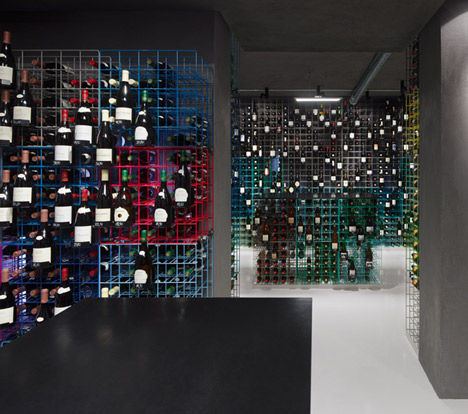

The grids are made of powder-coated steel in a spectrum of colours, with orange, red and yellow arranged around the shopfront and blue, green and grey in the sales room downstairs.

Weinhandlung Kreis by Furch Design and Production

"The shelf disappeared and storage became shop," explain the architects. "This shop should consist just of wine and no furniture – similar to a spreadsheet, which is full of data without wasting any space on structure."

Weinhandlung Kreis by Furch Design and Production

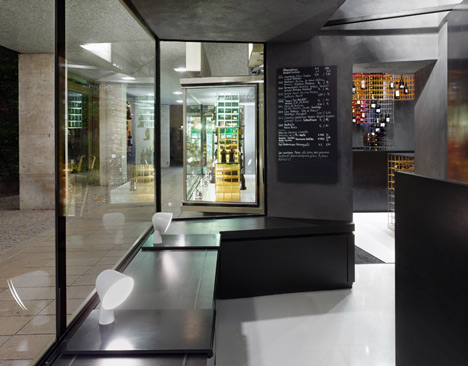

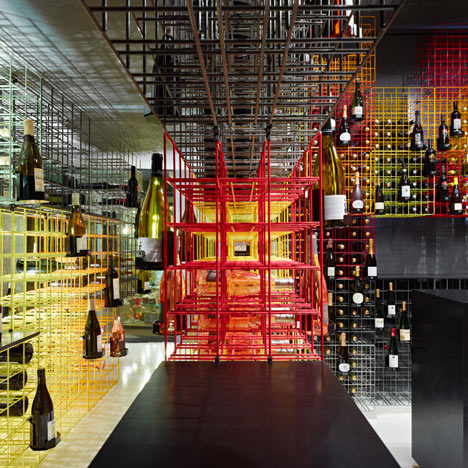

The only other item of furniture is the small tasting bar by the window.

Weinhandlung Kreis by Furch Design and Production

Other wine shops we've featured on Dezeen include a shop that hides its goods behind wine bottle-shaped shutters and a shop in Zurich that uses built from the crates used to transport the bottles.

Weinhandlung Kreis by Furch Design and Production

We've also featured a self-service interactive wine bar in New York and a sandstone winery that is partially submerged in the ground.

Weinhandlung Kreis by Furch Design and Production

See all our stories about wine shops »
See all our stories from Stuttgart »
See all our stories about shops »

Weinhandlung Kreis by Furch Design and Production

Photographs are by Zooey Braun.

Weinhandlung Kreis by Furch Design and Production

Here's some more from the architects:


Wine merchant Kreis, Stuttgart, Germany
Completed August 2012

The Store

The client, a high profile sommelier and wine merchant, had to move locations and came to us with a request for a 'different' wine-store with a strong design which reflects the modern and fresh spirit of a new generation of wine makers.

Weinhandlung Kreis by Furch Design and Production

The predominant requirement was to place six or twelve bottles of about 1200 different types of wine (about 12,000 bottles altogether) and a small tasting bar on an area of about 70m2, spread over two levels and with no space for storage.

Weinhandlung Kreis by Furch Design and Production

From the outset it was clear that this was not manageable with traditional wooden shelving, crates or boxes. The use of space has been optimised for the benefit of the product - the shelf disappeared and storage became shop. This shop should consist just of wine and no furniture – similar to a spreadsheet, which is full of data without wasting any space on structure.

Weinhandlung Kreis by Furch Design and Production

An important aspect was the exact positioning and organisation of the various types of bottles in the shelf. A vertical sort sequence was developed, derived from the columns in a spreadsheet. Each element can carry 25 bottles, with the carries attached five cartons of wine can be stored in each of them.

Weinhandlung Kreis by Furch Design and Production

The usual romantic and idealised aesthetic of wine culture – oak furniture; earthy hues – was reinterpreted according to the cool self-conception of many young winemakers, which is also reflected in many of the new labels on bottles. It quickly became clear that the manually crafted installation we first had in mind had to be replaced with a industrially produced serial product to match the required standards of precision, function and aesthetics.

Weinhandlung Kreis by Furch Design and Production

386 'fourpointeight' shelves were installed in a range of 21 colours: to soften the hard-edged industrial product, to give it some lightness and warmth, to create a sense of orientation and eventually to provide the location with some attention to the public.

Weinhandlung Kreis by Furch Design and Production

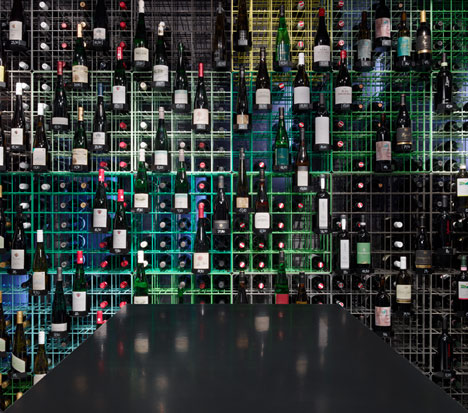

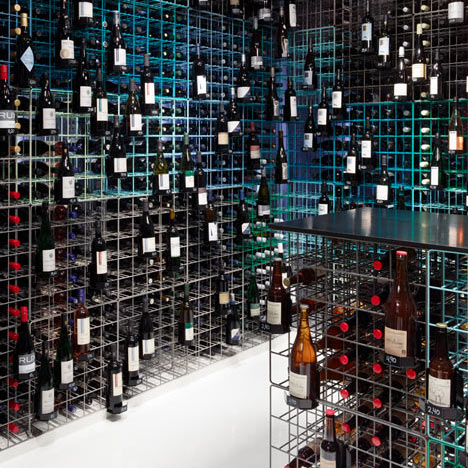

These elements thus serve as a storage area, the visually appealing presentation of wine happens via a metal carrier, which lets the individual bottle float in front of the grid. To stage the installation the surrounding walls were rendered with black lime plaster, backlights were installed to add depth and the resin floor was made bright to let the light appear from below. A small tasting bar was installed in a display window. Customers can sit on a bench in the window and enjoy a glass of wine and some regional 'tapas'.

Weinhandlung Kreis by Furch Design and Production

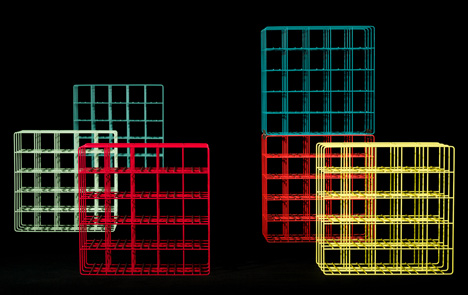

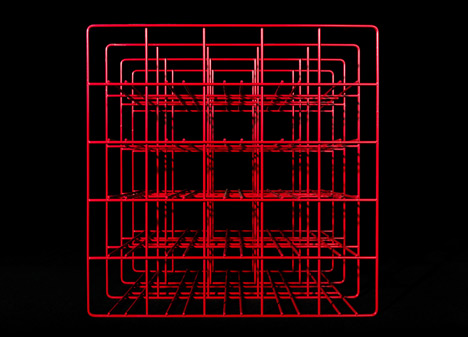

The shelving element – 'fourpointeight' – Steel wire 4,8 mm, powder-coated:

4 prefabricated wire-grid mats, welded in two levels, are connected upright with 5 reclined wire-fans to create a spatial wire structure with the dimensions 520mm (w) x 520mm (h) x 350mm (d). The wire mats act as statically effective layers – the 5 wire-fans connect them to each other. These fans are equipped with runners, which enable the shelf to accommodate 98% of all established bottle formats elegantly. One of these elements can carry 25 bottles of wine. A circumferential wire with bend edges adds style and lightness.

Weinhandlung Kreis by Furch Design and Production

The powder coating provides protection (the shelf from corrosion, the bottles from damage) and colour, but also dampens against vibration and clanging. The robot-welded steel wire piece fourpointeight was developed up to serial production in cooperation with our manufacturer. They are added modularly to each other with a connector consisting of two metal semi-shells, which are bolted together.

Weinhandlung Kreis by Furch Design and Production

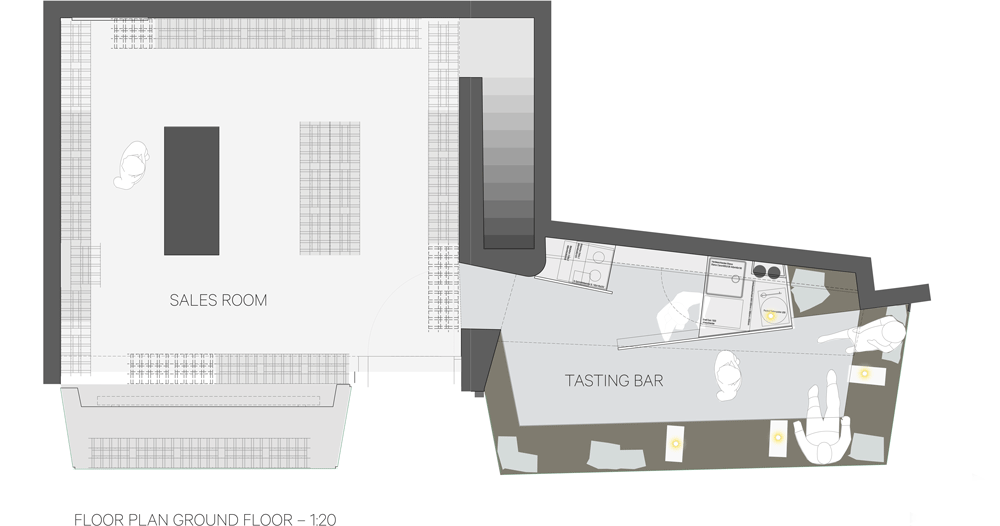

Ground floor plan – click above for larger image

fourpointeight can be endlessly added to each other in pixel logic, gaps and cantilevers are possible. Spatial structures can be built up to a height of six elements (statically certified). The carriers for the individual bottles are made of bent sheet metal, which are suspended from the grid and secured against inadvertent dislocation with an O-ring.

Weinhandlung Kreis by Furch Design and Production

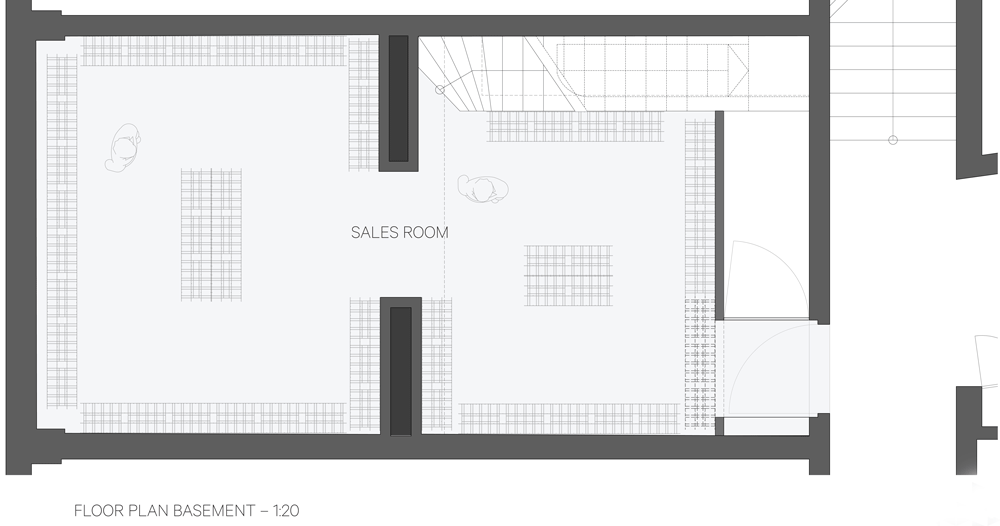

Basement plan – click above for larger image
