MIT engineers complete world's first flight of plane without any moving parts

MIT engineers complete world's first flight of plane with no moving parts

Engineers at the Massachusetts University of Technology have built an ion-powered plane that flies without propellers or turbines, and requires no fossil fuel.

Instead, the plane is powered by an "ionic wind", or electro-aerodynamic thrust. This comes from the movement of ions – electrically charged atoms or molecules.

In a world first, the MIT team flew their plane, which has no moving parts and looks like a glider, across a 60-metre gym.

Technology could one day propel passenger planes

While the plane built by the MIT team is small — its wingspan is just five metres — the researchers say that one day, the technology could partly propel passenger planes, as part of a more fuel-efficient hybrid model of aircraft.

In the meantime, the ionic wind could be used in place of propellers to make silent drones.

MIT plane designed by engineers to fly without any moving parts

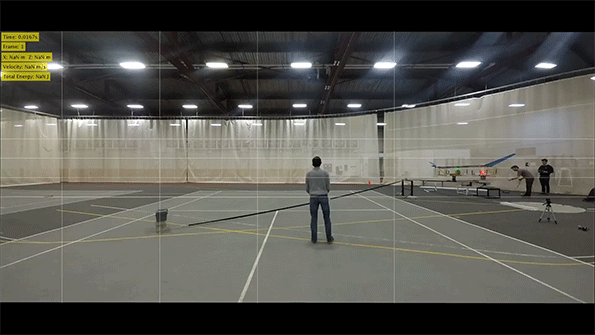

The MIT team flew their plane across a 60-metre gym

"This is the first-ever sustained flight of a plane with no moving parts in the propulsion system," said team lead Steven Barrett, an associate professor of aeronautics and astronautics at MIT.

"This has potentially opened new and unexplored possibilities for aircraft which are quieter, mechanically simpler and do not emit combustion emissions."

Plane flies using electro-aerodynamic thrust

The plane flies using a propulsion method hobbyists have been toying with for some time, using smaller craft.

Electro-aerodynamic thrust is produced when a current is passed between a thick and a thin electrode, creating wind in the air between them. When sufficiently high voltage is applied to the electrodes, it generates enough wind to propel a small aircraft.

The wind is really a flow of ions, colliding millions of times with other air molecules as they're drawn to the negatively charged thicker electrodes.

On MIT's plane, this scenario is realised through an assemblage of wires strung along the plane like fencing — thin wires at the front and thick wires at the back.

Lithium-polymer batteries in the fuselage of the plane are used to charge the wires with 40,000 volts of electricity.

Project is nine years in the making

Barrett has been working on the project for nine years, driven by the desire to make a plane with no moving parts and hardly any noise or exhaust.

He then came across the concept of ionic wind, and though it was thought to be more limited in its usefulness, Barrett did some "back-of-the-envelope calculations" while travelling and found that it could be a viable propulsion system.

MIT plane designed by engineers to fly without any moving parts

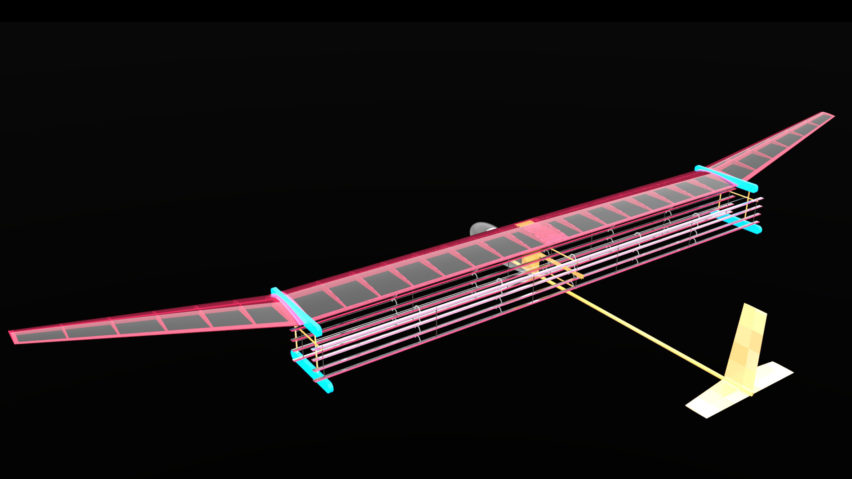

The plane has no moving parts and looks like a glider

"It turned out it needed many years of work to get from that to a first test flight," he said. "This was the simplest possible plane we could design that could prove the concept that an ion plane could fly."

Several test flights successful

Barrett and his team successfully flew the craft for 60 metres — the length of the largest indoor space they could find, MIT's duPont Athletic Center gymnasium. They repeated the feat over multiple tests.

"It's still some way away from an aircraft that could perform a useful mission. It needs to be more efficient, fly for longer, and fly outside."

The team have published their findings this week in the journal Nature.

The research will be of interest to engineers in the aeronautics industry, which is looking for ways to cut the carbon emissions of planes.

For smaller craft, electric vertical take-off and landing (EVTOL) technology is a popular area of research and development, with Rolls-Royce and Uber among the companies currently developing such vehicles.
