Natural History Museum of Utah by Ennead Architects and GSBS Architects

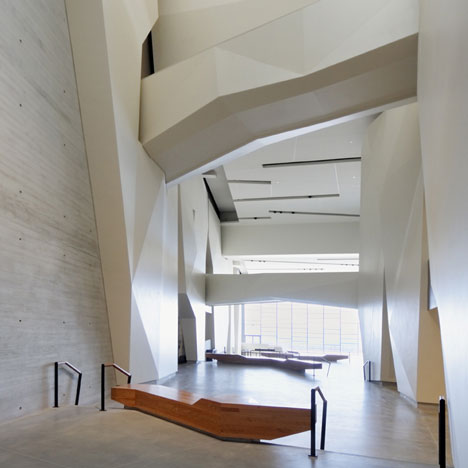

Faceted rock-like walls line a towering atrium inside a museum of natural history that opened this week in Salt Lake City.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Above: photograph is by Stuart Ruckman

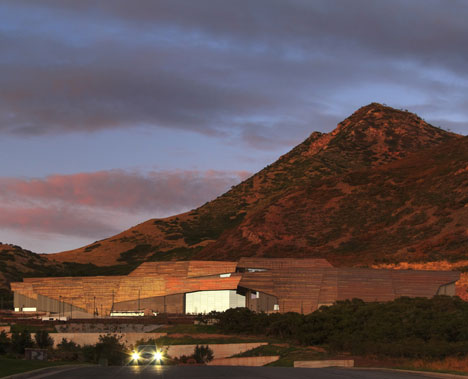

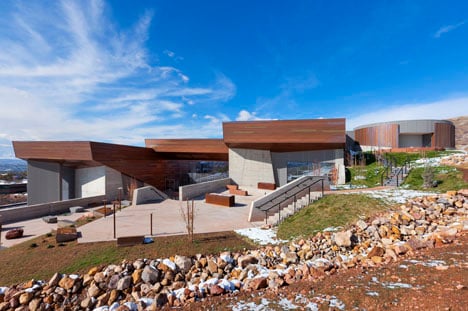

Designed by Todd Schliemann of New York studio Ennead Architects, the Natural History Museum of Utah is arranged on a series of stepped plates that climb a hillside.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Above: photograph is by Stuart Ruckman

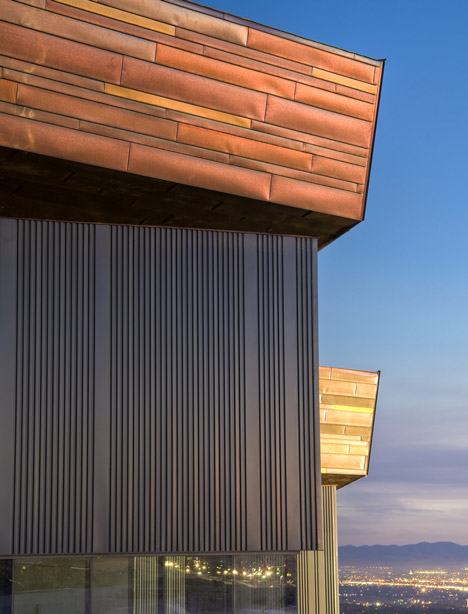

Shimmering copper panels wrap the upper floors of the five-storey building, above a base of concrete and glazing.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

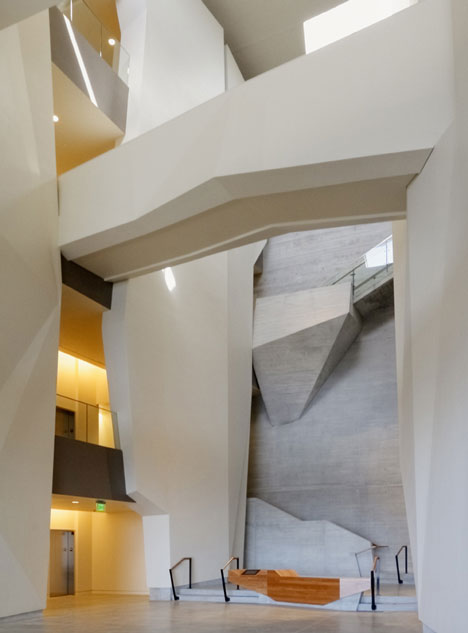

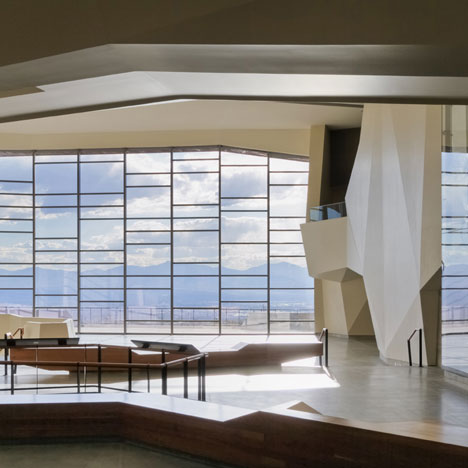

The 18-metre-high atrium divides the building into two halves, separating exhibition areas in the south from research laboratories and offices to the north.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Bridges cross the atrium to connect galleries with research laboratories on the second and third floors.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Above: photograph is by Stuart Ruckman

Local firm GSBS Architects collaborated with Ennead Architects to deliver the building.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Above: photograph is by Stuart Ruckman

We recently published another museum with an impressive atrium - see our earlier story about an art museum in Israel.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Photography is by Jeff Goldberg/Esto, apart from where otherwise stated.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Here's some more text from Ennead Architects:


Natural History Museum of Utah
Salt Lake City, Utah 2011

The design for the new Natural History Museum of Utah embodies the Museum‟s mission to illuminate the natural world through scientific inquiry, educational outreach, mutual cultural experience and human engagement of the present, past and future of the region and the world. Positioned literally and figuratively at the threshold of nature and culture, the building is a trailhead to the region and a trailhead to science. Utah‟s singular landscape and the ways in which humans have engaged its varied character over time are the touchstone for an architecture that expresses the State's cultural and natural contexts.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Together with the interpretive exhibit program and landscape design, the architecture is intended to create an inspirational visitor experience and sponsor curiosity and inquiry. The building provides much-needed space to preserve, study and interpret the Museum‟s extraordinary collection of artifacts, and its exhibits explore and articulate natural history and the delicate balance of life on earth. The building houses advanced research facilities, supporting both undergraduate and graduate education at the University of Utah.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Above: photograph is by Ben Lowry

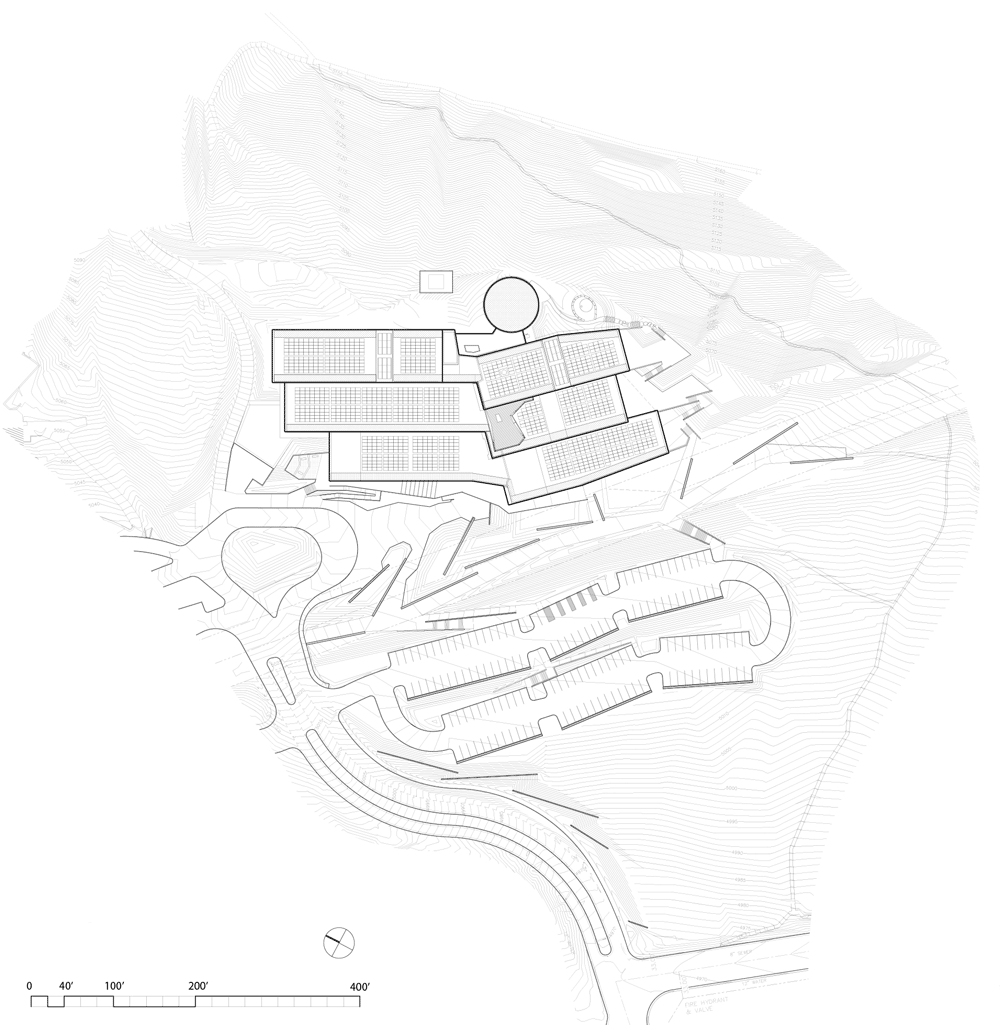

In the foothills of the Wasatch Range, the 17-acre site occupies a prominent place at the edge of the City and the University of Utah campus. Located on the high “bench” that marks the shoreline of the prehistoric pluvial Lake Bonneville that covered much of the Great Basin, the site offers breathtaking views of the Great Salt Lake, the Oquirrhs mountain range, Kennecott copper mines, Mount Olympus and Salt Lake City.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Above: photograph is by Ben Lowry

An extensive expedition across Utah in the summer of 2005 initiated the design process. This journey, whose goal was to investigate Utah‟s identity as the starting point for the development of a unique and context-based architectural design in the service of science and discovery, featured visits to cherished natural sites and discussions with the State‟s people. The influence of Utah‟s cultural landscape, the specific impact of the site and environmental imperatives and the influence of the Museum‟s institutional mission became the basis for the creation of a definitive architectural identity.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

The building is conceived as an abstract extension and transformation of the land: its formal and material qualities derive from the region's natural landscape of rock, soil, minerals and vegetation. Further reinforcing the essential continuity of nature and human experience is the landscape design strategy, which, in blurring the distinction between natural vegetation and topography and intentional interventions, places humans at the nexus of environmental stewardship.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

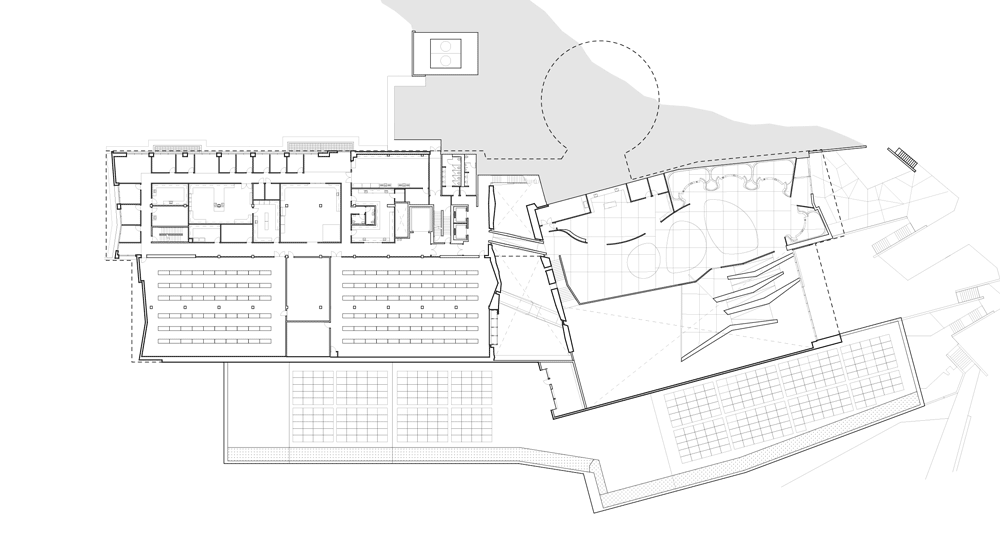

Click above for larger image

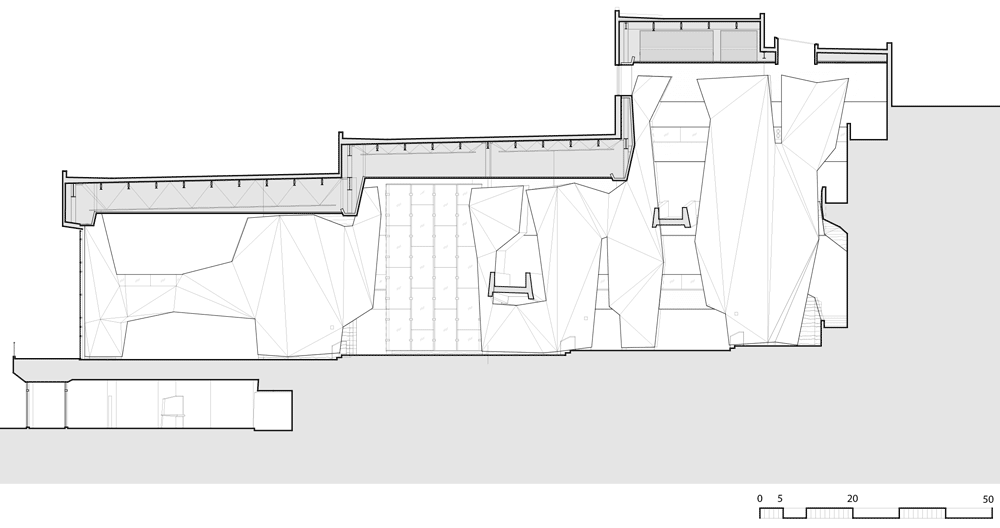

The Museum rests on a series of terraces that step up the hill and lay along the contours of the site with minimal disruption to the adjacent natural landscape; its powerful jagged profile references the mountains beyond. Intended to play a seminal role in enhancing the public‟s understanding of the earth‟s resources and systems as well as be a model for responsible and environmentally sensitive development, the Museum is designed to achieve LEED Gold certification.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

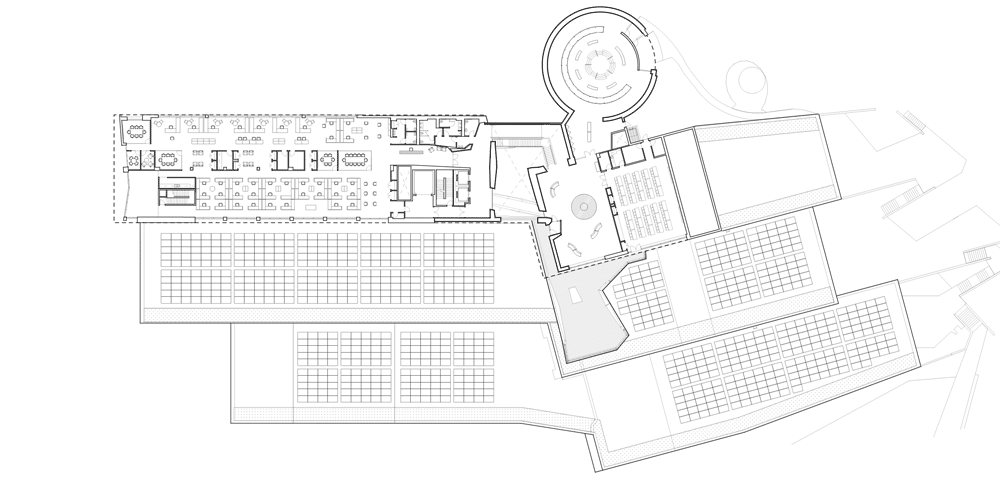

Click above for larger image

A voluminous central public space – the Canyon – divides the building programmatically into an empirical (north) wing and an interpretive (south) wing and provides access to both. Spaces in the north wing support formal scientific exploration and an objective understanding of our world; these include research laboratories, conservation labs, collection storage and administration.

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Click above for larger image

The south wing houses exhibits, whose narratives interpret the Museum‟s extraordinary collections and guide the public through an exploration of the delicate balance of life on earth and its natural history. In the Canyon, bridges and vertical circulation organize the visitor sequence; views south across the basin expand the museumgoer experience; shafts of sunlight penetrate the apex, suffusing the space with natural light; and a grand vertical scale uplifts and inspires.

Click above for larger image

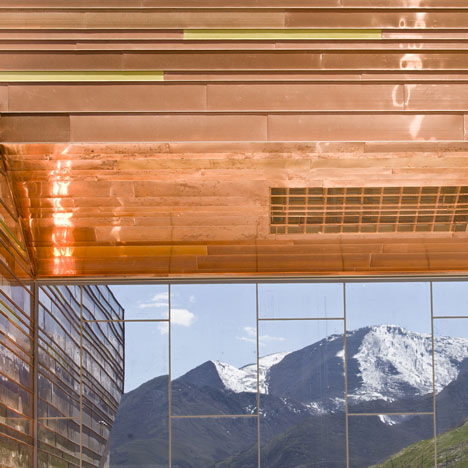

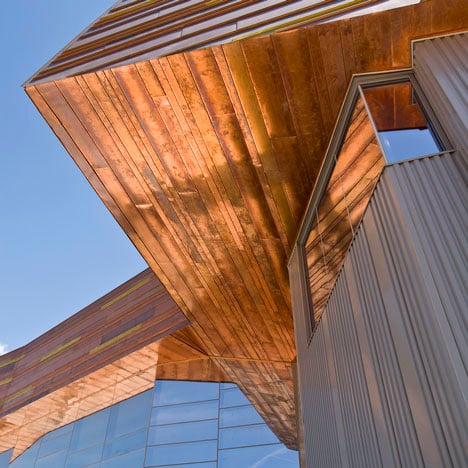

The material quality of the building‟s exterior roots it in the landscape by recalling Utah‟s geological and mineralogical history and expressing the design as natural form. At its base, board-formed concrete makes the transition from the earth to the manmade. Copper panels constitute the skin of the building, extending from the building‟s volume at angles that reference the geophysical processes that created the metal.

Click above for larger image

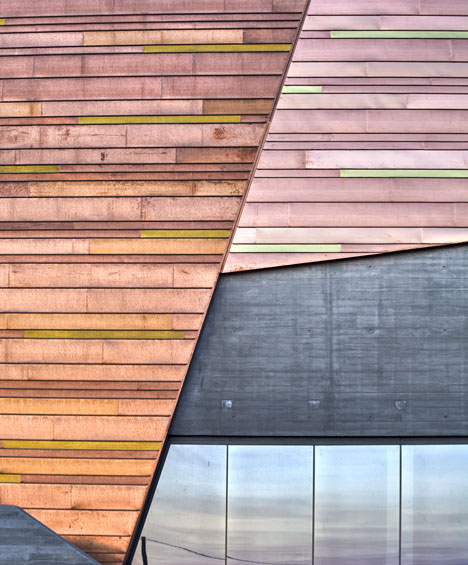

Accent panels of copper-zinc alloy enhance the subtle variegation of the copper‟s natural patina. The standing seam copper façade is articulated in horizontal bands of various heights to emulate geological stratification on the building skin.

Natural History Museum of Utah by Ennead Architects ans GSBS Architects

Click above for larger image

Design Team
Design Architect: Ennead Architects
Design Partner: Todd Schliemann FAIA
Management Partner: Don Weinreich AIA, LEED AP

Natural History Museum of Utah by Ennead Architects ans GSBS Architects

Click above for larger image

Project Designers: Thomas Wong AIA, Alex O‟Briant AIA
Project Architects: John Majewski AIA, Megan Miller AIA, LEED AP
Interiors: Charmian Place, Katharine Huber AIA

Natural History Museum of Utah by Ennead Architects and GSBS Architects

Click above for larger image

Project Team: Joshua Frankel AIA, Aileen Iverson, Kyo-Young Jin, Apichat Leungchaikul, Thomas Newman, Jarrett Pelletier AIA
Architect of Record: GSBS Architects
Principal-in-Charge: David Brems FAIA, LEED AP
Project Manager: John Branson AIA, LEED AP

Natural History Museum of Utah by Ennead Architects ans GSBS Architects

Click above for larger image

Project Architect: Valerie Nagasawa AIA
Interiors: Stephanie DeMott IIDA, Stacy Butcher LEED AP, Beccah Hardman
Project Team: Clio Miller AIA, LEED AP, Jesse Allen AIA, LEED AP, Bill Cordray AIA, Jennifer Still AIA, Eduardo De Roda, Felissia Ludwig, Cathy Davison, Todd Kelsey, Seth Robertson, Robert Bowman AIA
