Concrete education centre by Petr Hájek
is sunken into a park landscape

| 1 comment


Raw concrete ceilings are concealed beneath the faceted green roof of this environmental education centre in the Czech town of Vrchlabí, designed by Petr Hájek Architekti to sink into the topography of the surrounding parkland (+ slideshow).

KCEV House by Petr Hajek Architekti

Prague office Petr Hájek Architekti designed the Krkonoše Mountains Centre for Environmental Education (KCEV) at a park that also contains a 16th century castle, and it sits alongside an administrative building for the nearby Krkonoše Mountains National Park.

KCEV House by Petr Hajek Architekti



To minimise its visual impact on the surrounding parkland, the building is partly submerged in the sloping site and its ridged roof is covered in growing sedum that acts as a camouflage.

KCEV House by Petr Hajek Architekti

A passageway separates the new building from the existing administrative headquarters and leads to the entrances of both buildings. The new centre is aimed at promoting ecological awareness, and contains a conference room, classroom, exhibition space and research laboratories.

KCEV House by Petr Hajek Architekti

The undulating geometric surfaces of the building's roof directly reference slopes found in the Krkonoše mountain range, which marks the border between the Czech Republic and Poland.

KCEV House by Petr Hajek Architekti

Metal gutters in the gaps between the roof's angled planes are intended to represent mountain ridges and break up the natural appearance of the sedum surface.

KCEV House by Petr Hajek Architekti

The sheer wall facing the existing building is fully glazed and allows visitors to observe lessons taking place in a classroom on the basement level, which features laboratory benches and library shelving.

KCEV House by Petr Hajek Architekti

A doorway next to the staircase in the teaching facility connects this room to a triangular exhibition space, which adjoins an auditorium with banked seating for 76 people.

KCEV House by Petr Hajek Architekti

The triangular plan of the exhibition space sits below a section that is spliced from the rear of the building to accommodate glazed walls at ground-floor level, allowing natural light to reach the rooms below.

KCEV House by Petr Hajek Architekti

Structural concrete used for the building's shell is left exposed on internal walls and ceilings that retain the faceted surfaces of the exterior.

KCEV House by Petr Hajek Architekti

Plywood with a prominent grain adds a natural counterpoint to the raw concrete and is used for flooring, furniture and infrastructure including the staircases and shelving.

KCEV House by Petr Hajek Architekti

The design of the internal structures was based on the dimensions of the raw wooden sheets to reduce the amount of waste material.

KCEV House by Petr Hajek Architekti

A car park is also nestled beneath the sloping concrete ceiling and illuminated by daylight entering through the glazed wall.

Photography is by Benedikt Markel.

Here is some project information from the architects:


KCEV (Krkonoše Mountains Centre for Environmental Education)

The building is situated into a city park in front of the administration building of KRNAP (Krkonoše Mts. National Park). The building geometry is derived from the geometry of Krkonoše Mountains. Every edge or slope on the building could be found in its real, natural topography. In between of the metal vectors, which represent the mountain ridges, there is growing sedum.

KCEV House by Petr Hajek Architekti

The new building is set apart from the existing one to create an entrance platform. This public space atmosphere is supported by fully glazed side wall through which it is possible to look into the building and indirectly become a part of an ongoing lecture or seminar inside of the building.

KCEV House by Petr Hajek Architekti

The building itself is energy efficient and should represent the ideas of the National park and preservation of nature. Main bearing structure and underground walls are made out of face concrete. Inner partitions and furniture are made out of plywood. Design of furniture and dimensions of its basic parts are adapted for the size of plywood plates and because of that there are no wasted residues.

KCEV House by Petr Hajek Architekti

Location: Vrchlabi, Czech Republic
Client: Krkonoše Mountains National Park Administration
Architecture firm: Petr Hajek Architekti
Architect: Petr Hájek
Participation on the concept: Helena Línová, Michal Volf
Design participation: Cornelia Klien, Andrea Kubná, Ondřej Lipenský, Helena Línová, Martin Prokš, Martin Stoss, Michal Volf, Jan Kolář
Graphic designer: Kristina Ambrozová
Civil engineer: Jan Kolář
Geometry of the shell: Jaroslav Hulín
Portable furniture: Cornelia Klien, Martin Stoss

KCEV House by Petr Hajek Architekti
Exploded axonometric diagram - click for larger image



KCEV House by Petr Hajek Architekti

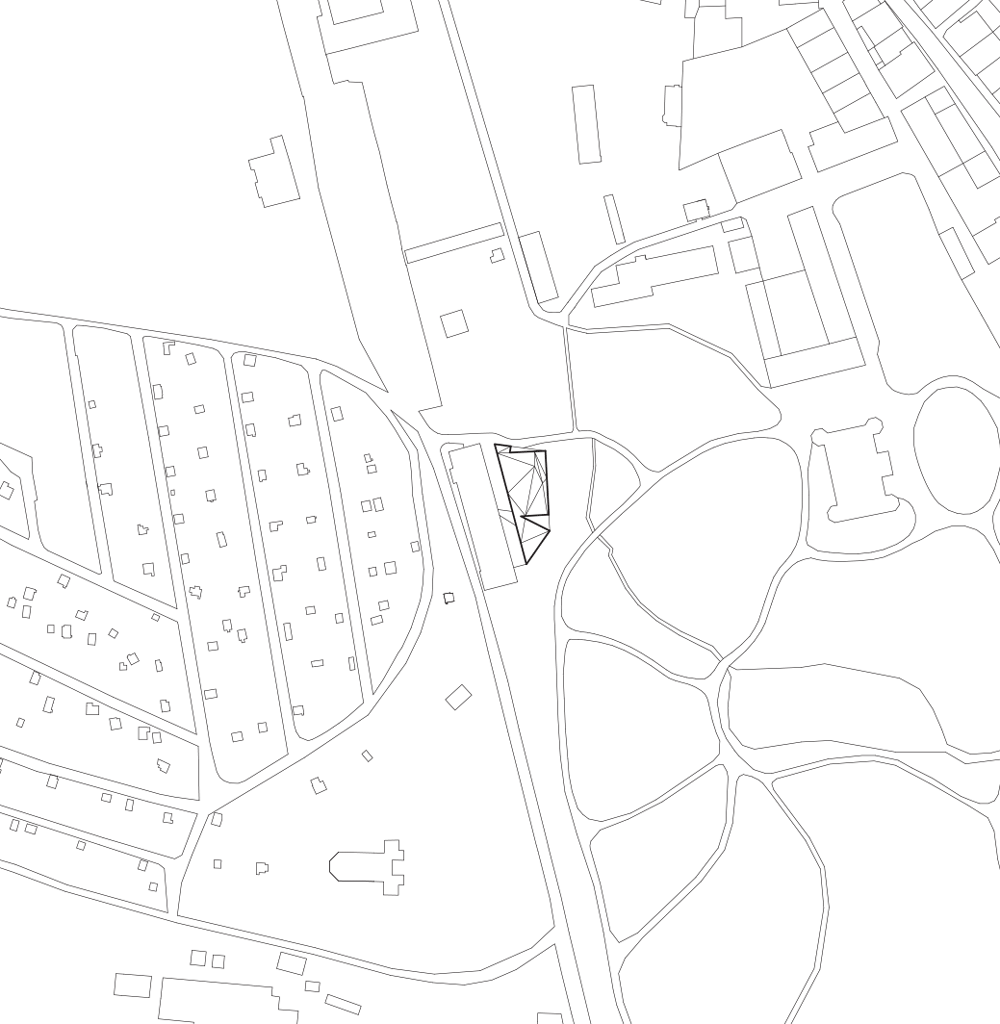

Site plan - click for larger image
KCEV House by Petr Hajek Architekti

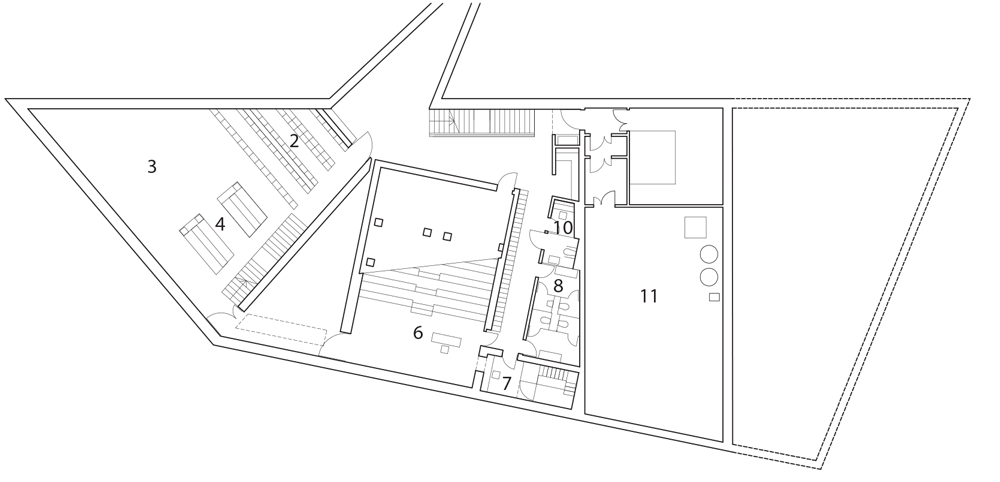

Basement plan - click for larger image
KCEV House by Petr Hajek Architekti

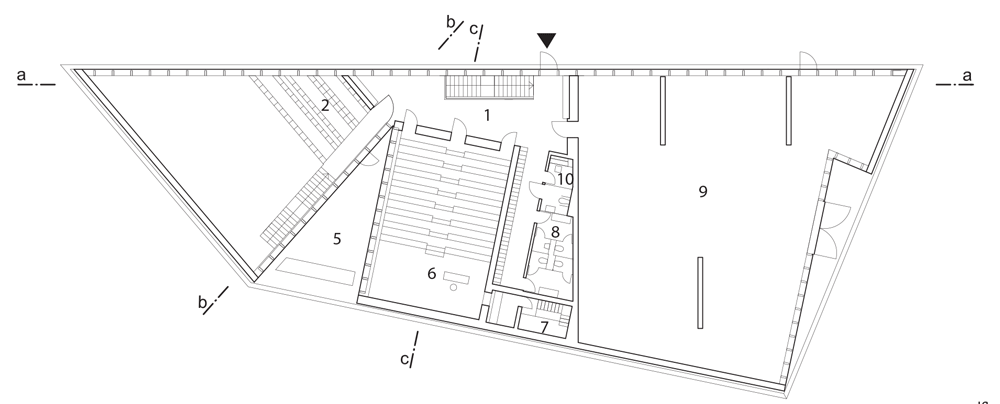

Ground floor plan - click for larger image
KCEV House by Petr Hajek Architekti

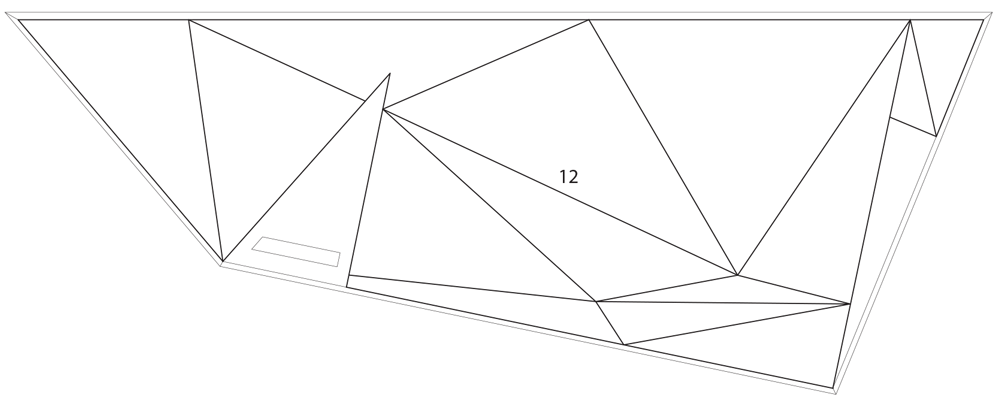

Roof plan - click for larger image
