FAM Architekti's Lake Cabin provides
a waterside retreat in a Czech forest

| 5 comments


This wedge-shaped cabin in the Czech Republic, by Prague studio FAM Architekti, has a folding screen set into one of its slatted timber facades to open the interior out to a nearby lake (+ slideshow).

Lake Cabin by FAM Architekti

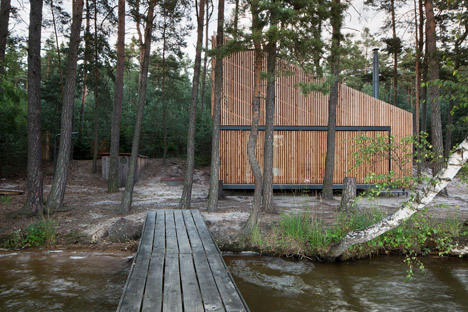

The building replaces an old cabin on a site beside Lake Mácha in North Bohemia and was designed by FAM Architekti – the Prague office of British firm Feilden+Mawson – as a year-round retreat for a client with a keen passion for yachting.



Erected within the same boundaries as the former 1970s cabin, which was lacking suitable insulation and infrastructure, the simple wooden structure offers an improved connection with the forested site.

Lake Cabin by FAM Architekti

"The main aim was to create a relaxing retreat that would visually connect to the lake and the dense woodland around the building – a structure that responds to its natural context," architect Pavel Nasadil told Dezeen.

Lake Cabin by FAM Architekti

Wood was chosen as the most suitable building material because of the cabin's environs and because the construction methods caused minimal disruption to the site.

Lake Cabin by FAM Architekti

"The lake is a holiday destination with timber construction already present in cottages and cabins," explained Nasadil. "We aimed at a lightweight building which would not embed itself in nature with concrete foundations, but was more sensitive."

Lake Cabin by FAM Architekti

The cabin is raised above the forest floor on steel screws that allow the sandy terrain to continue underneath.

Lake Cabin by FAM Architekti

The use of prefabricated construction techniques also helped to reduce the build time for the project, which was limited by the harsh winter weather.

Lake Cabin by FAM Architekti

Components for the timber framework were laser cut and transported to the site, where they were assembled in just one and a half weeks. The client oversaw the rest of the building process over a period of ten months.

Lake Cabin by FAM Architekti

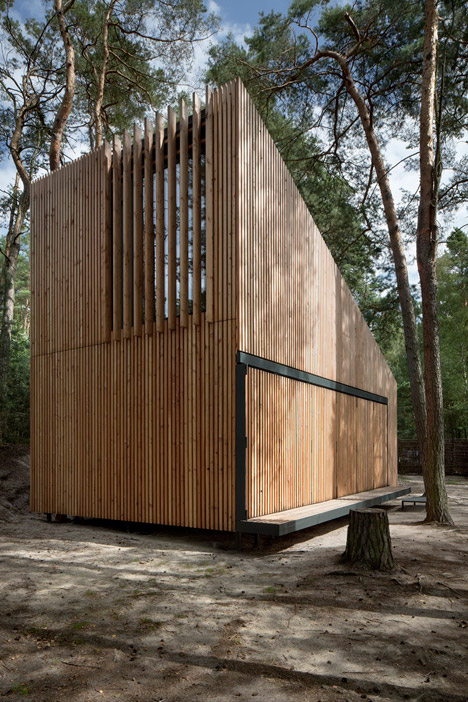

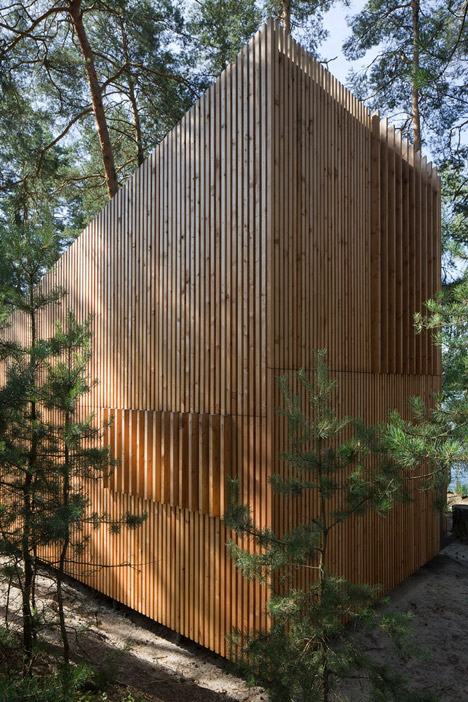

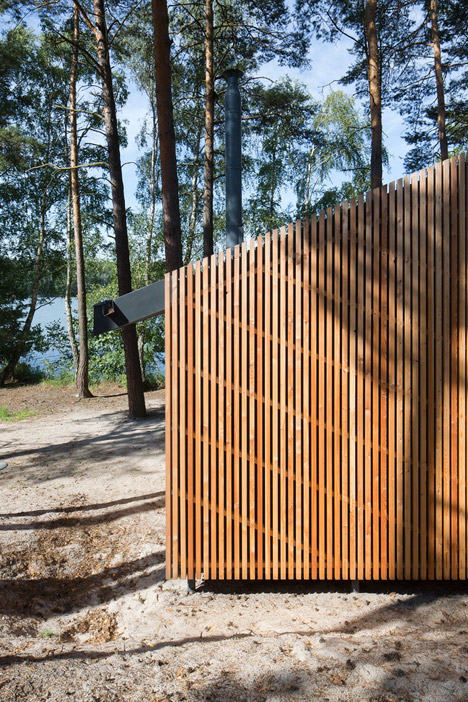

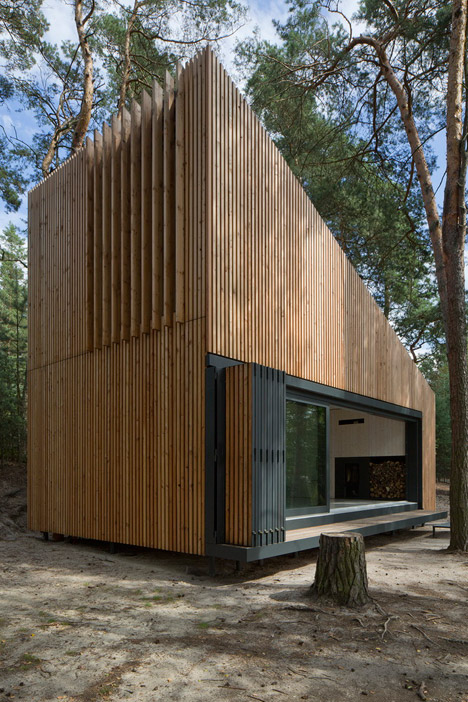

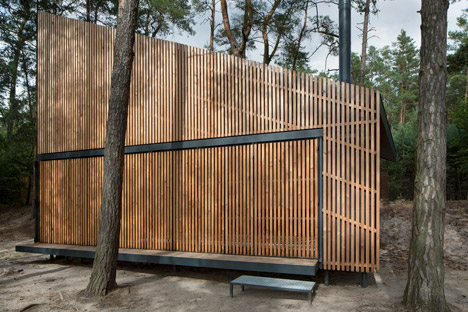

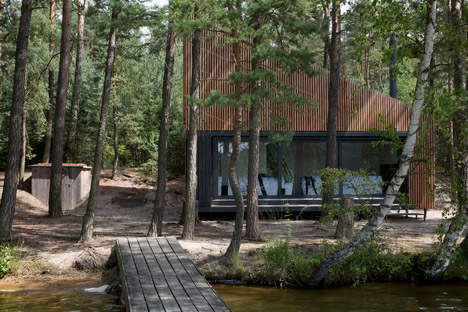

Vertical larch battens cladding the cabin's exterior reference the trunks of the surrounding pine trees and continue across the folding shutters, creating a sealed facade that protects the cabin when closed.

Lake Cabin by FAM Architekti

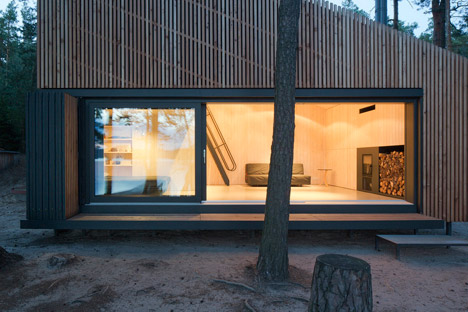

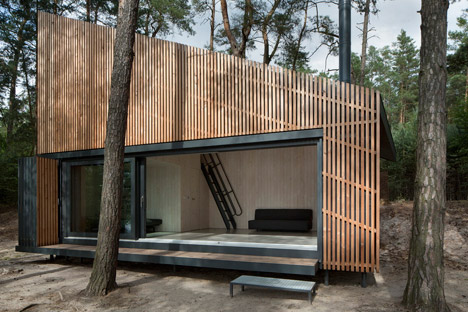

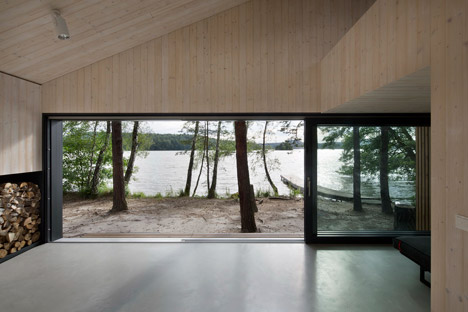

When fully opened, the shutters reveal a glazed wall that provides an expansive view of the lake. The glass surface is split into sections that slide open to connect the interior with a small decked space outside.

Lake Cabin by FAM Architekti

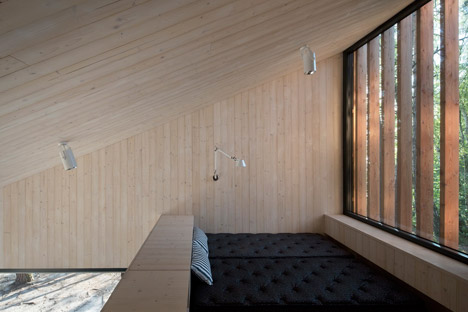

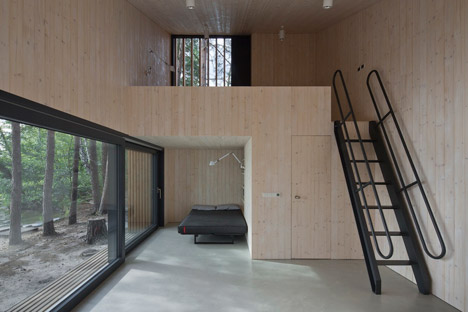

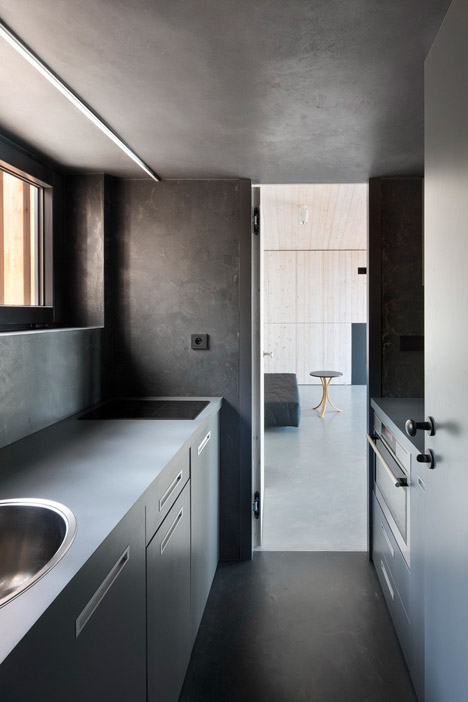

The building's steeply pitched shape is determined by the internal spatial arrangement, with the taller end accommodating a sleeping platform, above a basic kitchen, toilet and shower.

Lake Cabin by FAM Architekti

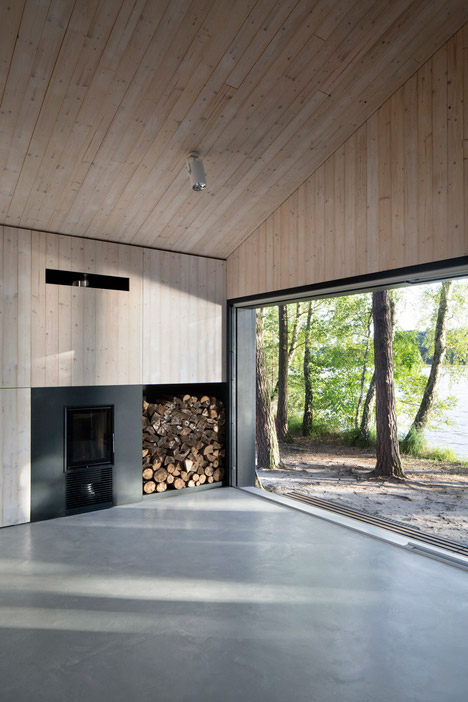

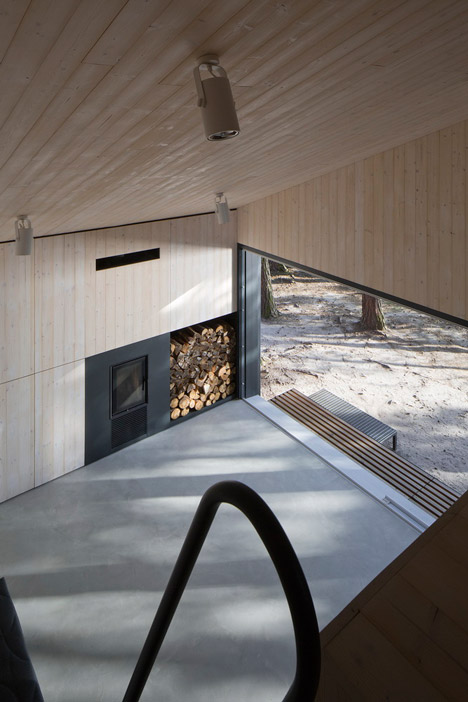

Timber cladding treated with a white oiled finish is applied to the walls and sloping ceiling of the main space to give it a unified "cave-like" appearance. A fireplace and log store are built into the end wall, which also contains hidden storage.

Lake Cabin by FAM Architekti

Cement screed flooring with a sandy tone was added to create a visual link with the ground outside.

Lake Cabin by FAM Architekti

The architects also designed a small shed next to the cabin for storing surfboards, barbecues and other equipment for outdoor activities.

Lake Cabin by FAM Architekti

Other projects by FAM Architekti include a family retreat in the mountain village of Pernink with windows scattered across three sides of a simple white box.

Lake Cabin by FAM Architekti

Photography is by Tomas Balej.

Lake Cabin by FAM Architekti

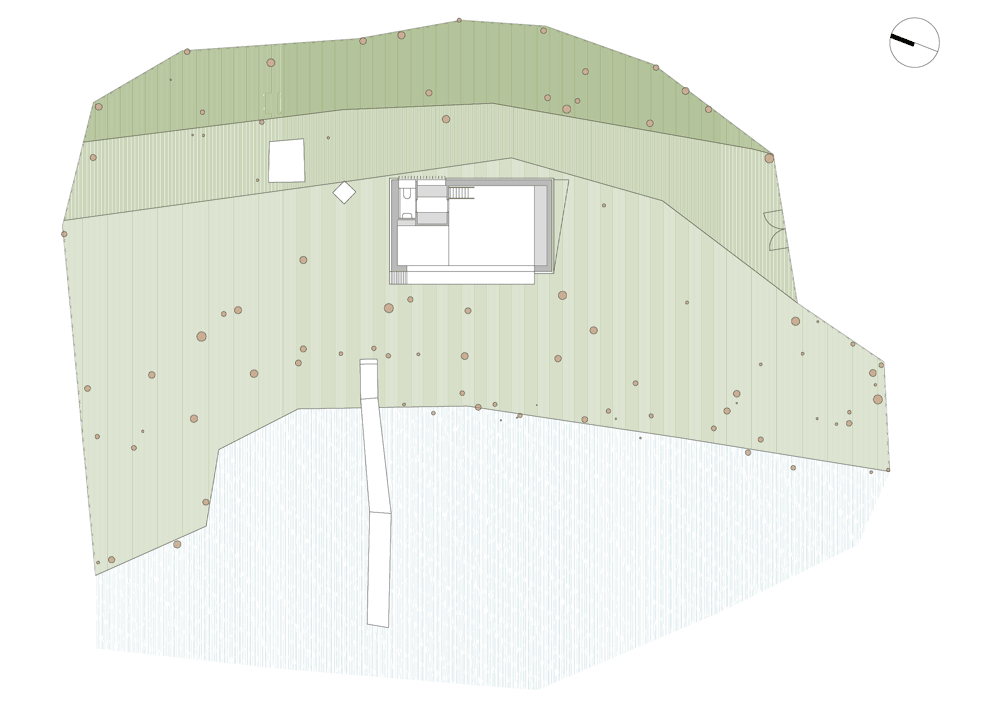

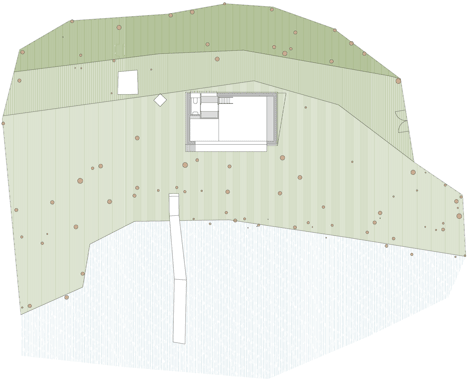

Site plan – click for larger image
Lake Cabin by FAM Architekti

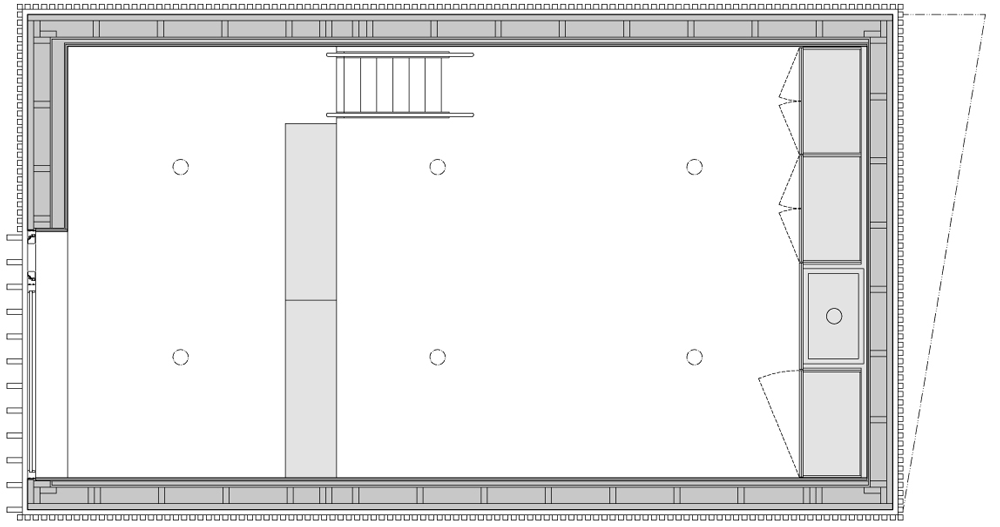

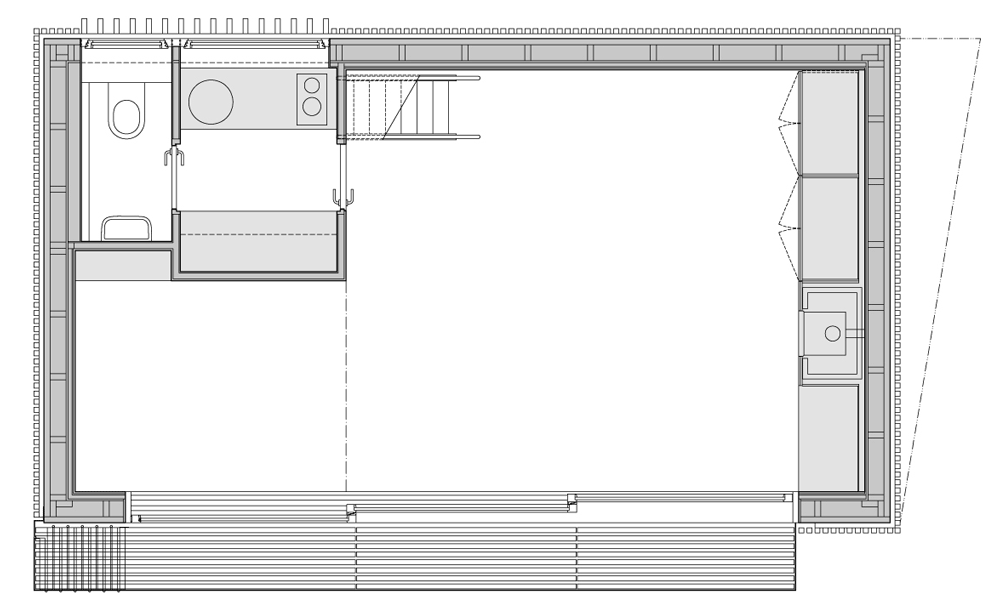

Ground floor plan – click for larger image
Lake Cabin by FAM Architekti
Mezzanine plan – click for larger image
Lake Cabin by FAM Architekti
Long section – click for larger image
Lake Cabin by FAM Architekti

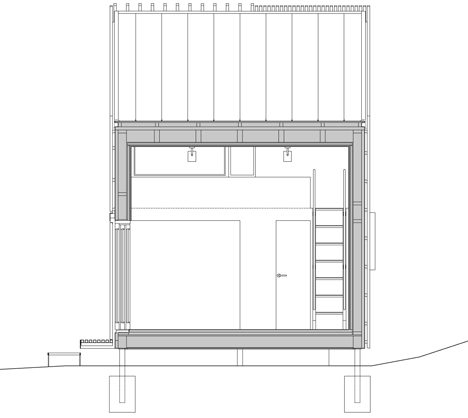

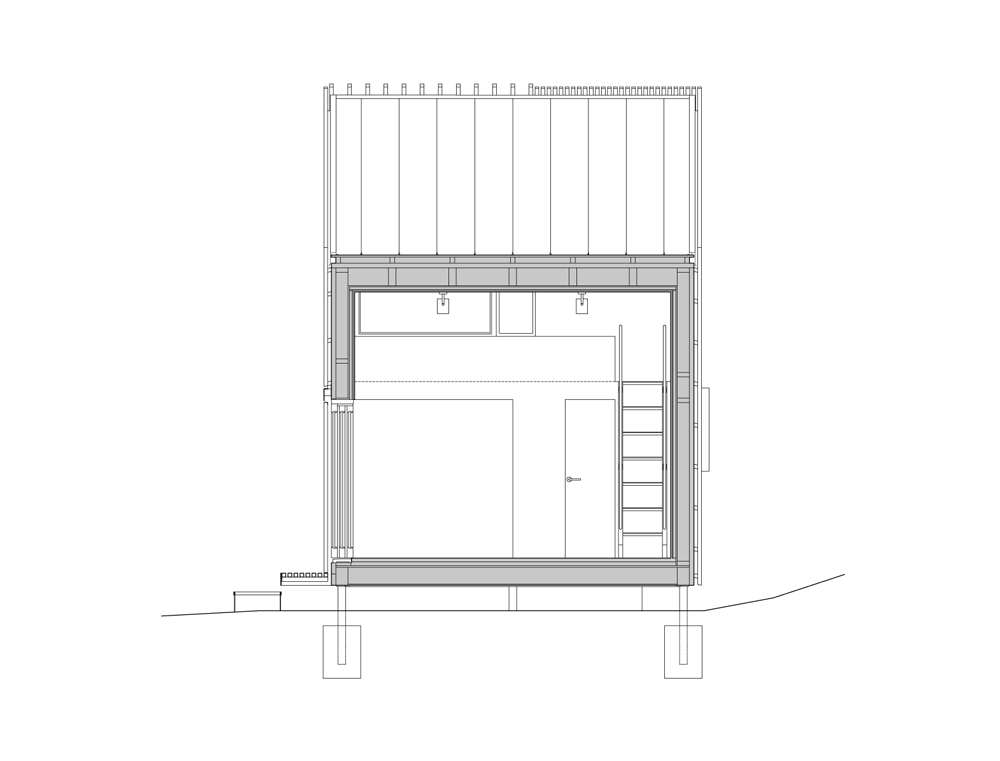

Cross section – click for larger image
