Singapore national stadium boasts world's largest free-spanning dome

World Architecture Festival 2014: Singapore's new national sports stadium lays claim to the world's largest free-spanning dome, measuring 310-metres across, and its roof can be opened or closed to suit the tropical climate (+ slideshow).

Singapore Sports Hub by Singapore Sports Hub Design Team

The design team – a group of engineers and designers from Arup, DP Architects and AECOM – created the Singapore Sports Hub on a 35-hectare waterfront-site in Kallang, south-east Singapore.

Singapore Sports Hub by Singapore Sports Hub Design Team

The team designed the vast domed structure to become the state's national stadium, as part of a complex of buildings that also includes an indoor stadium, water-sports centre and a museum – known collectively as the Singapore Sports Hub.

It was named sports building of the year at this year's World Architecture Festival.

Singapore Sports Hub by Singapore Sports Hub Design Team

Up to 55,000 people can be seated beneath the curving canopy of the 310-centre roof.

"A dome roof is a very iconic architectural and structural form," said project architect Clive Lewis.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Christian Richters

Responding to the tropical climate, panels within the roof can slide open and closed to shelter the pitch and auditorium from heavy rain, or to keep the space cool in high temperatures.

According to the team, the roof is left open when the stadium is not in use, helping to keep the grass pitch in good condition.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Christian Richters

The moving roof sections are made from translucent ETFE plastic, chosen for its strength and thermal properties.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Christian Richters

The panels are supported on metal rigging that arches over the pitch, connecting to a framework that covers the auditorium on either side of the stadium.

Singapore Sports Hub by Singapore Sports Hub Design Team

Air-conditioning is piped into the structure beneath rows of red plastic seats.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Poh Yu Khing

A lightweight skin of metal sheeting clads the steel frame, weighing just 8,000 tonnes – a relatively streamlined mass for the large-scale structure.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Arup/Franklin Kwan

"For the national stadium we wanted the cladding to express the form and geometry of
 the structure below, which we achieved through
 the articulation of the super lightweight cladding systems," said Lewis.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Christian Richters

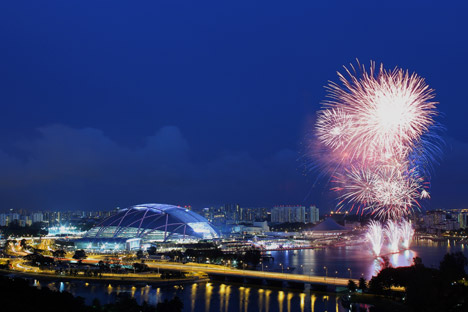

A lattice of arching metal beams criss-cross over the exterior of the dome. Bulbs integrated into the metalwork light the stadium at night.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Arup/Franklin Kwan

The ends of the beams meet the ground beyond the facades, creating a double-layer structure and framing a covered walkway that rings around the stadium.

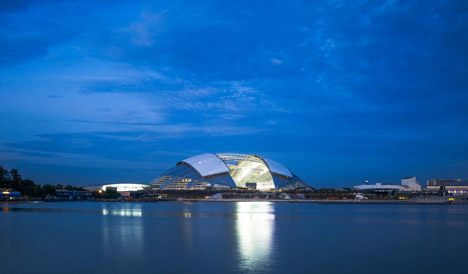

A gap in the water-facing end of the stadium is left open to the air to frame the city's skyline.

Singapore Sports Hub by Singapore Sports Hub Design Team
Photograph by Arup/Franklin Kwan

The stadium is used for a range of sports activities including athletics, cricket, football and rugby, as well as music concerts.


Project credits:

Architecture: Arup Associates
Engineering: Arup
Architect of Record: DP Architects
M&E: Arup + Squire Mech
Landscape: AECOM

Singapore Sports Hub by Singapore Sports Hub Design Team
Exploded axonometric diagram – click for larger image
Singapore Sports Hub by Singapore Sports Hub Design Team

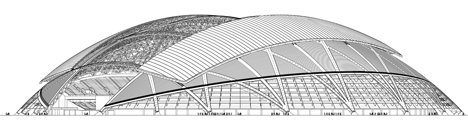

Drawing showing the roof open – click for larger image
Singapore Sports Hub by Singapore Sports Hub Design Team

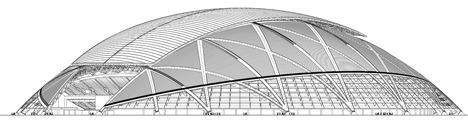

Drawing showing the roof closed – click for larger image
