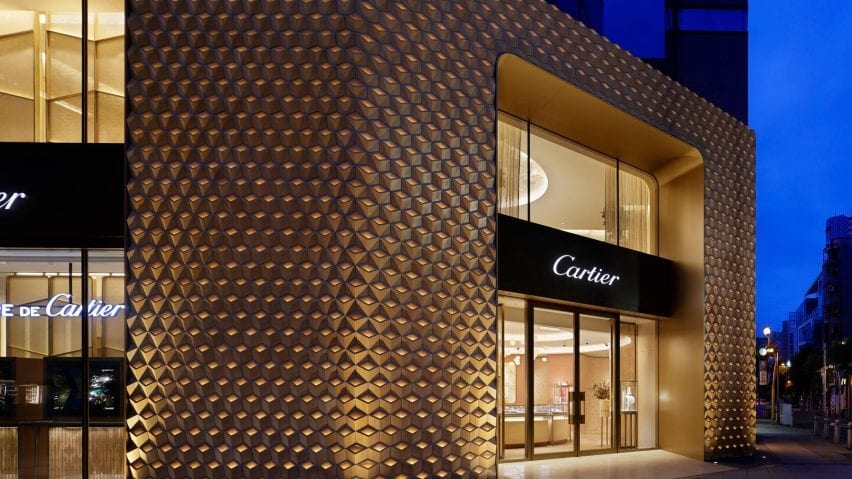

the store illuminates at night

Klein Dytham Architecture creates intricate wooden shop front for Cartier

Klein Dytham Architecture has created a decorative wooden facade featuring a pattern of interlocking three-dimensional blocks that are individually illuminated at night for a Cartier store in Osaka, Japan.

The store is situated on a corner of Shinsaibashi – the city's main shopping district – and shares an intersection with Apple, Nike and Burberry.

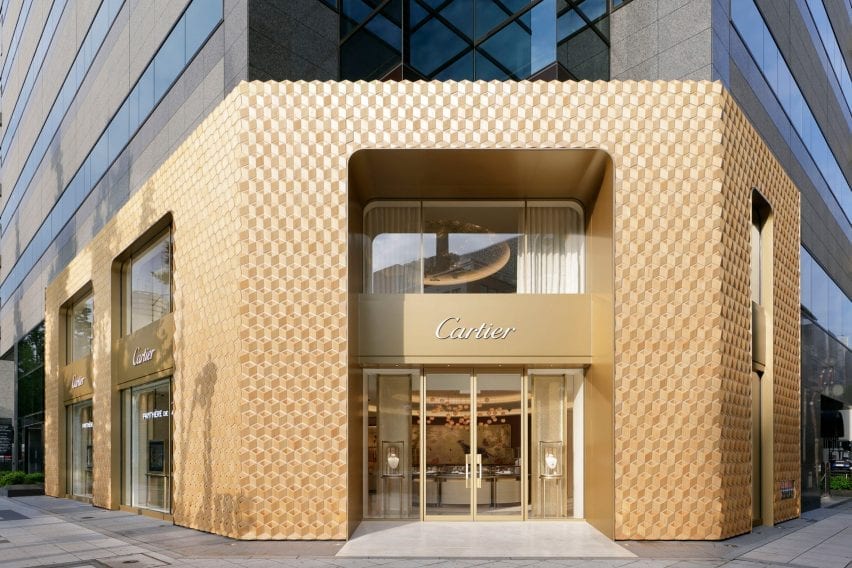

The Cartier store was covered in decorative wood by Klein Dytham Architecture
Top: the store is illuminated at night. Above: it has a Hinoki wood facade

Klein Dytham Architecture (KDa), which is based in Tokyo, designed the facade to contrast with the metal and glass exteriors of the surrounding buildings.

The wooden facade wraps around the angled corner of the existing building, introducing a warm and textured element to the streetscape.

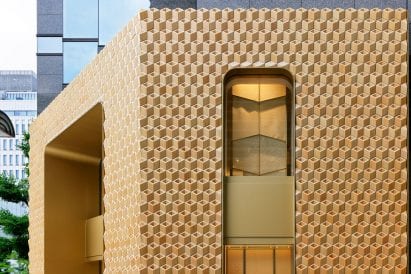

The store by Klein Dytham Architecture has a golden tone
Golden framed windows were placed on the side of the store

An entrance and windows on two sides were placed within double-height arches that allow views of both of the store's floors.

The facade is made from hinoki – a species of cypress native to central Japan. The wood is associated with the construction of historic temples, shrines and castles and was chosen for this project because of its warm tones.

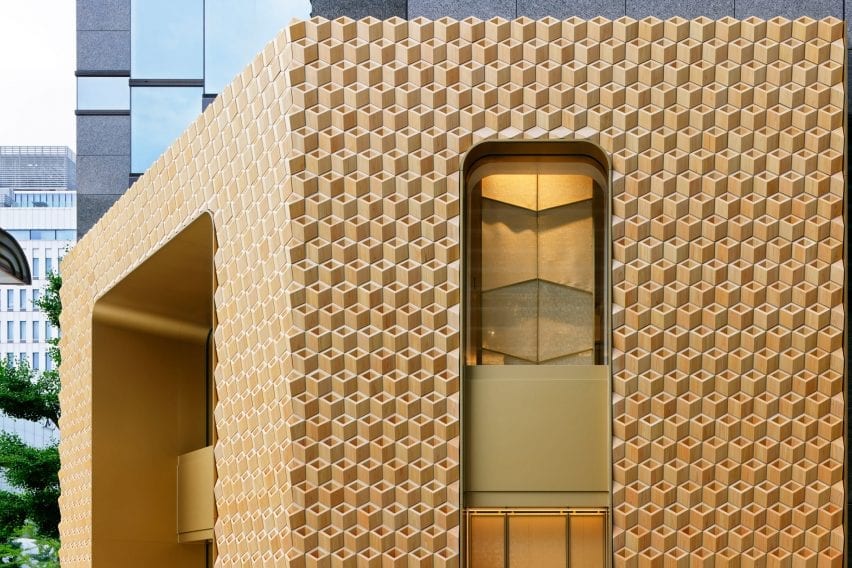

Klein Dytham Architecture created interlocking units for the facade
The facade uses over 2,500 individual handcrafted units

The new facade is squeezed into a 200-millimetre zone between the existing building and the boundary line. A framework made from recycled aluminium was erected to attach the hinoki panels to the structure.

The use of recycled metal and domestically sourced timber is intended to emphasise the project's sustainable credentials.

"To create an environmentally conscious structure that reflects Cartier's involvement in responsible jewellery, KDa looked to renewable and recycled sources, as well as local artisanship," said the studio.

Craftsmanship was another key focus for the project, which aims to reference the jewellery brand's artisanal approach as well as evoking Japan's history of traditional crafts.

"The geometric pattern of gently protruding interlocking diamonds takes inspiration from both classic Cartier jewellery and traditional Japanese hinoki masu (sake boxes)," claimed KDa.

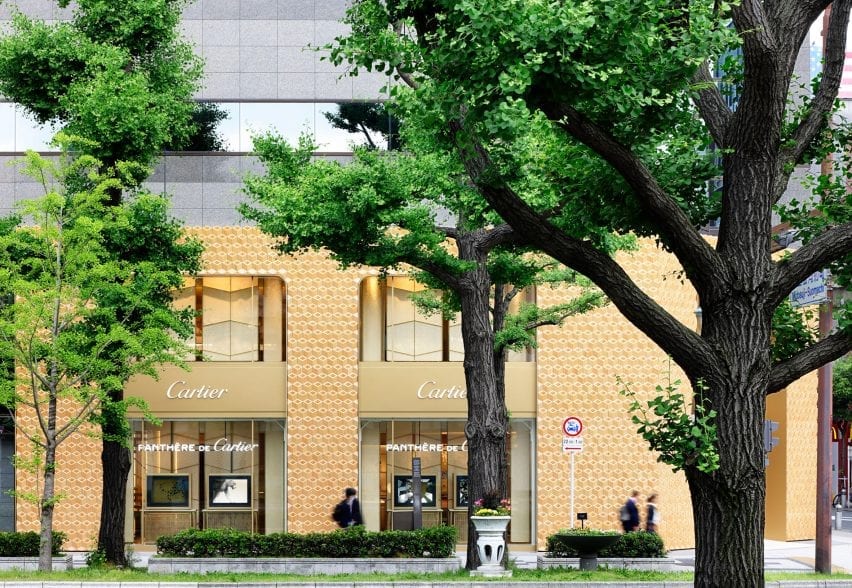

Greenery on the street contrasts with the store by Klein Dytham Architecture
Arched windows span the first floor of the building

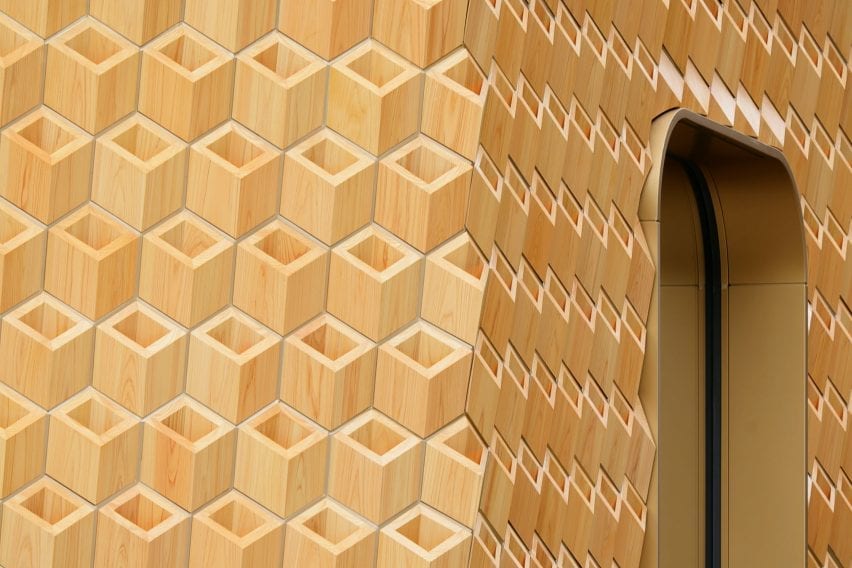

The facade, skirting and arched window details comprise more than 2,500 units handcrafted by Kyoto master carpenters using traditional joinery techniques.

Seasoned hinoki wood from 60 to 70-year-old trees was used to produce slightly protruding diamonds in 12 different shapes. The wood, which is naturally stable and weather resistant, was treated with a clear lacquer to provide enhanced UV resistance.

The wooden by Klein Dytham Architecture illuminate

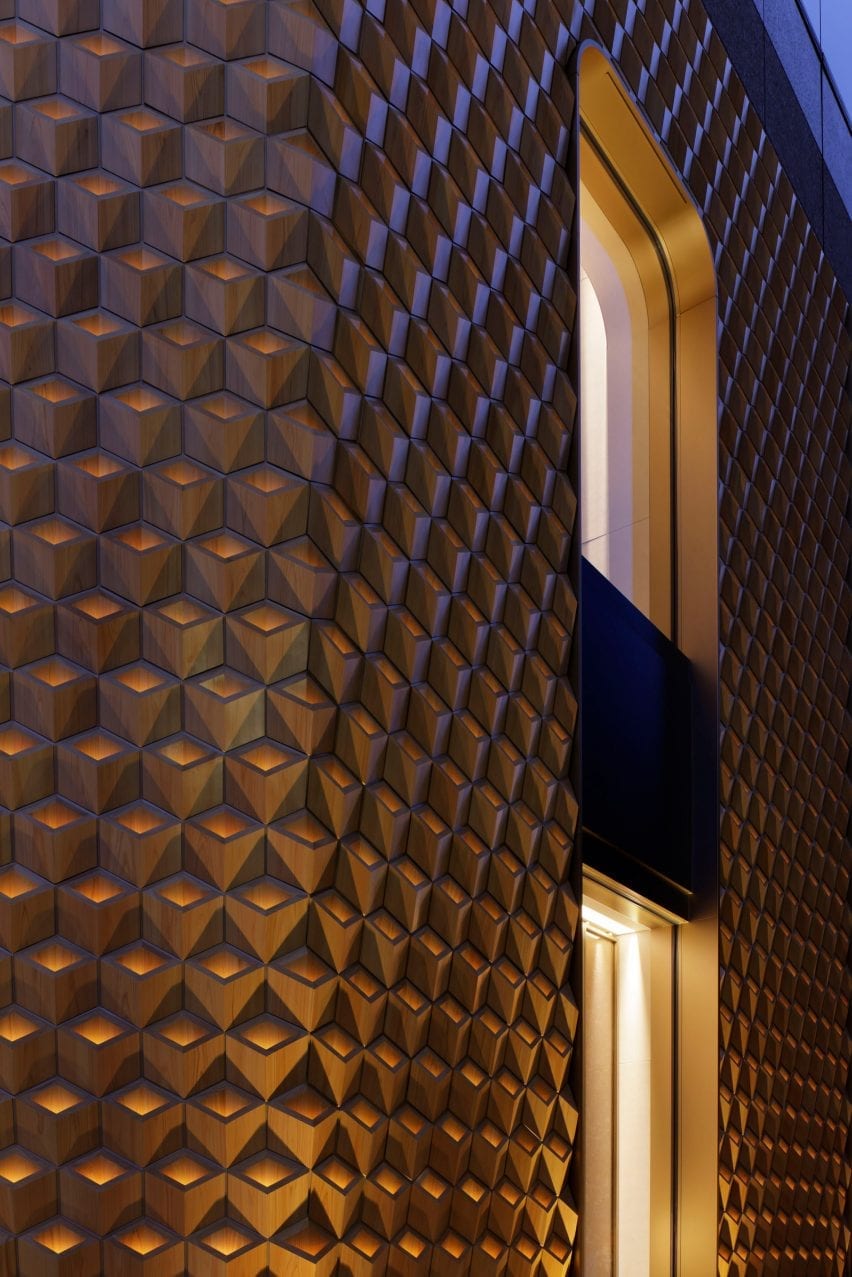

The facade glows at night

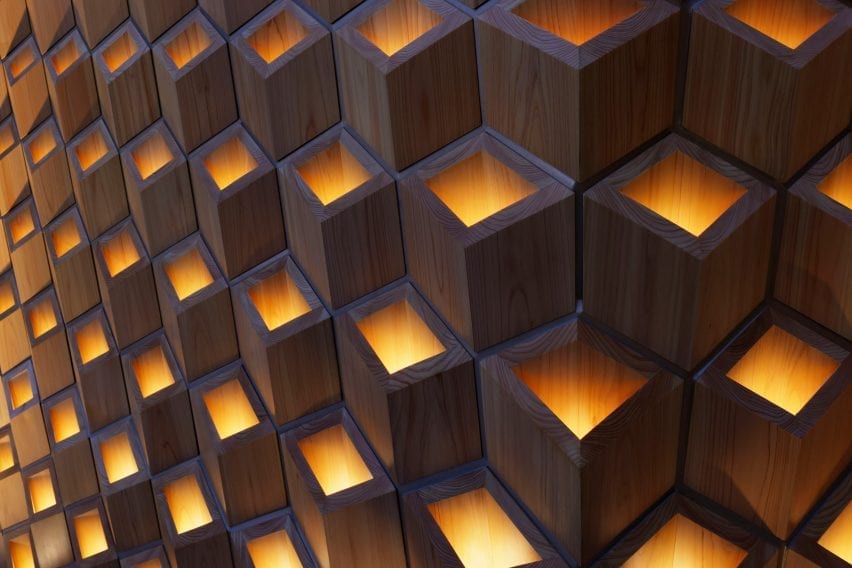

Individual LED lights positioned behind each unit illuminate the structure at night, producing a pattern of light and shadow that becomes more distinct as dusk gathers.

"Diffused by the box-like diamond of each section, the effect not only increases the three-dimensionality of the facade, but gives it an inviting warm glow," the studio added.

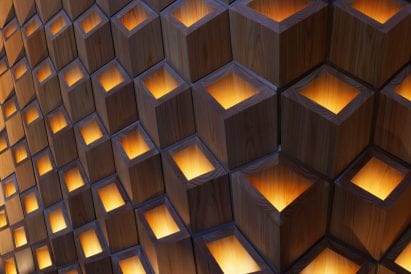

The facade by Klein Dytham Architecture glows from within
The studio put LED lights behind the units

Klein Dytham Architecture was established by Royal College of Art graduates Astrid Klein and Mark Dytham in 1991. The multidisciplinary studio's previous projects include a commercial building with a latticed facade that overlooks a busy intersection in Tokyo, and a clubhouse for a Japanese hotel featuring conical roofs that poke up above a forest canopy.

Photography is courtesy of Cartier.

More images

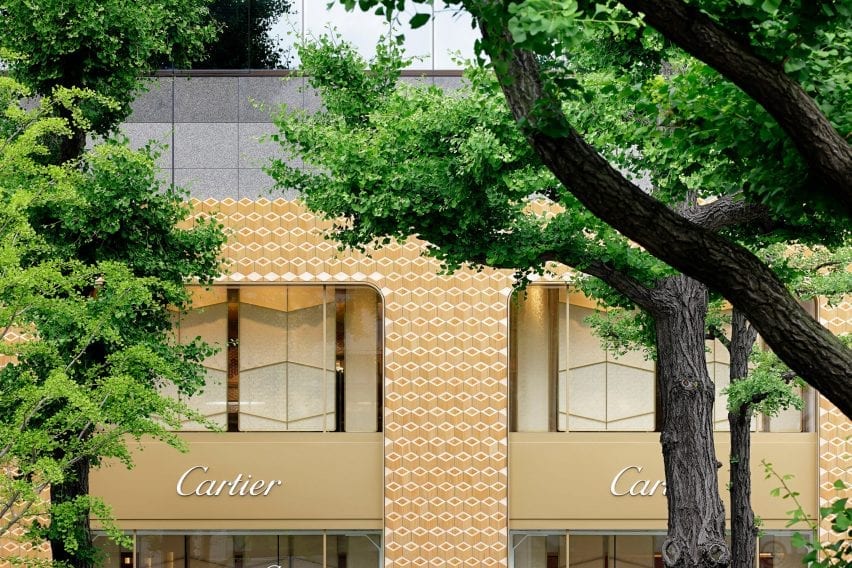

Golden signage covers the exterior

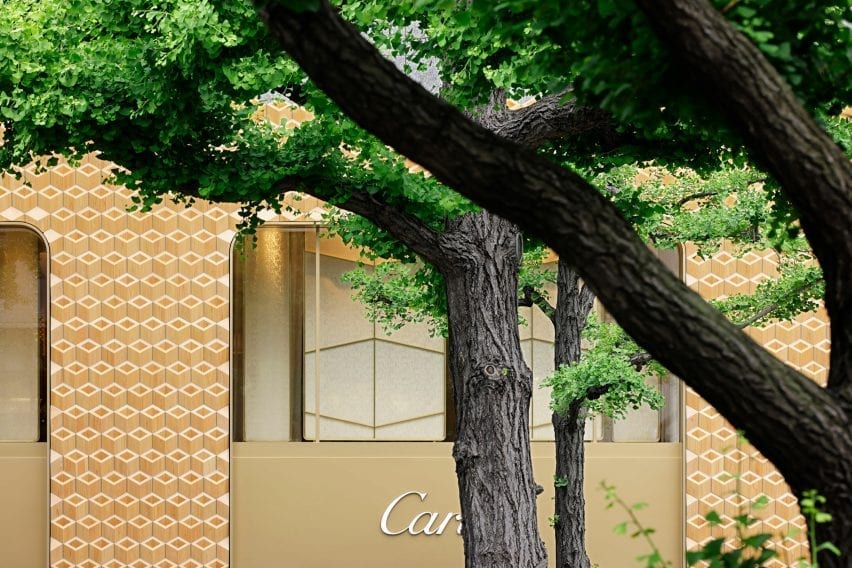

Gold contrasts with the trees

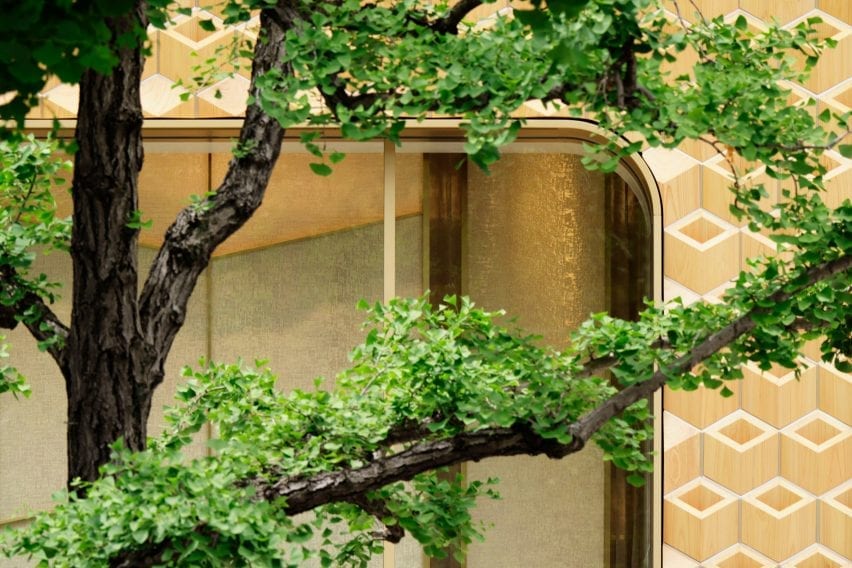

Windows are framed by golden details

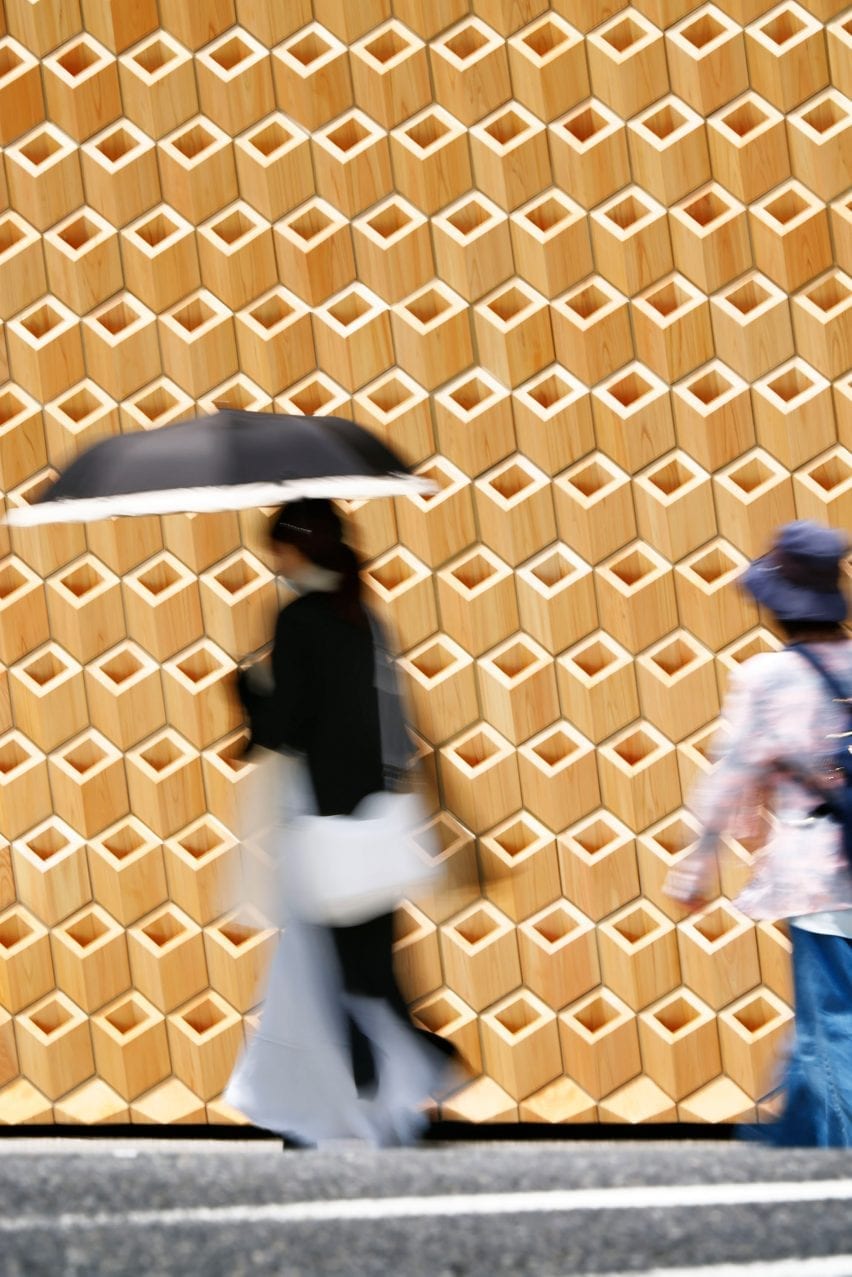

The decorative facade extends to the street

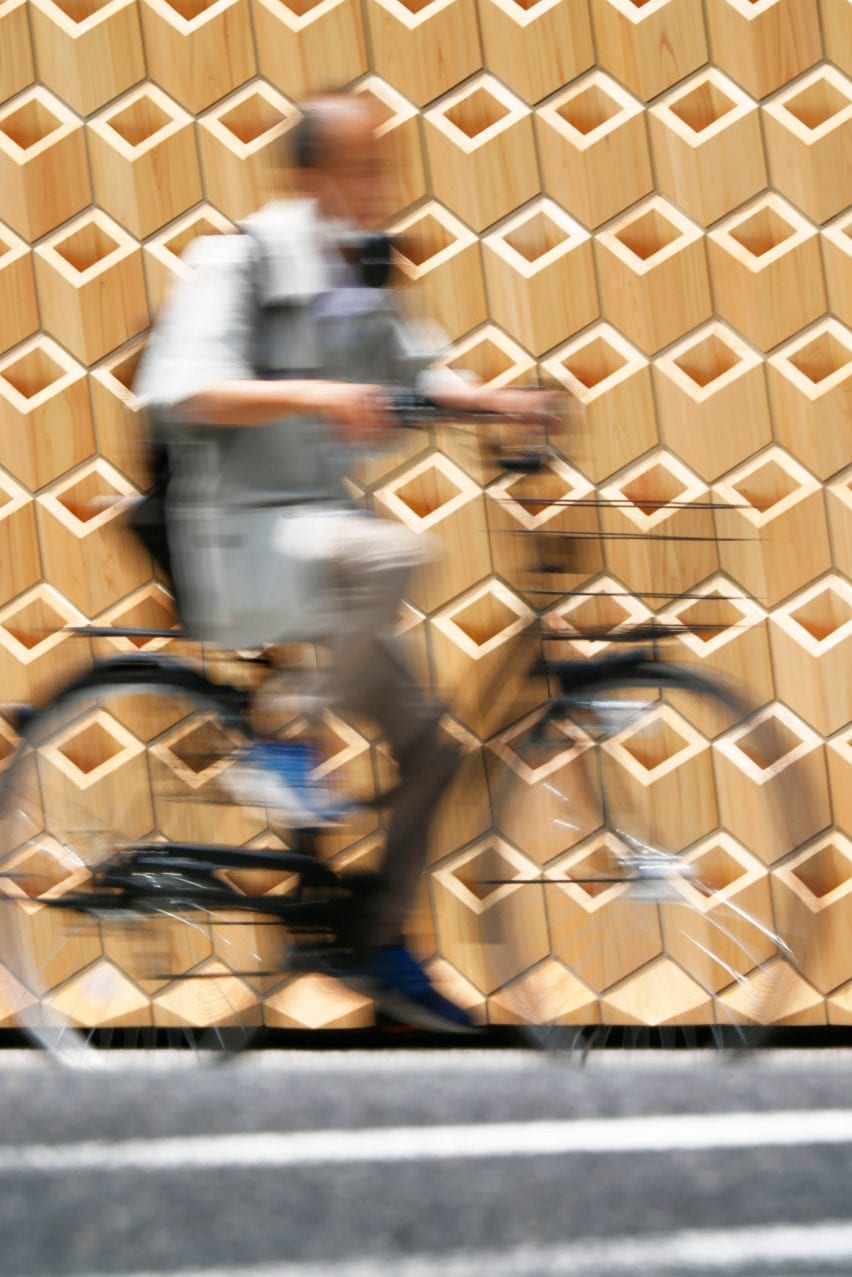

Person pictured passing the store
It occupies a corner site
