Lo Res by United Nude

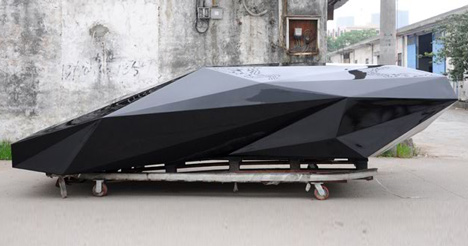

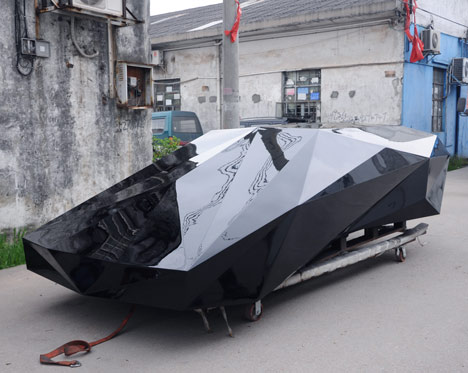

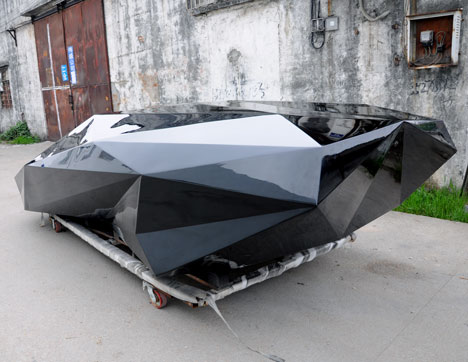

Design group United Nude have taken a number of recognisable objects and created simplified versions, including this Lamborghini, made up of a series of triangulated planes.

Lo Res by United Nude

The Lo Res Project initially uses custom software that creates a computer model by scanning a series of 3D points from the original object.

Lo Res by United Nude

The software can then vary the density of these points to create different levels of abstraction from which the most appealing is chosen and developed into a real life object.

Lo Res by United Nude

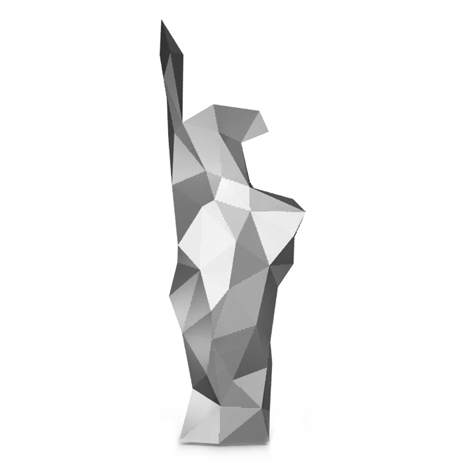

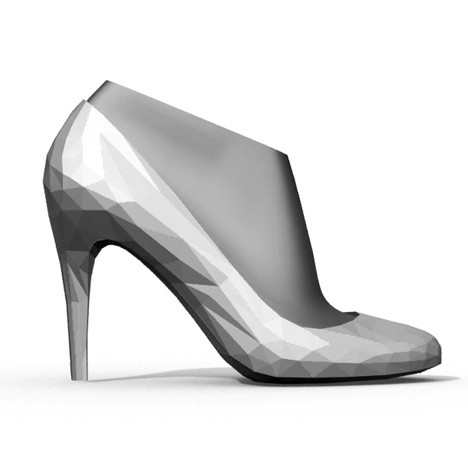

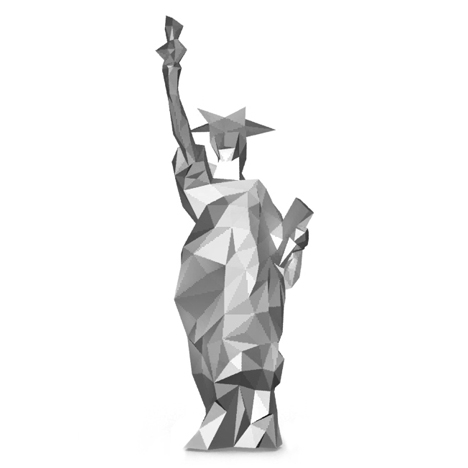

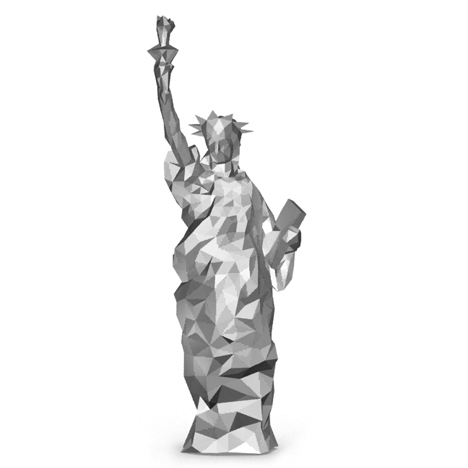

The original objects processed so far include a Lamborghini Countach, Verner Panton chair, the Statue of Liberty and a high-heeled shoe.

Lo Res by United Nude

United Nude, founded by Dutch architect Rem D Koolhaas and British shoemaker Galahad Clark, produced the program in collaboration with American software developer INUS Technology.

Lo Res by United Nude

Here's some more from the designers:


UNITED NUDE ‘LO RES’

Lo Res Intro

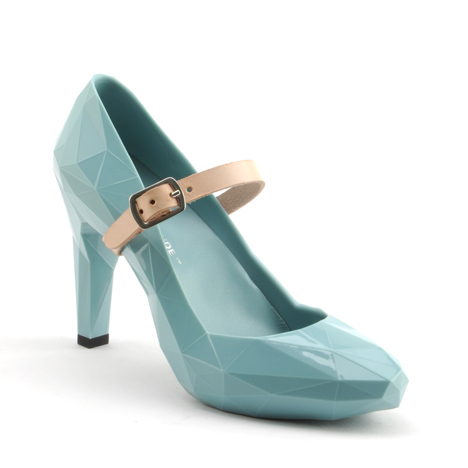

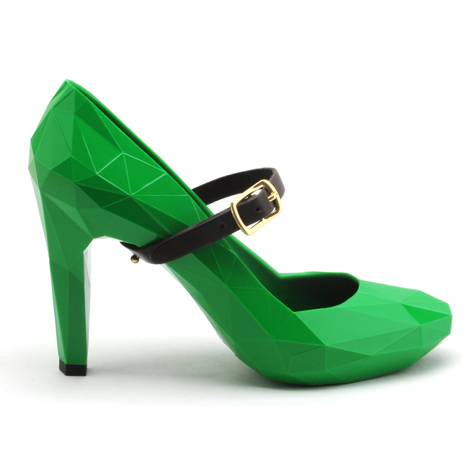

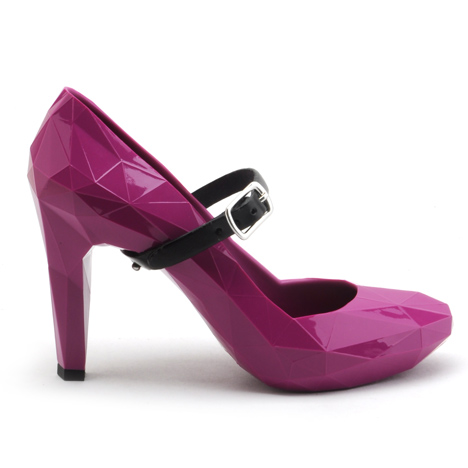

United Nude Lo Res (low resolution) is an innovative design method using computer software to automatically create design options to choose from. The first United Nude Lo Res products such as the Lo Res Shoe are available at United Nude stores worldwide.

Lo Res by United Nude

Resolution of Design

Resolution means the amount of information per area; most commonly used to describe two-dimensional (2D) data, like images in dots per inch (DPI).

Lo Res by United Nude 9

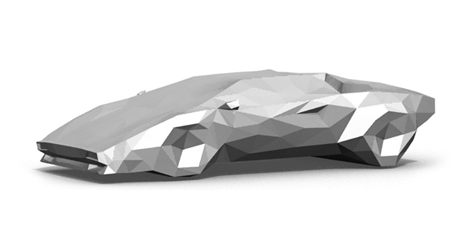

The United Nude Lo Res Project is in three-dimensional (3D) resolutions: each object can be described by a series of 3D points and when these are connected, triangles appear. In a high 3D resolution (high density of points) the triangles are small and the shape appears smooth.

Lo Res by United Nude 9

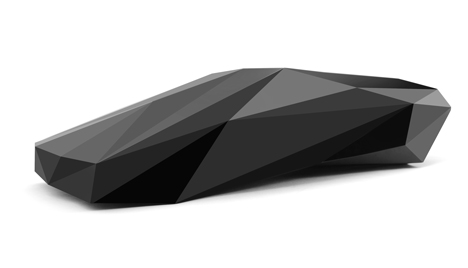

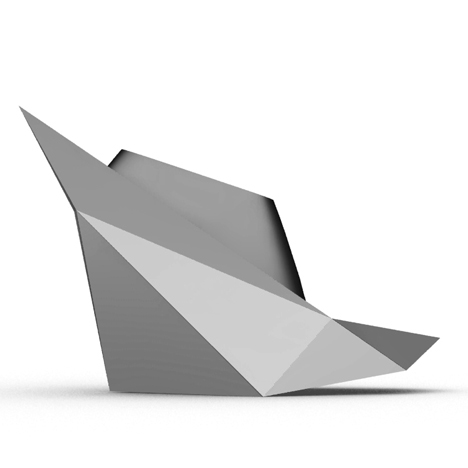

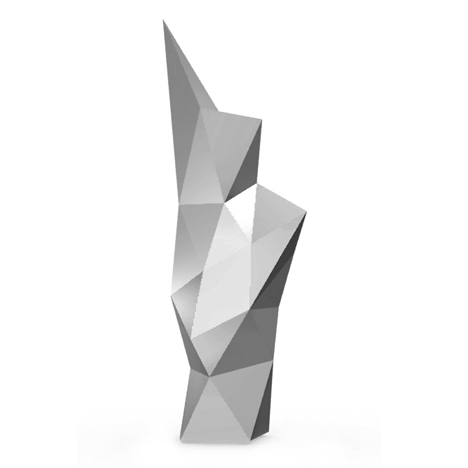

As the 3D resolution is lowered (less density of points and therefore bigger triangles), the object becomes more and more fragmented, changing its character in the process.

Lo Res by United Design

Original Resolution

The Lo Res Project began two years ago. Early explorations with a new 3D scanner in the United Nude design studio, stimulated the idea, and almost as simple as an exercise from a software tutorial, the process began. The first object to be ‘Lo Res’d’ was a wine glass.

Lo Res by United Nude

We tested the scan files in different 3D software and traced the scans manually in different 3D resolutions.

Lo Res by United Nude

From this ‘series’ of resolutions one can be chosen and used as the base for a new design.

Lo Res by United Nude

Forward Resolution

Happy with the beautiful ‘new’ designs more and more objects went through the Lo Res procedure.

Lo Res by United Nude

The Lo Res method rapidly creates stealthy abstract design versions of any object.

Lo Res by United Nude  Lo Res by United Nude  Lo Res by United Nude  Lo Res by United Nude

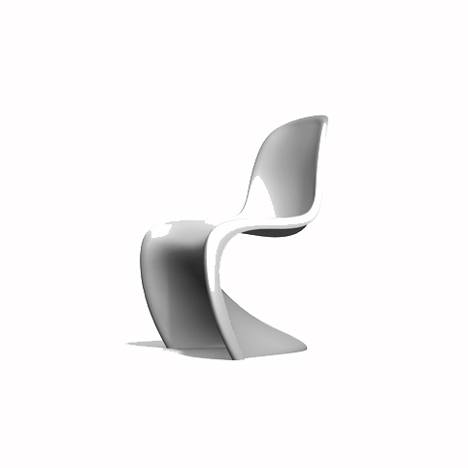

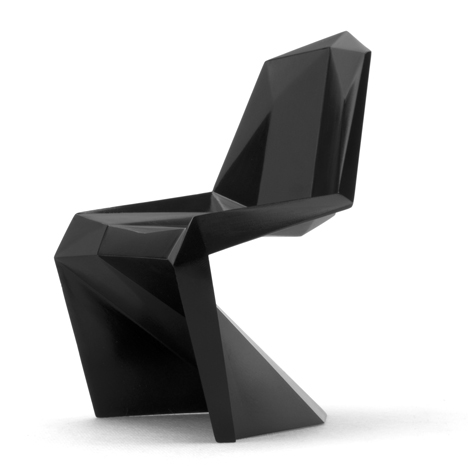

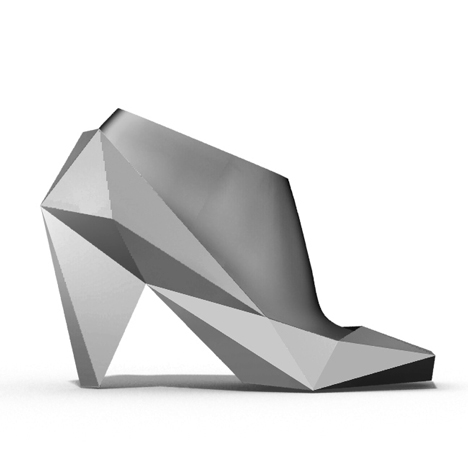

Some objects already Lo-Res’d include: a Shoe, a Lamborghini Countach, a Verner Pantone chair and a series of generic vodka glasses with a matching Absolut vodka bottle case. Some of these products are in the process of development.

Lo Res by United Nude  Lo Res by United Nude  Lo Res by United  Nude  Lo Res by United Nude

The Future

United Nude is currently developing the Lo Res design method with INUS Technology, the makers of Rapidform software, the world’s leading reverse design software.

Lo Res by United Nude

Together with INUS Technology, United Nude is developing software that can be applied for Lo Res and other design applications allowing users to benefit from more automated and semi-automated design.

Lo Res by United Nude

Concept and creative direction: Rem D Koolhaas
Head of design and team leader: Iddo Zimmerman
Design team: Amir Orbach, Ayelet Kit, Dan Hochberg, Meirav Shnaps and Frankie Sun.

Lo Res by United Nude

About United Nude

Founded by architect Rem D Koolhaas and seventh generation shoemaker Galahad Clark, United Nude is about clear concepts, elegance, and innovation.
