Diogene by Renzo Piano
at Vitra Campus

| 4 comments


Renzo Piano has become the latest high-profile architect to add a building to the Vitra Campus in Weil am Rhein, Germany, by completing a tiny wooden cabin with room for just a single inhabitant.

The one-room hut is named Diogene, after a Greek philosopher who rejected luxury and chose to live in a barrel, and is intended as a self-sufficient hideaway that can be used as a workplace or as a weekend home.

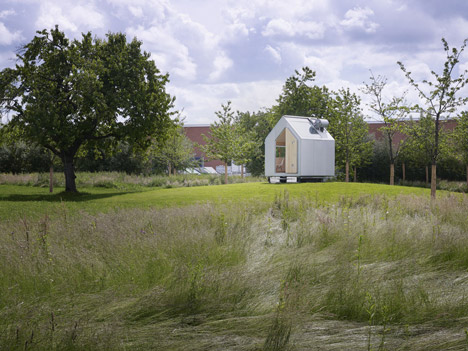

Diogene by Renzo Piano at Vitra Campus

Renzo Piano first presented his idea for the minimal home in a 2009 edition of architectural magaine Abitare, proposing a living space of around two by two metres, with enough space for a bed, a chair and a small table. Following the publication, Piano was commissioned by Rolf Fehlbaum, chairman of furniture brand Vitra, to develop the project.

"This little house is the final result of a long, long journey partially driven by desires and dreams, but also by technicality and a scientific approach," says Piano.

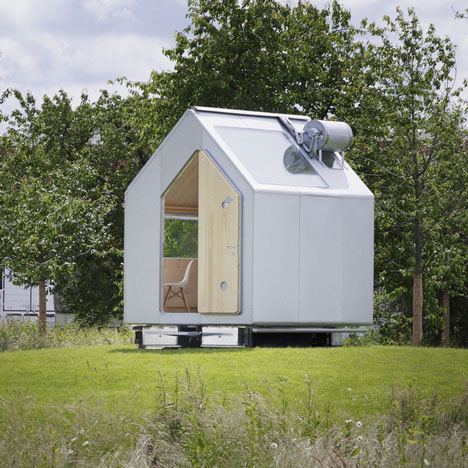

Diogene by Renzo Piano at Vitra Campus

The completed cabin is presented as an experimental concept rather than a finished product. Its exterior is clad with aluminium panels to protect it from the elements and it uses solar panels, rainwater collection and a biological toilet to satisfy the usual requirements for electricity and water.

A pull-out sofa is fitted on one side of the space, while a folding table is slotted beneath the window and a shower, toilet and kitchen are also included. All together, the cabin is no wider than three metres and could easily fit inside a lorry.

Diogene by Renzo Piano at Vitra Campus

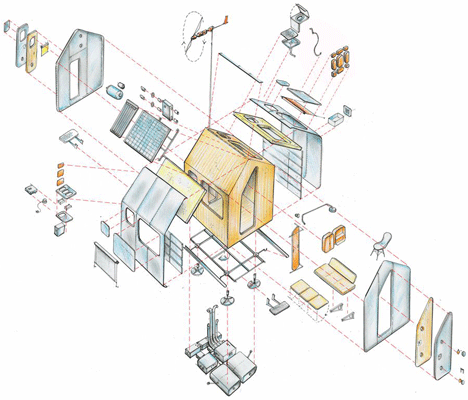

Exploded diagram

"Diogene is not an emergency accommodation, but a voluntary place of retreat," adds Vitra.

The building opens this week at the Vitra Campus, where architects such as Herzog & de Meuron, Zaha Hadid and SANAA have all previously completed buildings. Hadid also recently returned to the campus to add an angular installation outside her Fire Station.

Diogene by Renzo Piano at Vitra Campus

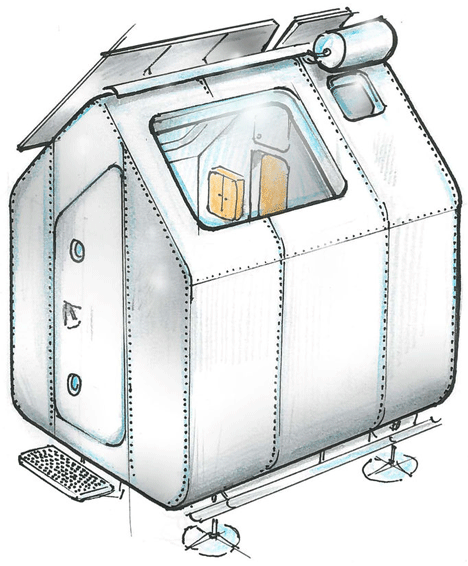

Design sketch

Other recent projects by Italian architect Renzo Piano include a flat-pack auditorium in Italy and London skyscraper The Shard.

See more architecture by Renzo Piano »
See more architecture at the Vitra Campus »

Here's a more detailed description from Vitra:


Diogene, a cabin designed by Renzo Piano and RPBW for Vitra

In June 2013, a further element will be introduced on the Vitra Campus. On a hill between the VitraHaus and the Dome, the Italian architect Renzo Piano and the Renzo Piano Building Workshop (RPBW) has developed Diogene, which to date is Vitra's smallest building ― but largest product.

The development of Diogene

In an interview with Renzo Piano, the architect explains that the ideal of minimalist housing is something which he has been considering since his student days. It is a kind of obsession, but a good one. A living space of two by two by two metres – just enough space for a bed, a chair and a small table – is a dream many architecture students share. Back then, he was unable to realise the idea. At the end of the 1960s, however, when Piano was teaching at the Architectural Association in London, he joined forces with his students to build mini houses on Bedford Square. The architect has also designed boats, cars and, a few years ago, cells for the nuns of the Poor Clare nunnery of Ronchamp. There too, it was about minimising the spatial environment of these people, not for reasons of economic efficiency, but for self-moderation. The minimalist house is an idea that continues to fascinate Piano, particularly in an era in which his office is dealing with big projects, for instance what was Europe's tallest high-rise at the time of its completion in 2012 – The Shard in London.

About ten years ago, of his own volition and without a specific client, Renzo Piano began developing a minimalist house. Various prototypes were developed in Genoa – from plywood, concrete and, finally, from wood. The final version of the project which Piano dubbed Diogene was published in autumn 2009 in the monograph booklet Being Renzo Piano by the Italian magazine Abitare: a wooden saddle-roofed house with a 2.4 x 2.4-metre surface area, a ridge height of 2.3 metres and a weight of 1.2 tonnes. Piano presented his vision to the public in the magazine, but noted in a comment that he needed a client in order to continue developing Diogene.

The Italian architect found his partner in Rolf Fehlbaum, chairman of the Vitra AG. Fehlbaum had read the issue of Abitare and immediately felt attracted to Renzo Piano's ideas, as Vitra does not regard itself as a manufacturer of individual design objects, but defines furniture as an essential part of the human environment. If we look back at the history of furniture design, it was Diogene, a cabin designed by Renzo Piano and RPBW for Vitra always about requalifying people's living space; the living landscapes of the 1960s and 1970s are just one case in point.

At the end of June 2010, there was a meeting between Renzo Piano and Rolf Fehlbaum, who at that time were still members of the Pritzker Prize jury. During this meeting, they agreed to continue the Diogene project together. After three years of development work, a new Diogene prototype is being presented at the Vitra Campus on the lawn opposite the VitraHaus on the occasion of the Art Basel 2013. It is not a finished project, but an experimental arrangement enabling Vitra to test the potential of the minimalist house. Vitra is thus breaking new ground: While usually only products which are ready for series production are presented to the public, it was decided to let the public take part in the testing of Diogene due to the complexity of Renzo Piano's project. The further development of the project and whether it will go into series production will be decided on at a later date.

The idea of the minimalist house

The simple, archaic house situated in nature, which – based on the antique concepts of theoretical architect Vitruv – marks the beginning of technology and architecture, aroused renewed interest at the end of the 18th century, as is particularly evident from the copperplate engraving of the original Vitruv hut, which was included in the 1755 2nd edition of Marc-Antoine Laugier's Essai sur l'Architecture. Since then, the idea of the minimalist house has repeatedly fascinated architects. Sometimes the focus was placed on the formal aspects, and sometimes on social considerations, such as the "subsistence level apartment", which was a topic of discussion in the 1920s and 1930s. In the 1960s, which were defined by structuralism, the minimalist cells were combined into clusters. In the recent past, the discussion revolved around mobile living structures for use in natural catastrophes or in war-torn areas of the world.

Diogene is not an emergency accommodation, but a voluntary place of retreat. It is supposed to function in various climate conditions, independent of the existing infrastructure, i.e. as a self-sufficient system. The required water is collected by the house itself, cleaned and reused. The house supplies its own power and the necessary platform is minimised.

We live in an age in which the demand for sustainability forces us to minimise our ecological footprint. This postulate is paired with the desire to concentrate and reduce the direct living environment to the truly essential things. Diogene might remind one of Henry D. Thoreau, who wrote the following in his book Walden/Life in the Woods in 1854: "I went to the woods because I wished to live deliberately, to front only the essential facts of life, and see if I could not learn what it had to teach." It is no coincidence that Piano also regards his project as "quite romantic" and emphasises the aspect of "spiritual silence" which it conveys: "Diogene provides you with what you really need and no more."

As architectural references, Renzo Piano lists the Cabanon, which Le Corbusier constructed at the beginning of the 1950s in Cap-Martin in the Côte d'Azur, the prefabricated house structures of Charlotte Perriand, and the Nakagin Capsule Tower, which Kisho Kurokawa erected in Tokyo in 1972. The late 1960s and early 1970s in London were very formative years for Piano: In the interview, he mentions one particularly important influence during this era as being Cedric Price with his Fun Palace and the hippie movement.

Diogene and its equipment

Diogene, named after the antique philosopher Diogenes who is said to have lived in a barrel because he considered worldly luxuries to be superfluous, is a minimalist living unit which functions completely autonomously as a self-contained system and is thus independent of its environment. With a surface area of 2.5 x 3 metres when fully assembled and furnished, it can be loaded onto a lorry and transported anywhere. Whereas Diogene's exterior corresponds to the image of a simple house, it is in truth a highly complex technical structure, equipped with various installations and technical systems that are necessary to guarantee its self-sufficiency and independence from the local infrastructure: Photovoltaic cells and solar modules, a rainwater tank, a biological toilet, natural ventilation, triple glazing. To optimise the house's energy, Renzo Piano is working with Matthias Schuler from the renowned company Transsolar, while Maurizio Milan is responsible for static equilibrium. Diogene is equipped with everything you need for living. The front part serves as a living room: On one side, there is a pull-out sofa; on the other, a folding table under the window. Behind a partition, there are a shower and toilet as well as a kitchen, which has also been reduced to the necessary.

The house and furnishings form a single unit. It is constructed from wood with a warm character, which also defines the interior. For the purpose of weather protection, the exterior is coated with aluminium paneling.

The overall shape and saddle roof resemble the archetype of a house, but its rounded-off corners and the all-over façade materials also give the impression of a contemporary product. It is no simple hut, but instead a technically perfect and aesthetically attractive refuge. The great challenge lies in planning the complex product so that it is suitable for industrial series production. "This little house is the final result of a long, long journey partially driven by desires and dreams, but also by technicality and a scientific approach," explains Renzo Piano.

Diogene has many possible uses: It can serve as a little weekend house, as a "studiolo", as a small office. It can be placed freely in nature, but also right next to one's workplace, or even as a simplified version in the middle of an open space office. However, it is also conceivable to erect groups of houses, e.g. as an informal hotel or guest house. Diogene is so small that it functions as the ideal retreat, but purposely does not cater for all needs to the same extent. Communication, for instance, will take place elsewhere – and thus Diogene also invites you to redefine the relationship between the individual and society.
