Undulating viewing platform by John Lin and Olivier Ottevaere features built-in market stalls

This steeply slanted platform by architects John Lin and Olivier Ottervaere forms a roadside market and elevated viewing point for a Chinese town being rebuilt after two earthquakes (+ slideshow).

The Warp by John Lin and Olivier Ottevaere

Lin and Ottevaere, both professors at the University of Hong Kong (HKU), worked with the school's first year architecture students to build the structure in Ludian, a town in China's Yunnan Province that was damaged during earthquakes in 2012 and 2014.

The Warp by John Lin and Olivier Ottevaere

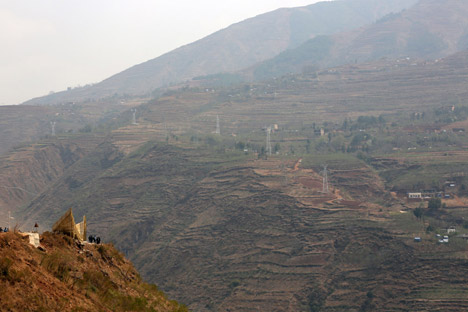

The peaks and troughs of the wooden structure – named The Warp – are designed to emulate the area's rugged landscape, which features a deep valley with terraced rice fields built into walls that stagger down the slope.

The Warp by John Lin and Olivier Ottevaere

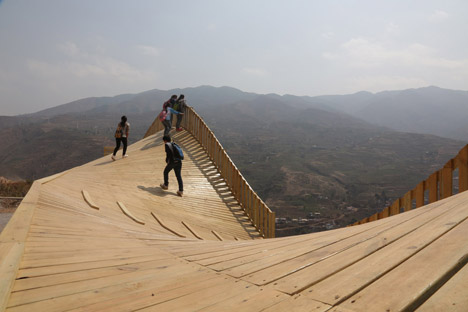

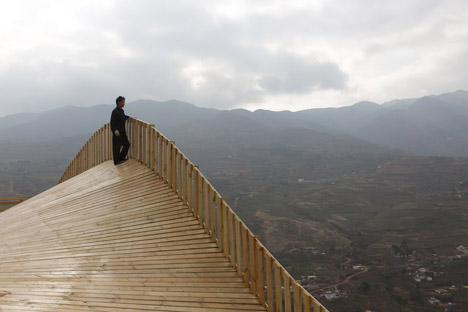

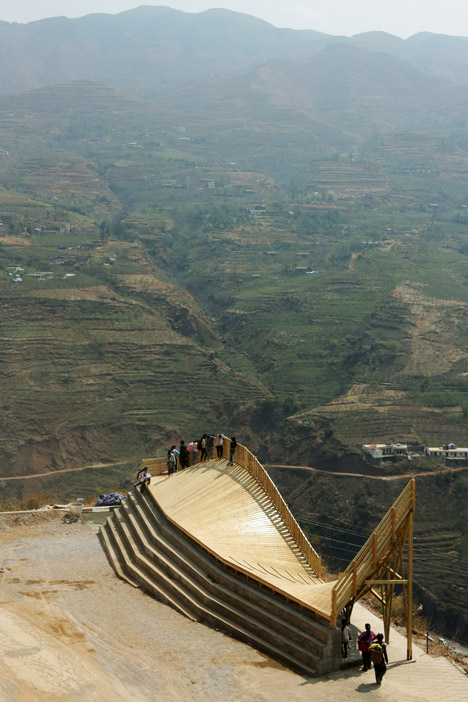

A triangular and semi-circular outcrop pitch upwards at each end of the 130-square-metre structure to provide an elevated viewpoint overlooking the landscape below.

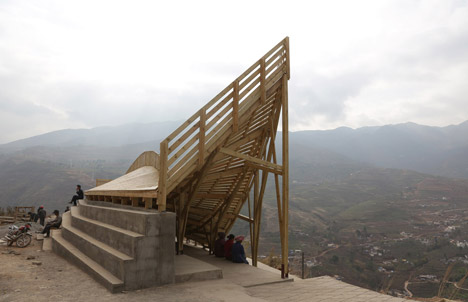

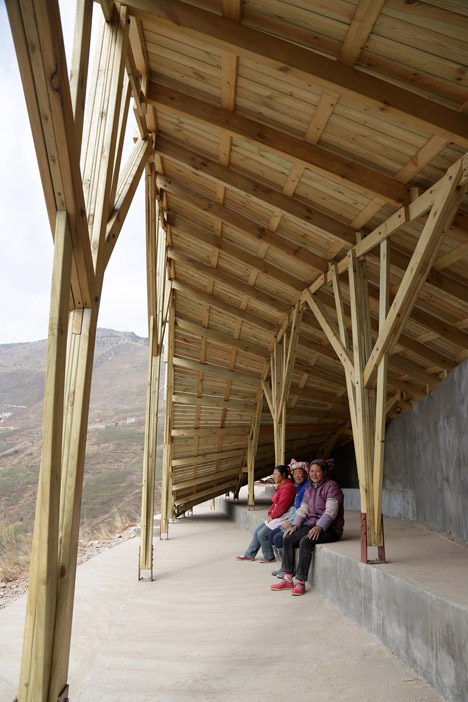

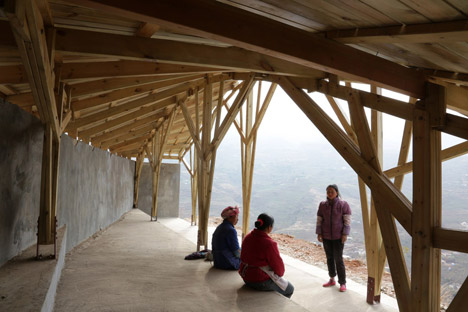

The centre of the structure dips down to meet the ground on the edge of the hillside, providing access to a sheltered seating area below.

The Warp by John Lin and Olivier Ottevaere

"The deck extends toward the scenic valley, transforming from a straight line into a sine curve," said Lin and Ottevaere. "Its peaks and valleys mimic the landscape while providing two mirrored spaces, above and below, for viewing and resting."

The Warp by John Lin and Olivier Ottevaere

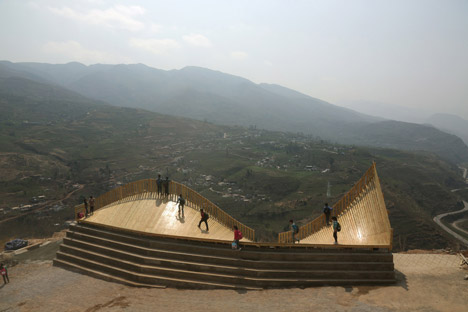

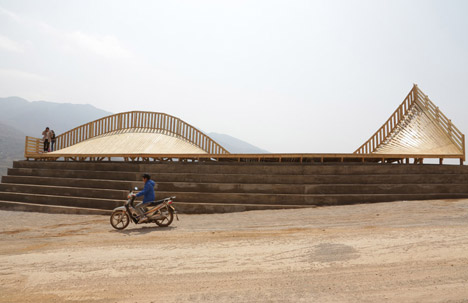

Long steps run along the base of the structure to form a tiered display area for selling fruit and other local produce, as well as a meeting spot for the town's residents.

The Warp by John Lin and Olivier Ottevaere

"Situated in an ethnically diverse region with a Muslim majority population, the project serves as a meeting point and lookout along the main entry road to this mountain village," explained the architects.

The Warp by John Lin and Olivier Ottevaere

The project is the third in a series of three experimental timber structures erected in Yunnan Province by the architects. The first project, named The Pinch, was a village library with a roof that doubles as a playground, while the second, named The Sweep, was a elevated viewing platform and play area.

The Warp by John Lin and Olivier Ottevaere

"Each project responds directly to its given site, trying to make the best use of a single small structure to provide a maximum of community functions," explained the architects.


Related content: see more viewing platforms


"Collectively the series explores the activities of buying and selling, bridging, resting, viewing, eating, reading and playing."

The Warp by John Lin and Olivier Ottevaere

The Warp was funded through a Knowledge Exchange Grant and the Gallant Ho Experiential Learning Fund from HKU.

The Warp by John Lin and Olivier Ottevaere

Lin has previously completed a number of buildings in rural China, including a courtyard house designed to be self sufficient and a charitable hospital with a walkway ramping up to its roof.


Project credits:

Design: Olivier Ottevaere and John Lin
Project team, HKU Architecture Students: Joyce Ip, Jason Chong, Tod Zhu, Yvonne Xu Meng
Construction: Kunming Dianmuju Shangmao Company
Funding: Gallant Ho Experiential Learning Fund, Knowledge Exchange Grant

The Warp by John Lin and Olivier Ottevaere

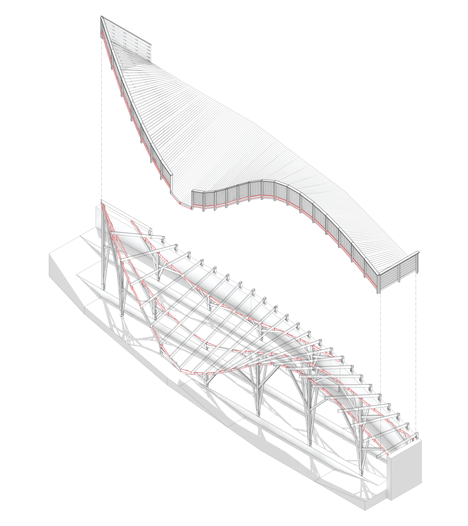

Axonometric diagram one – click for larger image
The Warp by John Lin and Olivier Ottevaere

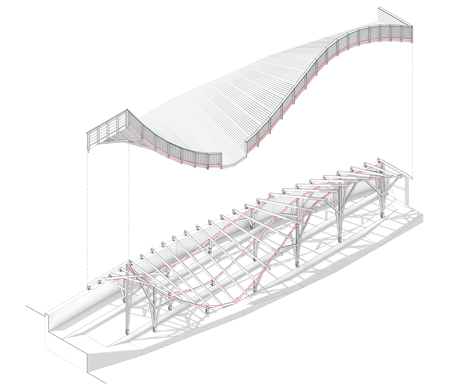

Axonometric diagram two – click for larger image
The-Warp-by-John-Lin-and-Olivier-Ottevaere_dezeen_3

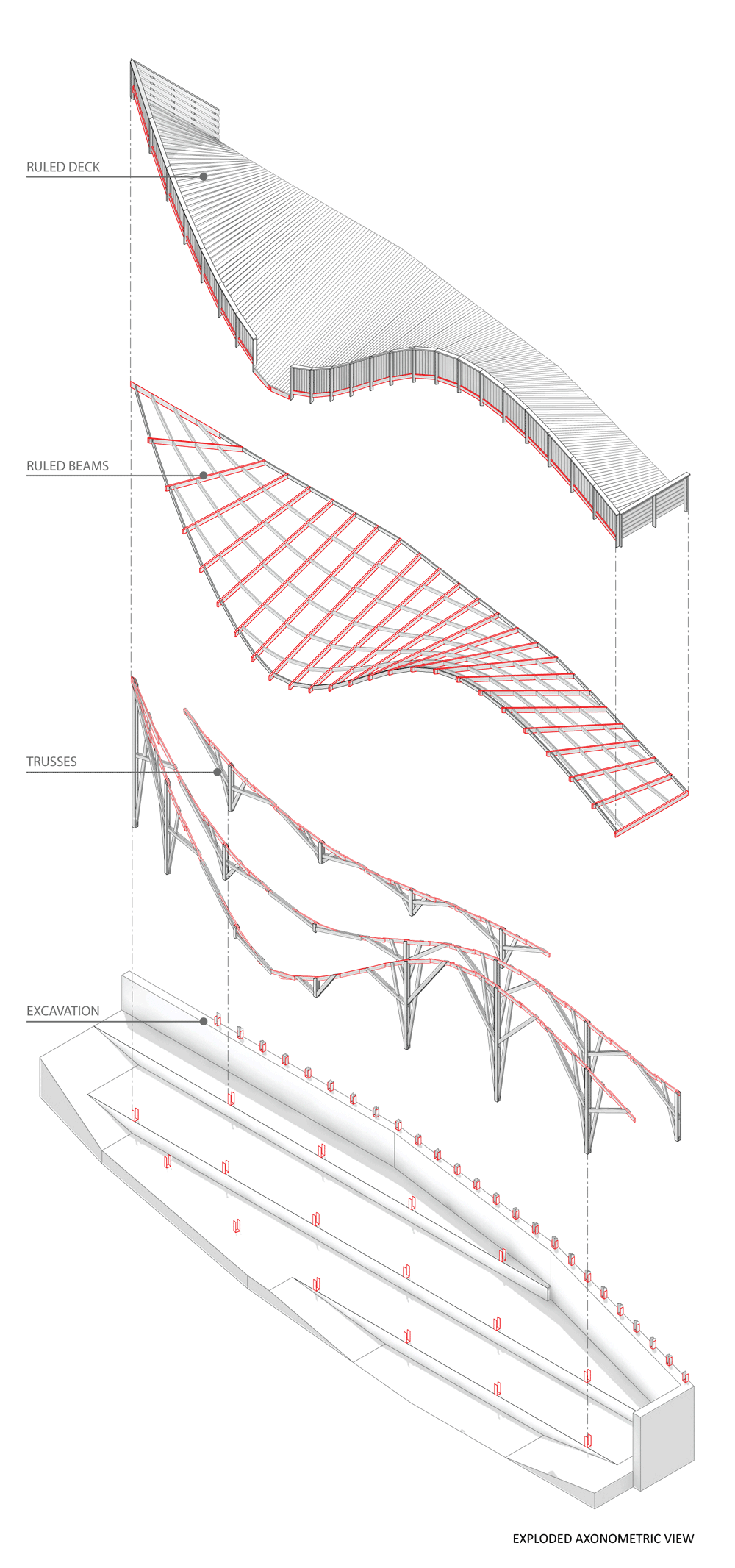

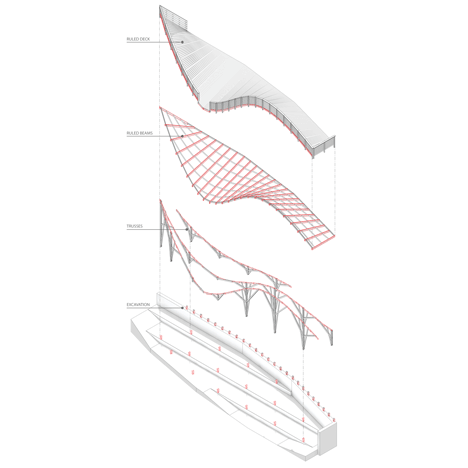

Exploded axonometric diagram – click for larger image
The Warp by John Lin and Olivier Ottevaere

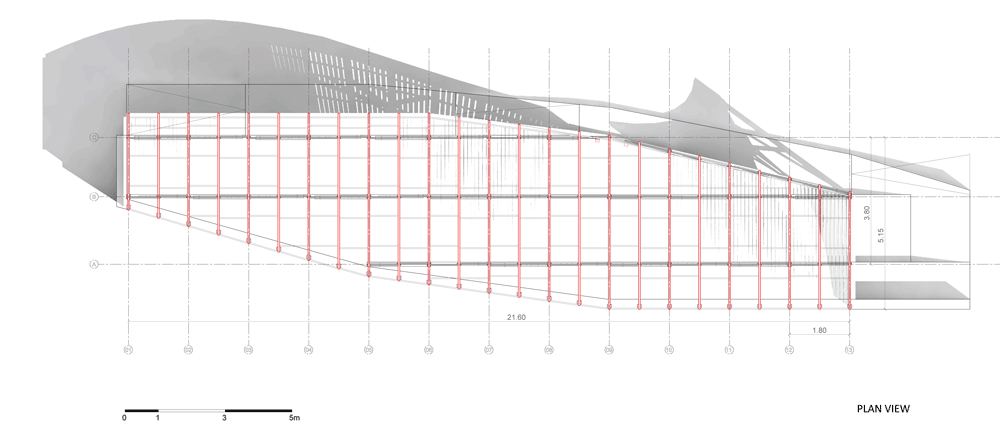

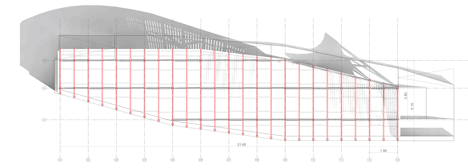

Plan – click for larger image
The Warp by John Lin and Olivier Ottevaere

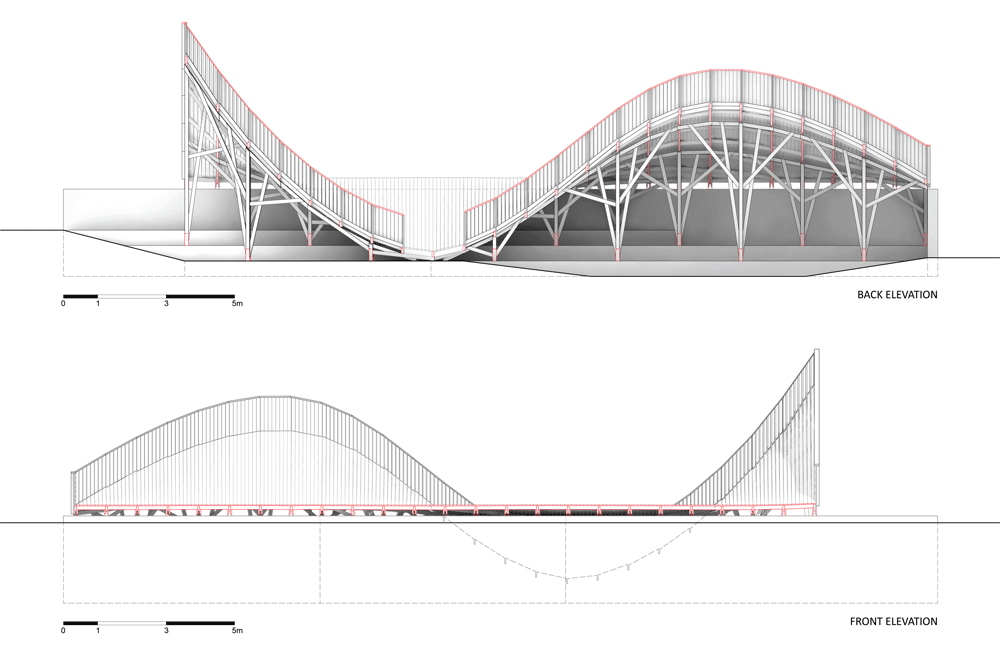

Long elevations – click for larger image
The Warp by John Lin and Olivier Ottevaere

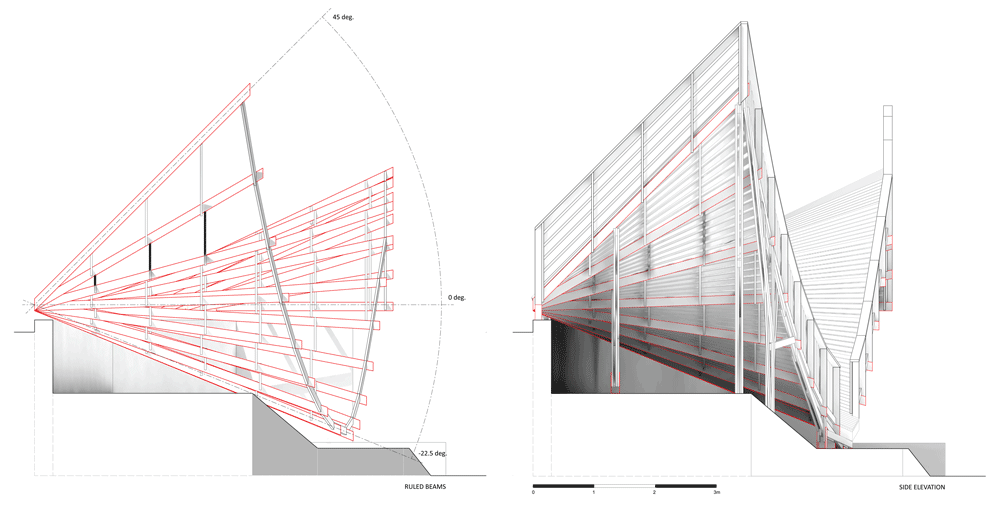

Side elevations – click for larger image
