Reclaimed windows and doors form facades of Collage House by S+PS Architects

Old doors and windows, antique wooden columns and metal drainpipes give this house in Mumbai an aesthetic its architects claim is inspired by the ramshackle buildings found throughout the city (+ slideshow).

Collage house by S+PS

Local studio S+PS Architects designed Collage House to accommodate four generations of the same family.

It is located on top of a hill overlooking Mumbai, and is arranged in a traditional Indian style around a central courtyard to avoid unwanted overlooking from neighbouring buildings.

Collage house by S+PS

The architects were influenced by the ad-hoc building typologies that many of the city's inhabitants construct using found materials.

This prompted them to used salvaged materials in their design, helping to promote an alternative approach to recycling.

Collage house by S+PS

"Living in Mumbai, it is impossible to ignore the informal settlements in the city," said SP+S Architects in a project description, "and if looked at closely there are many lessons to be learnt in frugality, adaptability, multi-tasking, resourcefulness and ingenuity."

Collage house by S+PS

"A visual language emerges that is of the found object, ad-hoc, eclectic, patched and collaged," they added.

"An attempt has been made here to apply some of these lessons without romanticising or fetishising them."

Collage house by S+PS

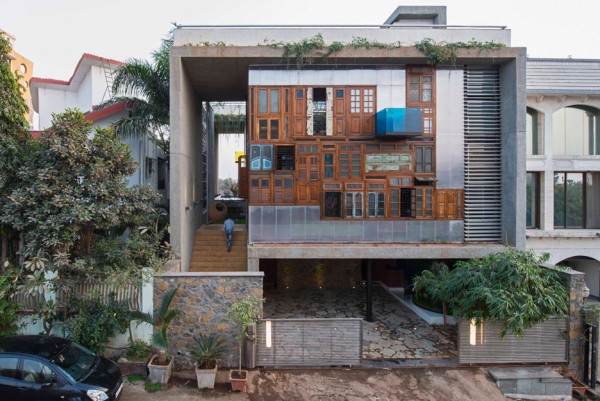

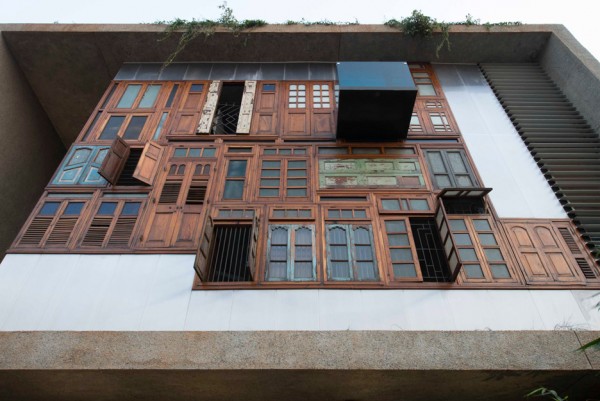

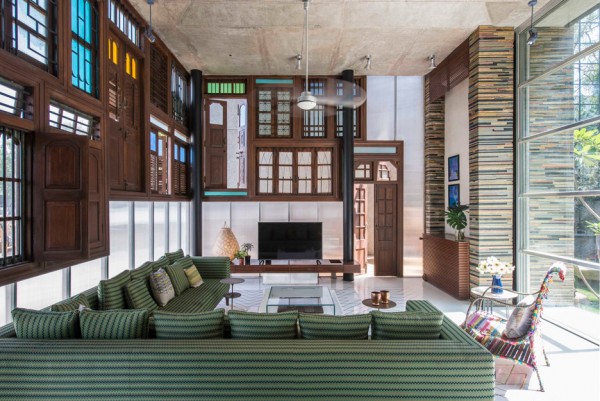

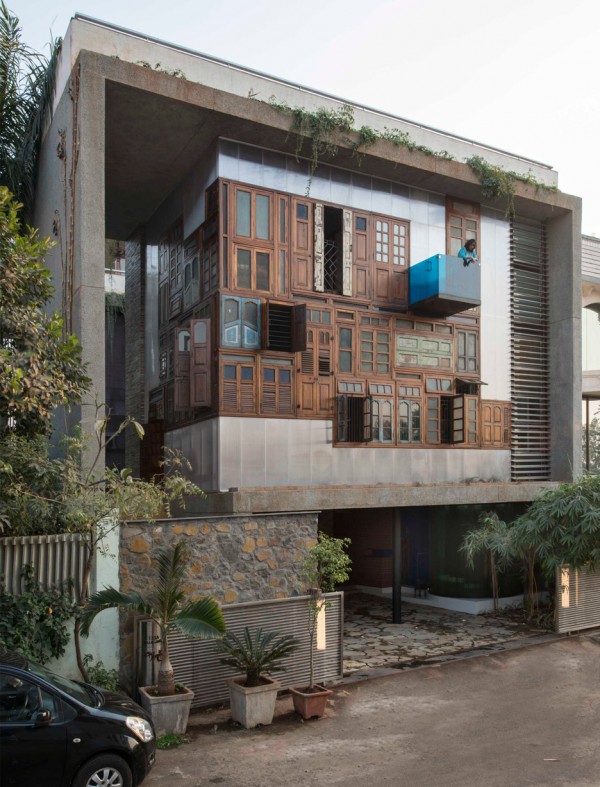

At the front of the house, doors and windows salvaged from demolished buildings around the city are combined to form a surface that wraps around two sides of the living room.

Collage house by S+PS

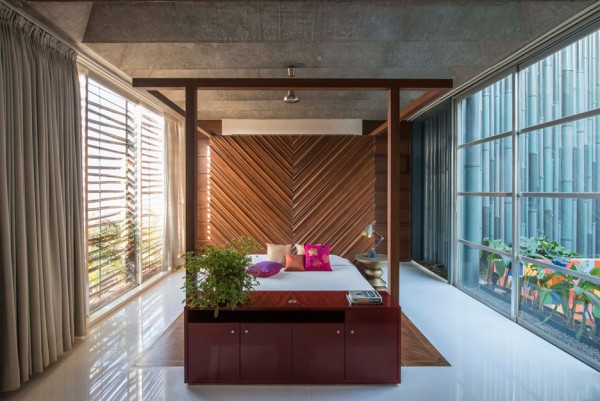

Several of the reclaimed windows, doors and shutters retain their hinges, allowing them to be opened to provide views and natural ventilation. A bedroom on the floor above features a balcony made from blue glass that projects from the facade.

A paved parking area at street level is flanked by a brick-lined entrance and a carved glass wall. Behind this glazing, a Puja room provides a tranquil setting for prayers and contemplation.

Collage house by S+PS

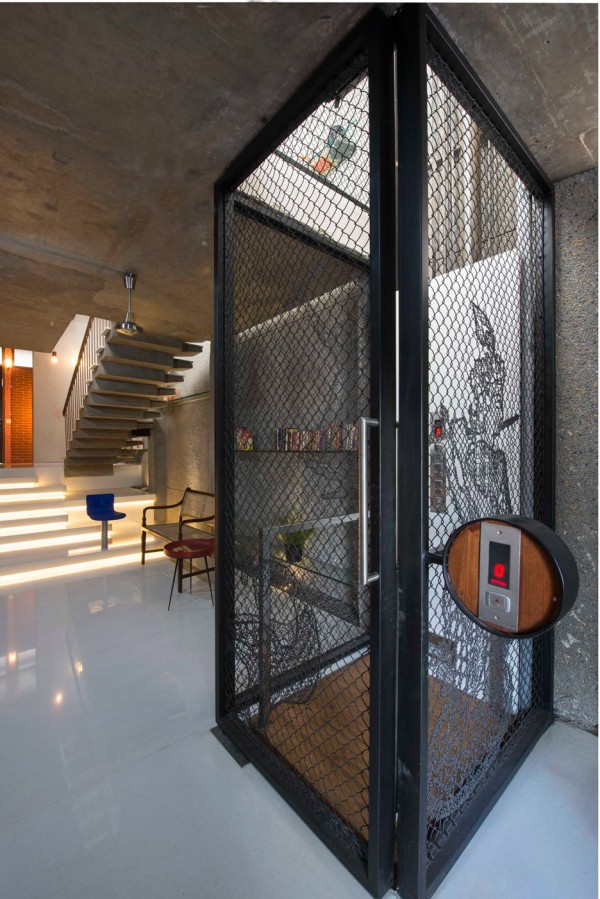

Also on this level are rooms occupied and used by the household's staff, service areas including a lift encased in decorative chain-link fencing, and a 50,000-litre rainwater harvesting tank surrounded by rock removed during the excavation process.

Collage house by S+PS

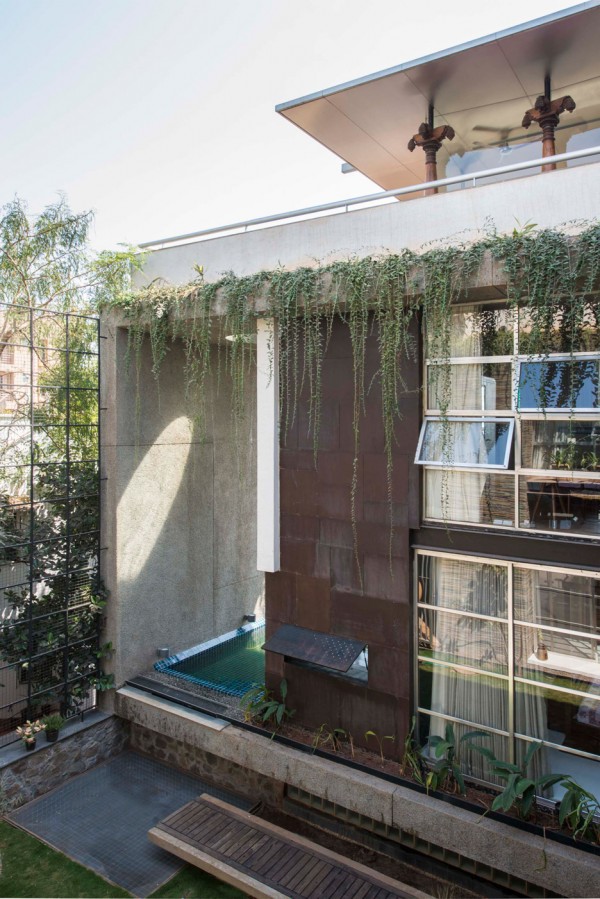

On one side of a central courtyard, rusted metal plates are riveted together to form a cladding surface.

The courtyard also features a planter covered with colourful tile samples and a wall faced with unused stone slivers salvaged from a stone cutter's yard.

Collage house by S+PS

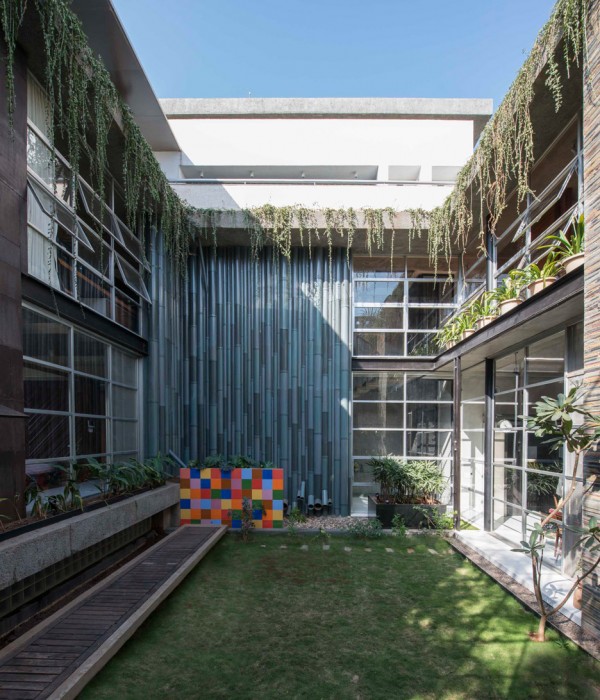

Another of the walls lining the courtyard is made from metal pipes of varying diameters that are fixed together to form a surface resembling bamboo stalks.

At the base of the wall, a series of spouts create a water feature during the monsoon period.

Collage house by S+PS

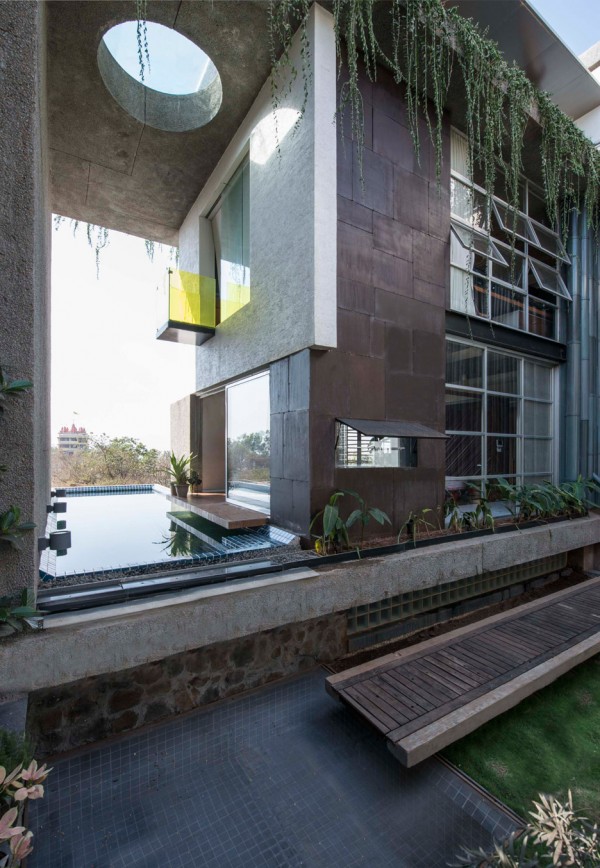

The architects sought to contrast the old, reclaimed materials with contemporary ones, including a concrete frame that wraps around the exterior and provides a sense of isolation from the neighbouring buildings.

Collage house by S+PS

The concrete surfaces are rough on the outside and smooth on the inside to enhance the notion of contrast.

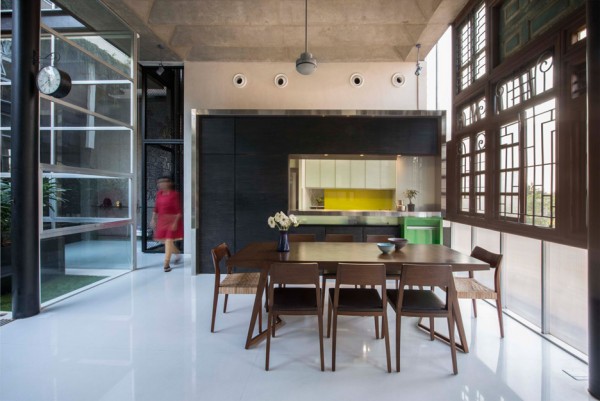

The same material is used for ceilings inside the house, including in the main living and dining room where it is moulded into a ridged form.

Collage house by S+PS

The building's roof terrace accommodates a lightweight, steel and glass pavilion, topped with solar panels and decorated with 100-year-old columns removed from a dismantled house.

Collage house by S+PS

Other materials found in the property include flooring made from old Burma teak rafters and purlins, fabric waste used to upholster chairs, colonial furniture, old cement tiles, carved wooden mouldings and various traditional objects used for new purposes.

Collage house by S+PS

Recycled materials including old doors were also recently used to build a pavilion in Paris to coincide with the United Nations Climate Change Conference last year, while the interior of a bar in Shanghai by Chinese studio Neri&Hu features reclaimed timber flooring and found objects including an old sink.

Photography is by Sebastian Zachariah, Ira Gosalia and Pinkish Shah.


Like Dezeen on Facebook for the latest architecture, interior and design news »


Project credits:

Architect: S+PS Architects
Design team: Pinkish Shah, Shilpa Gore-Shah, Mayank Patel, Gaurav Agarwal, Shrutika Nirgun, Divya Malu, Manali Patel, Ved Panchwagh, Priyadarshi Srivastava
Liasion architects: Sopan Prabhu Architects
Structural engineers: Rajeev Shah & Associates
Services consultants: Arkk Consultants
Landscape consultants: S+PS Architects

Collage house by S+PS

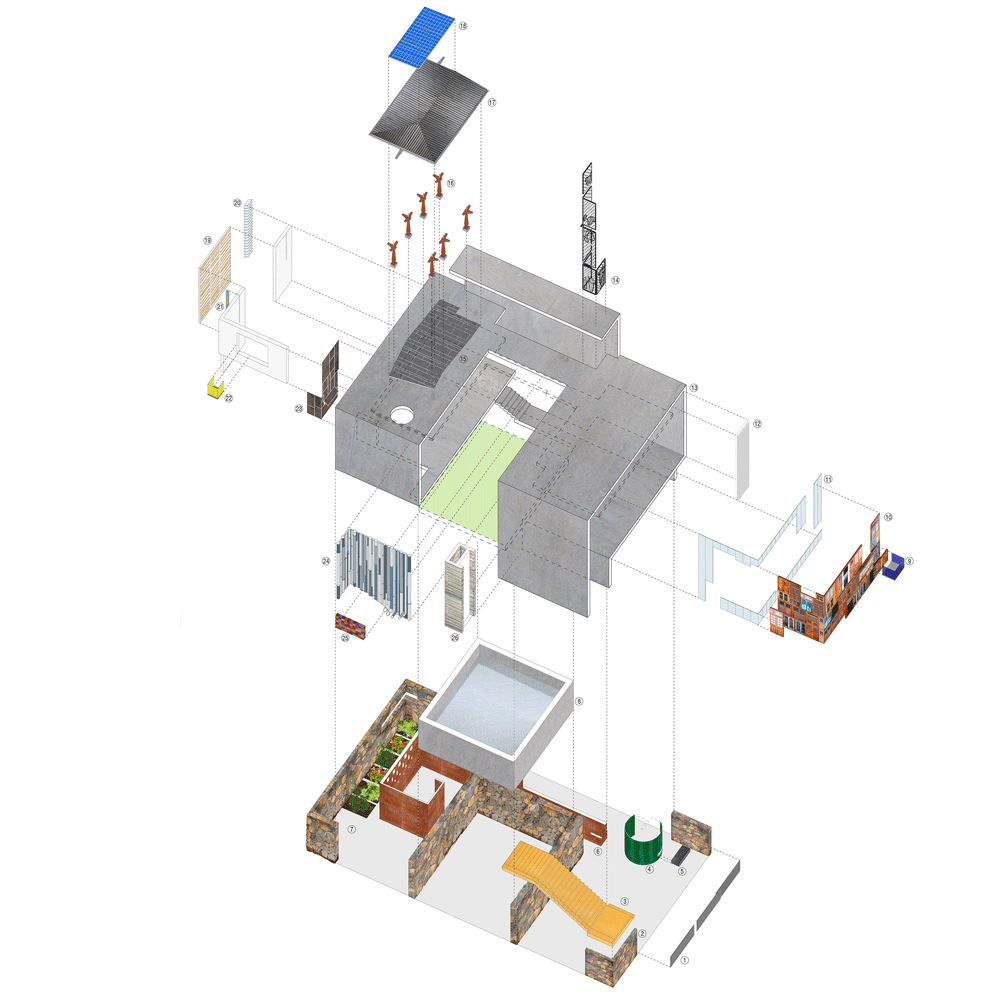

Exploded axonometric diagram – click for larger image
Collage house by S+PS

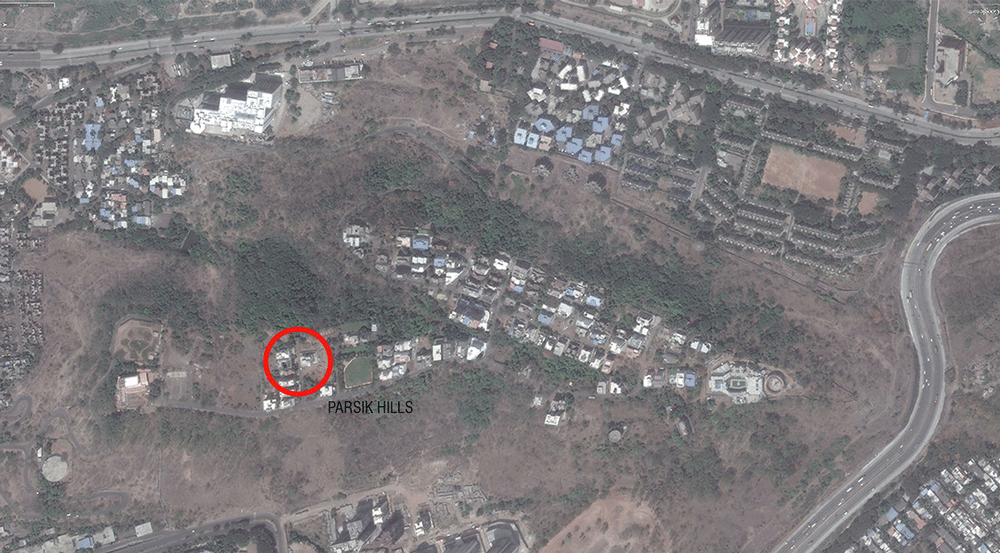

Aerial photograph of the site – click for larger image
Collage house by S+PS

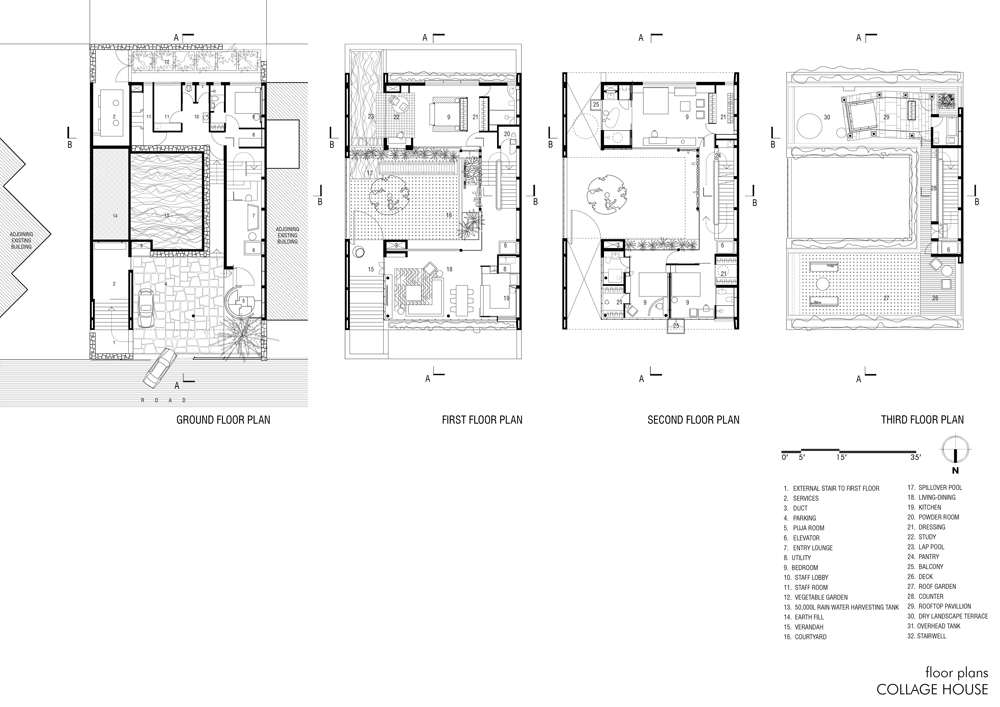

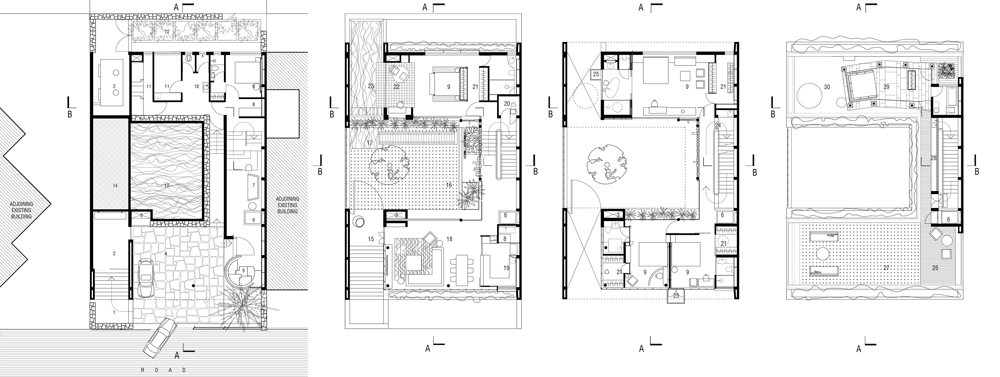

Ground, first, second and third floor plans – click for larger image
Collage house by S+PS

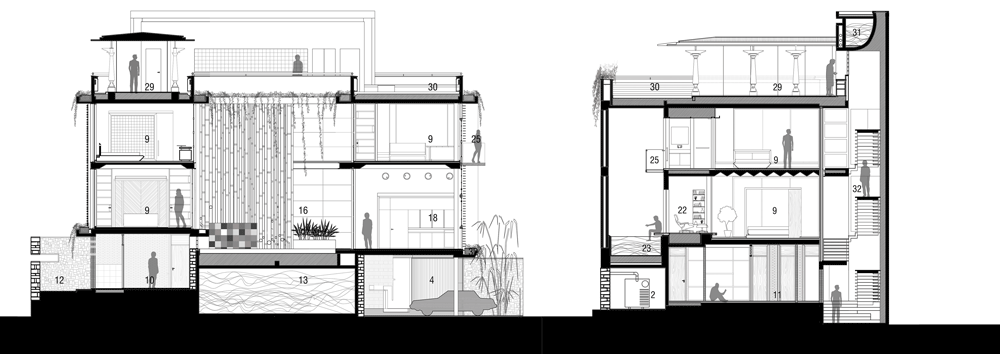

Sections – click for larger image
