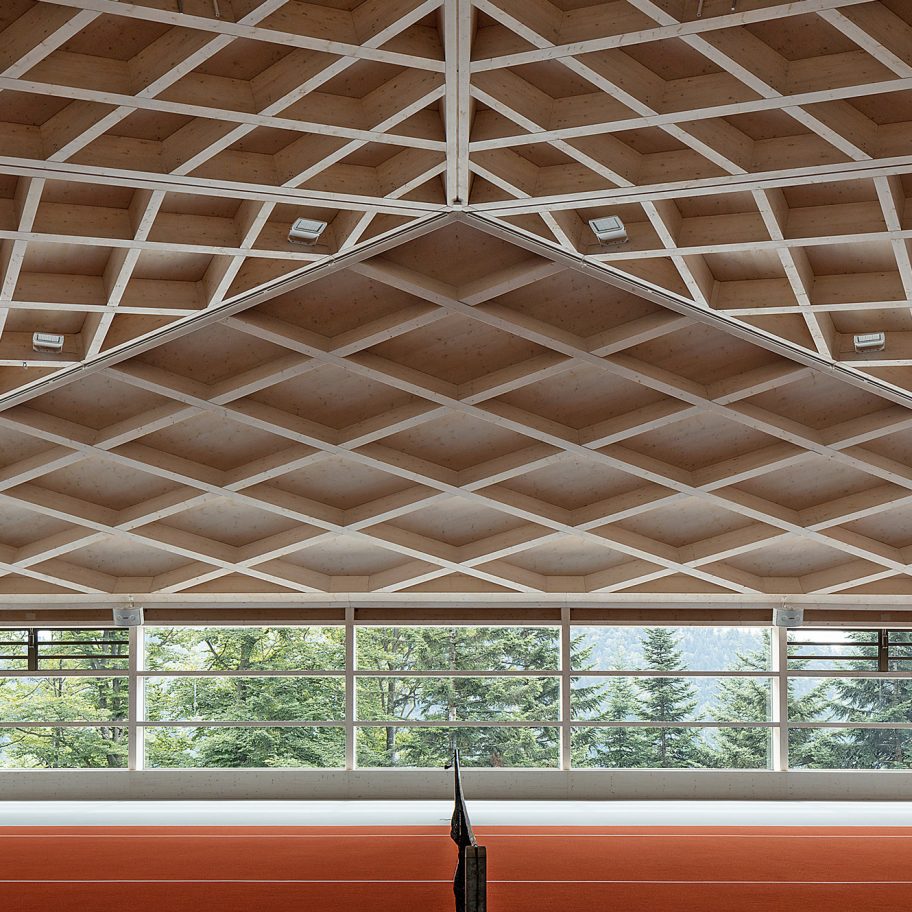

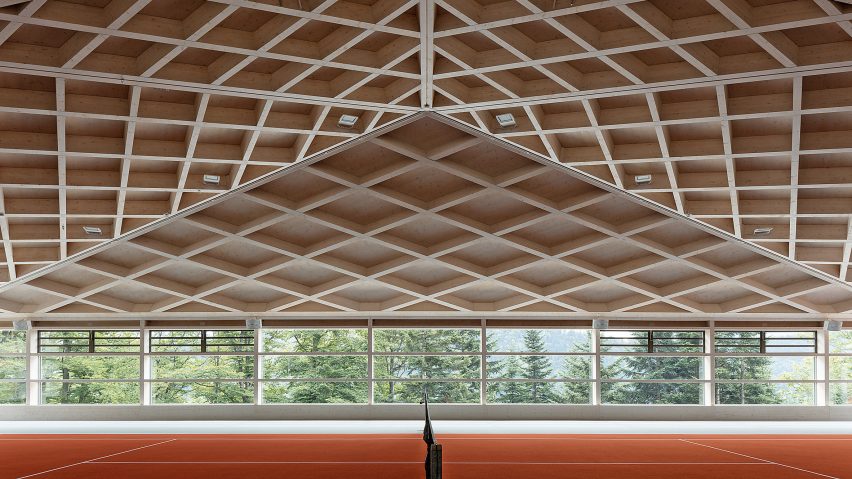

View from Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps

Geometric timber roofs cover Diamond Domes tennis courts in Switzerland

Swiss timber company Neue Holzbau has created a pair of geometric cross-laminated timber roofs for two indoor tennis courts by Rüssli Architekten in Bürgenstock, Switzerland.

Called Diamond Domes, the tennis courts stand 874 metres above sea level and are part of the Bürgenstock Resort in the Swiss Alps.

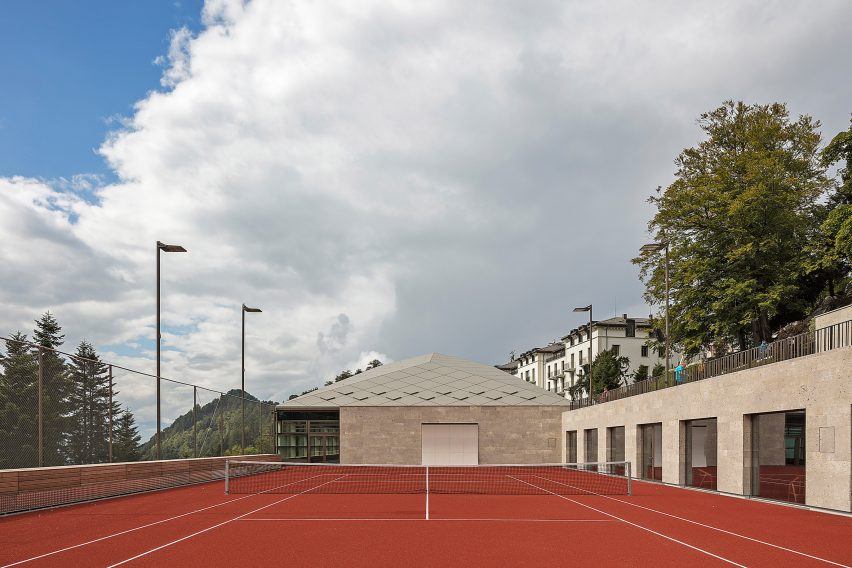

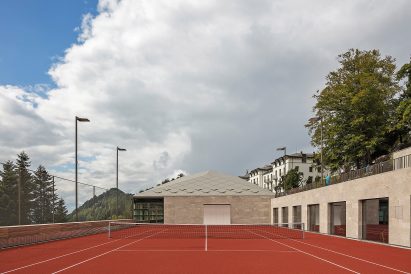

Outdoor court of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps
An outdoor court sits between the two tennis halls

Perched atop concrete foundations in the mountains, the two indoor tennis courts with undulating roofs face each other across a central outdoor court. In winter, the outdoor tennis court is turned into an ice rink for winter sports such as skating and curling.

Using spruce wood that is native to Switzerland, Neue Holzbau designed and built the roof for Lucerne-based architecture firm Rüssli Architekten. Harder ash wood was used for certain support beams.

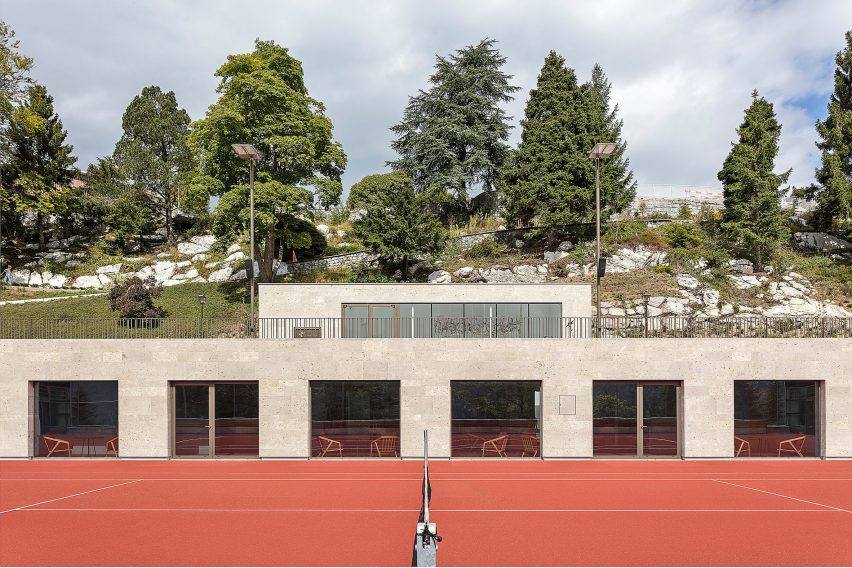

Club house of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps
The outside court becomes an ice rink in winter

"The form and the indoor profiles were given to us by the architects. We then developed and designed the whole construction, the connections and all the details," Neue Holzbau director Bruno Abplanal told Dezeen.

Rüssli Architekten said the diamond-pattern created by the faceted roof is meant to be reminiscent of crystal formations in rocks.

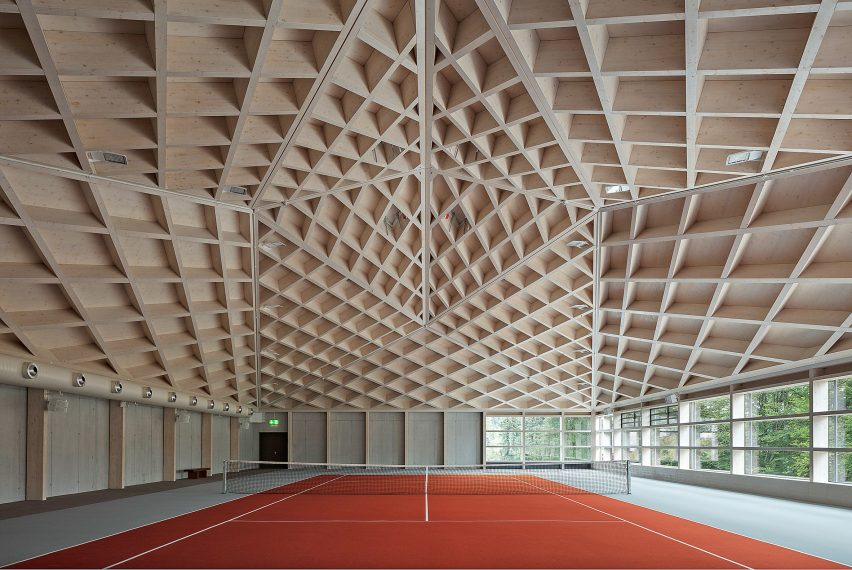

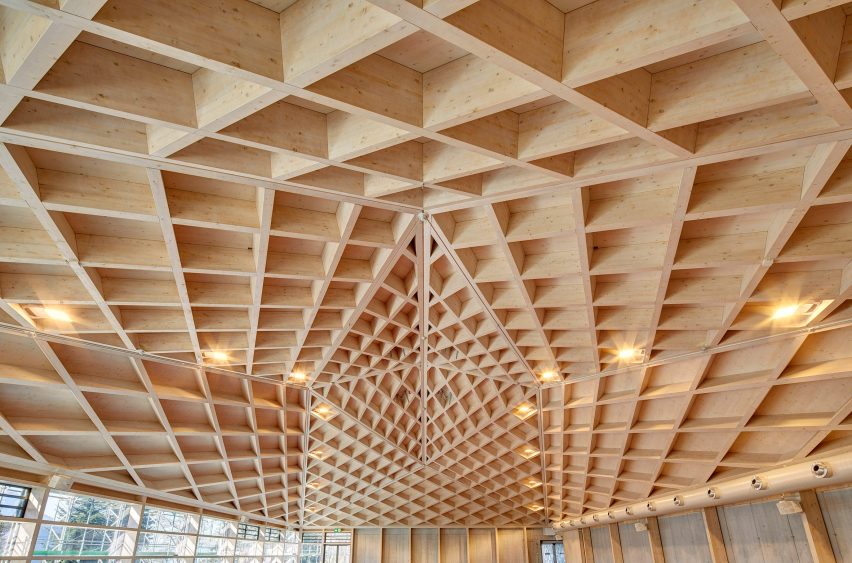

Ceiling of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps
The roofs are made from CLT

Diamond Domes' roof plates are made from spruce cross-laminated timber (CLT), made by layering and glueing slices of wood together to create a strong and light building material.

The tennis court roofs in Bürgenstock are a demonstration of an engineering system created by Neue Holzbau called GSA Technology. Steel rods are glued into the CLT so that each module can be quickly bolted and held in place, able to bear heavy loads.

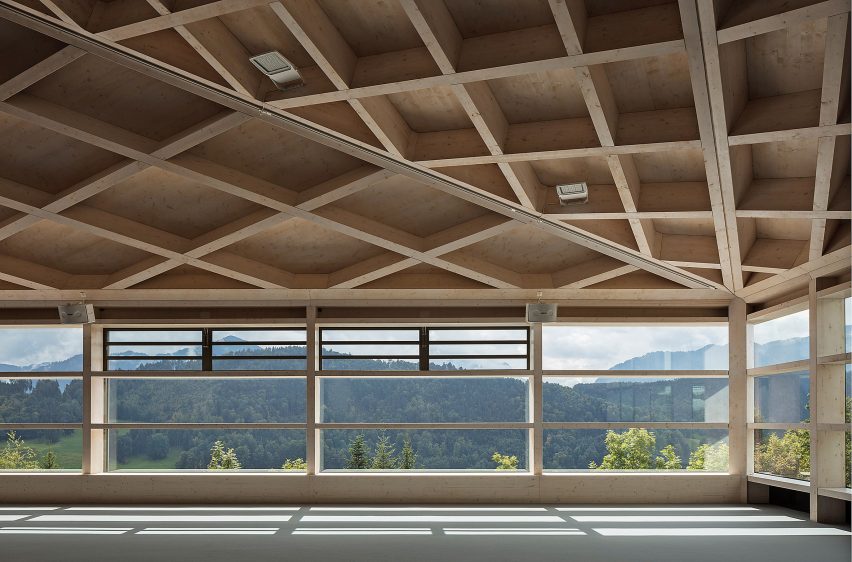

Windows of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps
A wall of windows looks over the Alps

The tennis halls have concrete walls on three sides, with a fourth wall of glazing facing out over the valley below. This wall of windows had to be taken into account when the roofs were constructed.

"The structure was assembled on four pre-positioned assembly towers. The support structure was erected on top of these towers in a slightly 'exaggerated' position," explained Rüssli Architekten.

"At the assembly stage, the support structure was in a sort of pre-tensioned state. Once the three-layer panels had been assembled and complete static attachment to the diamond system had been achieved, the assembly towers were lowered," added the studio.

"Once the initial, planned deformation of the roof support structure had taken place, this was fixed to the concrete walls on three sides, meaning that deformations caused by variable roof loads could then only affect the window-side facade area."

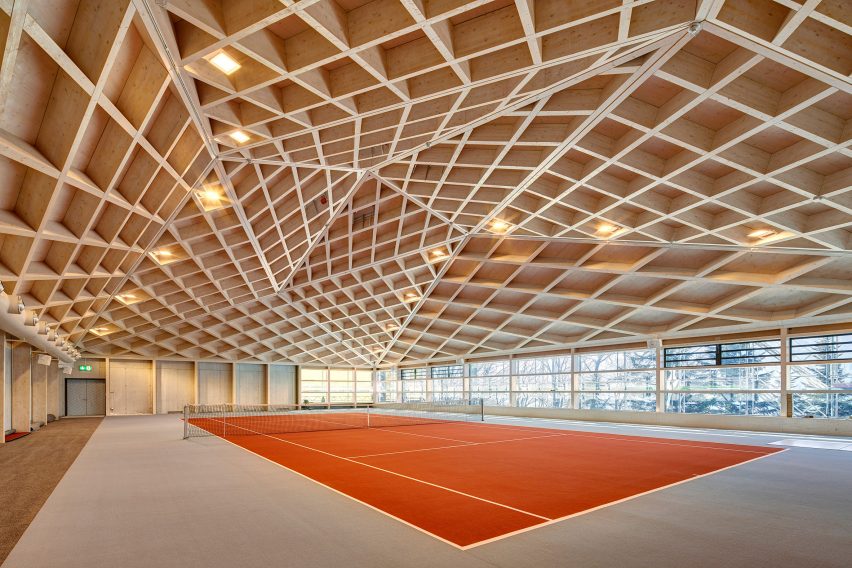

Interior of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps
The roofs have a pattern of diamonds. Photo by Neue Holzbau

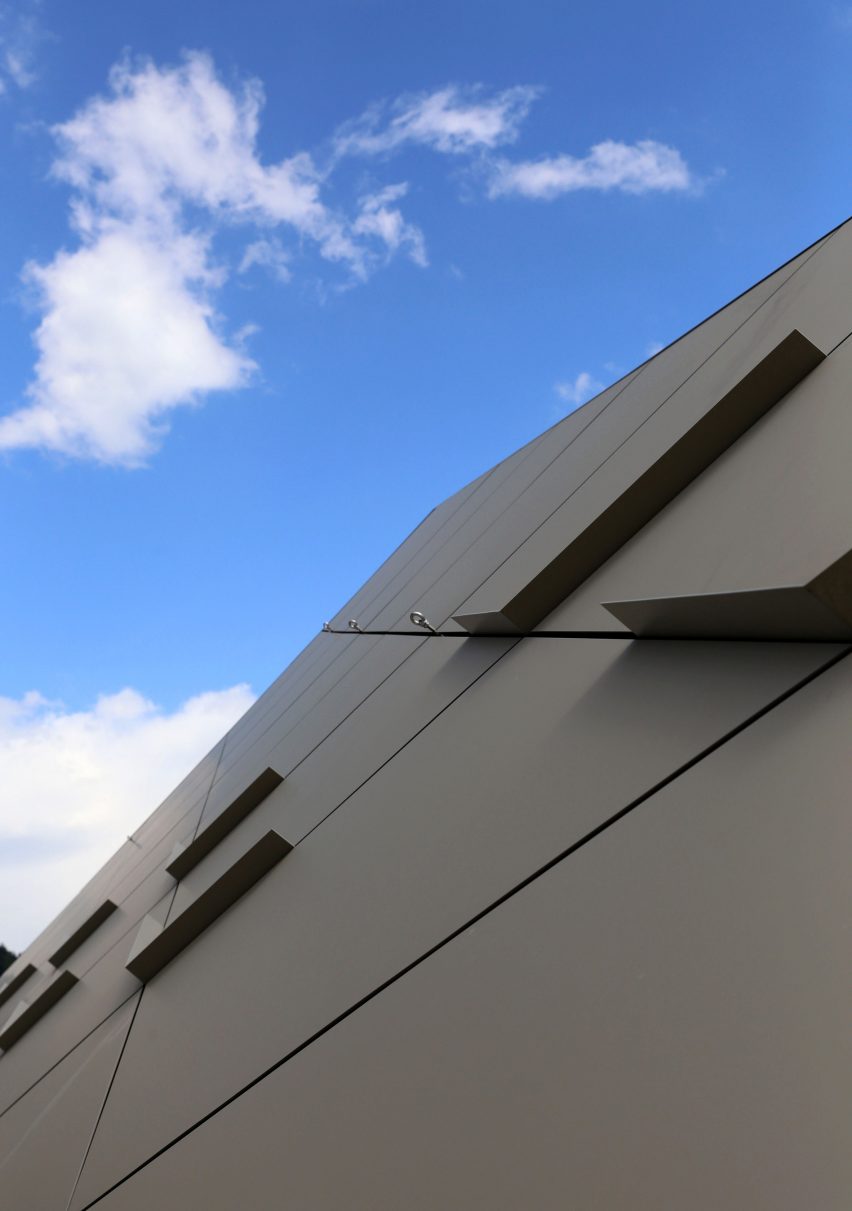

Aluminium composite panels cover the roofs' exteriors, chosen for their durability and colour, which complements the stone used for the buildings' facades. The panels are arranged in a diamond pattern, mirroring the wooden roof below.

Vent flaps in the facade and roofs are used to ventilate the courts in summer, and the two spaces double as events halls.

Ceiling of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps
The roofs are made from wood reinforced with steel. Photo by Neue Holzbau

Rüssli Architekten also built a new clubhouse for the tennis facility that faces the outdoor court and connects the two indoor courts.

Founded in 1964, Rüssli Architekten is based in Lucerne. Neue Holzbau was founded in 1983 and is based in Lungern.

Neutelings Riedijk Architects and Bureau Bouwtechniek recently completed the largest CLT project in Europe – the conversion of a 20th-century railway shed in Brussels.

Photography is by Leonardo Finotti unless stated otherwise.

More images and plans

Plans for Diamond Domes tennis courts

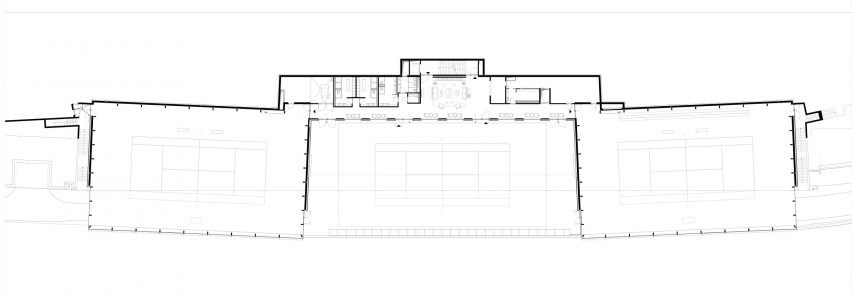

Floor plan
Plans for Diamond Domes tennis courts

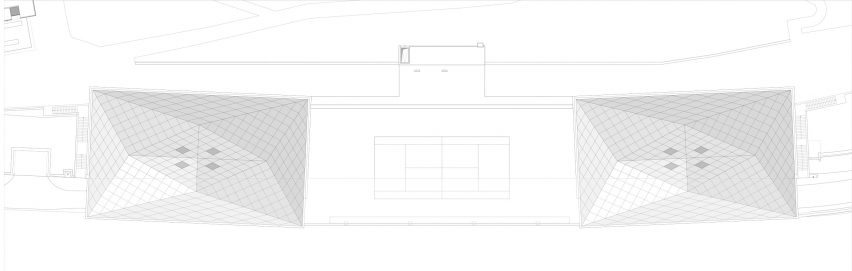

Rood plan
Plans for Diamond Domes tennis courts

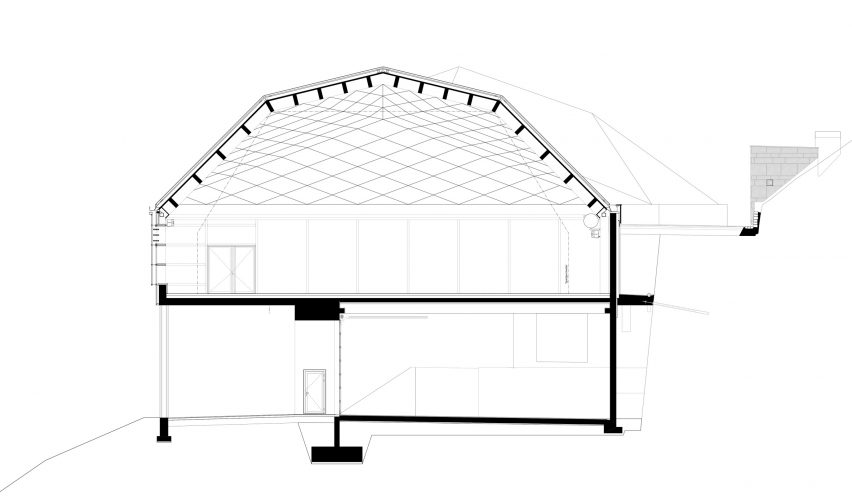

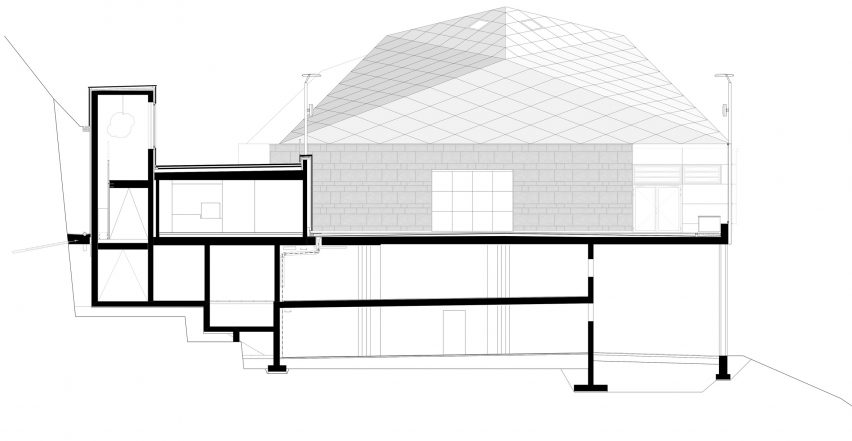

Section
Plans for Diamond Domes tennis courts

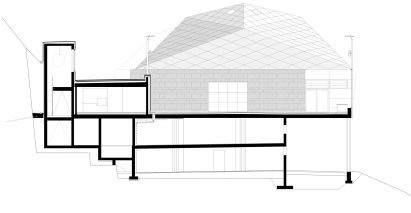

Section
Plans for Diamond Domes tennis courts

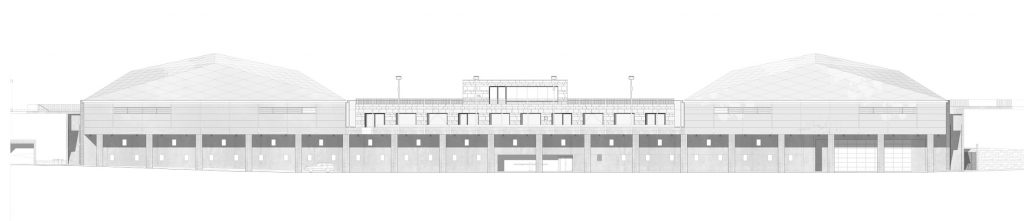

Elevation
Plans for Diamond Domes tennis courts

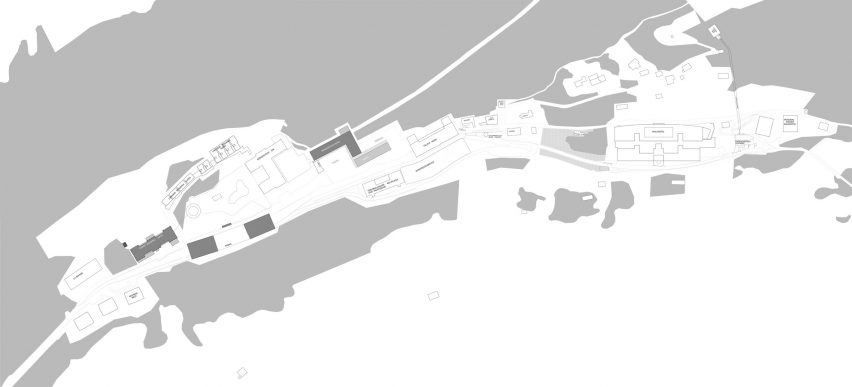

Site plan
Roof of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps

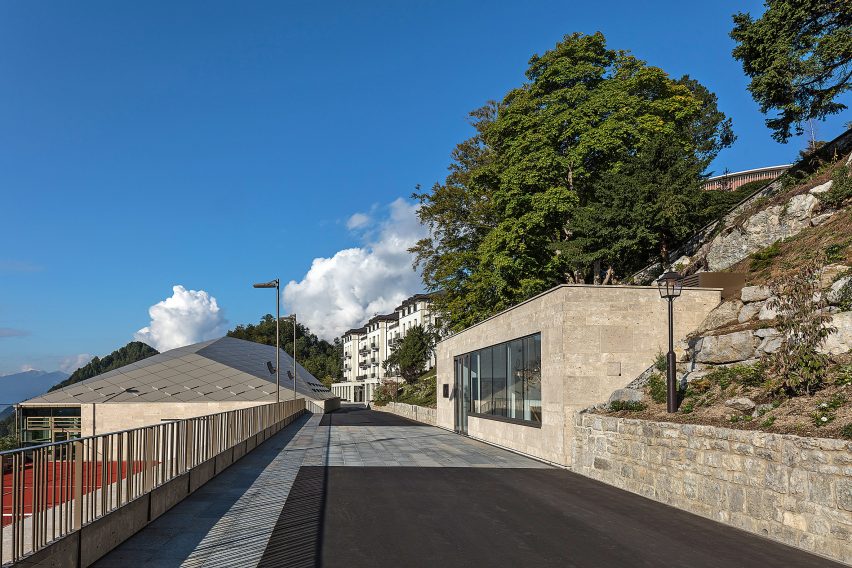

Exterior of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps

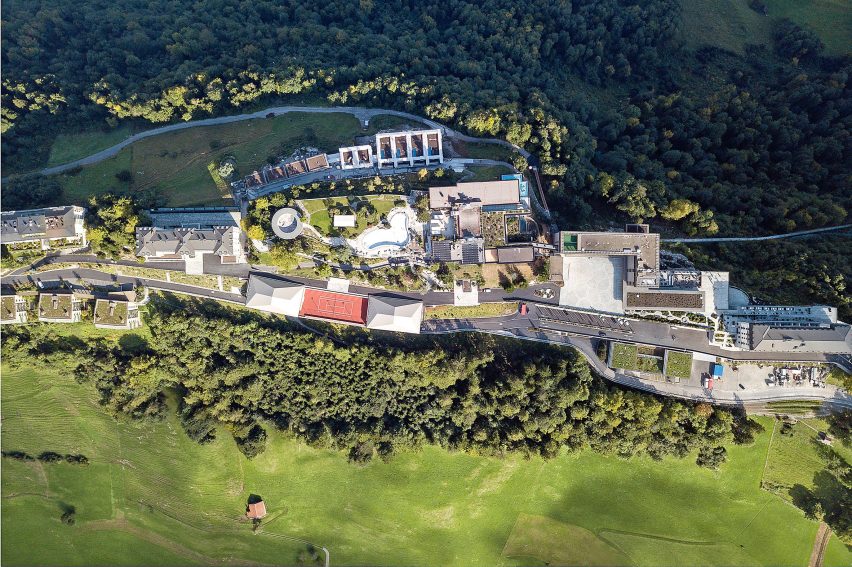

Aerial view of Diamond Domes tennis courts designed by Rüssli Architekten with CLT roofs by Neue Holzbau in the Swiss Alps
