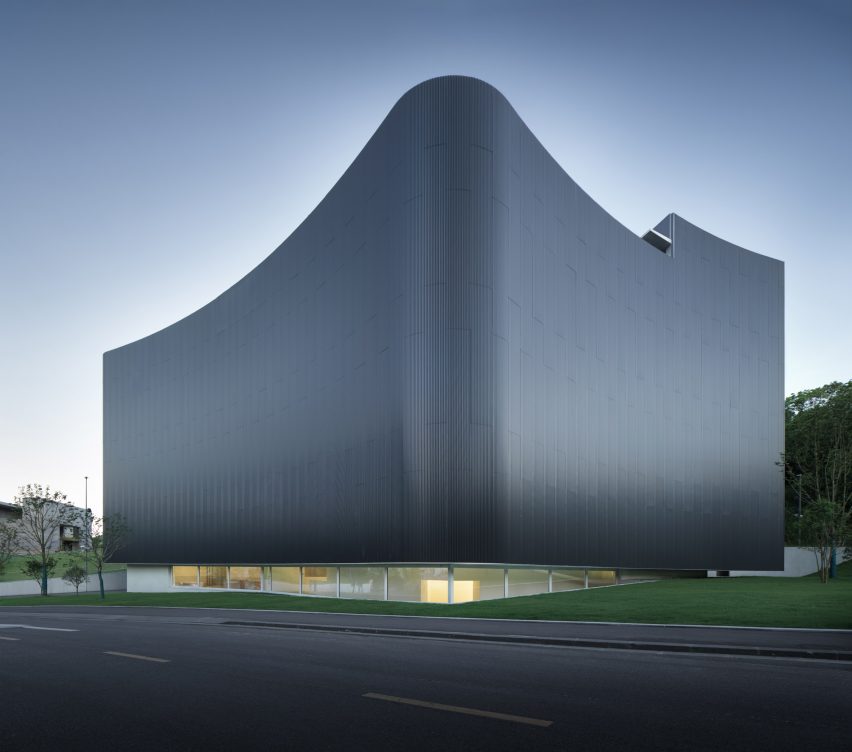

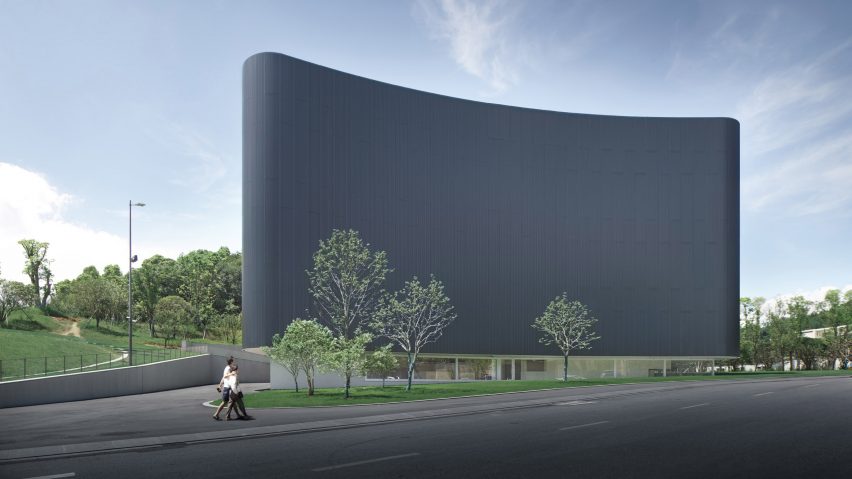

The front facade of the Humao Museum of Art and Education by Álvaro Siza and Carlos Castanheira

Álvaro Siza cloaks Chinese art museum with black corrugated metal

Black corrugated metal wraps the undulating, windowless walls of the Huamao Museum of Art and Education that Álvaro Siza and Carlos Castanheira have completed in Ningbo, China.

Set on the banks of Dongqian Lake, the minimalist museum was designed by Pritzker Prize-laureate Siza with fellow Portuguese architect Castanheira to evoke an ambiguous floating object.

Its black metal shell, which is elevated on a concrete plinth, conceals unexpectedly bright and spacious interiors that include a maze of ramps and white-walled art galleries.

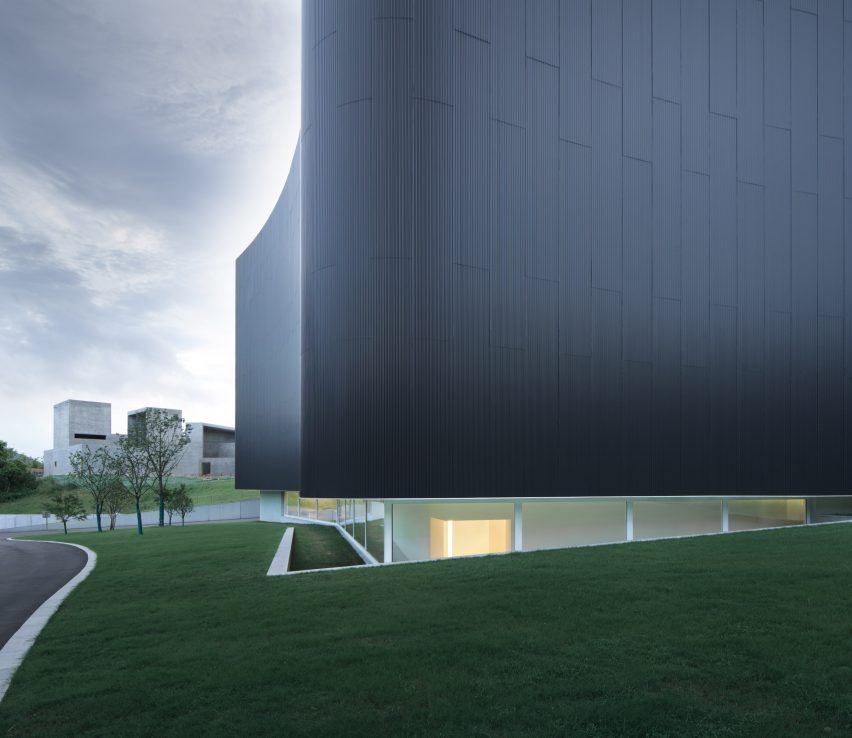

Corrugated metal facade of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
The Huamao Museum of Art and Education is cloaked by corrugated metal

"It's is a small museum that is immense inside," said Castanheira. "Leaning against on the hillside, its undulating form hovers above the ground."

"It is intriguing in its elegance and in its mystery," he continued. "Nothing is obvious in this little building."

The corrugated metal facade of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
It is intended to evoke an ambiguous floating object

Huamao Museum of Art and Education (MoAE) measures 5,300 square metres and has a loose triangular form, softened by several curved edges.

The only glimpses of activity inside are offered through slithers of glazing along the building's set-back concrete base that contains a foyer and basement.

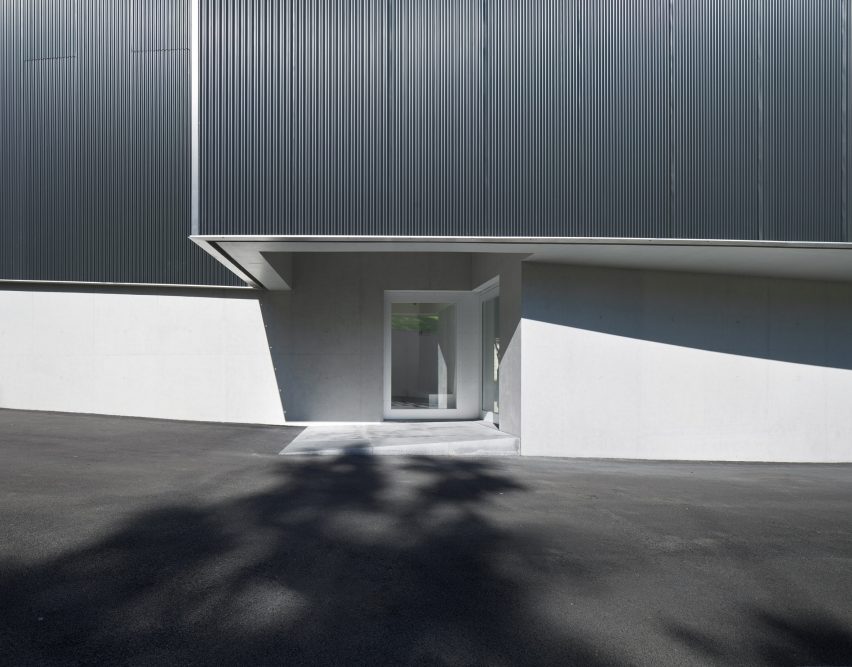

The discreet entrance to the Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
A discreet entrance opens into unexpectedly bright interiors

MoAE's distinctive curved facade works in tandem with the external landscaping to guide visitors around the site to locate its small, discreet entrance.

The entrance opens into the heart of the museum, where there is a large white-walled void. This extends the full height of the building and is encircled by a maze of ramps.

According to Castanheira, the stark contrast between the museum's exterior and interior is intended to give visitors a feeling of being "released into a vast space" upon entering.

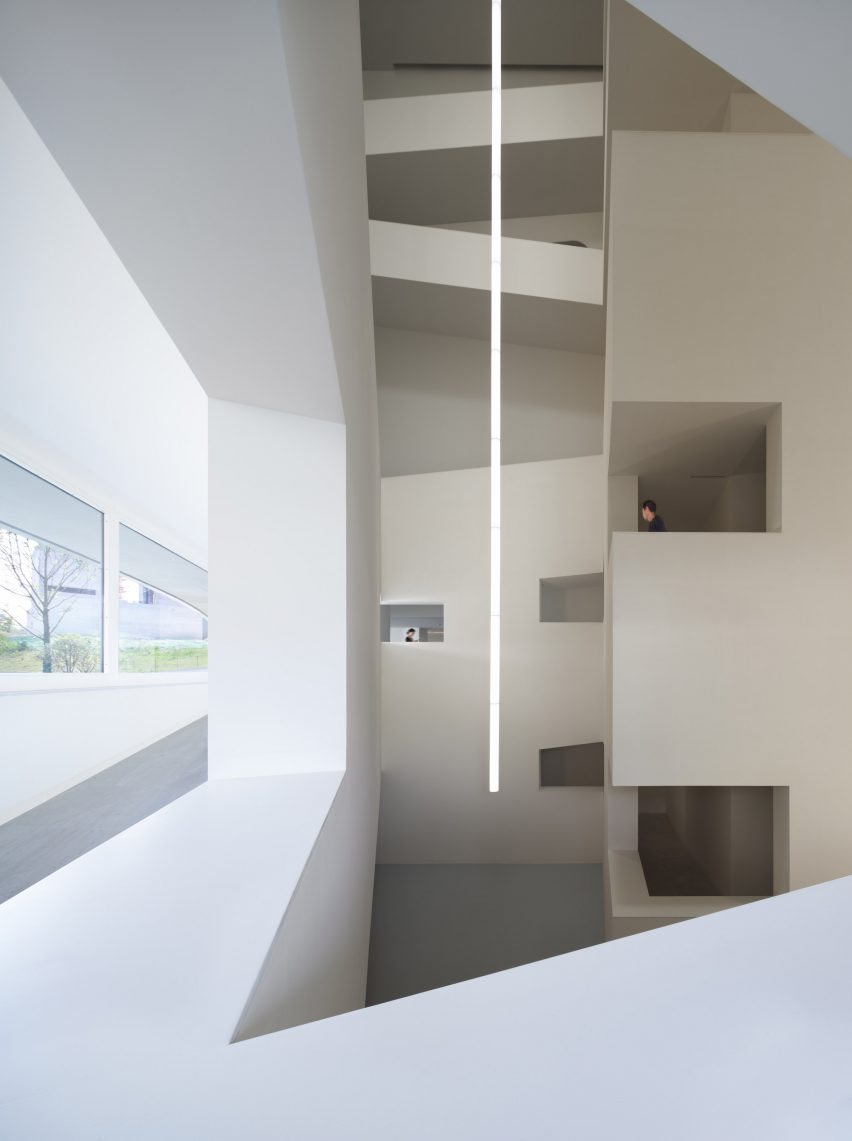

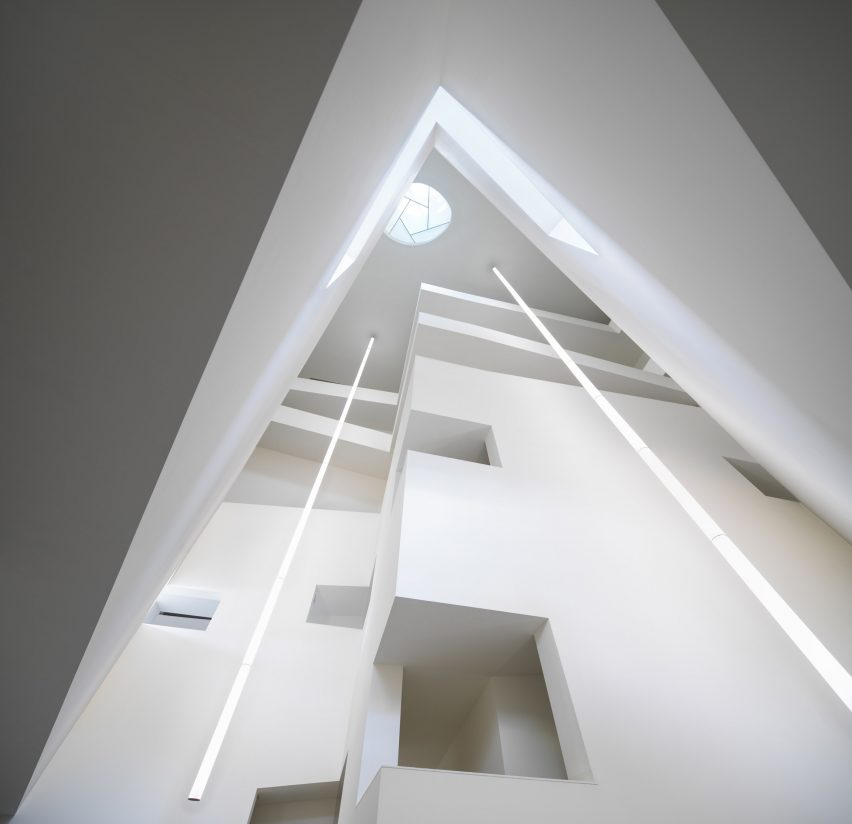

The central void inside Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
A void at the heart of the building is encircled by ramps

"The public entrance is reached after passing around the form of the building and experiencing an imposed, absorbing compression, to then be released into a vast space, the full height of the building, where a snaking ramp links all the floor levels," he explained.

"This diversity in routes and the interconnection of spaces makes this small building vast inside."

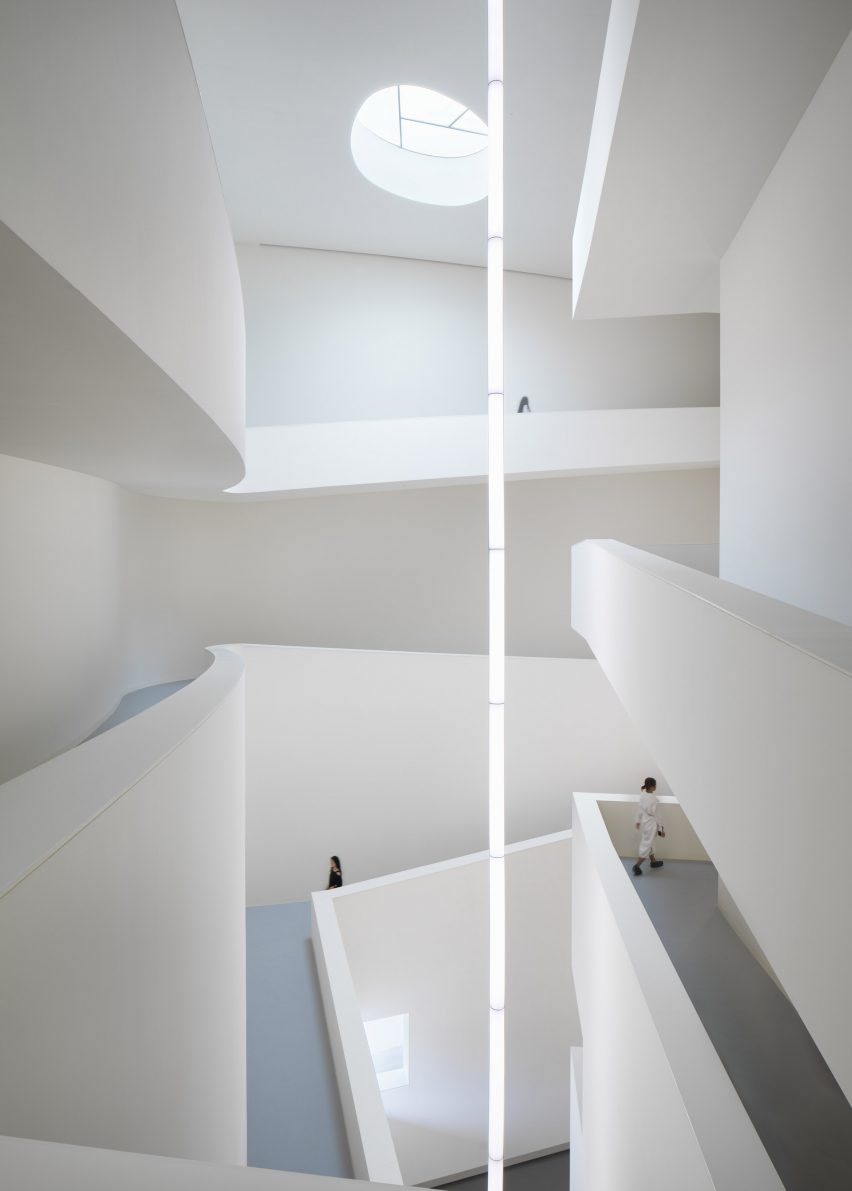

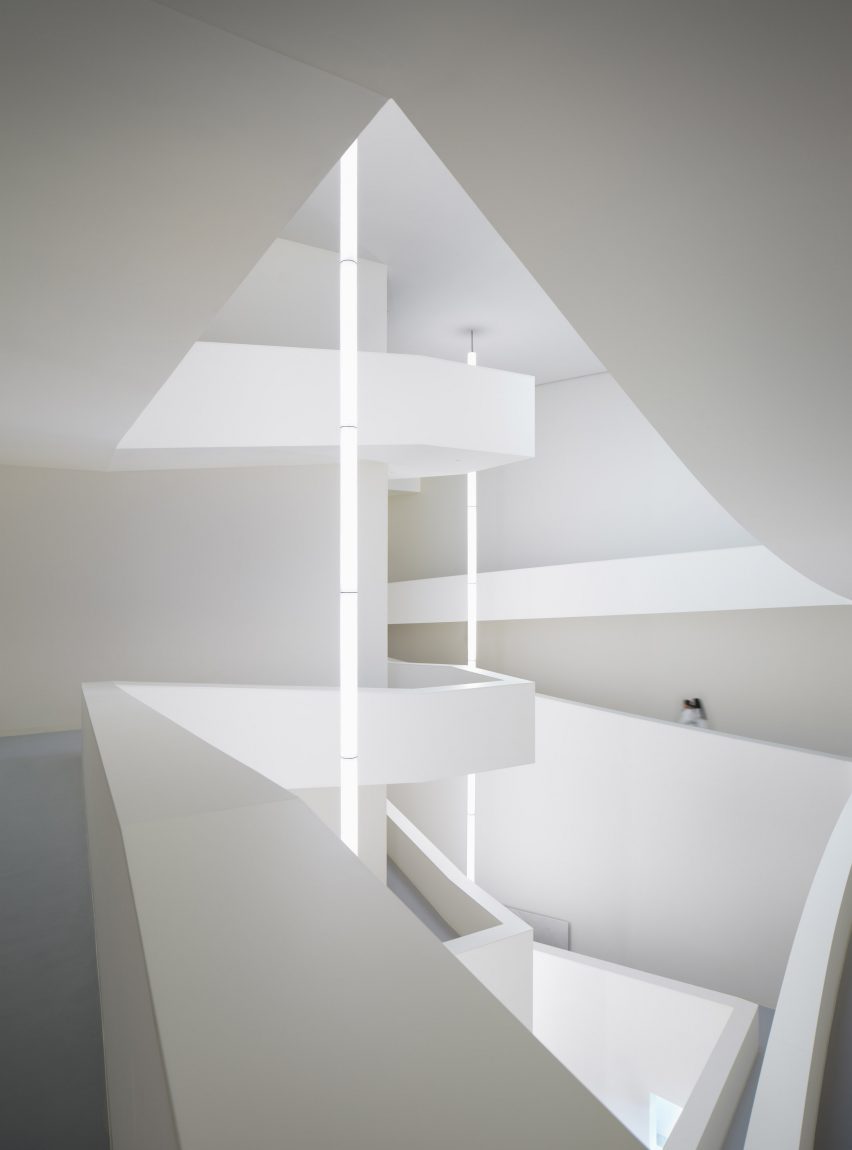

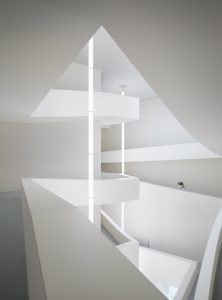

The central void inside Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
An oculus helps to bring light into the museum

The ramps that wrap around the void form the museum's main circulation route and provide access to the art galleries, which contain a range of old and contemporary Chinese paintings and sculptures.

A large oculus at roof level illuminates the void.  With the help of the white surfaces, it filters natural light into the windowless exhibition spaces through geometric openings in their walls.

The museum is complete with a secluded rooftop area, set-back from the edge of the museum to create a hidden roof terrace overlooking the lake.

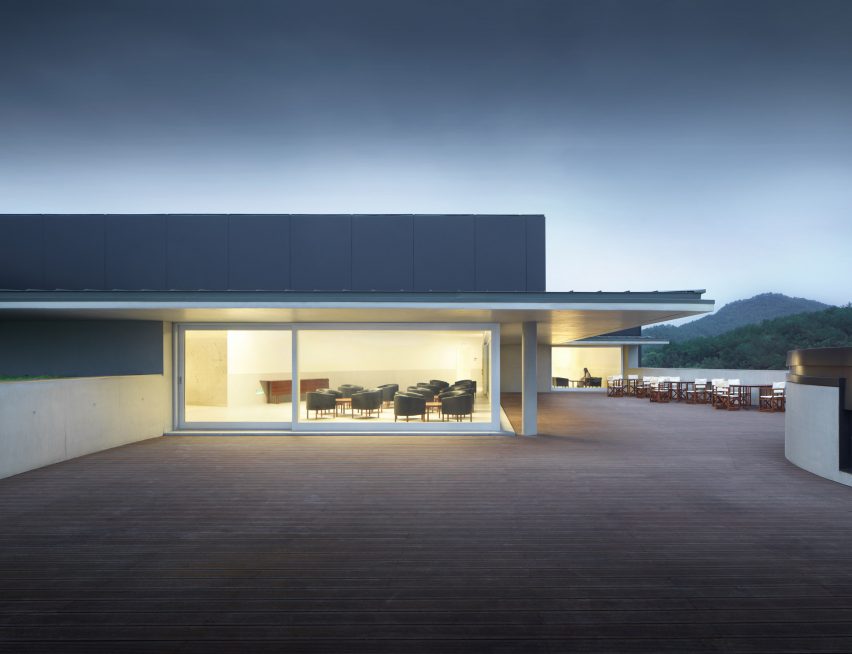

The roof terrace of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
A rooftop cafe leads onto a hidden terrace

Portuguese duo Siza and Castanheira's completion of the Huamao Museum of Art and Education follows their collaboration on the red sandstone International Design Museum of China in Hangzhou, eastern China.

They also previously created the Mimesis Museum in South Korea, which features a sinuous concrete wall that wraps around a central courtyard.

Elsewhere, Siza also recently completed a travertine housing development in Lombardy with COR Arquitectos and the built a ceramics pavilion with a thatched roof for the artist retreat Casa Wabi in Mexico.

Photography is by HouPictures.

More images and plans

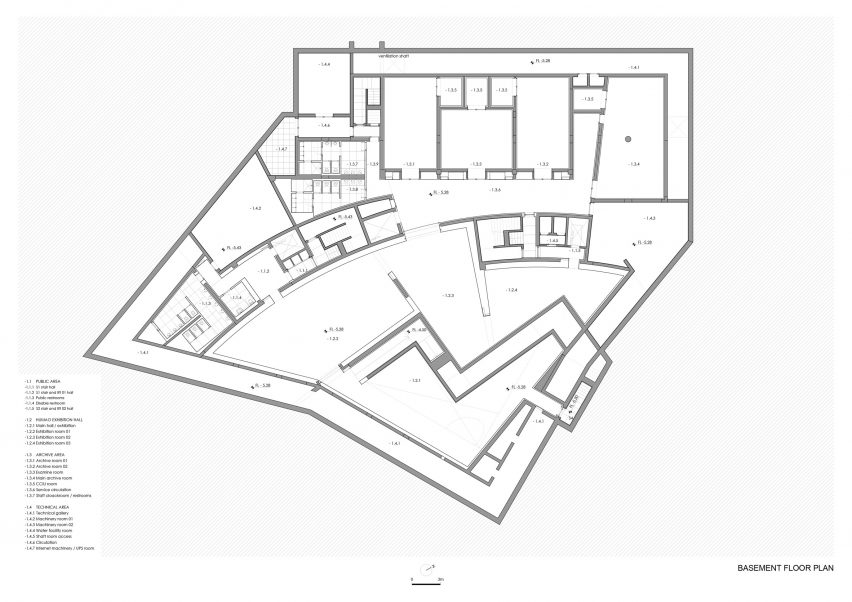

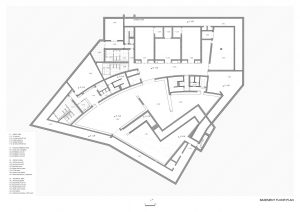

Basement plan of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Basement plan

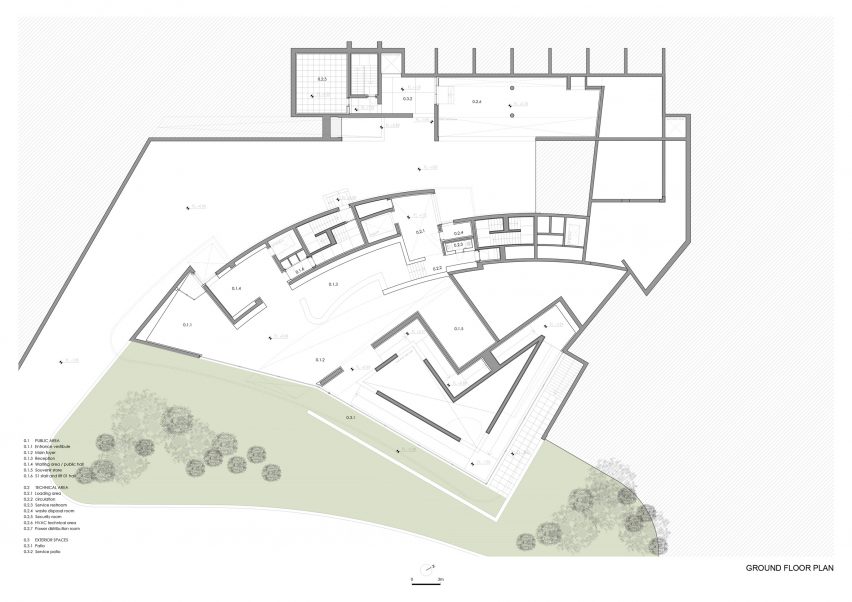

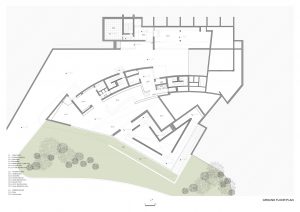

Ground floor plan of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Ground floor plan

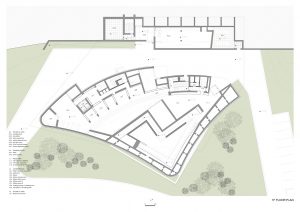

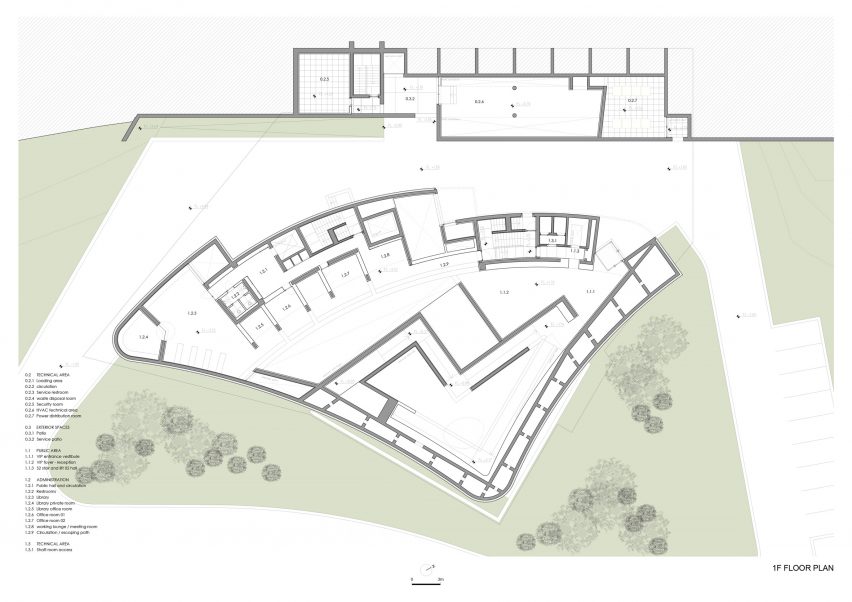

First floor plan of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
First floor plan

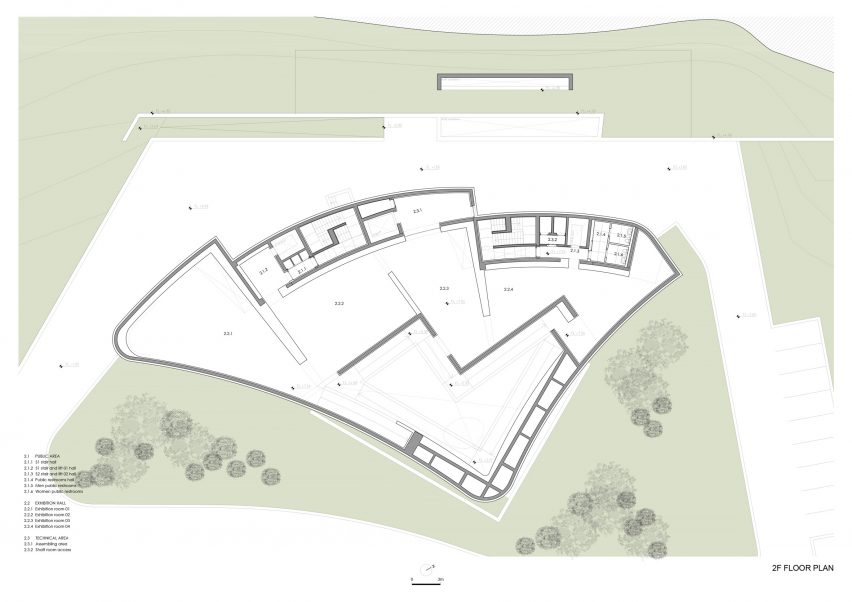

Second floor plan of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Second floor plan

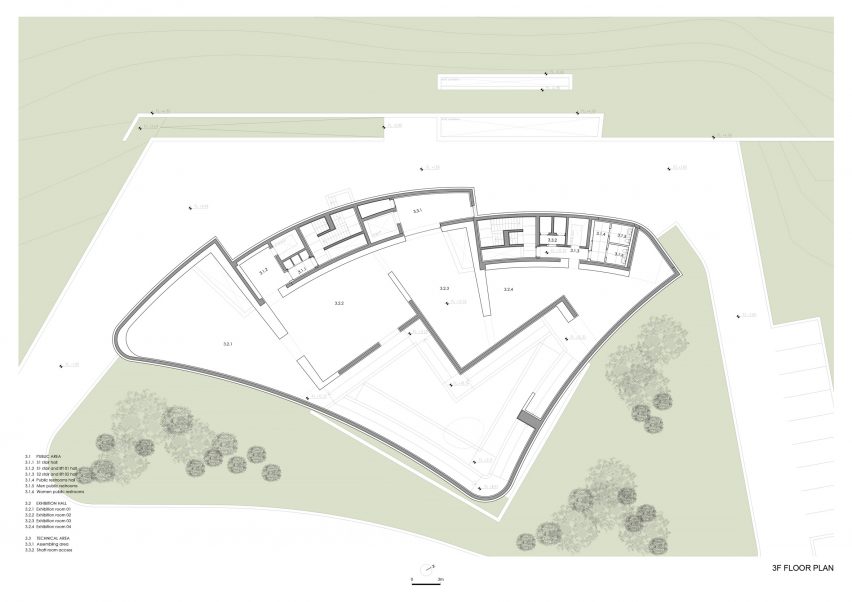

Third floor of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Third floor plan

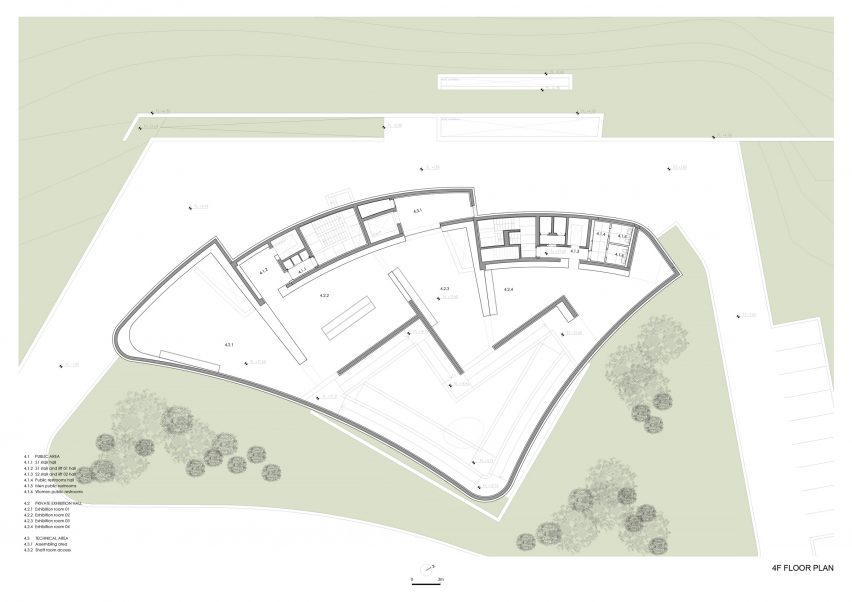

Fourth floor plan of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Fourth floor plan

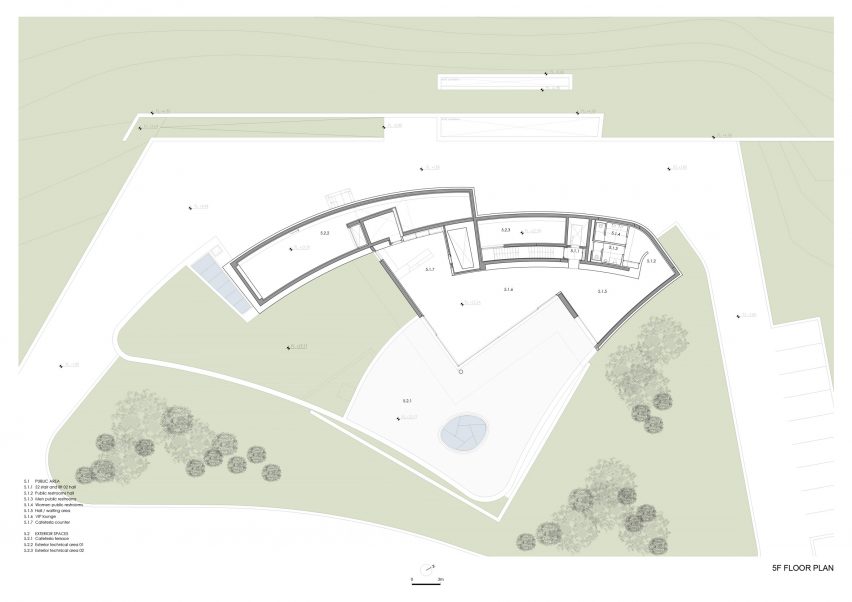

Fifth floor plan of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Fifth floor plan

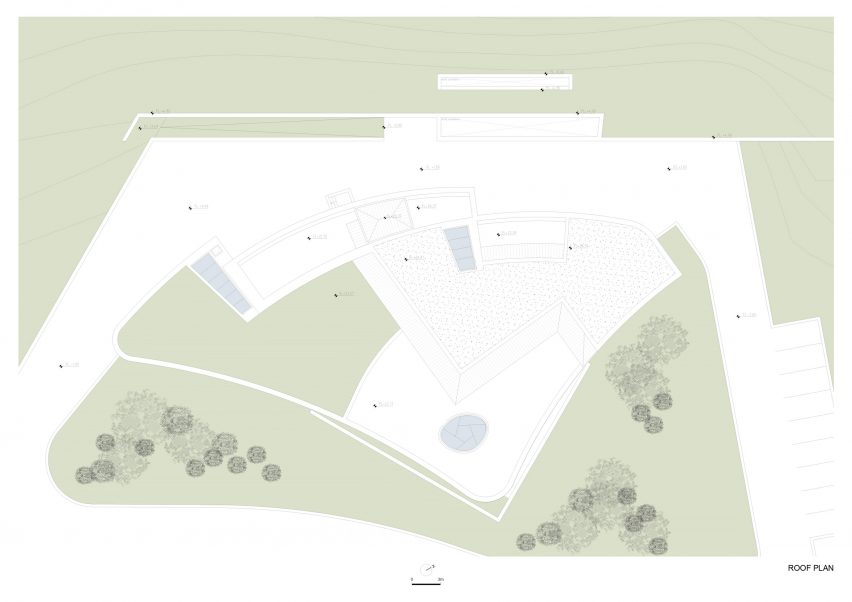

Roof plan of Humao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Roof plan

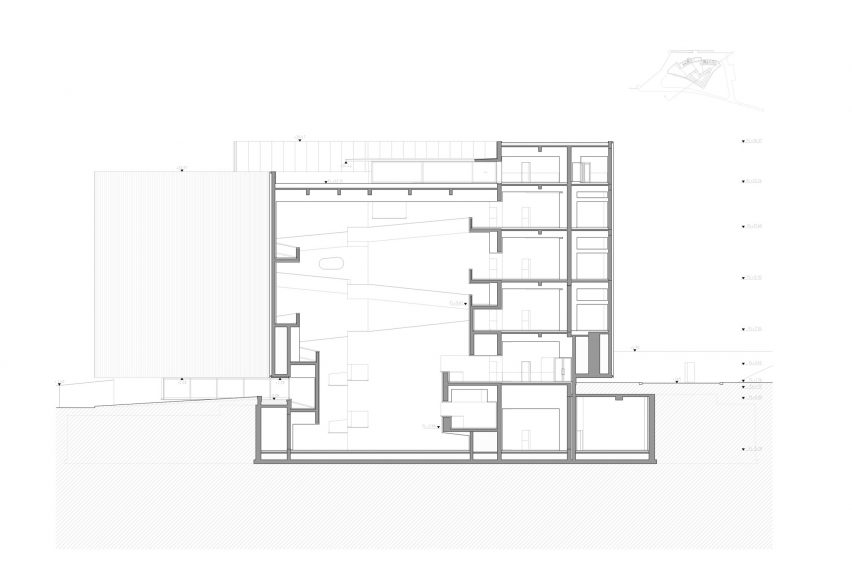

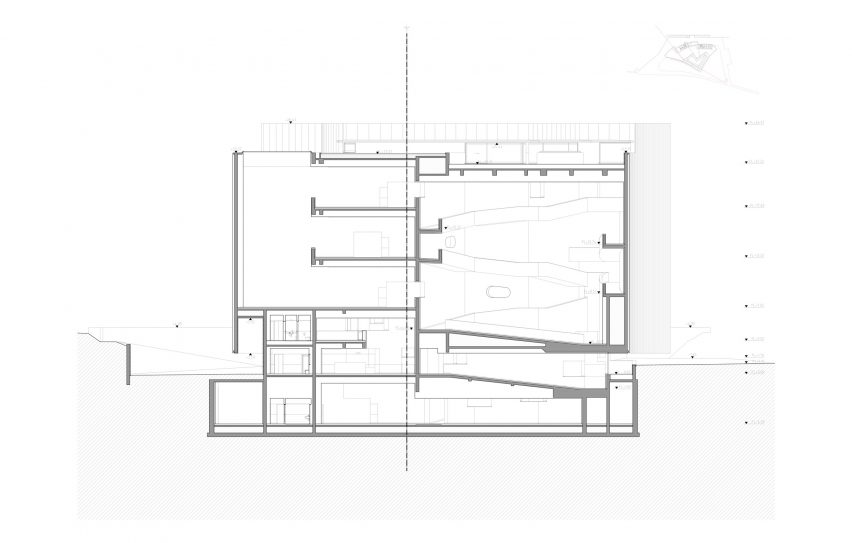

Section of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Section

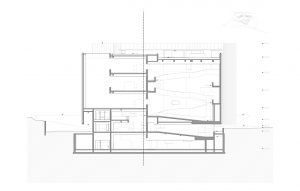

Section of Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
Section

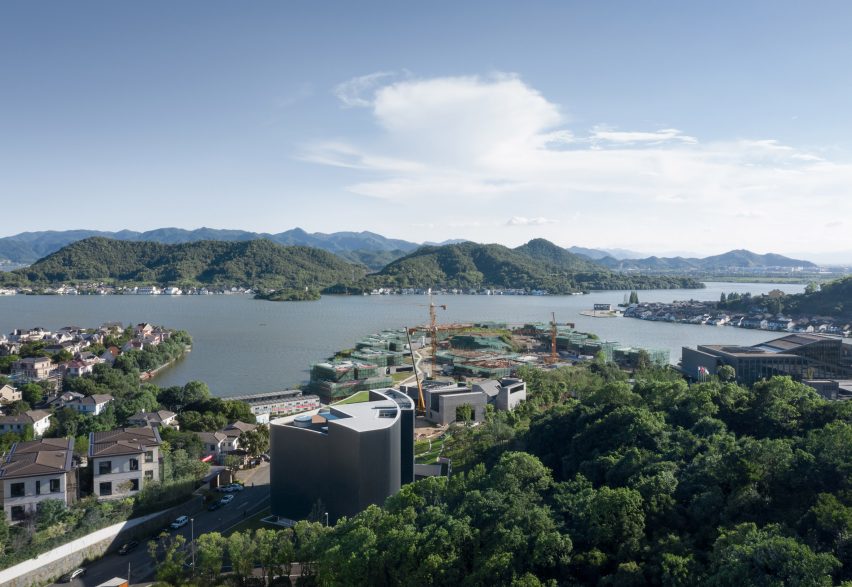

An aerial view of the Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira

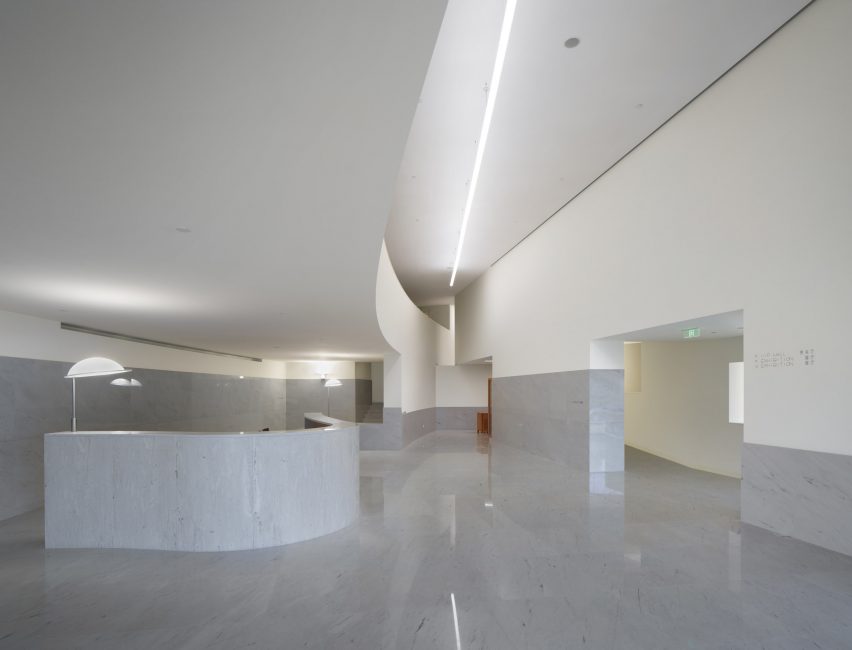

The entrance of the Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira

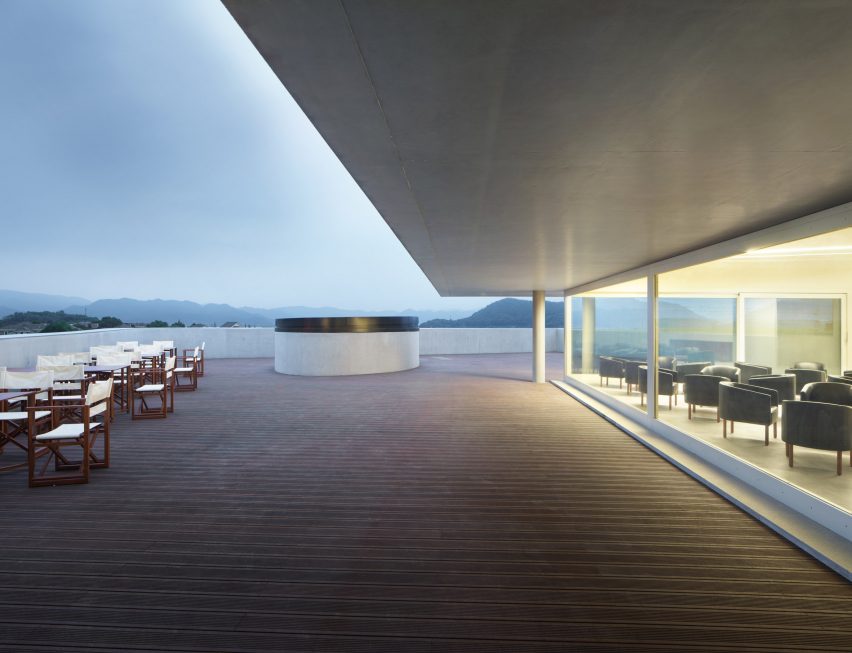

The roof terrace of the Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira

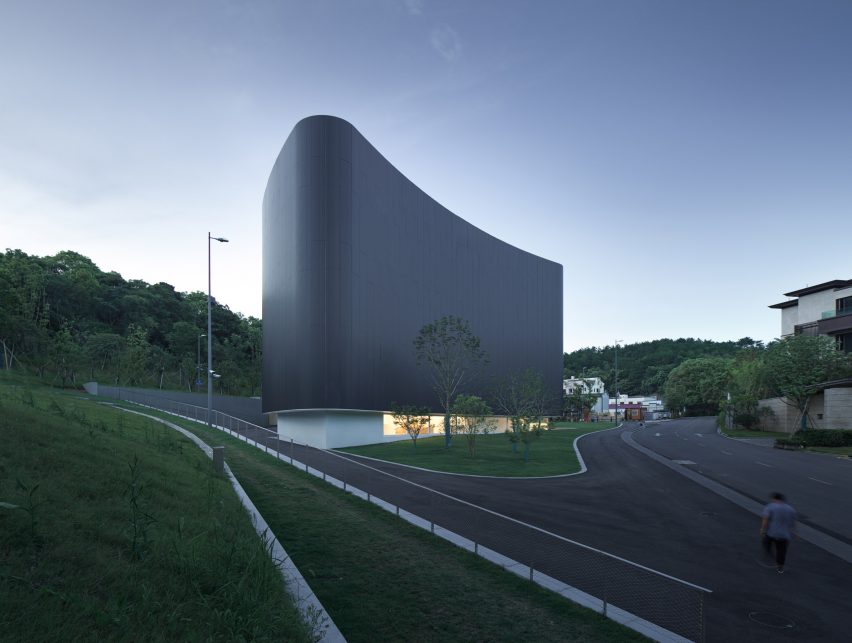

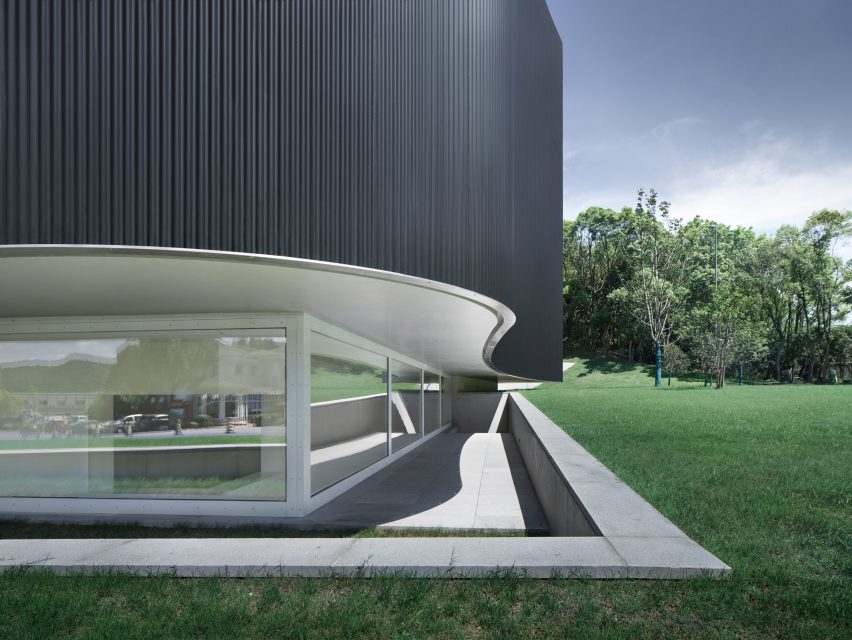

The exterior of the Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
The central void inside Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
The central void inside Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira

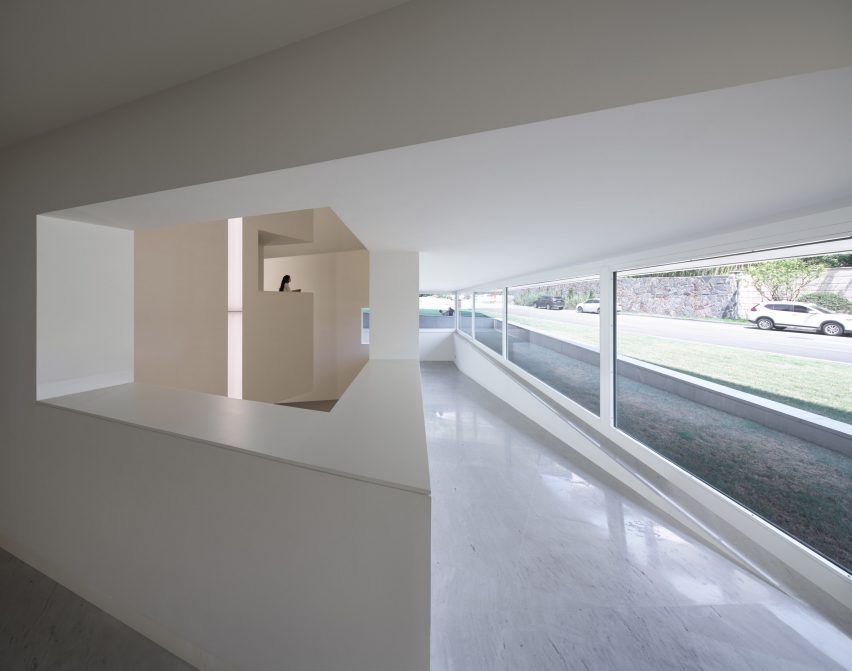

A ramp leading to the basement of Humao Museum of Art and Education by Álvaro Siza and Carlos Castanheira

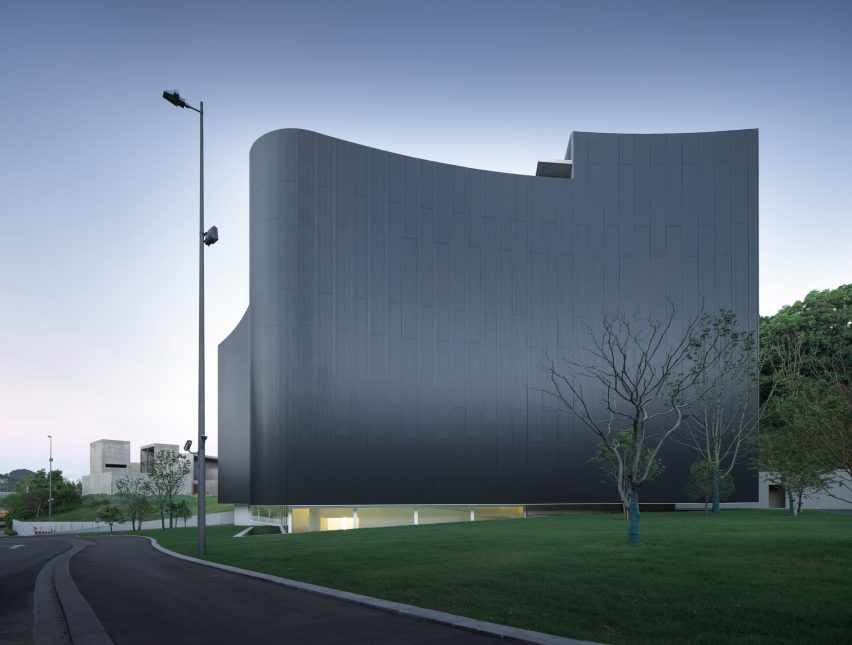

The exterior of the Huamao Museum of Art and Education by Álvaro Siza and Carlos Castanheira
