Diller Scofidio + Renfro completes riverside Tianjin Juilliard School in China

Four steel and concrete pavilions linked by glass bridges make up the Tianjin Juilliard School, which New York studio Diller Scofidio + Renfro has completed in northeastern China.

The 32,500-square-metre performing arts institution next to the Hai River in Tianjin is the branch campus of the Juilliard School in New York, which Diller Scofidio + Renfro also created.

Like its US counterpart, the Tianjin Juilliard School has a mix of performance and teaching spaces, alongside communal areas and large portions of glazing that offer glimpses inside.

A music school in China
Diller Scofidio + Renfro has completed the Tianjin Juilliard School

"Our design for the new Tianjin Juilliard School takes much of its DNA from Juilliard's New York campus, which we completed in 2009," said Charles Renfro, the studio's partner-in-charge.

"Both projects seek to increase engagement with the public through openness and transparency; offer informal spaces for students to mix and gather, and provide teaching and performance spaces with world-class acoustics."

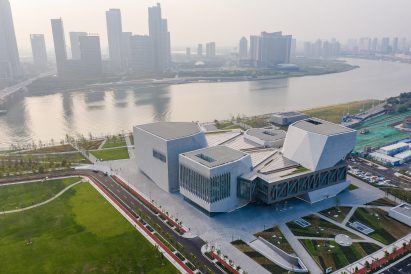

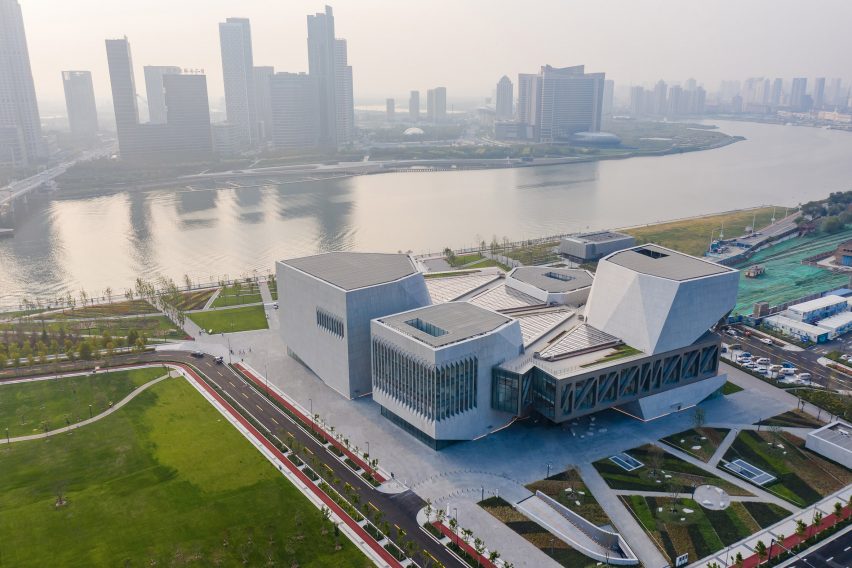

A music school beside Hai River in China
It is divided into four pavilions linked by bridges

The four pavilions that make up the Tianjin Juilliard School contain a 690-seat concert hall, a 299-seat recital hall and a 225-seat black box theatre, alongside offices and rehearsal spaces.

They are linked together by the five glass bridges, which span a 2,260-square-metre, column-free foyer at the heart of the building.

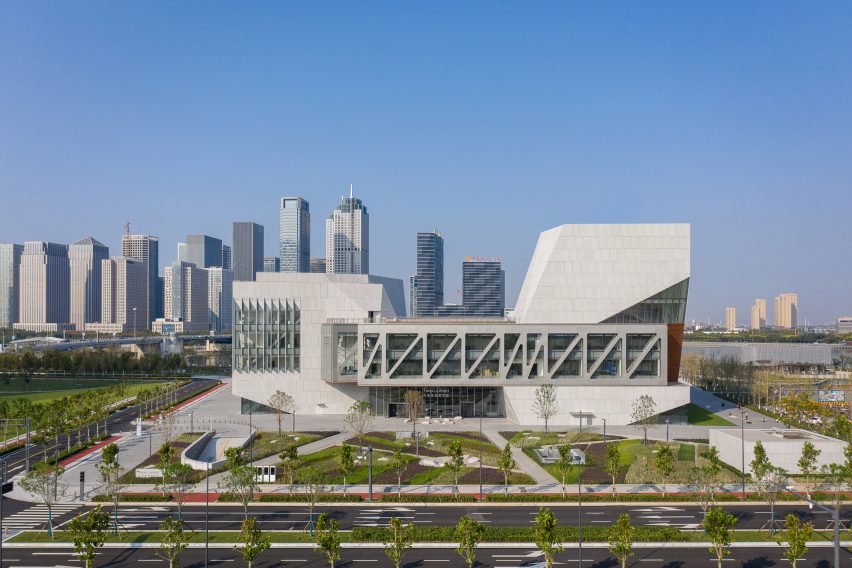

A concrete and steel clad music school in China
It is clad in stainless steel and concrete

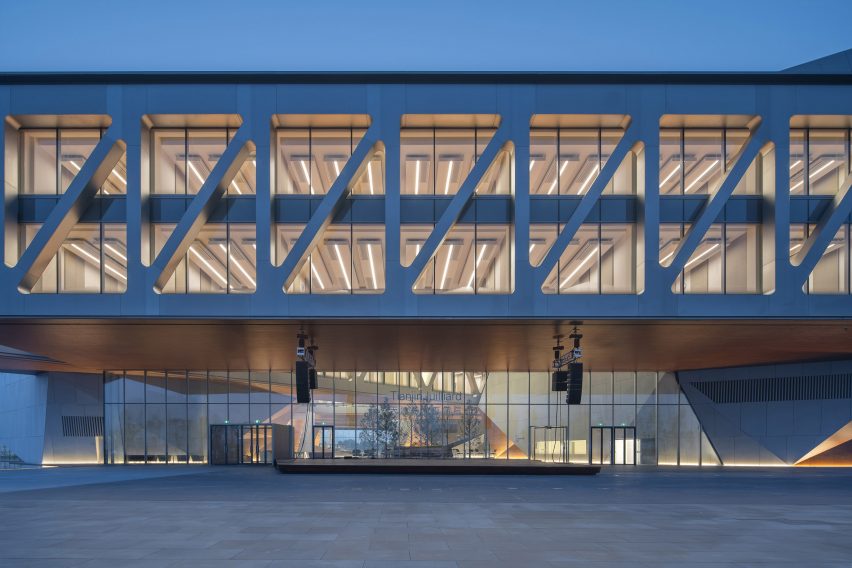

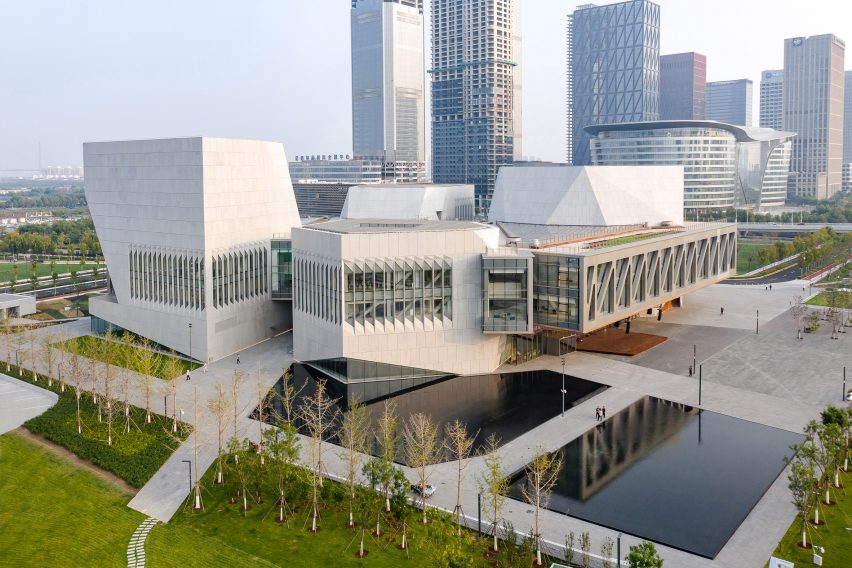

Externally, these pavilions read as one building, unified by their stainless steel, glass-fibre-reinforced concrete and Parklex wood cladding, and large areas of glazing.

Continuous stone paving and reflective pools wrap around the building to create a large external plaza for the public. The paving continues into the lobby to draw visitors inside.

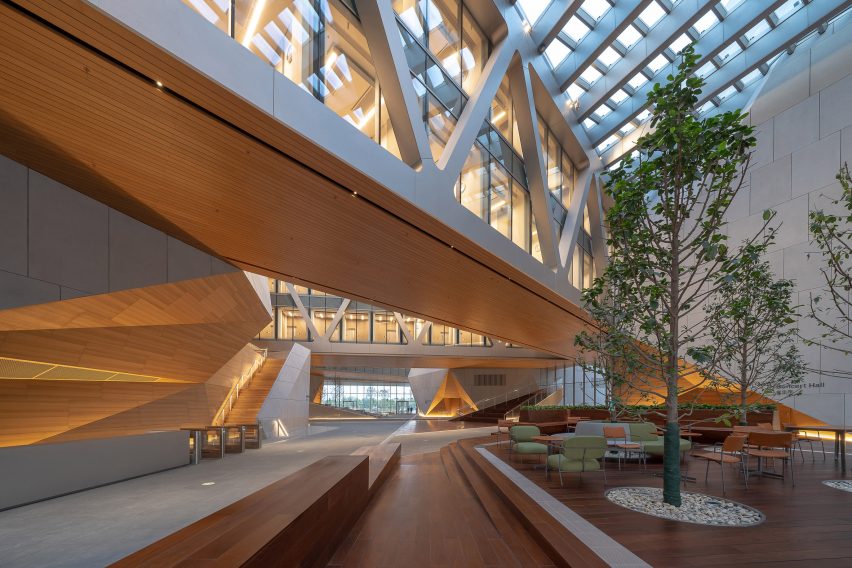

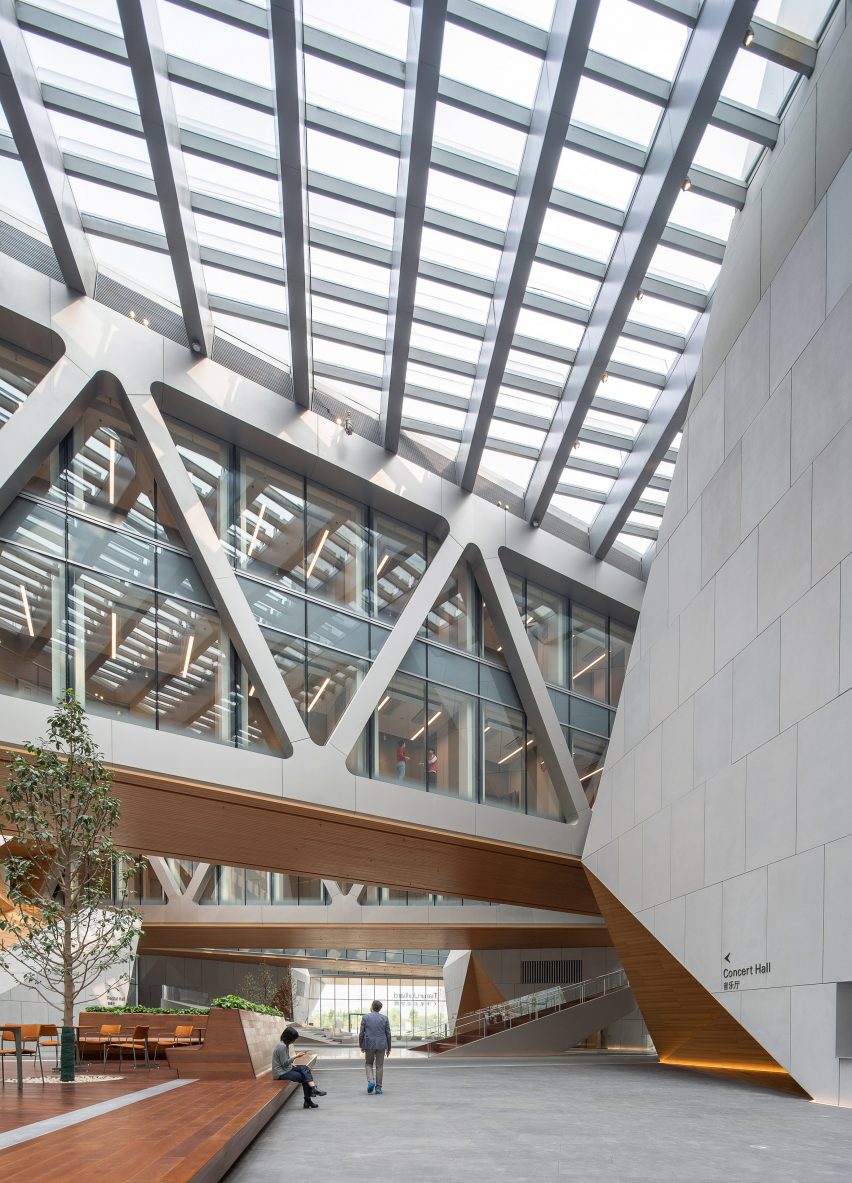

The lobby of the Tianjin Juilliard School
A large foyer sits at the heart of the building

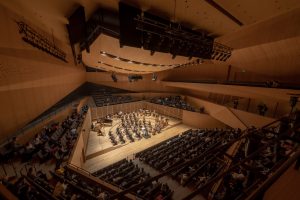

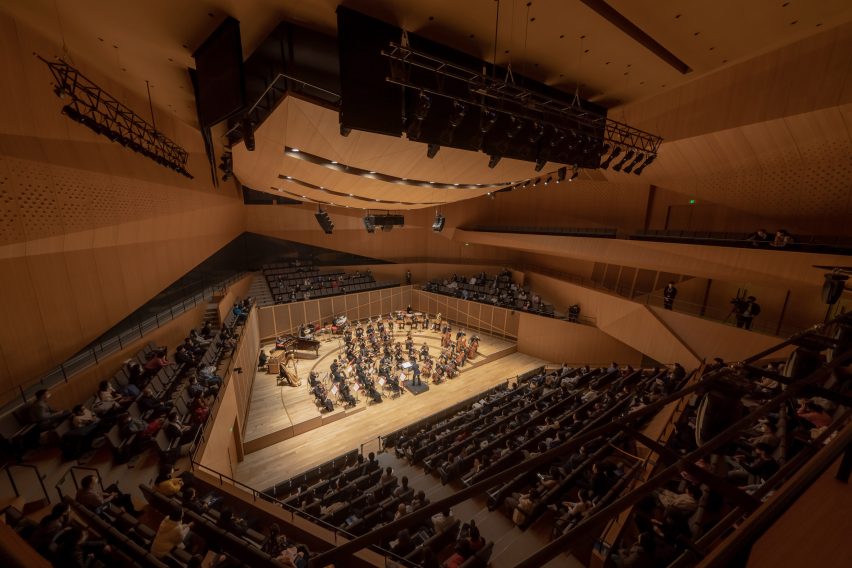

Tianjin Juilliard School's primary performance facility is its 690-seat concert hall, which has a reconfigurable stage and is lined with warm eucalyptus wood.

The seats enfold the stage to create "a more intimate relationship between the audience and performers''. A glass facade with retractable blackout blinds features at one end and frames views of the river.

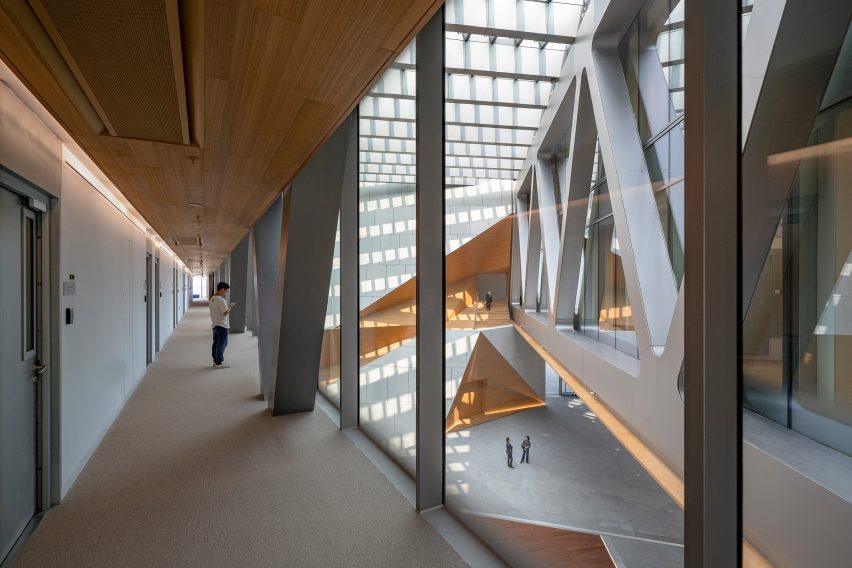

Glass bridges through a lobby
Glass bridges cross over the atrium

The black box theatre is primarily used for multimedia performances, while the recital hall is described as the school's "acoustic workhorse" – used throughout the day by students.

Like the concert hall, the recital hall is also wrapped in eucalyptus wood and has a glass facade that frames a nearby park and the reflecting pools on the plaza.

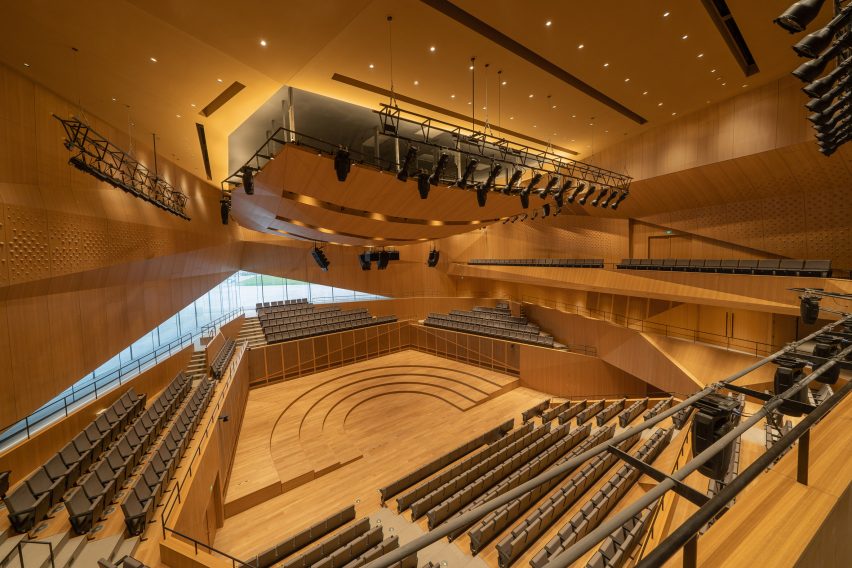

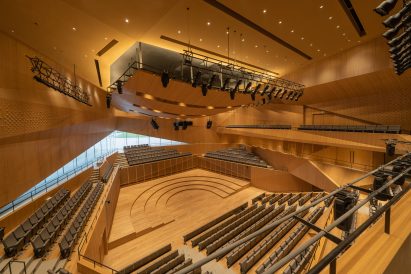

A wood-lined concert hall
The concert hall is the largest performance space

The fourth pavilion is dedicated to large rehearsal rooms that double as performance spaces, alongside a library, bookstore and offices.

Another large rehearsal space, specifically for orchestras, is positioned above the main concert hall and leads onto a planted roof terrace with views of the Hai River.

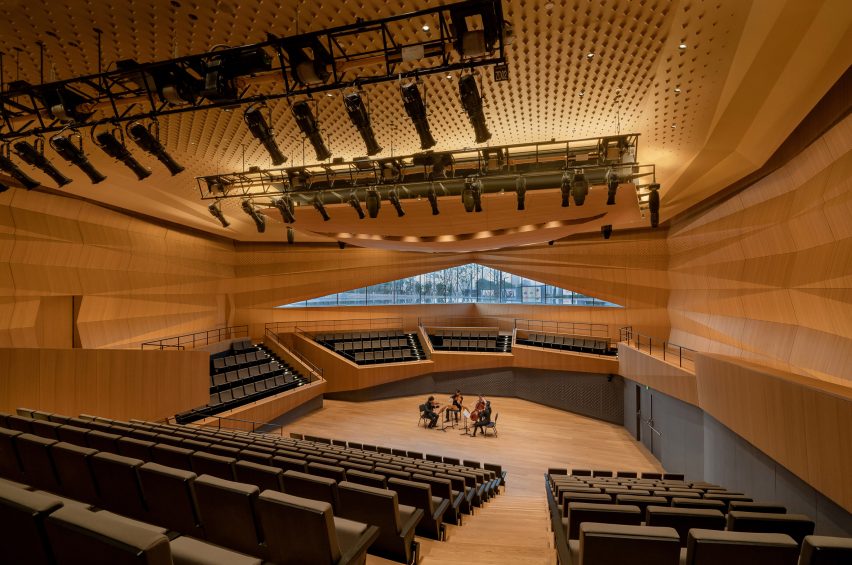

A wooden recital hall in China
The recital hall is lined in eucalyptus wood

Tianjin Juilliard School's central lobby is lit by four skylights and provides access to all three concert venues. It is publicly accessible all year round via six different entrances.

"In Tianjin, the ground floor lobby acts as a continuation of the surrounding park, accessible through multiple entries open to the public," explained Renfro.

The lobby is intersected by glass-lined bridges that contain classrooms and practice rooms and allow visitors to observe and listen to the students. Where the bridges meet the edges of the building, Diller Scofidio + Renfro has created double-height seating areas.

"All of the teaching and practice spaces occupy five glass-clad bridges that span between the performance pavilions, bringing daylight and views to and from these education spaces while broadcasting the activities of the school to the general public," Renfro said.

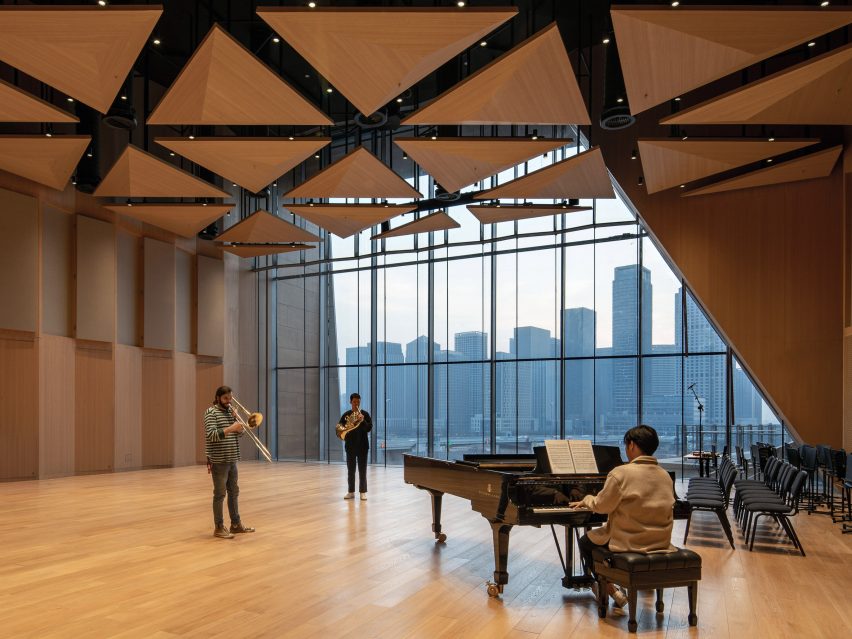

A rehearsal room in Tianjin Juilliard School
Rehearsal spaces feature throughout the school

Alongside the plaza and lobby, Tianjin Juilliard School is complete with a "digital learning environment" for the public called the Imagination Space, in which people can learn about the schools.

This space features interactive displays and is capable of hosting live-streamed concerts between both campuses.

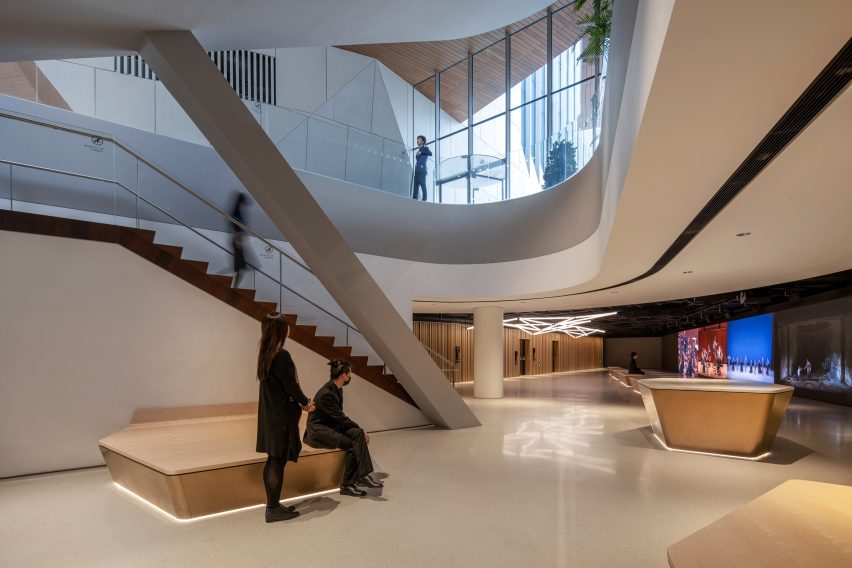

An exhibition space with digital displays
There is a "digital learning environment" for the public

Diller Scofidio + Renfro was founded in 1981 by Elizabeth Diller and Ricardo Scofidio. Renfro became a partner in 2004 and Benjamin Gilmartin became a partner in 2015.

Other recent projects by the studio include the US Olympic and Paralympic Museum in Colorado. Plans for its pyramidal Centre for Music in London have recently been scrapped in favour of a "major renewal" of the nearby brutalist Barbican estate.

Photography by Zhang Chao, courtesy of Diller Scofidio + Renfro.


Project credits:

Design architect: Diller Scofidio + Renfro
Executive architect: East China Architectural Design & Research Institute (ECADI)
Landscape: Hargreaves Jones
Structure/MEP: ECADI with Arup
Acoustics: Jaffe Holden Acoustics
Theatre: Fisher Dachs Associates
Curtain wall: Front
Lighting: Tillotson Design Associates
Climate: Transsolar
AV/IT: Shen Milsom Wilke
General contractor: MCC Tiangong Group Co., Ltd.
Facade glazing: Luoyang North Glass Technology Co., Ltd
Facade wood cladding: Parklex International S.L.
Performance hall wood veneer: SanFoot

More images and plans

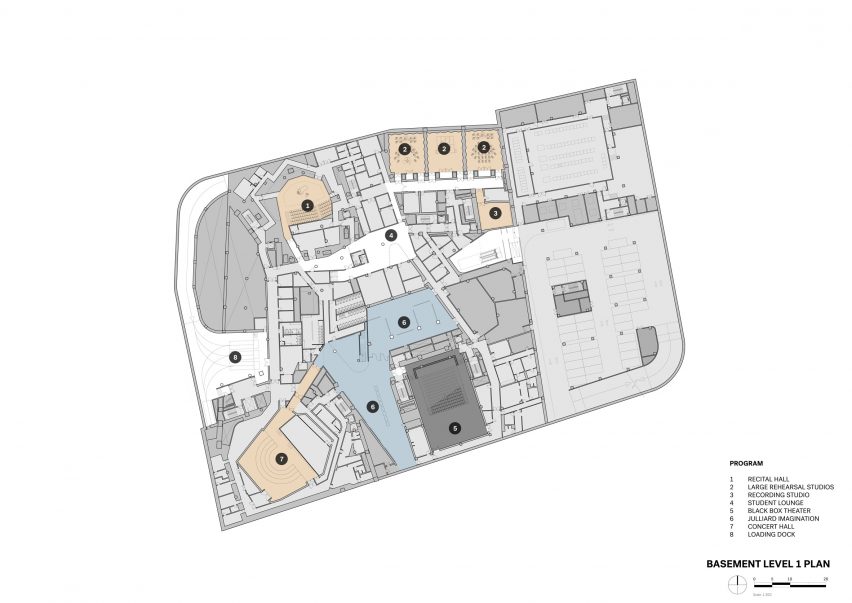

Basement plan of Tianjin Juilliard School by Diller Scofidio + Renfro
Basement plan

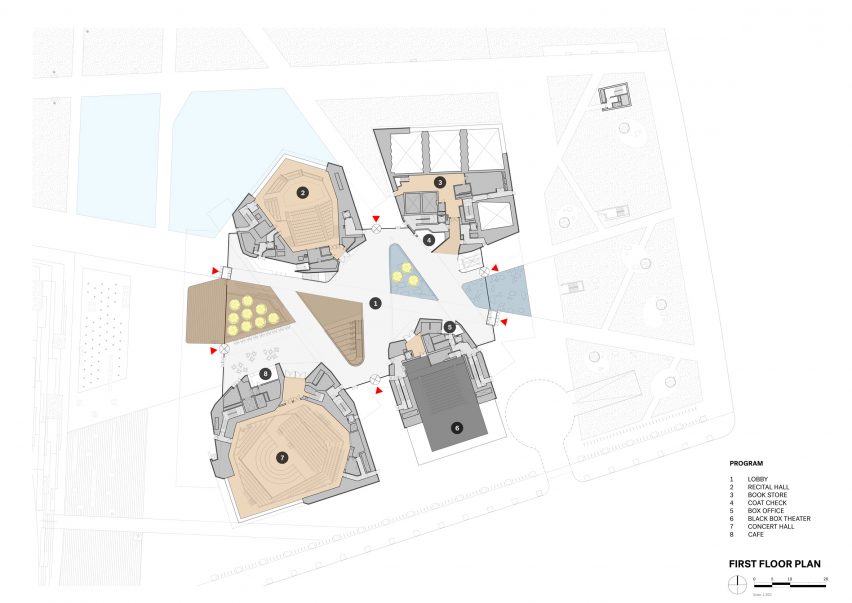

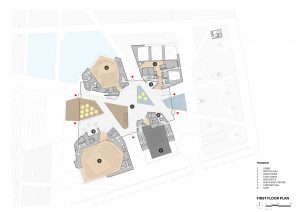

Ground floor plan of Tianjin Juilliard School by Diller Scofidio + Renfro
Ground floor plan

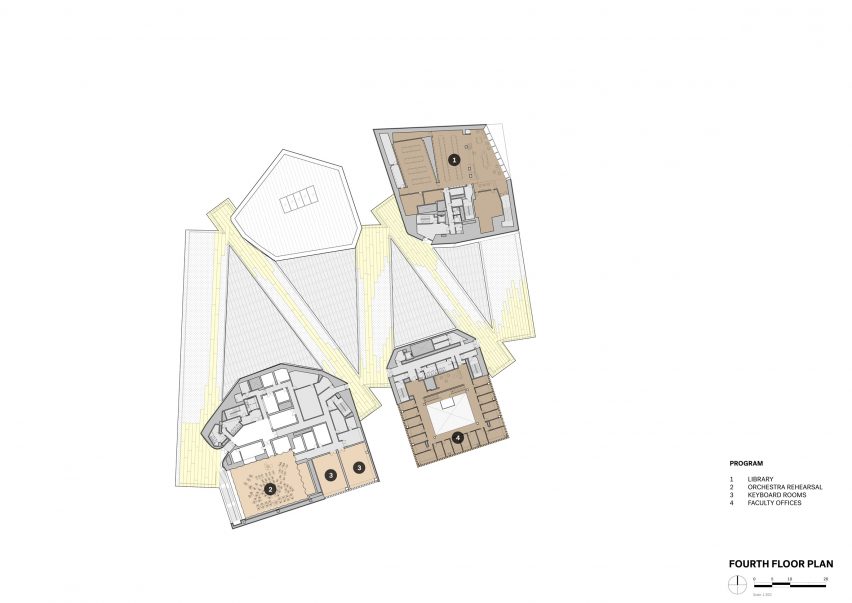

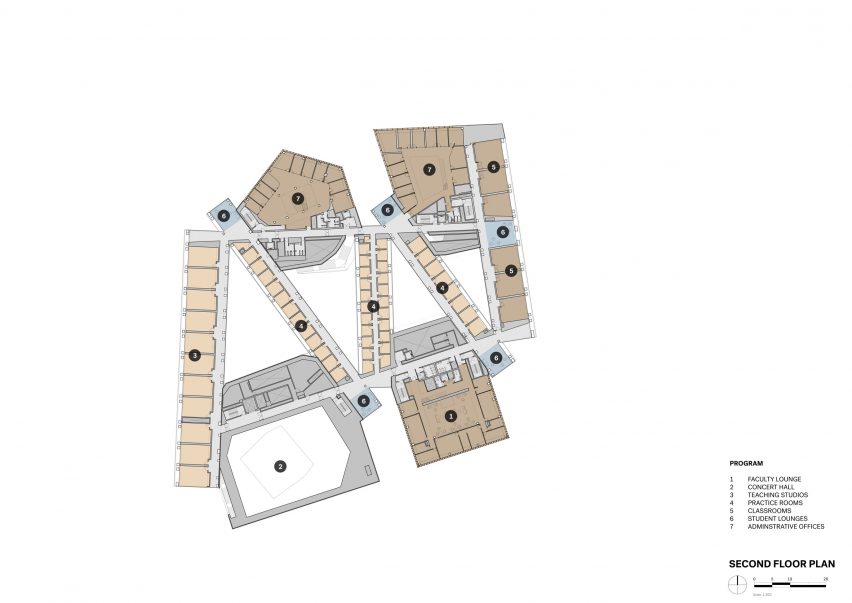

Floor plan of Tianjin Juilliard School by Diller Scofidio + Renfro
Example floor plan
Floor plan of Tianjin Juilliard School by Diller Scofidio + Renfro
Example plan

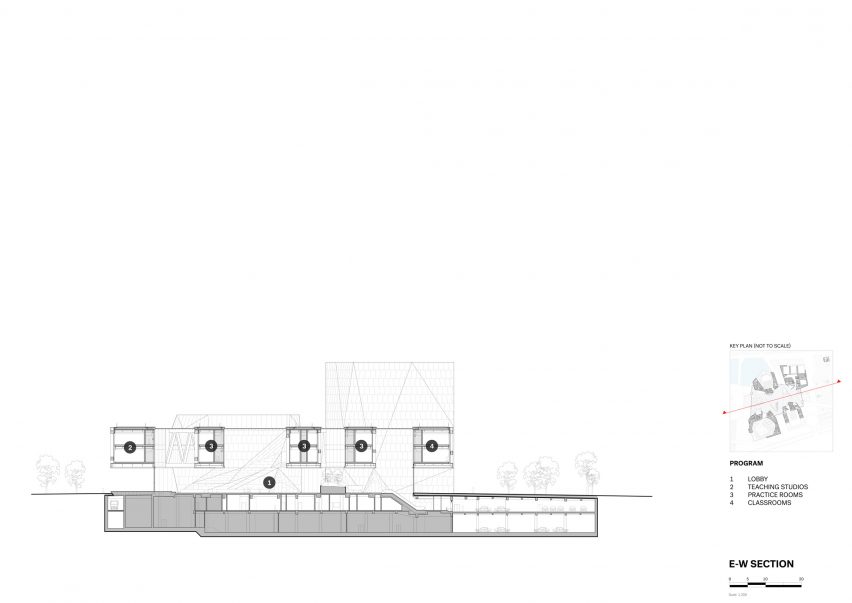

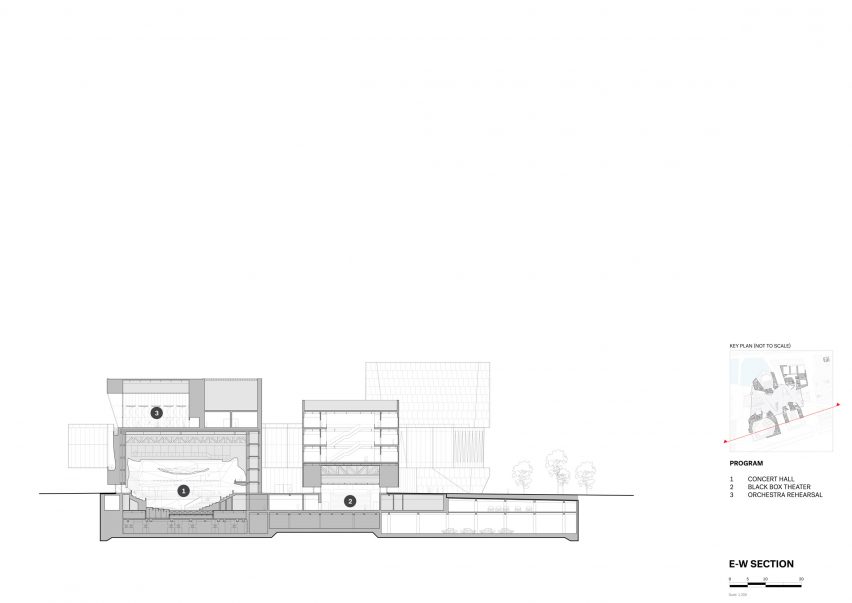

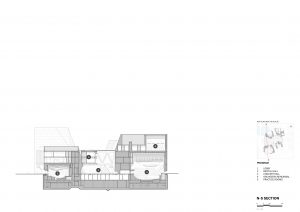

Section of Tianjin Juilliard School by Diller Scofidio + Renfro
Section

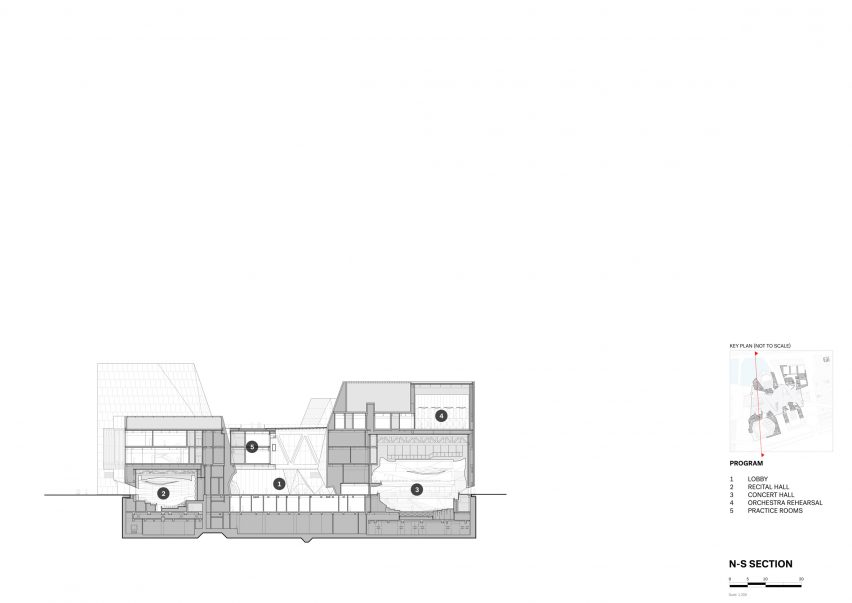

Section of Tianjin Juilliard School by Diller Scofidio + Renfro
Section
Section of Tianjin Juilliard School by Diller Scofidio + Renfro
Section
A wooden concert hall
The lobby of Tianjin Juilliard School

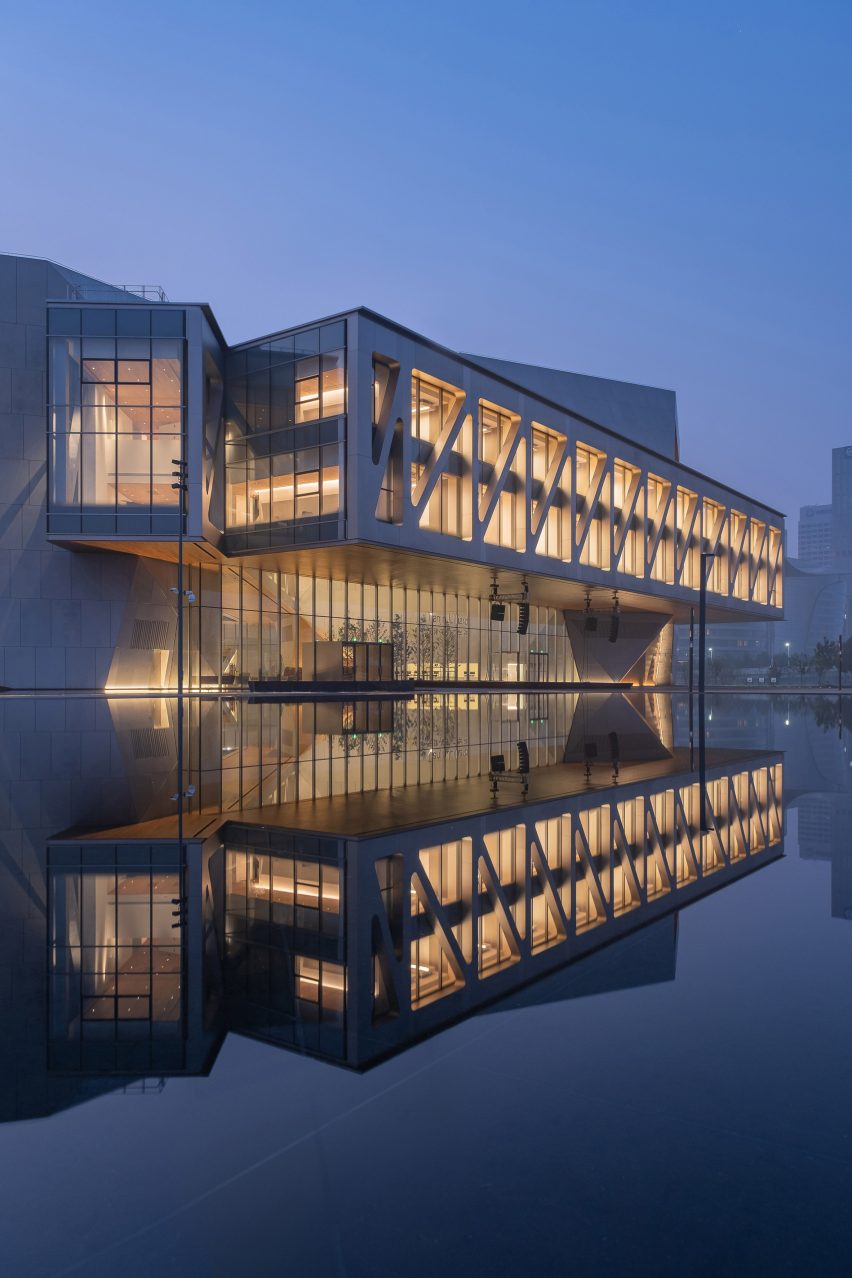

A steel and concrete-clad school

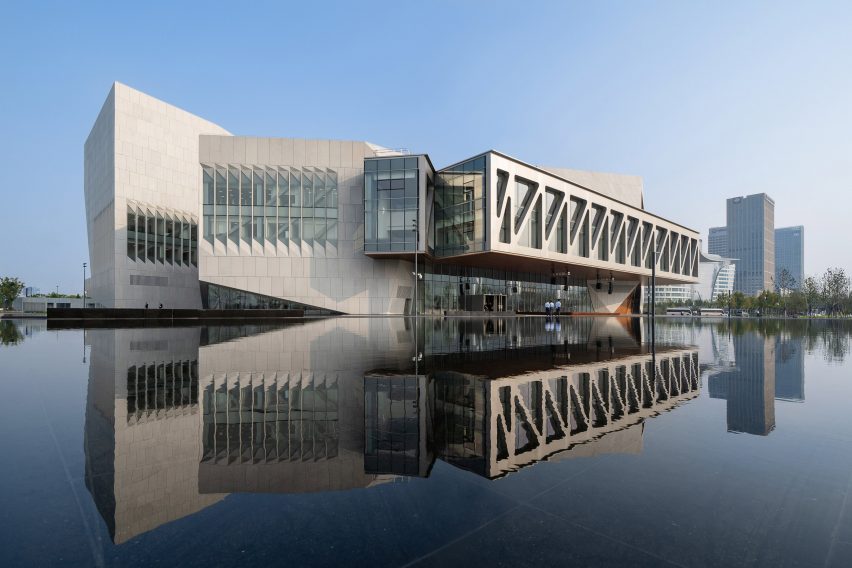

The exterior of Tianjin Juilliard School
