Productive rooftop garden Helvetia

Austin Maynard Architects adds five gardens to Melbourne terrace house

An "urban farm" rooftop garden, planted terraces and a fish-pond atrium characterise this renovated house in Melbourne, designed by Austin Maynard Architects.

Named Helvetia, the Victorian terrace house located in the inner-city suburb of Fitzroy was renovated with a focus on retaining and reusing materials while providing new spaces for nature.

The studio told Dezeen that "the design of the house responds directly to the client's brief for a 'sanctuary' filled with life and light, their sustainability principles and their love of gardens and fish".

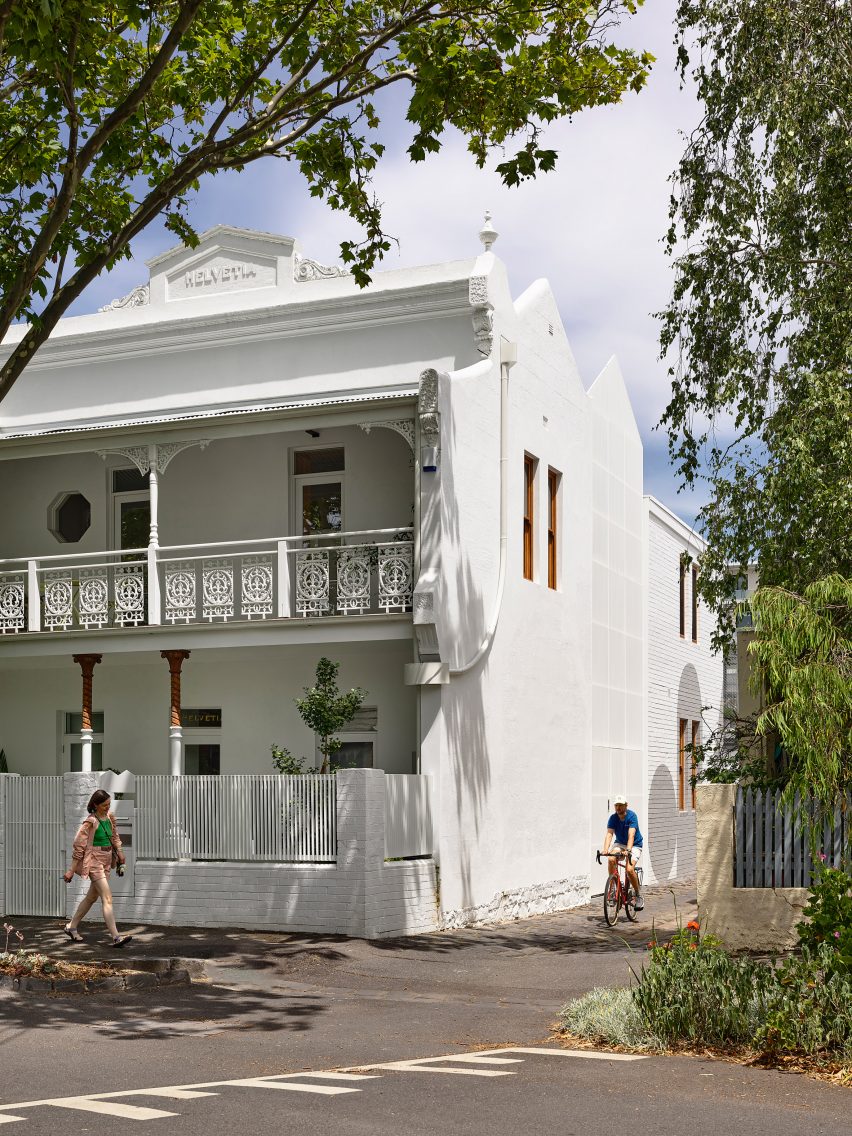

Helvetia house in Fitzroy from street view
Austin Maynard Architects renovated a Melbourne terrace

As the property is situated in a dense urban area, Austin Maynard Architects prioritised creating multiple areas of green space for the owners, who are keen gardeners. The renovated site now includes five distinct garden areas.

"Each of the five gardens serves a very different purpose and has a different personality: a water garden as a formal entry, a suspended productive garden, a recreational leafy rear garden, a display garden at the front and a green retreat on the balcony off the main bedroom," said the studio.

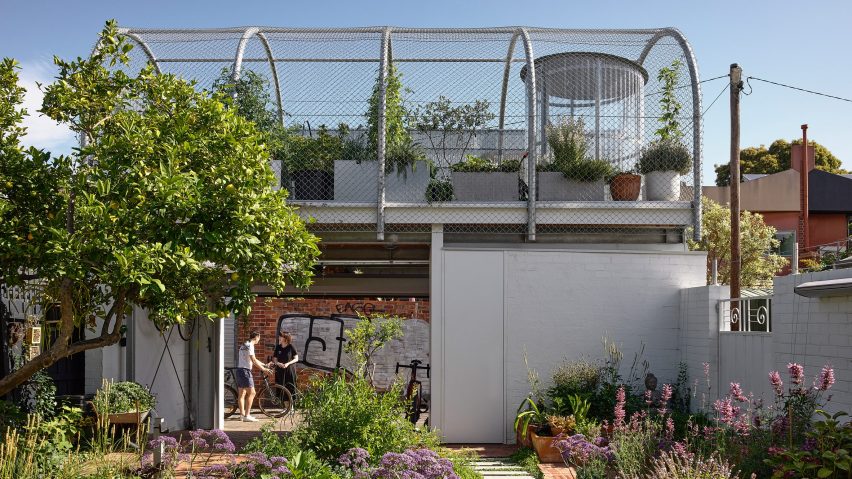

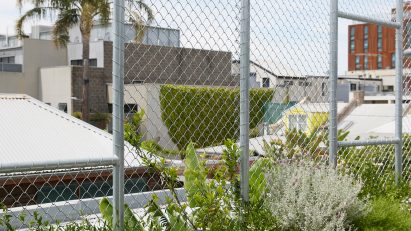

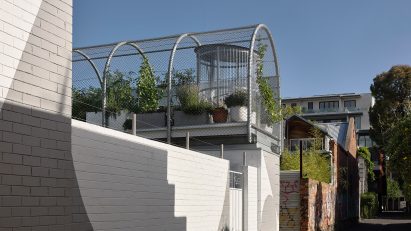

At the rear of the site a garage building, which can be fully opened from the garden through to the laneway behind, was topped by an "urban farm" enclosed with a barrel-vaulted wire mesh to keep out possums.

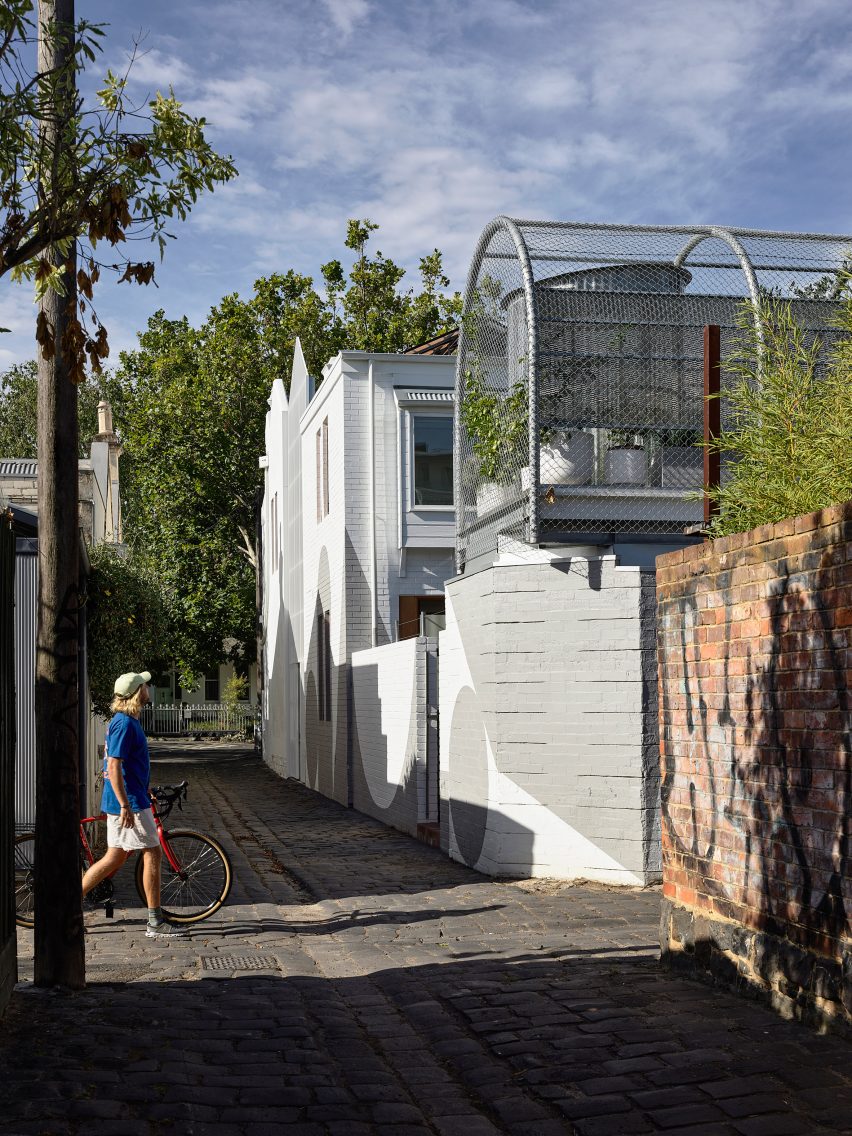

Helvetia project side laneway and rooftop garden
A productive rooftop garden is protected with wire mesh

Originally a grand family home in the 1800s, Helvetia has been reconfigured multiple times – first into two separate buildings to function as a boarding house in the late 1960s – and again into apartments in the 1980s.

This left a dwelling that the studio described as "muddled, confused, dark and in a sad state of disrepair".

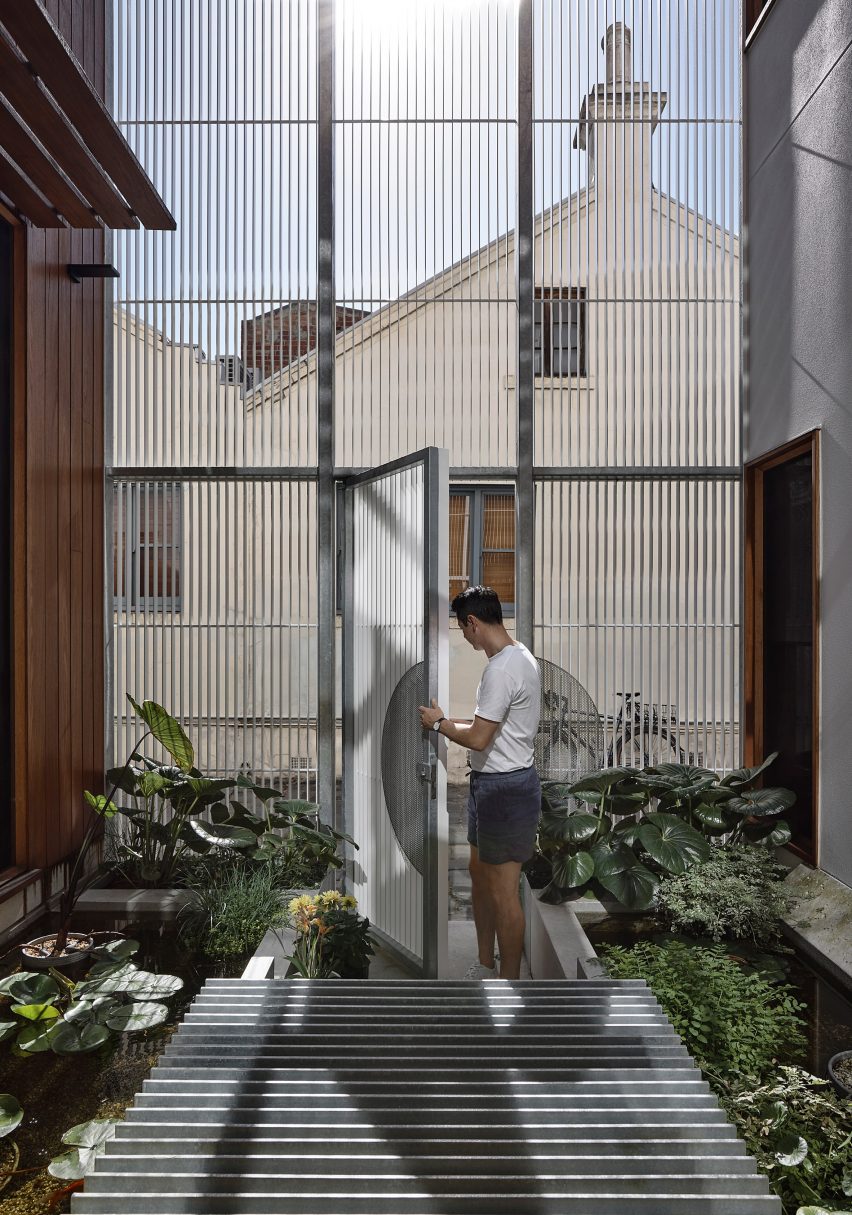

Entry space with pond in Austin Maynard Architects project Melbourne
The double-height entry space features a water garden, with pond filled with fish and lilies

Issues at the centre of the building, including water damage and mould, meant the studio decided to remove two rooms in the affected area.

This allowed a total reorganisation of the layout, plus the addition of a double-height atrium to maximise natural light.

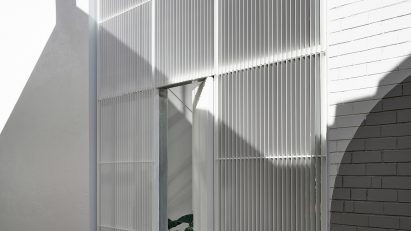

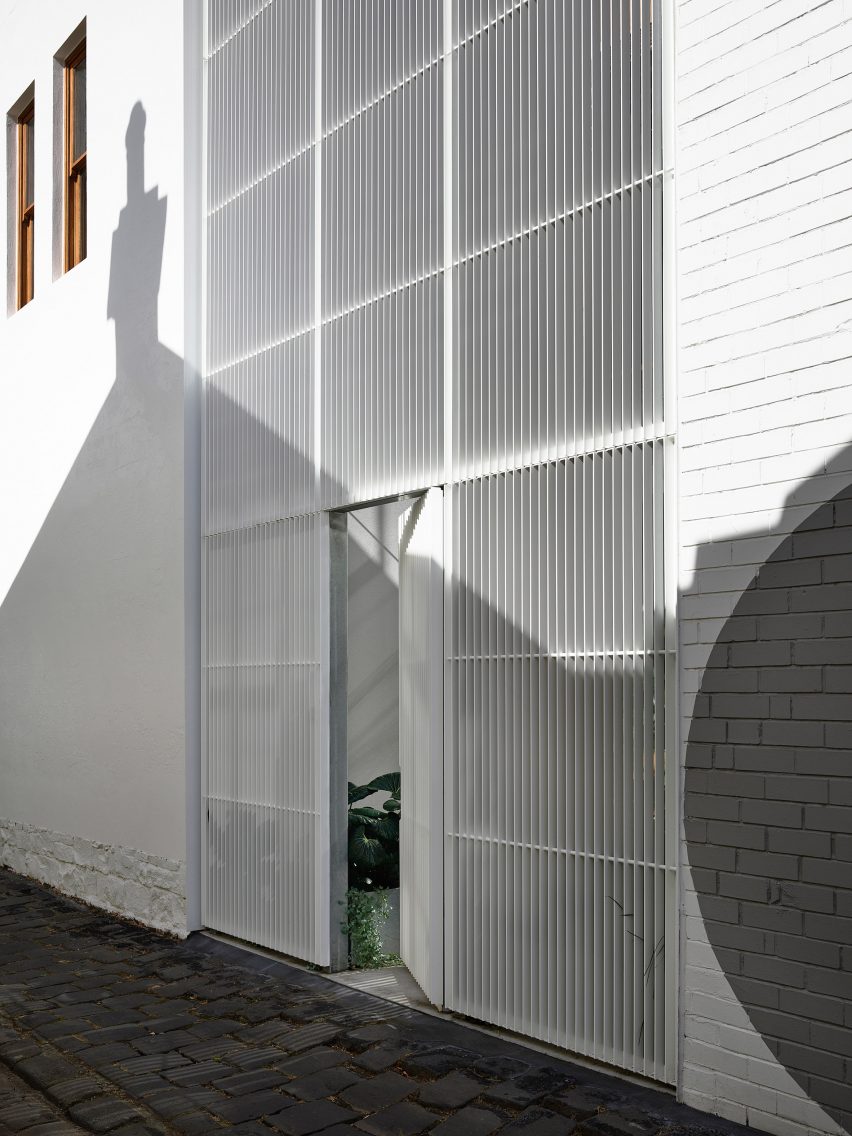

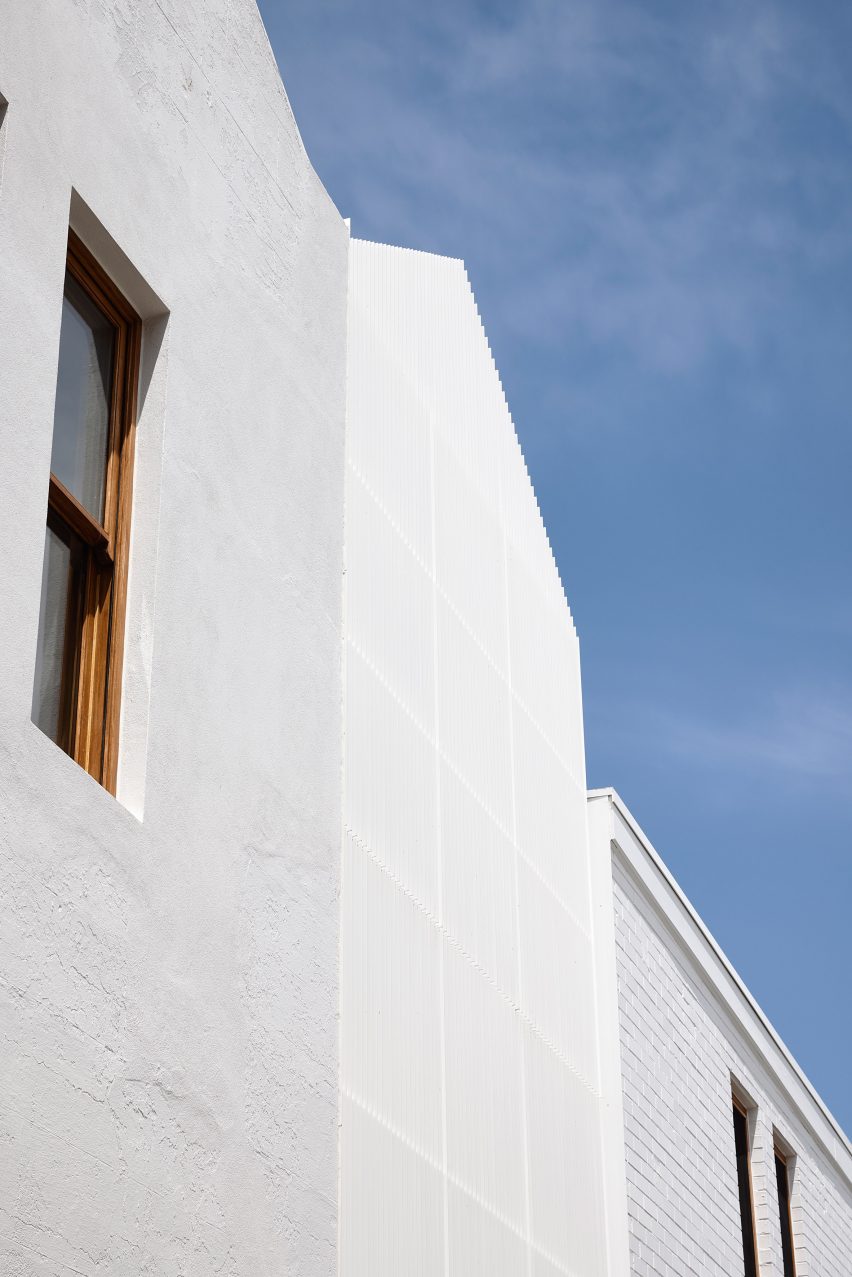

Helvetia double-pitched roof replaced with steel flat blades
One section of the original brickwork was replaced with steel flat blades

On the street, there appears to be a double-pitched roof, while in fact, the studio replaced one half of the existing brick wall and roof with an open grate.

"The entry screen was designed to appear solid when viewed from the street and transparent when viewed directly on," the studio explained.

"Steel flat blades were the obvious material for this application."

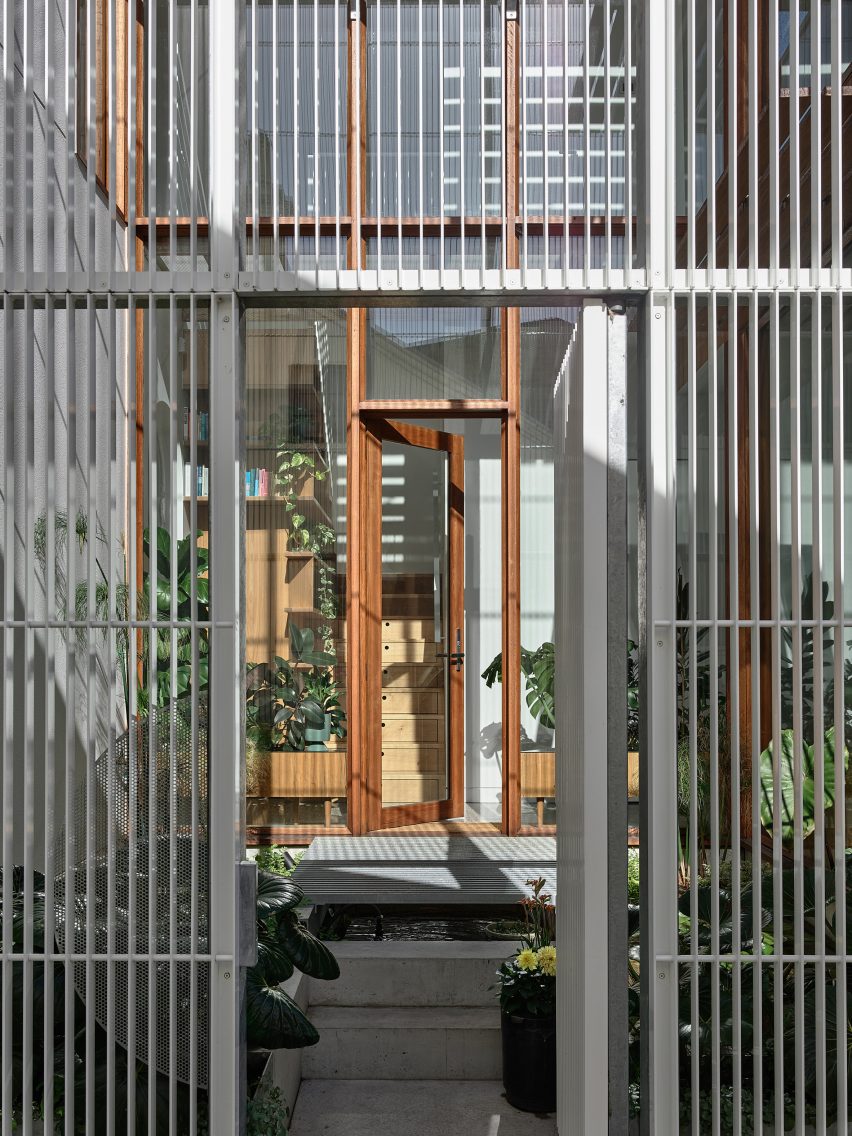

New central front doorway of Helvetia by Austin Maynard Architects
A central entry point was created

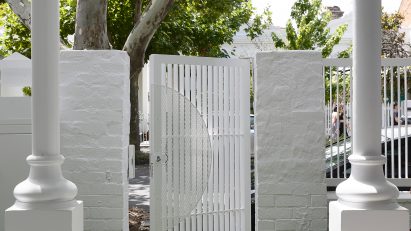

Accessed via a cobbled passageway, the entrance was moved to the side of the property, which was designed to provide access to the centre of the house.

"Turn right for entertaining and living, left for private bedrooms, or straight up the stairs for the studio, study and main bedroom," the studio described.

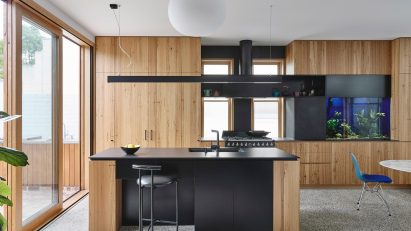

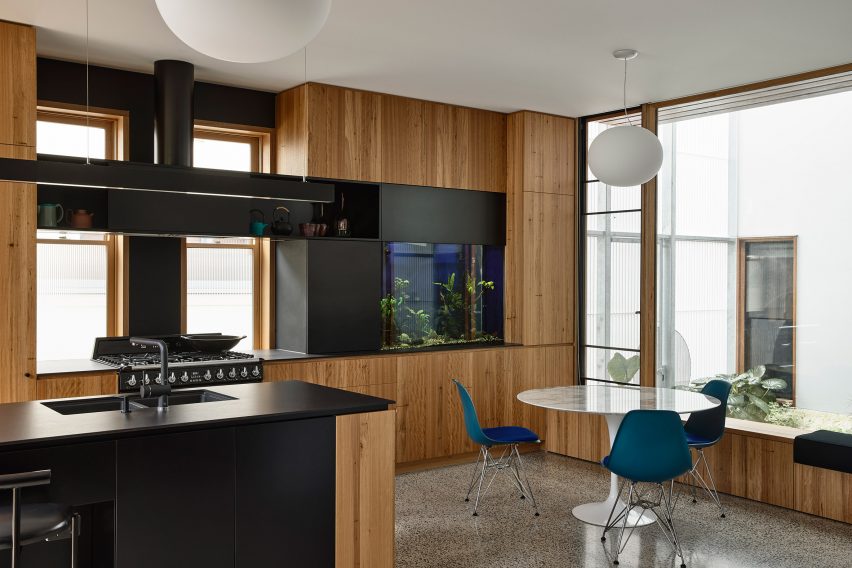

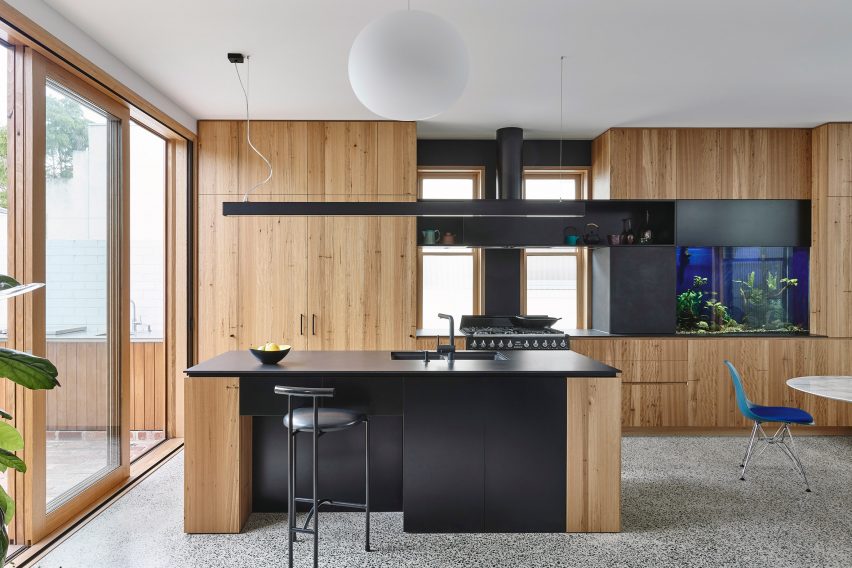

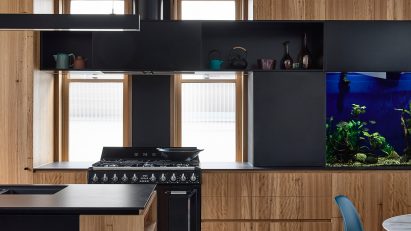

Fish tank built into kitchen of Fitzroy house
The client's brief included a request for a built-in fish tank

A fish tank was built into the cabinetry of the open-plan living, kitchen and dining area, which leads out to a rear garden with a decking area, BBQ and garage.

A sliding door can be used to separate the living area from a space which doubles as a utility room and workshop.

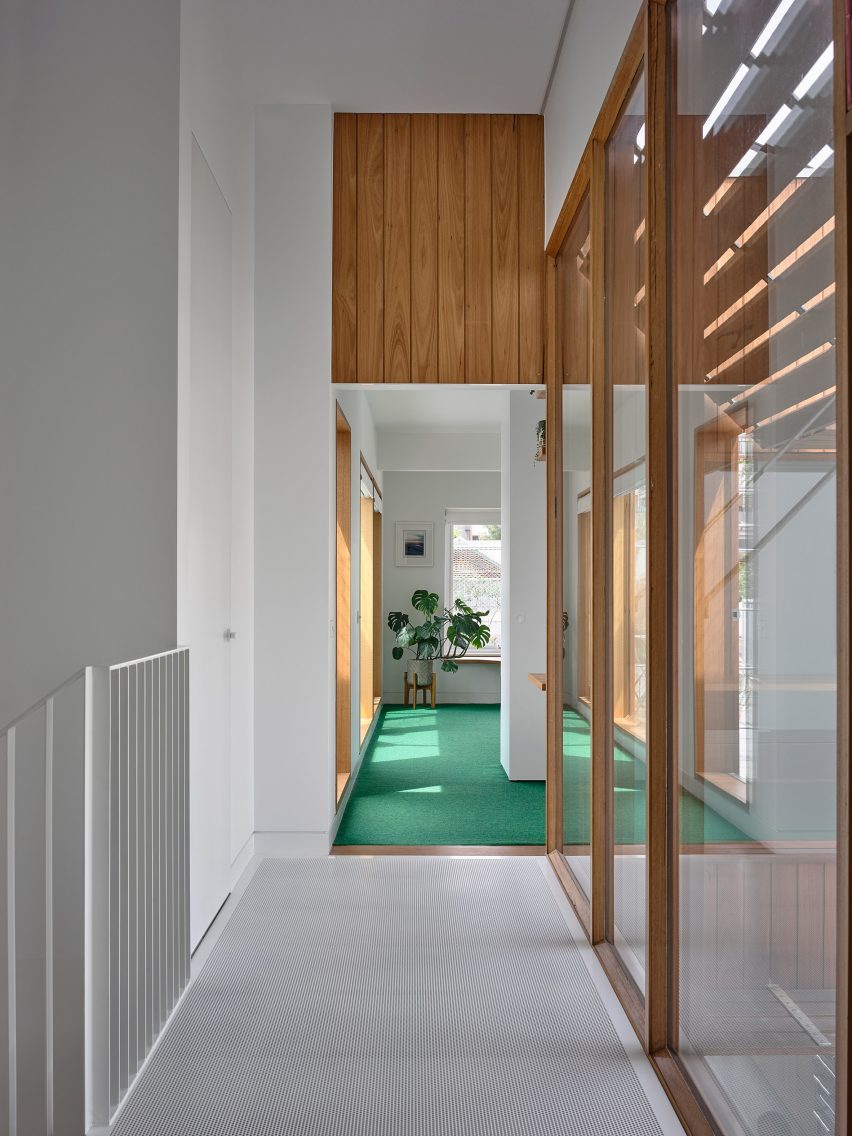

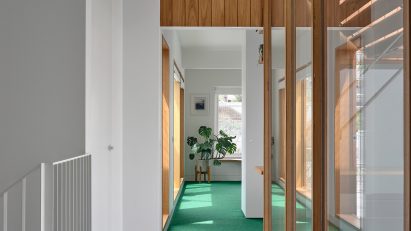

Upstairs, a perforated metal walkway connects a large studio to a primary bedroom, terrace and study.

The first-floor studio is currently used as an additional living and study space, but could be converted into two additional bedrooms in the future.

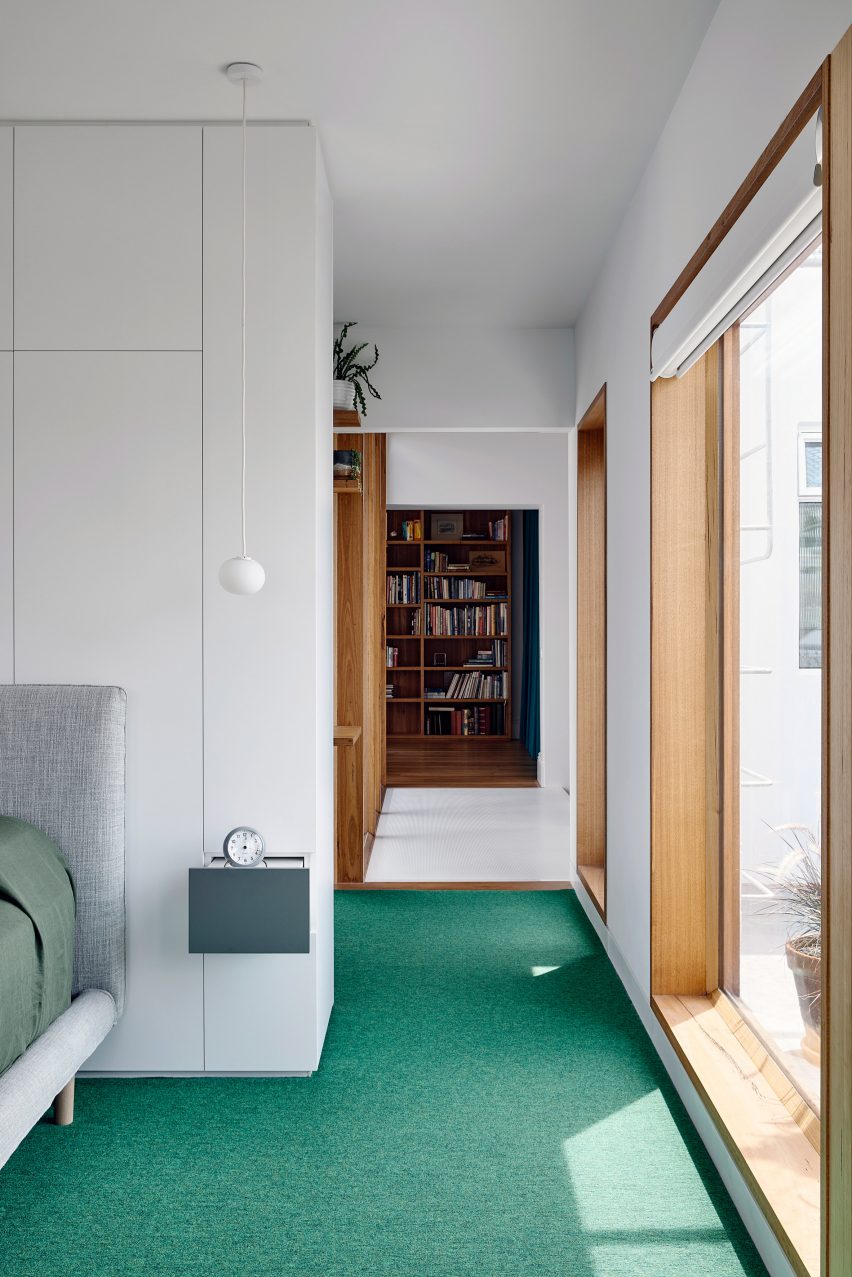

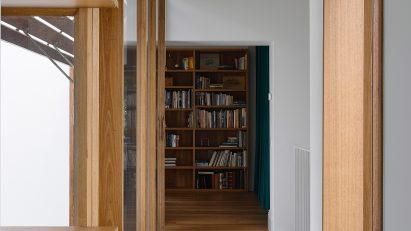

Metal bridge connecting studio and bedroom in Melbourne
A perforated metal bridge connects the studio and primary bedroom

A number of features from both the original 1880s home and the 1960s extension were recycled and reused, including the front columns, the rear bay window and the first-floor side terrace.

The studio said they aimed to "repair and restore using care and thought over reckless and unnecessary demolition".

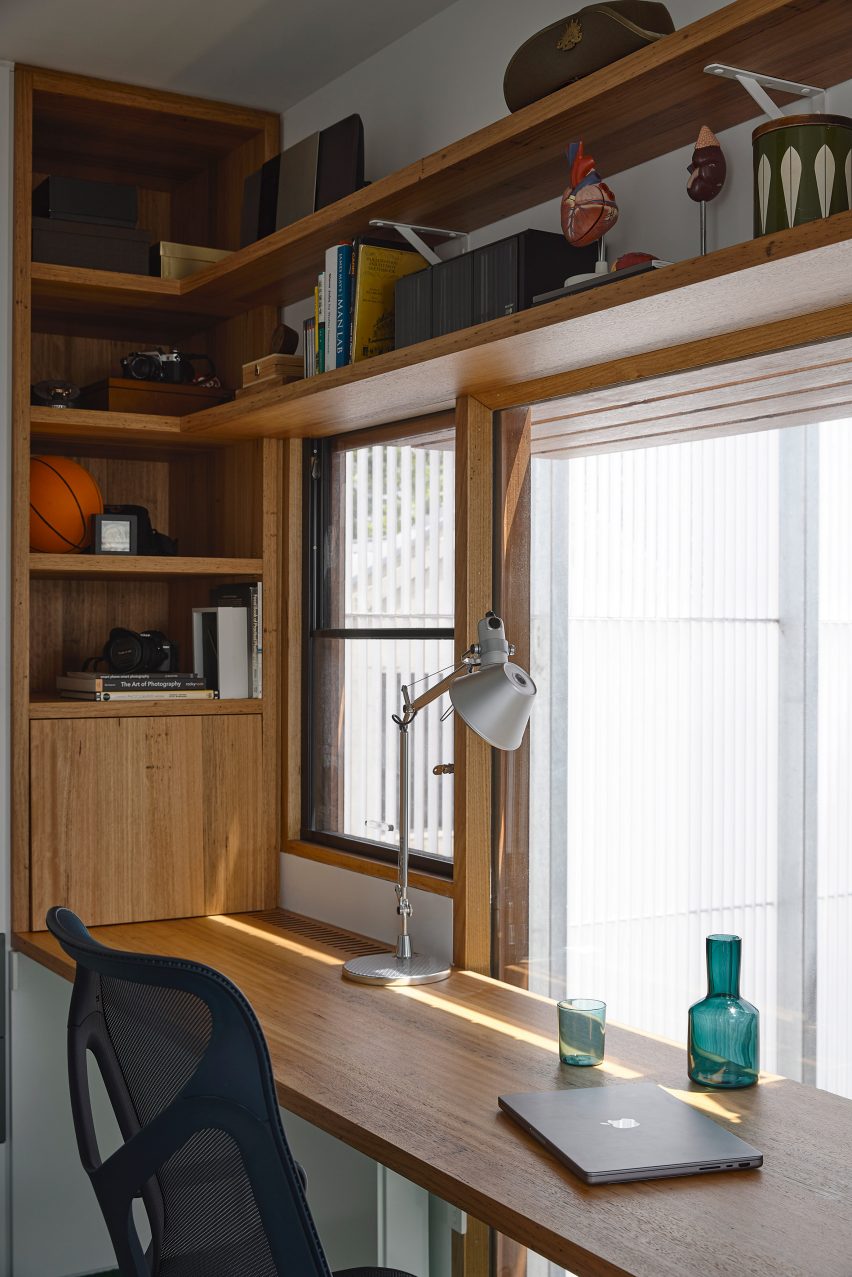

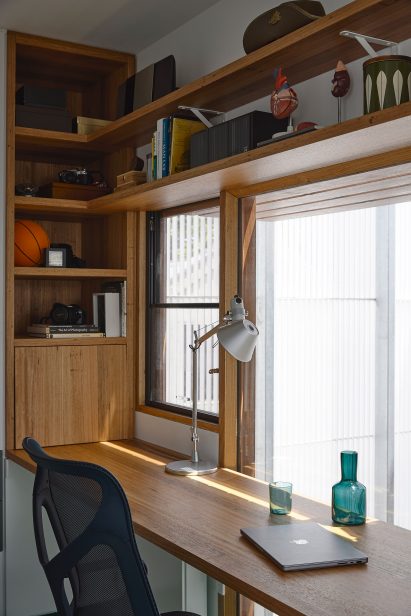

Study space overlooking fish pond in Helvetia house
A study space can be separated from the upstairs bedroom with a curtain

"The embedded carbon of the existing terrace was a key consideration from the outset, and there is no floor area that has been added to the house. In fact, the floor area has been reduced by 24 square metres," said the studio.

"In retaining the bricks, concrete and steel at Helvetia, 17.5 tonnes of embedded carbon, equivalent to 321,970 balloons worth of CO2 emissions, were negated."

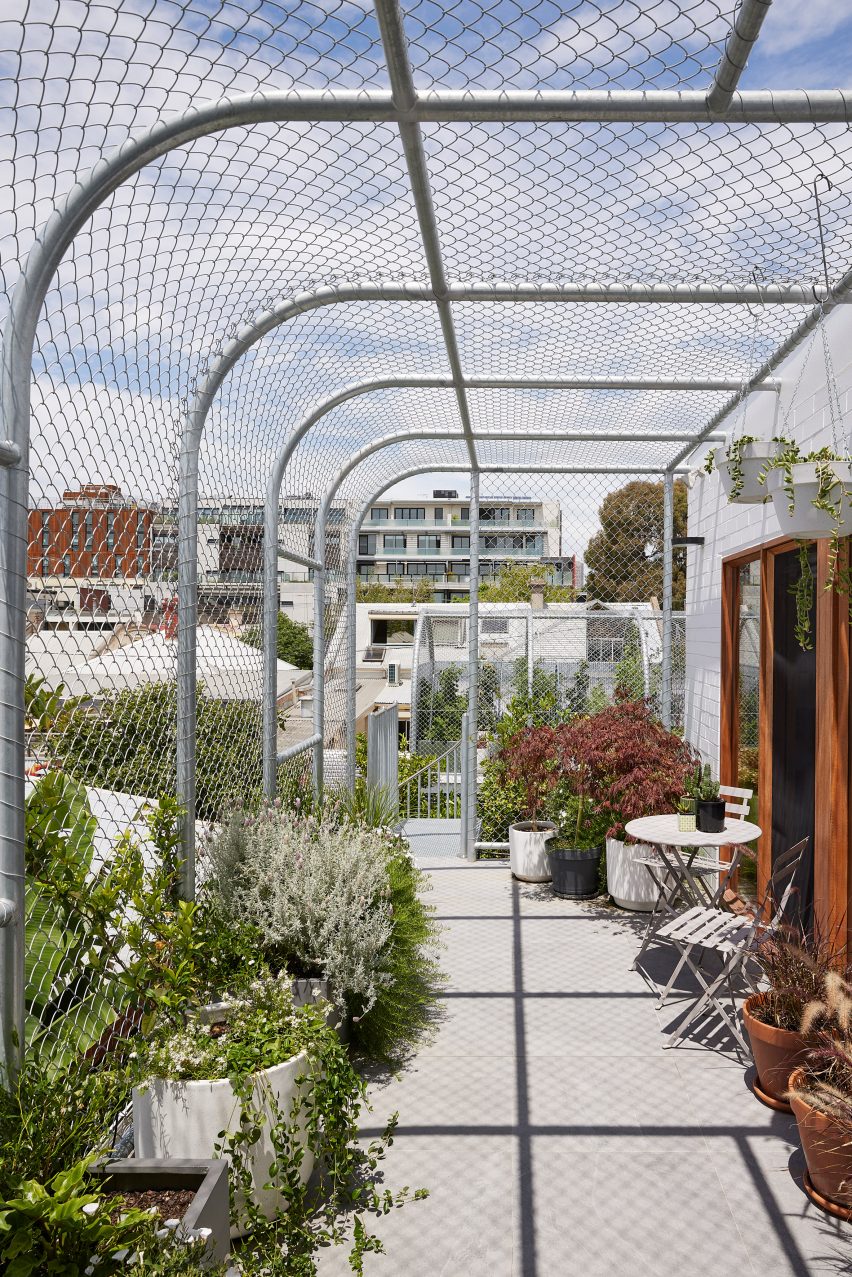

Terrace area with table and plants in Fitzroy, Melbourne
The primary bedroom leads out to a large terrace area

The house was topped with a three-kilowatt-solar-panel system.

Buried in the back garden is a 3,000-litre water tank, which harvests water from the roof and is used to flush the home's toilets, as well as for garden irrigation.

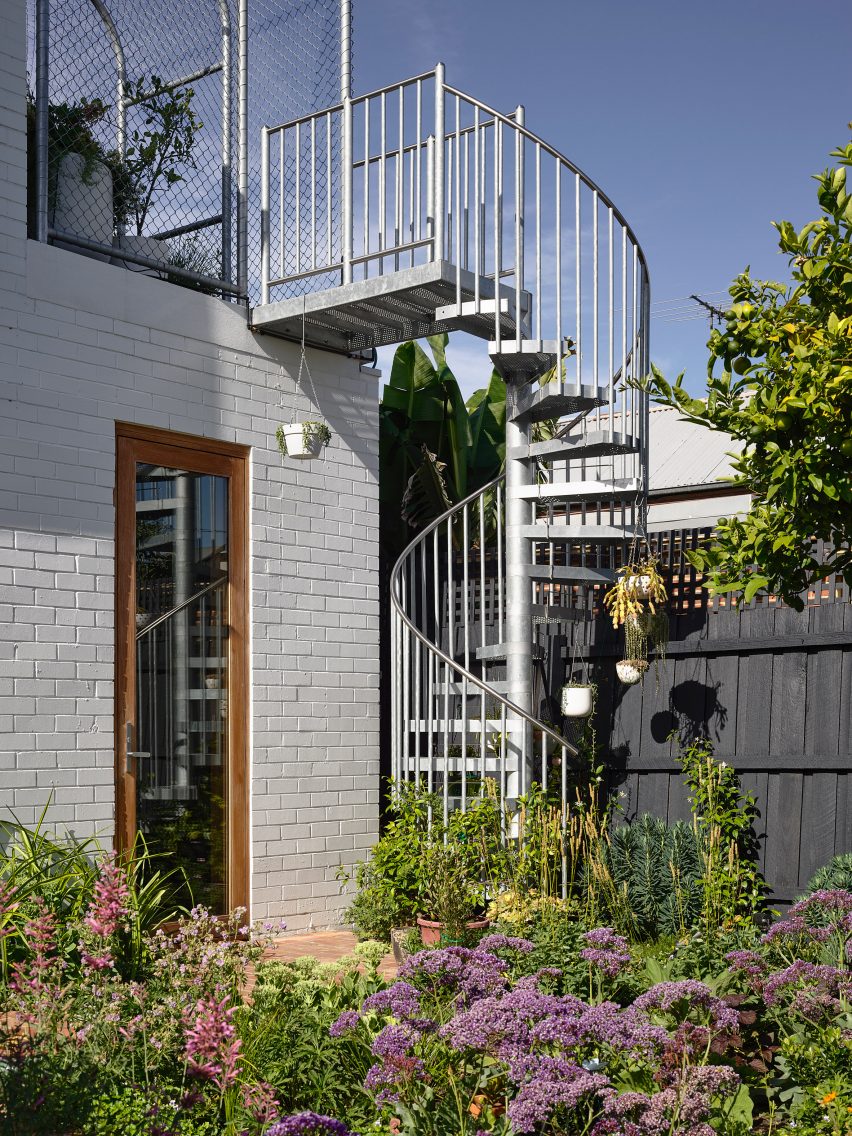

Garden space and spiral staircase in garden of Melbourne house by Austin Maynard Architects
Green space was a priority throughout the project

Other Melbourne-based projects by Austin Maynard Architects recently covered by Dezeen include a six-storey "ethical housing" apartment building and a house clad in terracotta tiles and reclaimed bricks.

Helvetia by Austin Maynard Architects has been longlisted for Dezeen Awards 2023 in the house renovation category.

The photography is by Derek Swalwell.

Project credits:

Architecture: Austin Maynard Architects
Project team: Andrew Maynard, Mark Austin, Ray Dinh
Builder: Weiss Builders
Engineer: Co-Struct
Landscape design: Chin Liew
Building surveyor:
Code Compliance

More images and plans

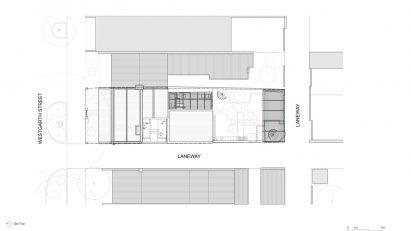

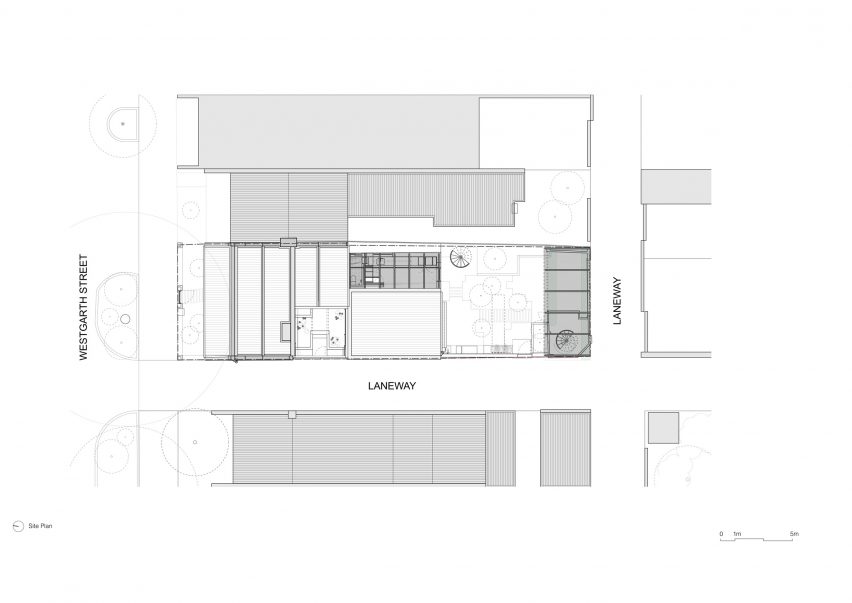

Helvetia drawings laneway and street level

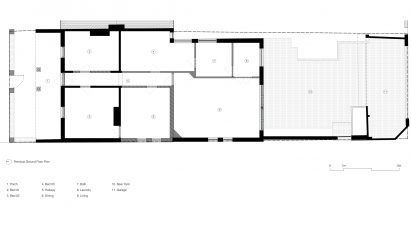

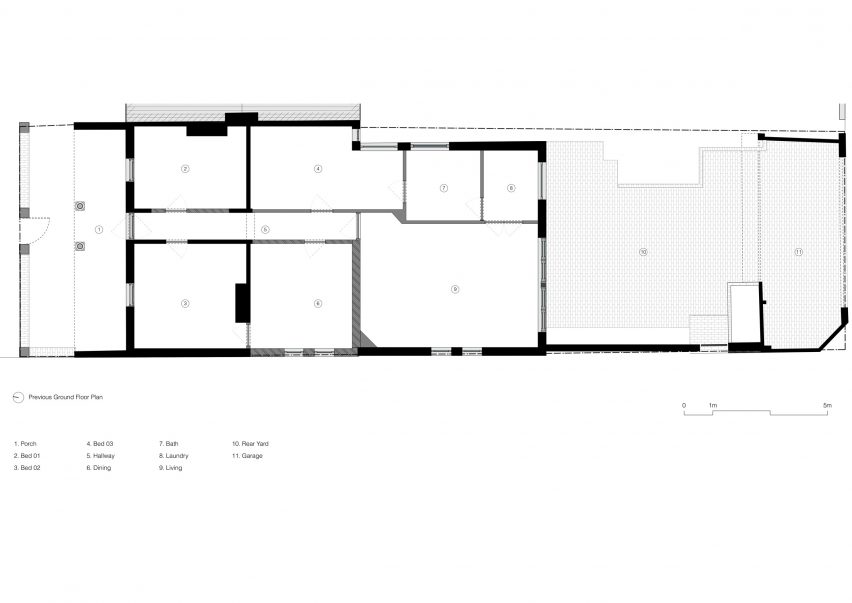

Helvetia previous ground floor drawings

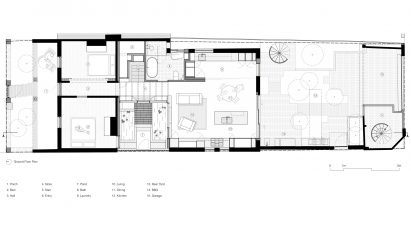

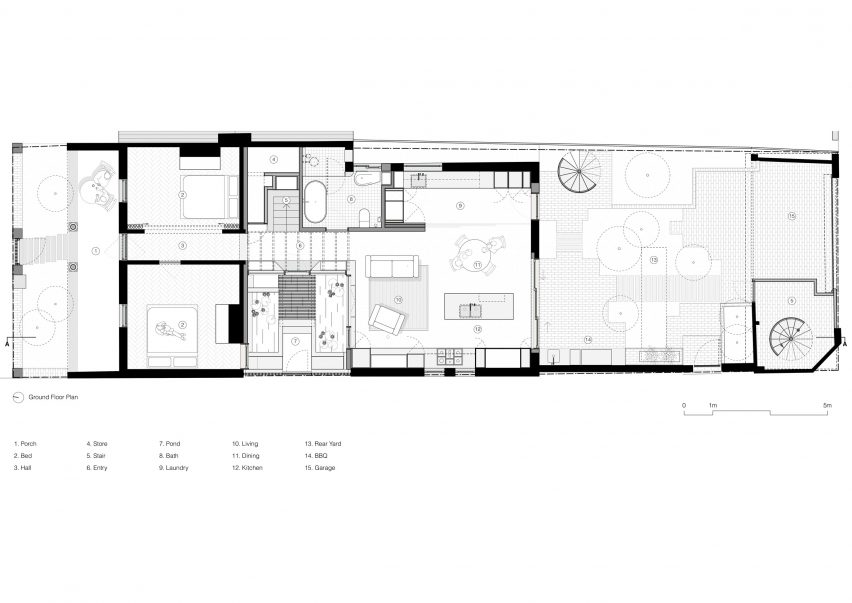

Helvetia current ground floor drawings

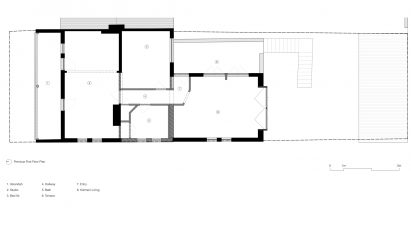

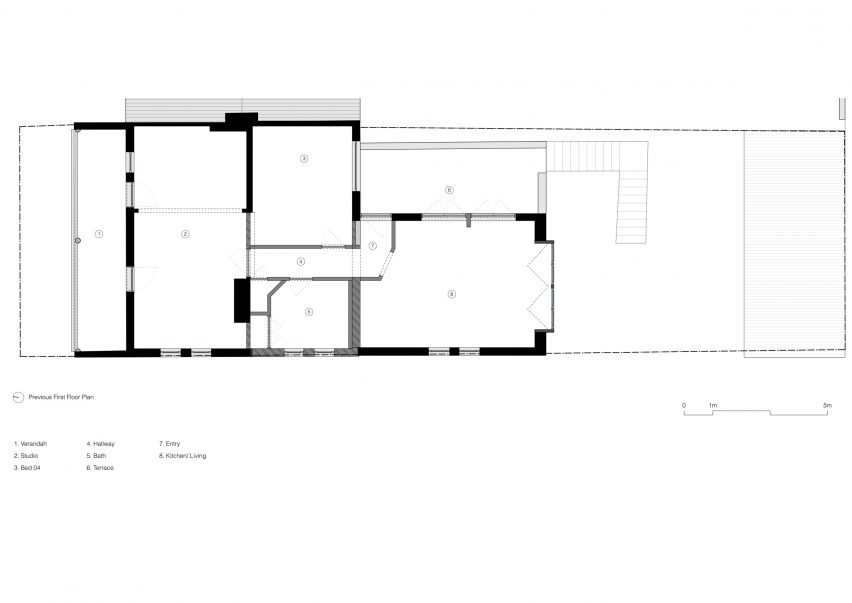

Helvetia previous first floor drawings

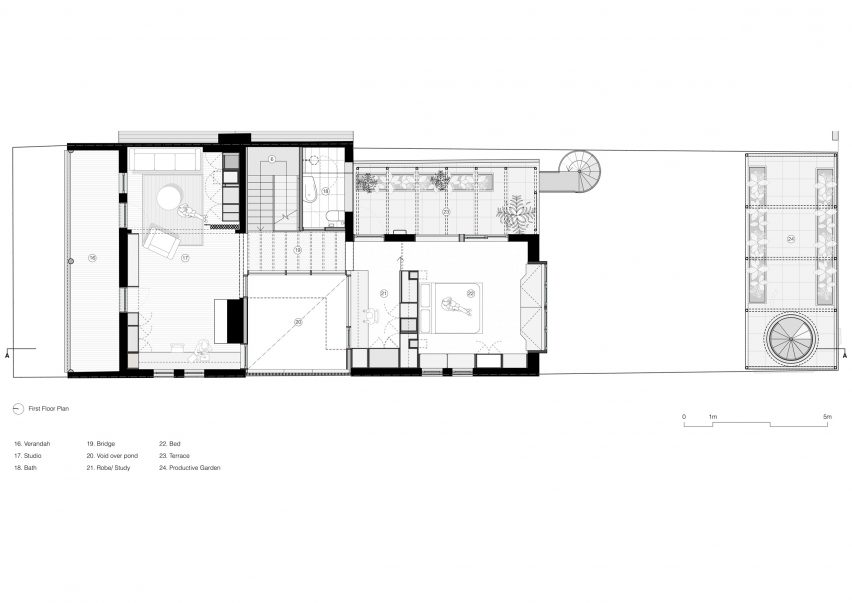

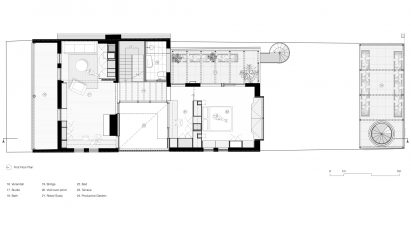

Helvetia current first floor drawings

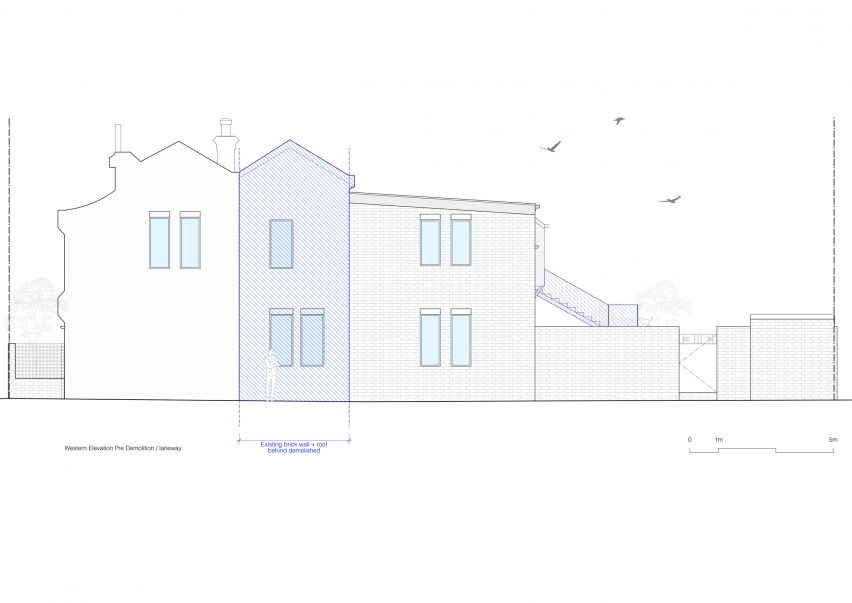

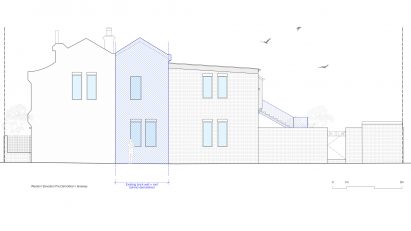

Helvetia pre-demolition laneway drawings

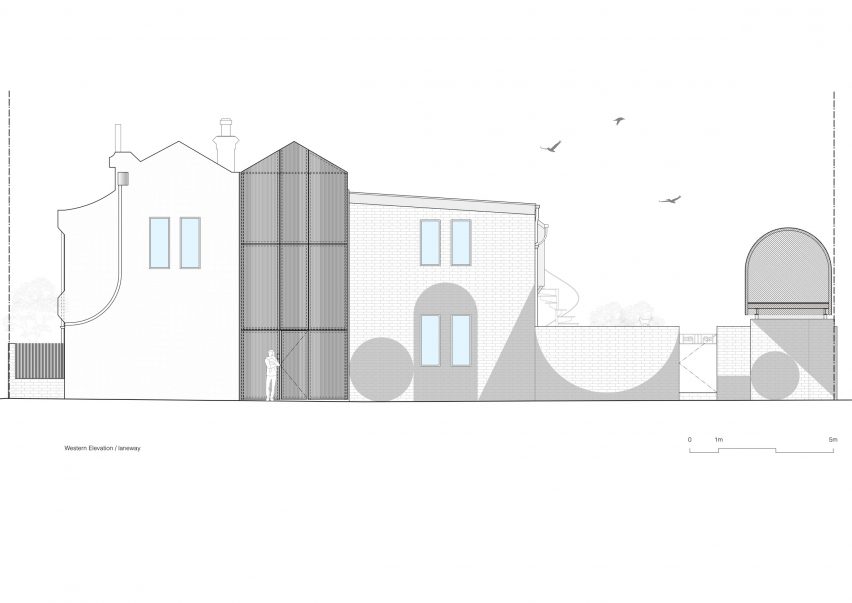

Helvetia laneway current drawings

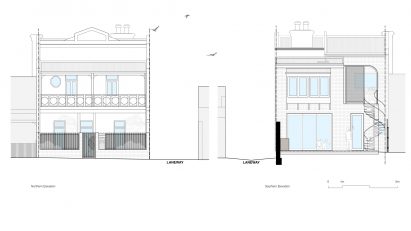

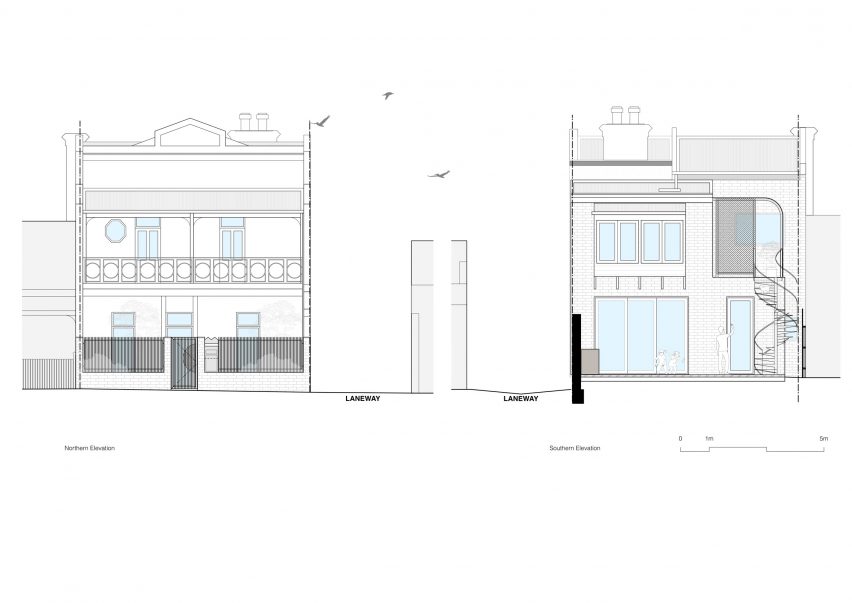

Helvetia northern and southern elevation drawings

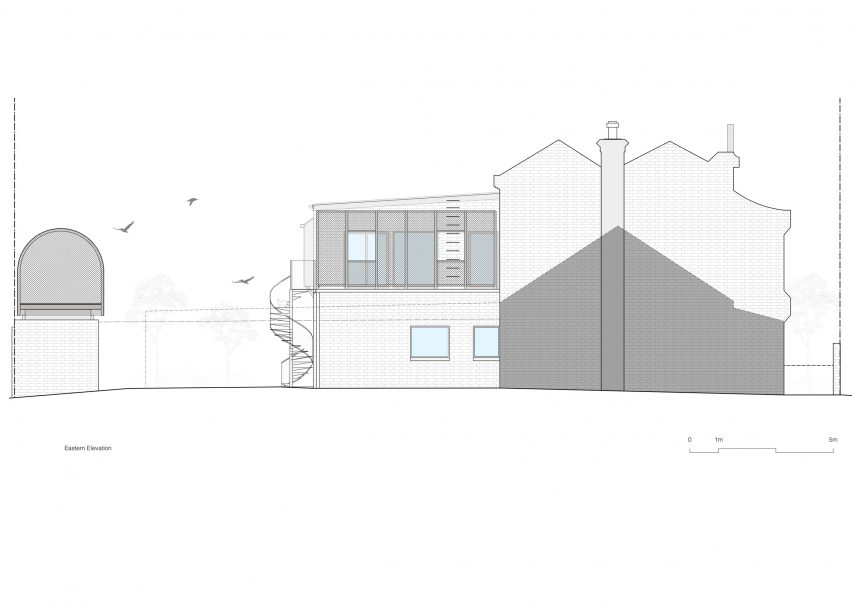

Helvetia Eastern elevation drawings

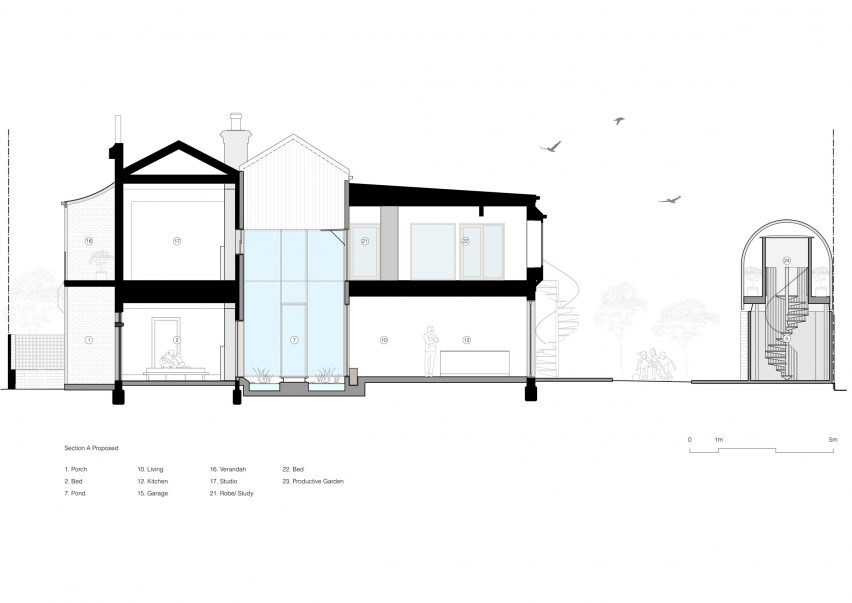

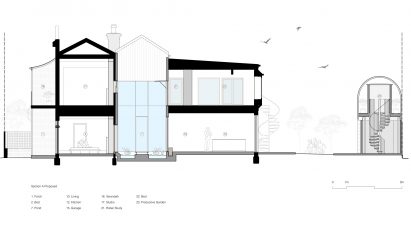

Helvetia section A drawings

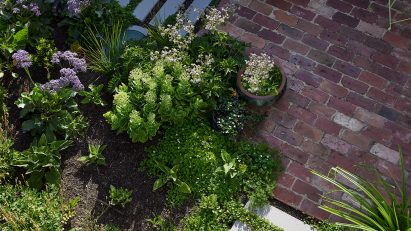

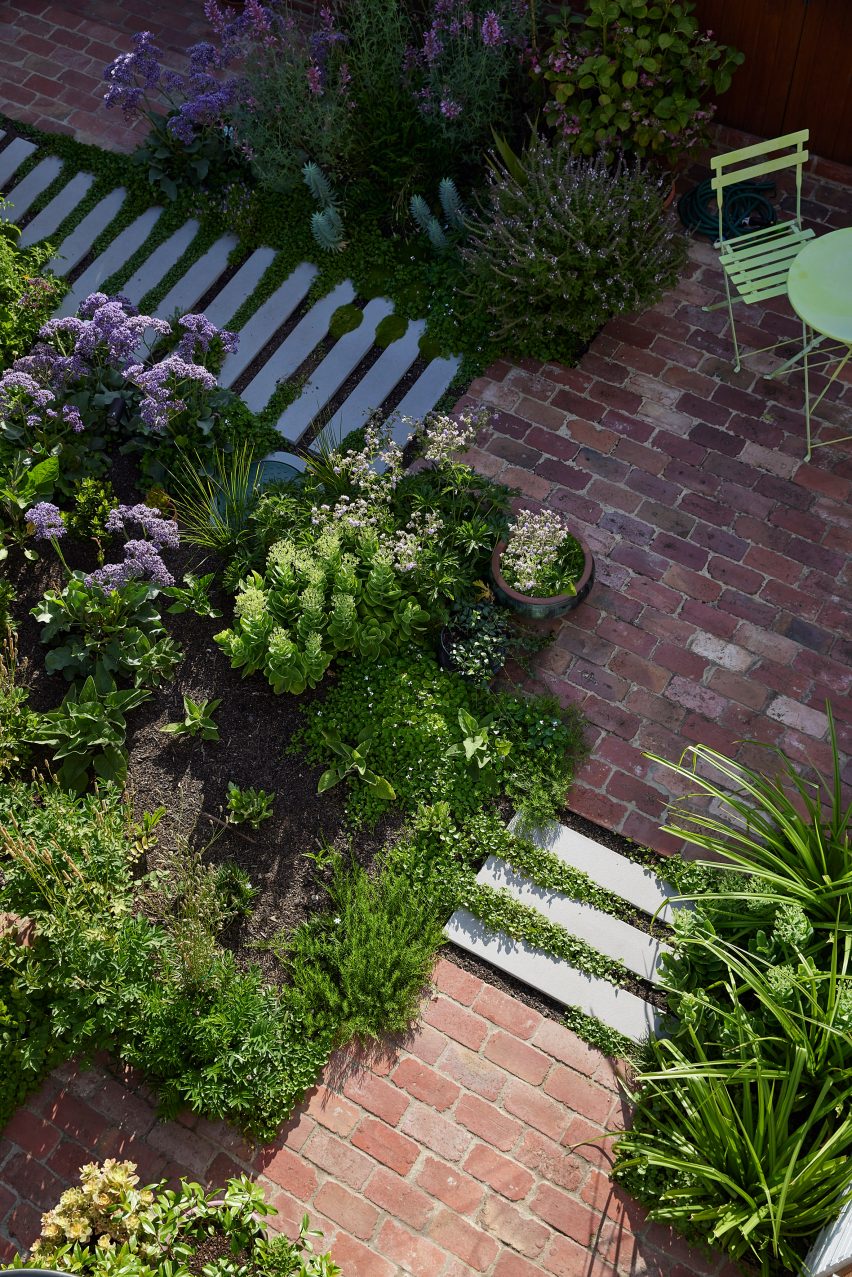

Tiled garden area of Helvetia house by Austin Maynard Architects

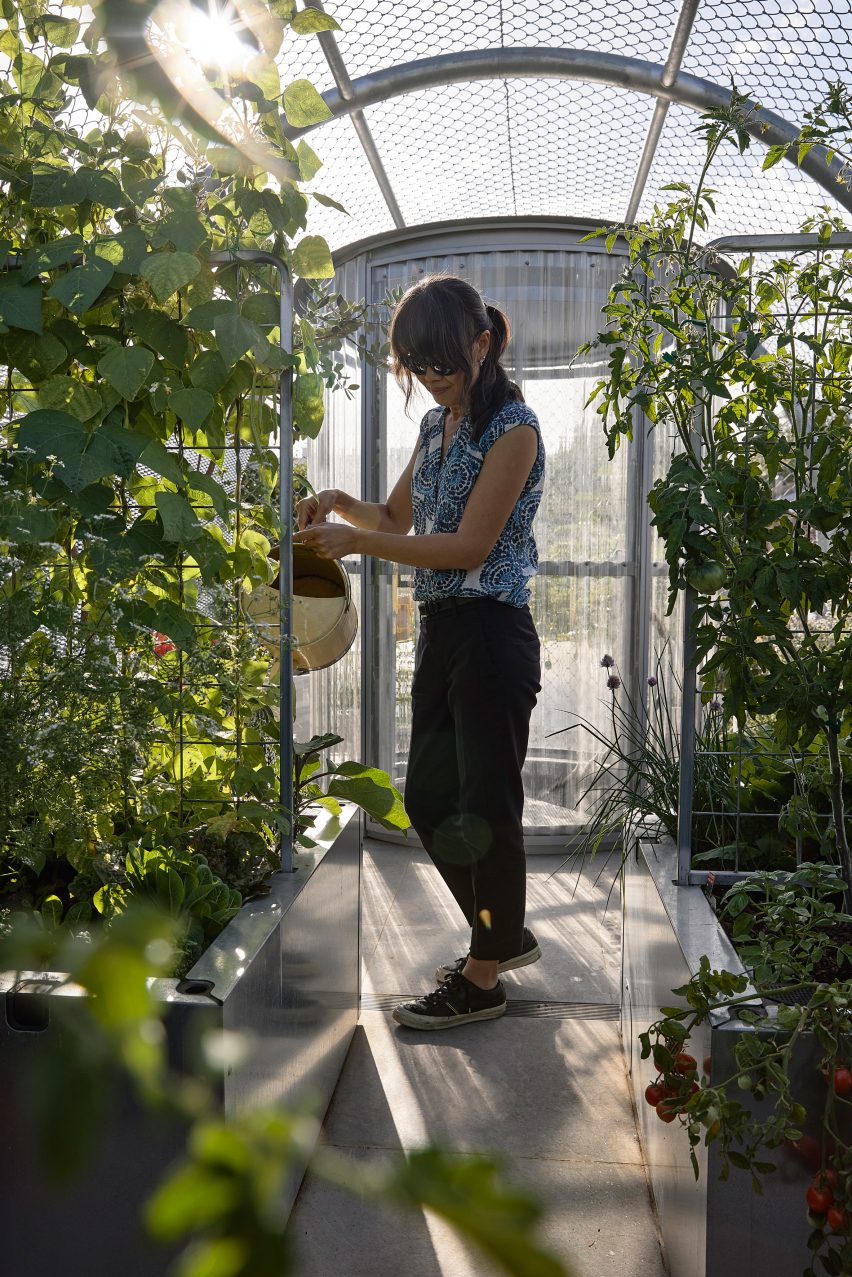

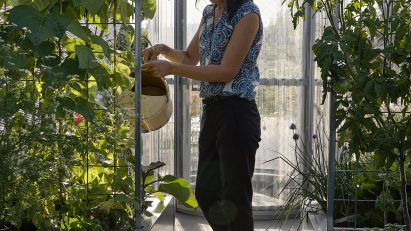

Person watering productive rooftop garden of Helvetia house in Melbourne

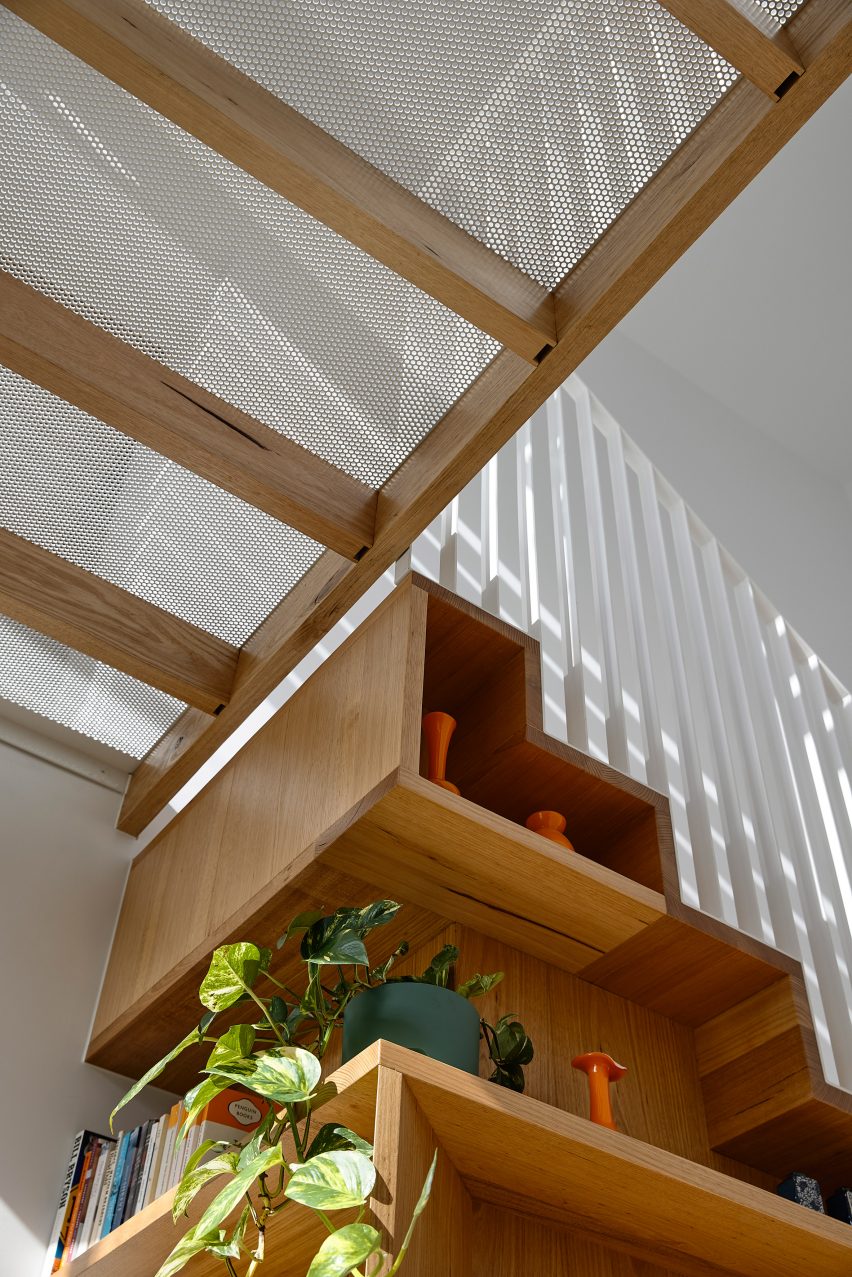

Metal bridge above staircase in Fitzroy house renovation by Austin Maynard Architects

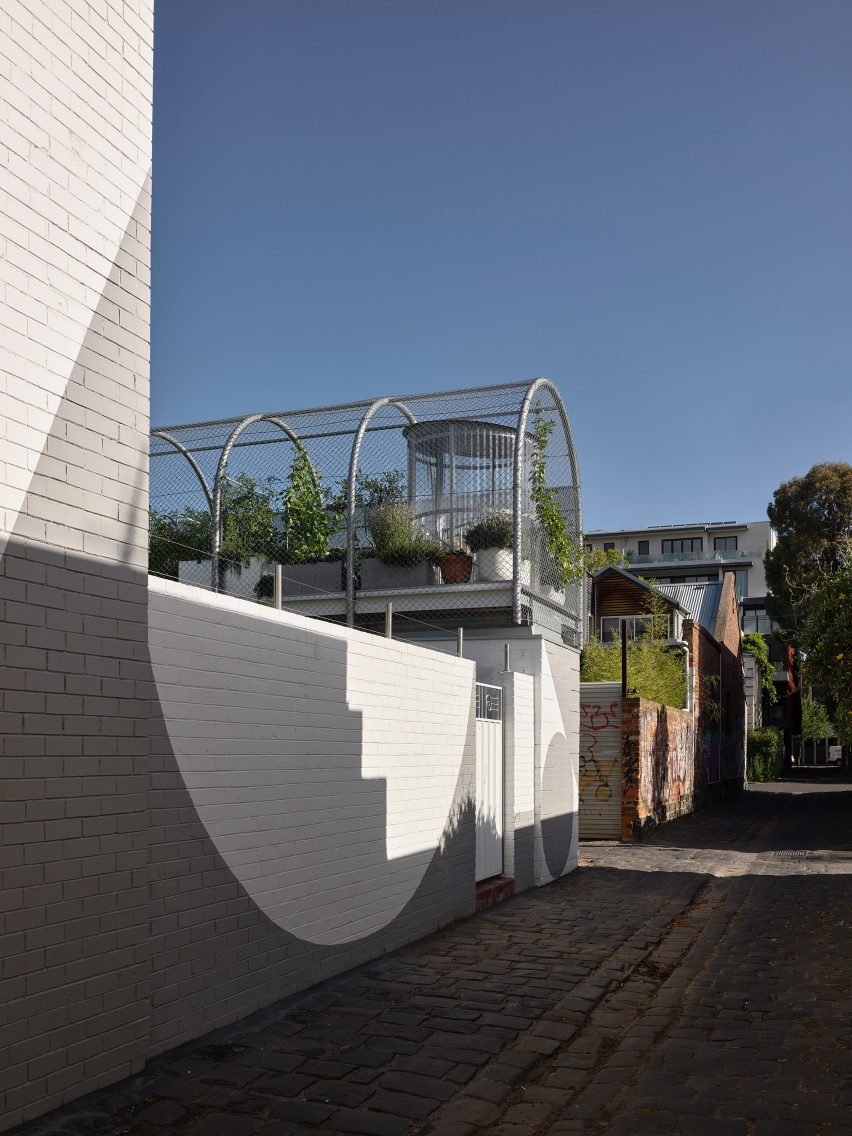

Side laneway and rooftop garden in Melbourne house

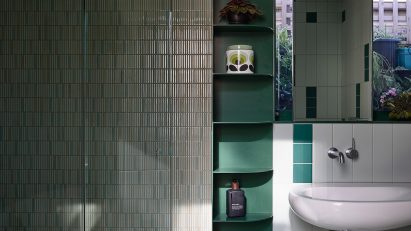

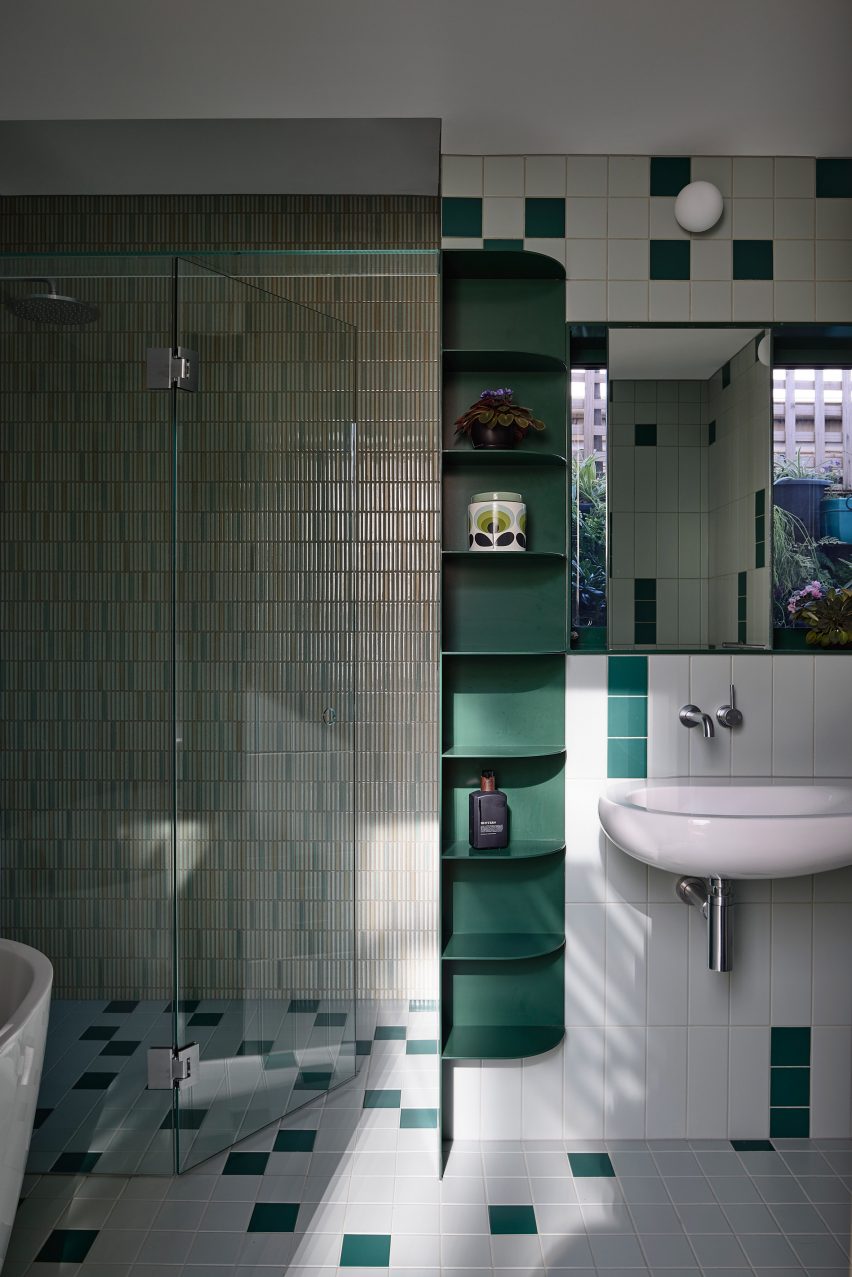

Bathroom sink and shower in Helvetia house Fitzroy

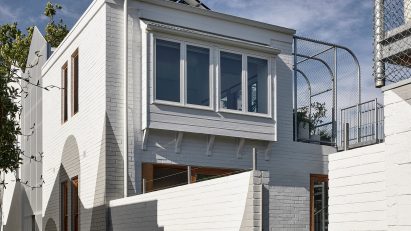

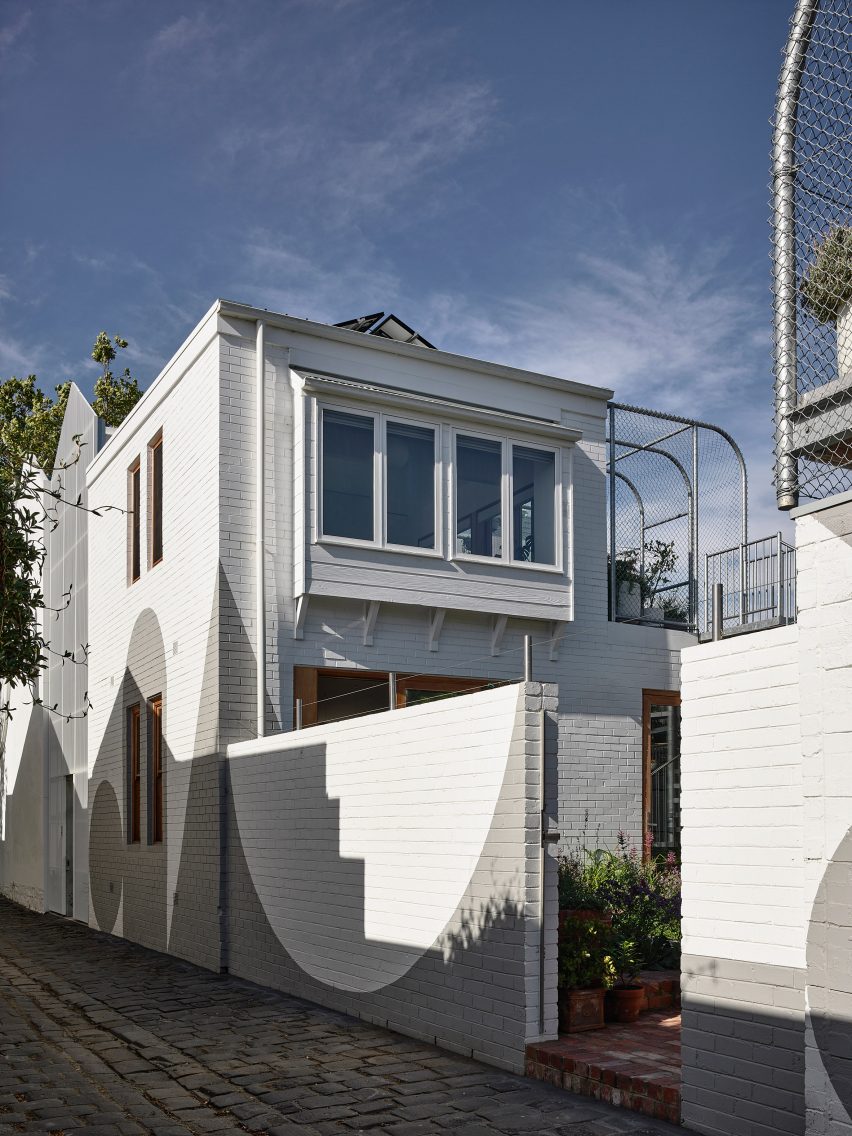

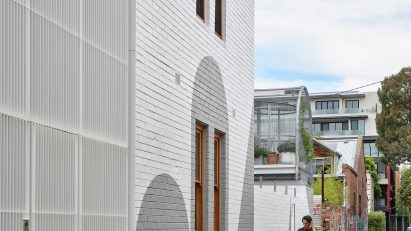

Brick wall and exterior shot of house in Melbourne by Austin Maynard Architects

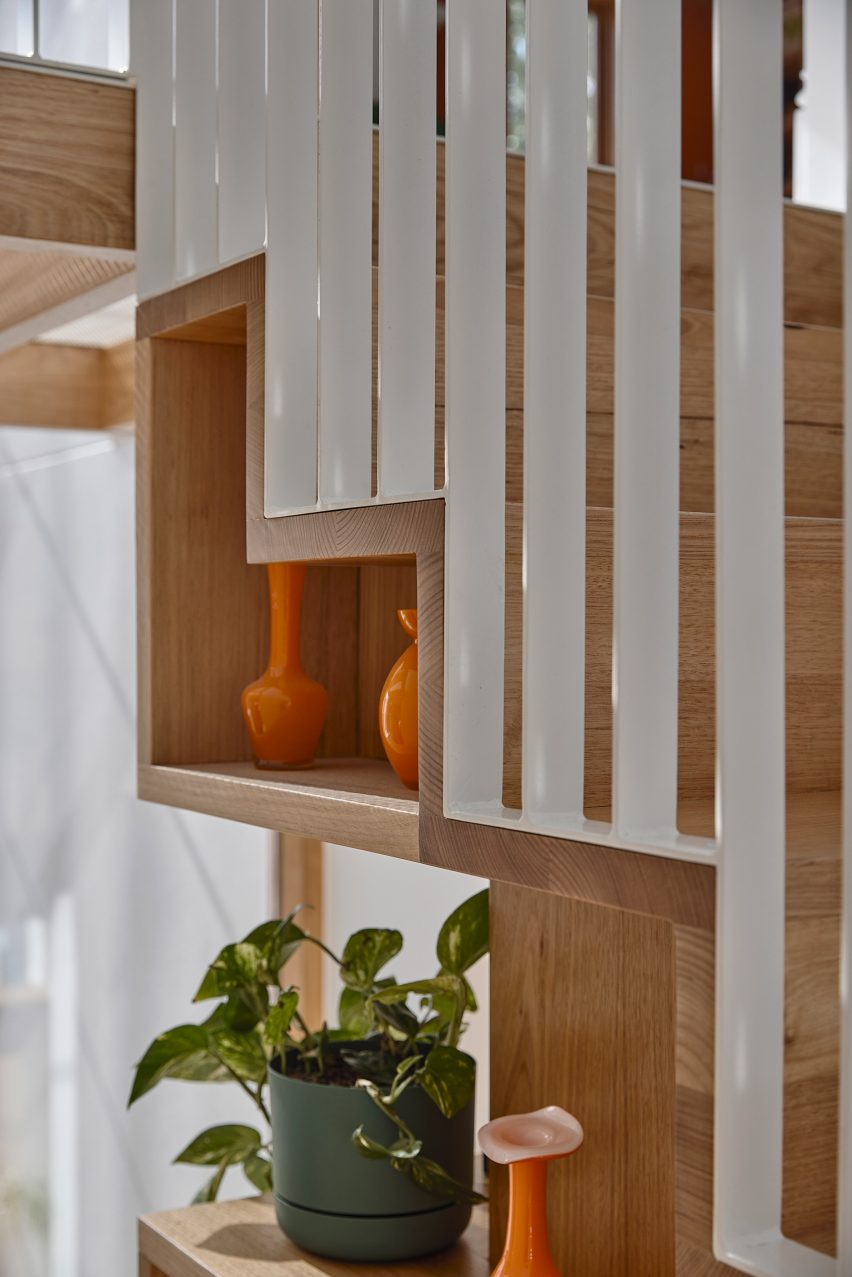

Staircase close up inside Helvetia house renovation Melbourne

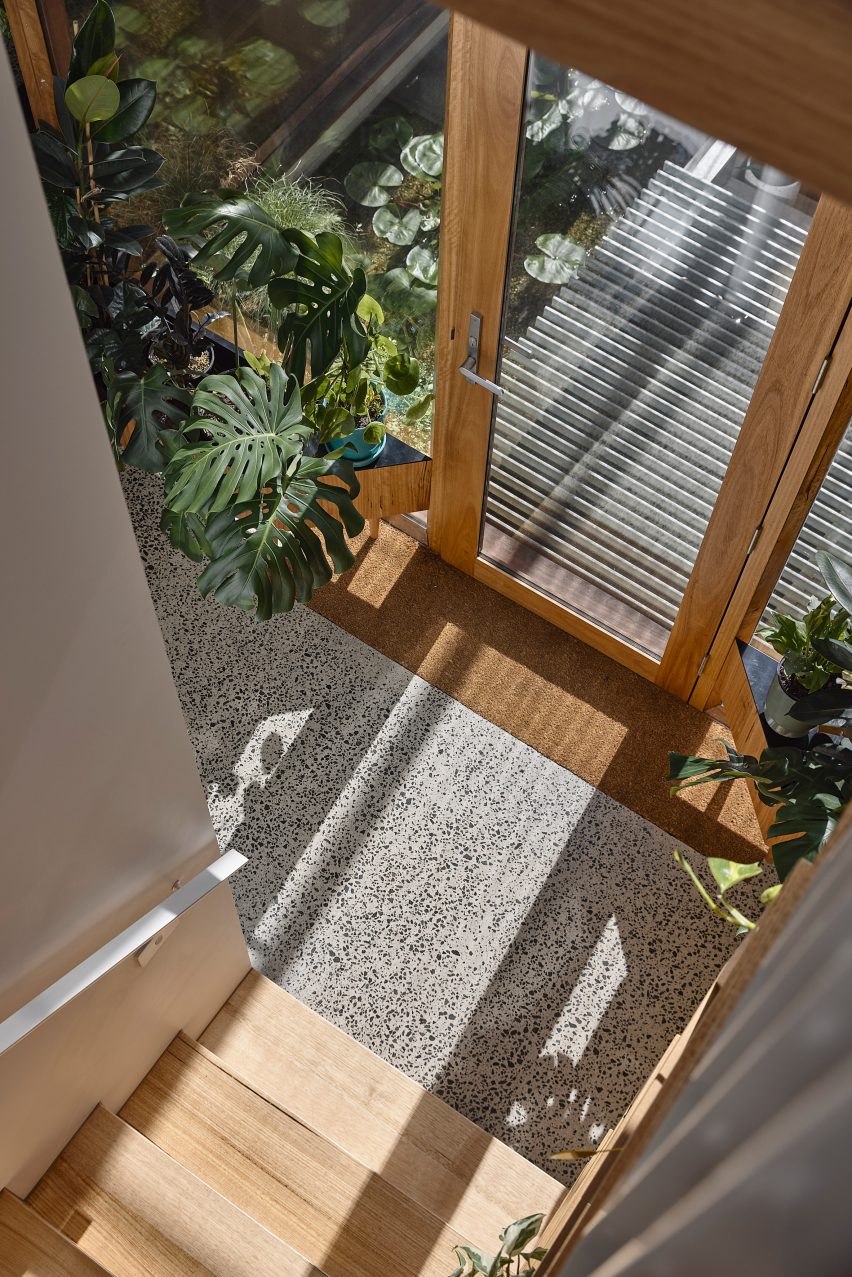

Front door entrance space inside Helvetia house Melbourne

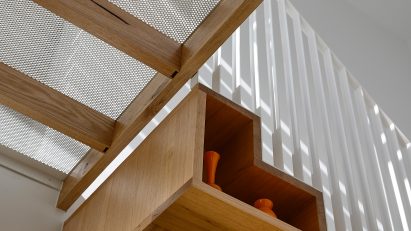

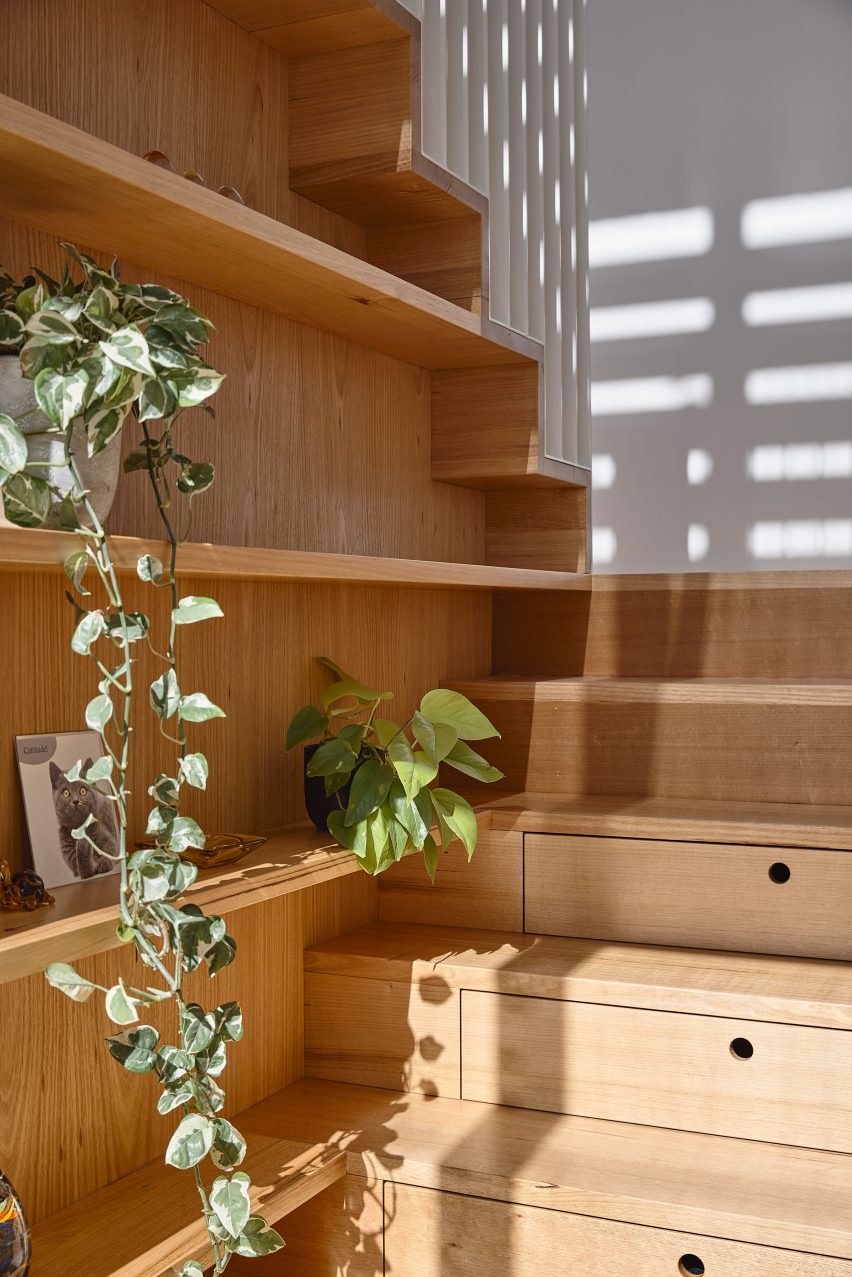

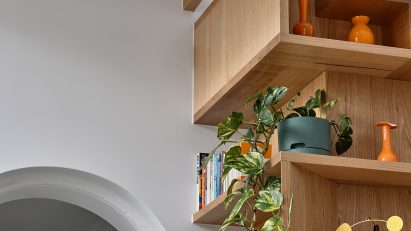

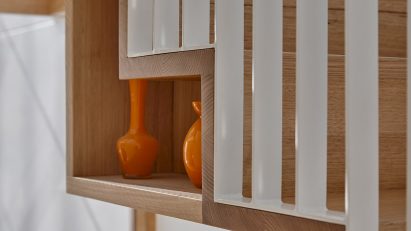

Staircase with inbuilt storage inside house by Austin Maynard Architects

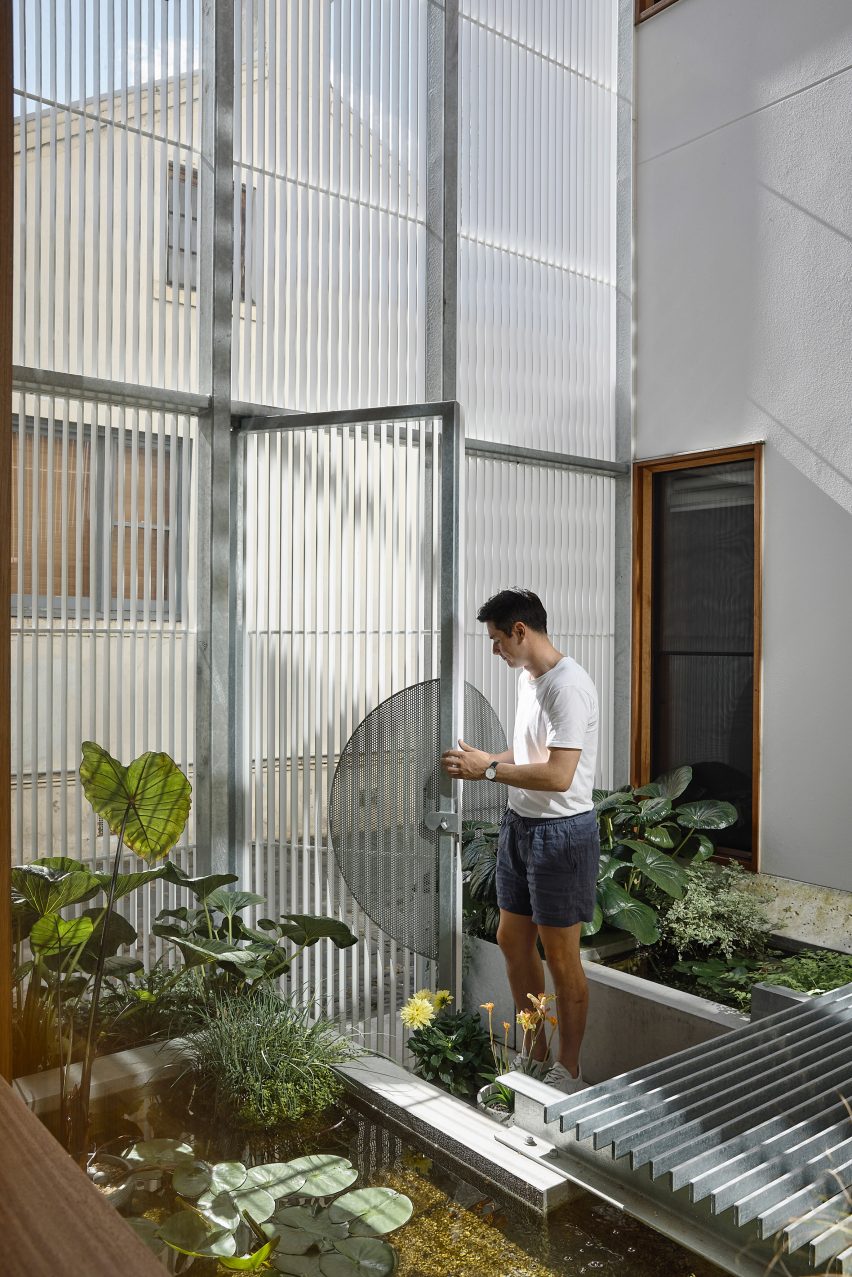

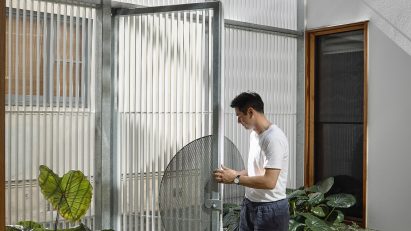

Person opening entrance gate leading to a pond in Melbourne house

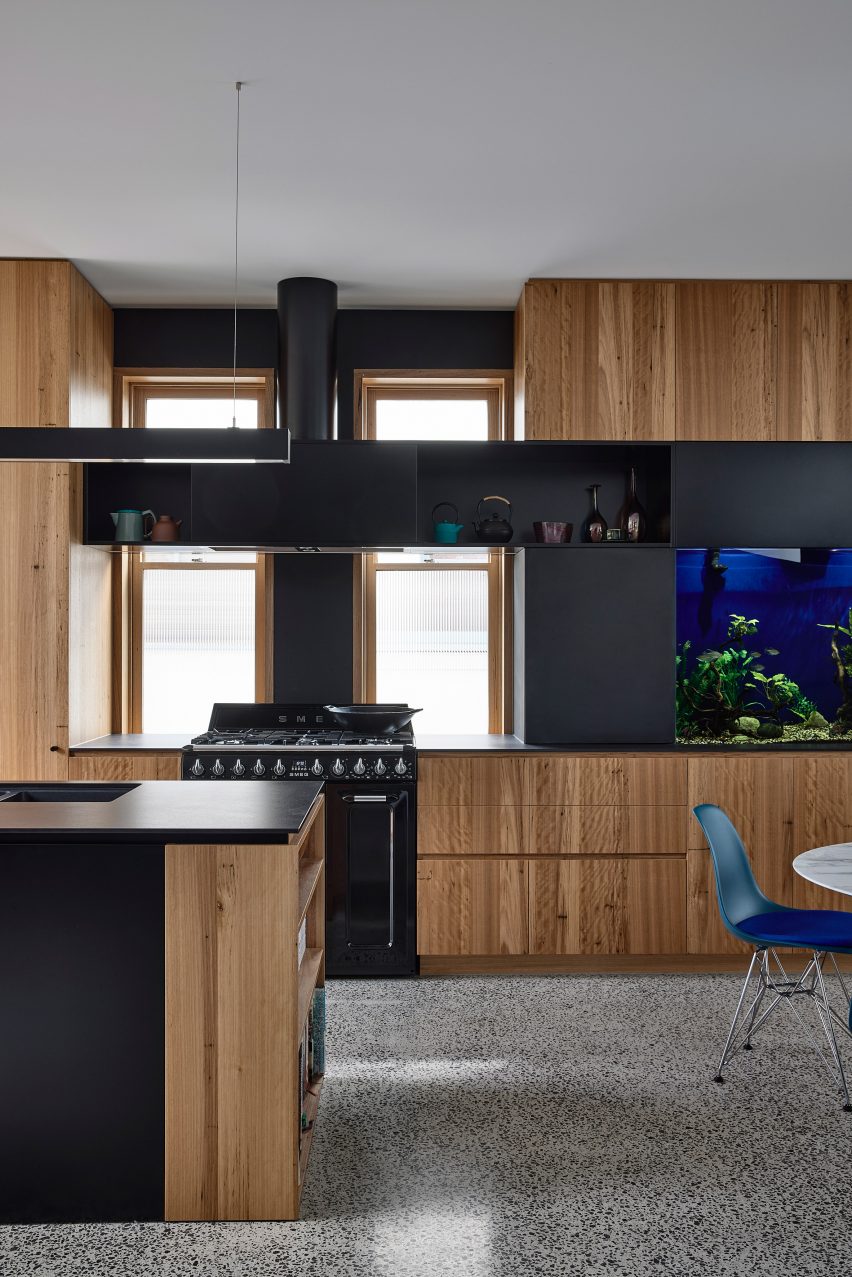

Helvetia house Melbourne kitchen area with inbuilt fish tank

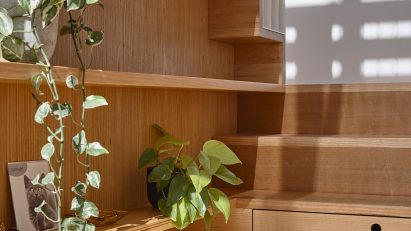

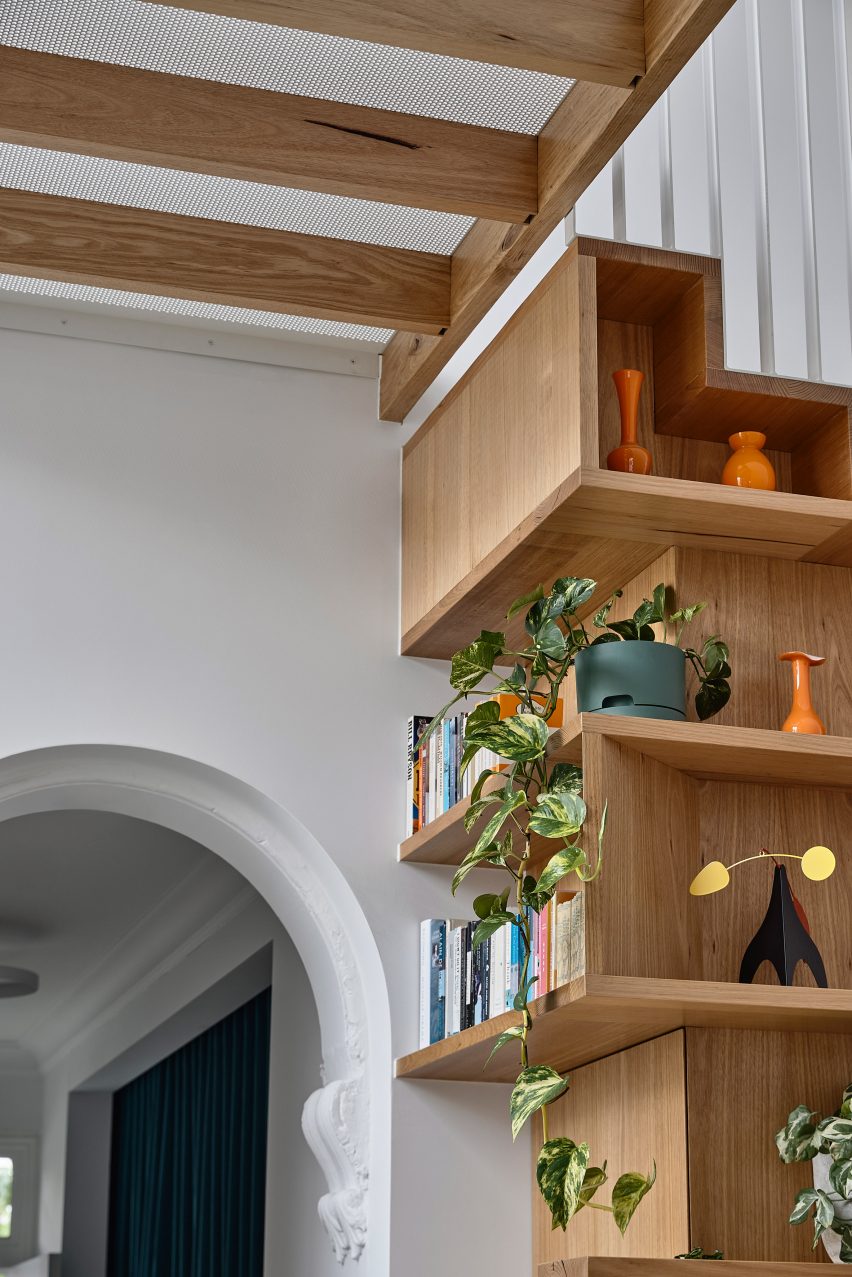

Inbuilt storage space in staircase by Austin Maynard Architects

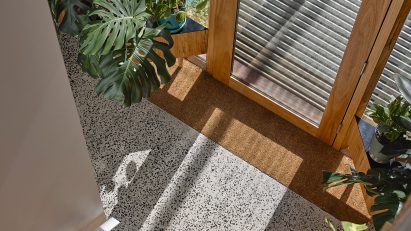

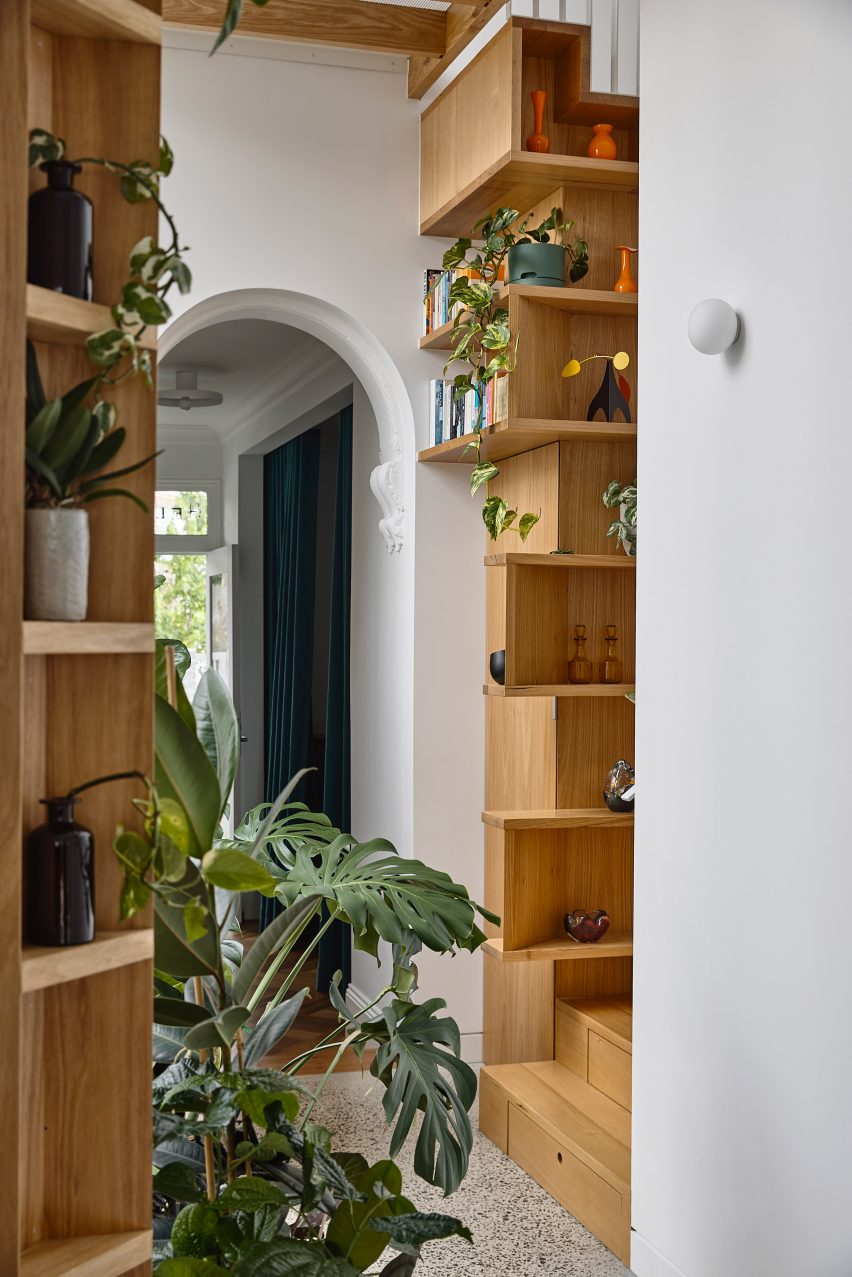

Entry area inside Helvetia house Australia

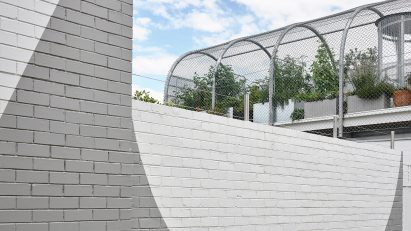

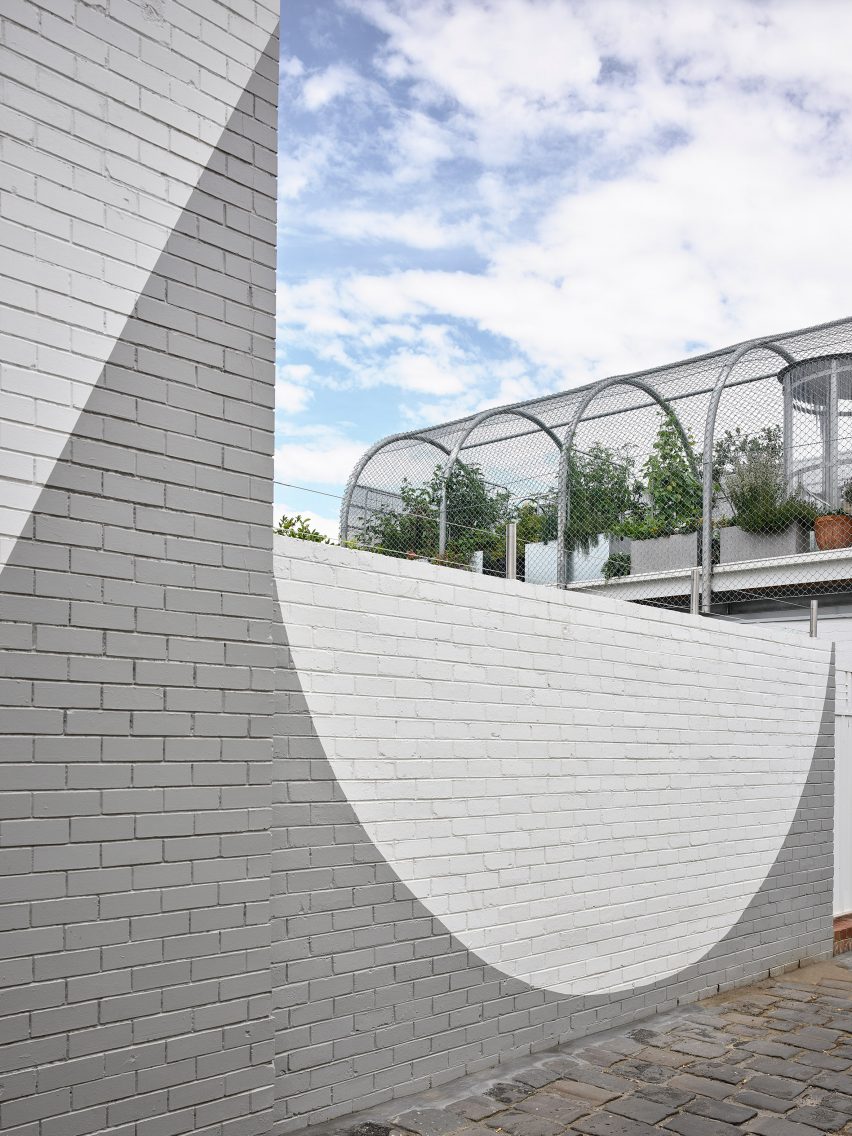

Painted white brick wall and wire mesh surrounding rooftop garden Melbourne

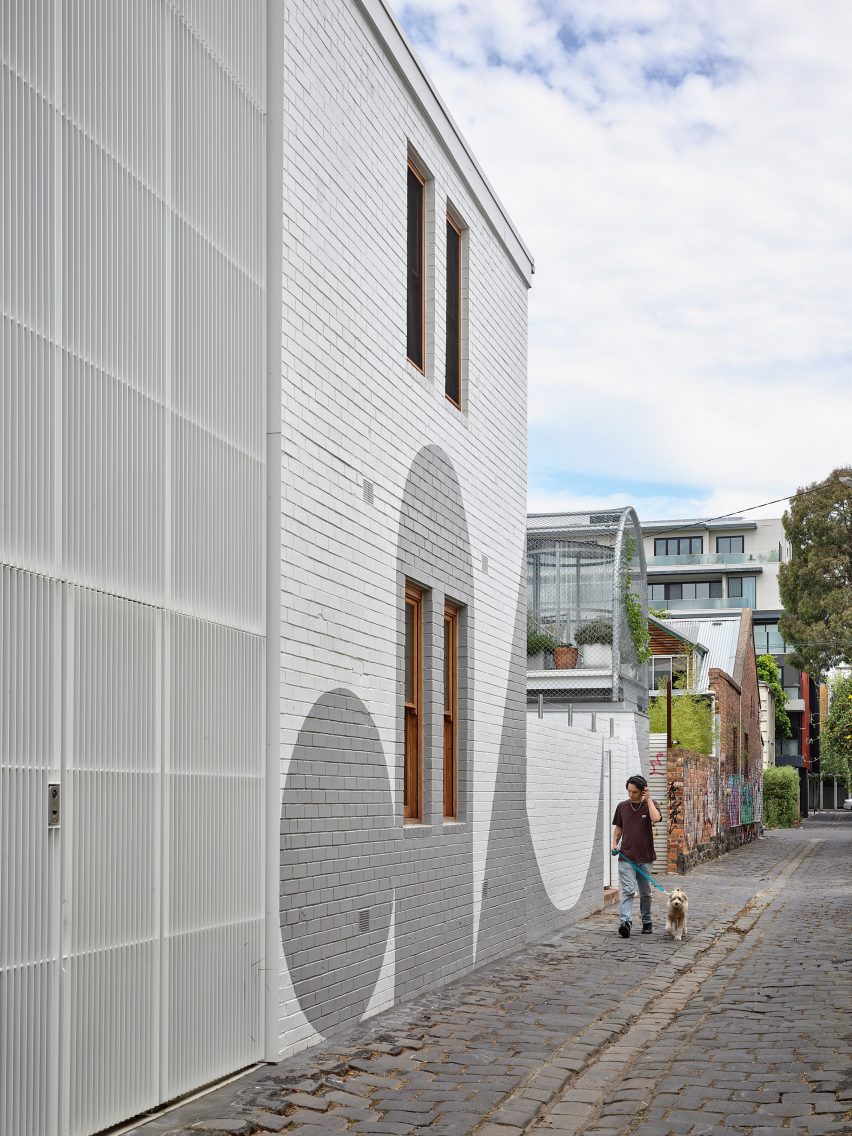

Gateway and brickwork at the side of Helvetia house in Australia

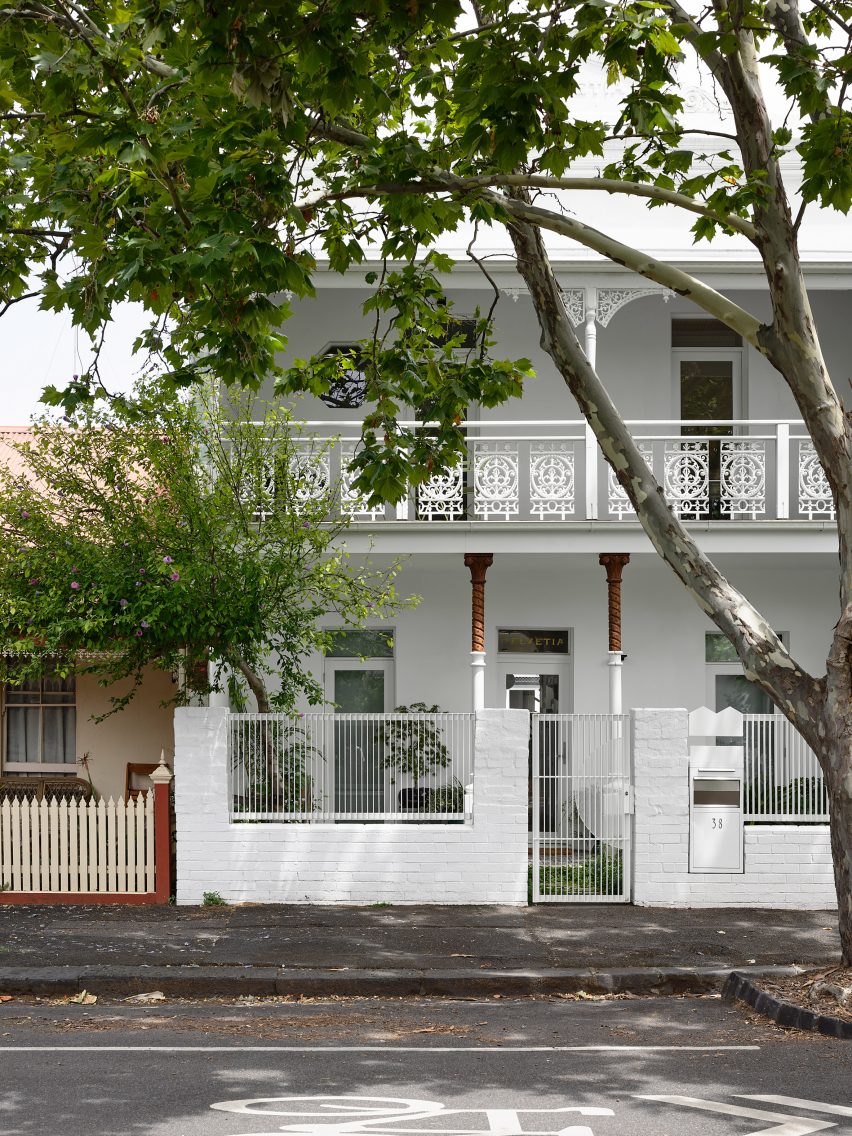

Front view of Helvetia house with balcony Melbourne

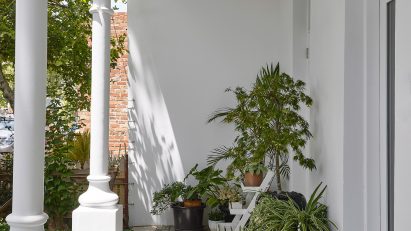

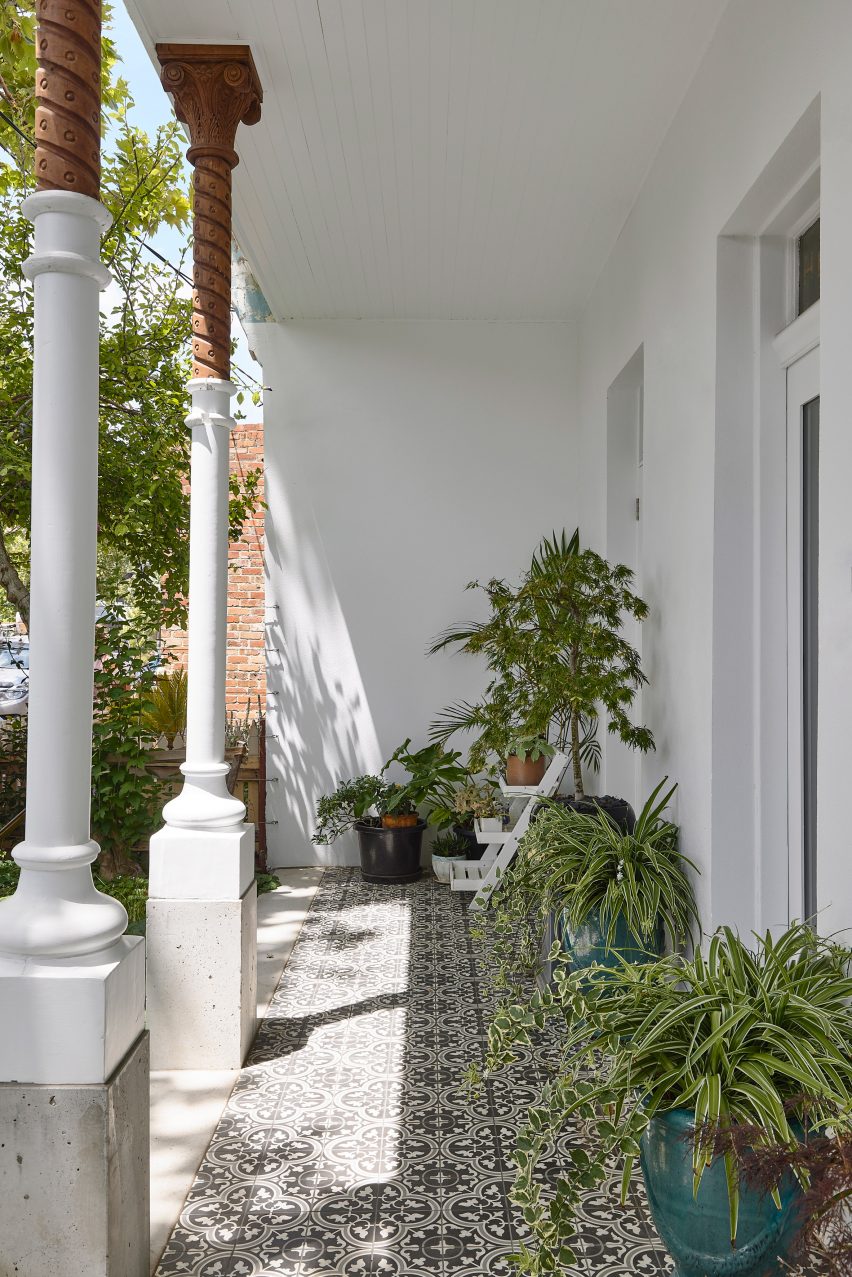

Front of Helvetia house in Fitzroy with beams and tiled floor

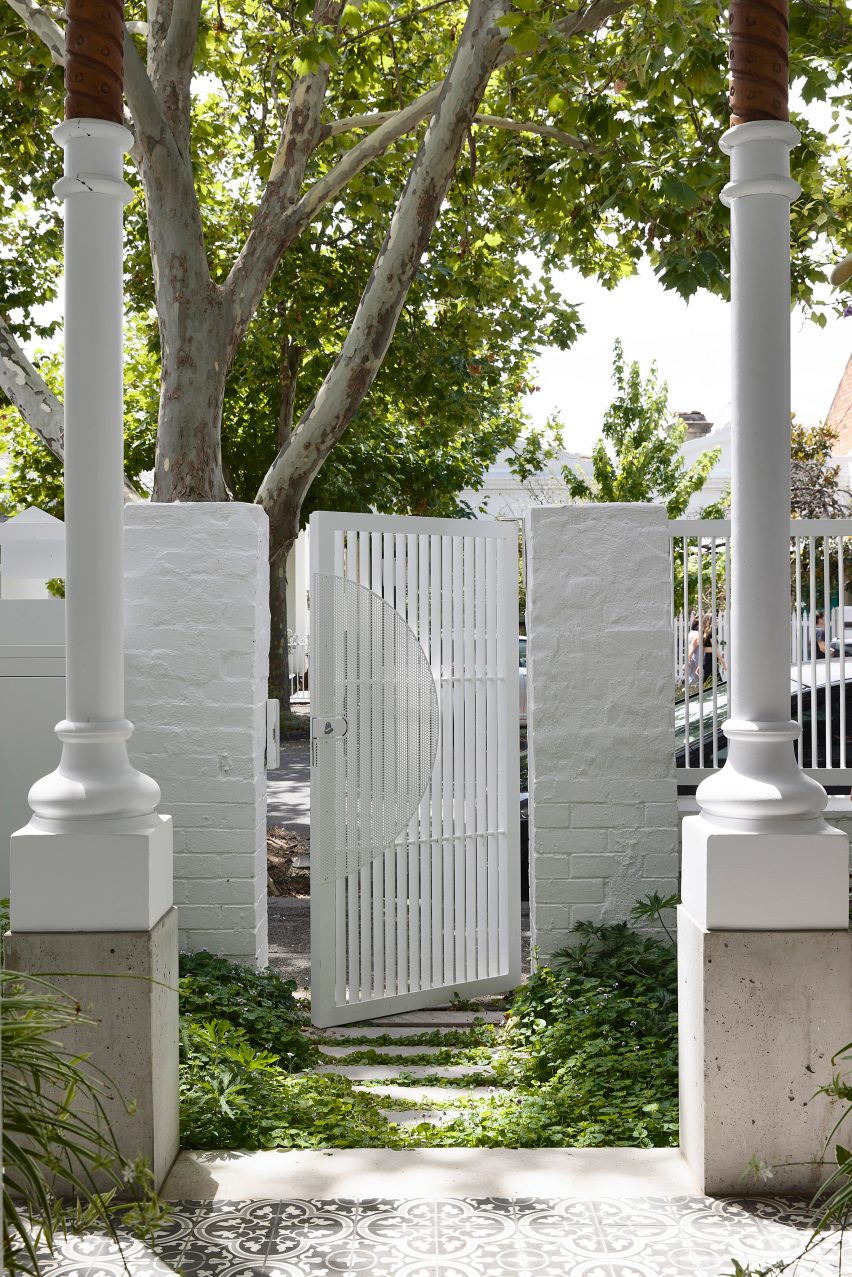

Open gate entering onto patio area at Helvetia house in Australia

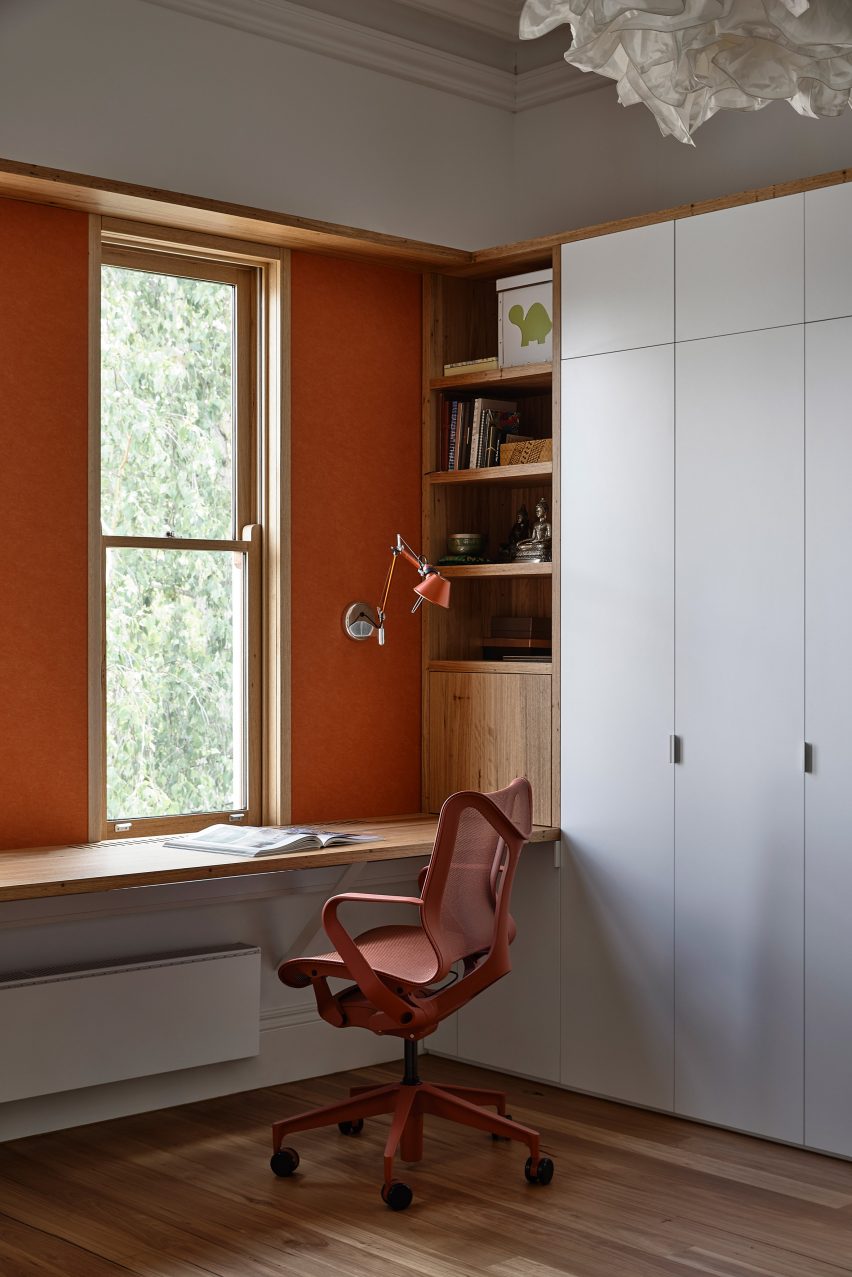

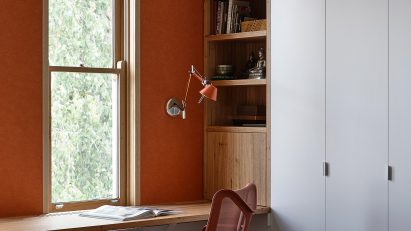

Painted orange study space in first floor studio of house by Austin Maynard Architects

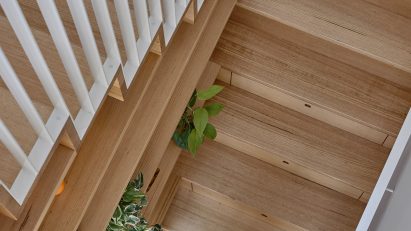

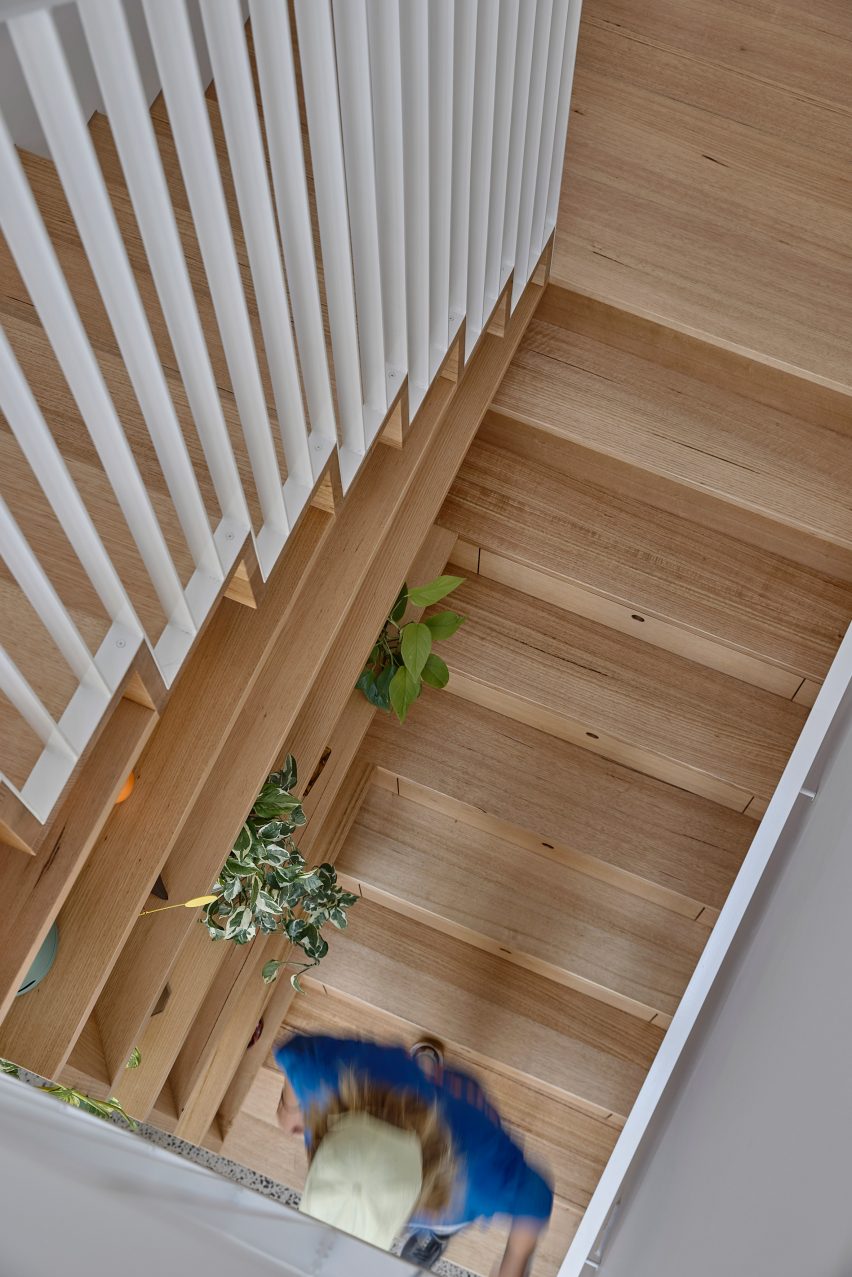

Wooden staircase pictured from above in Melbourne house

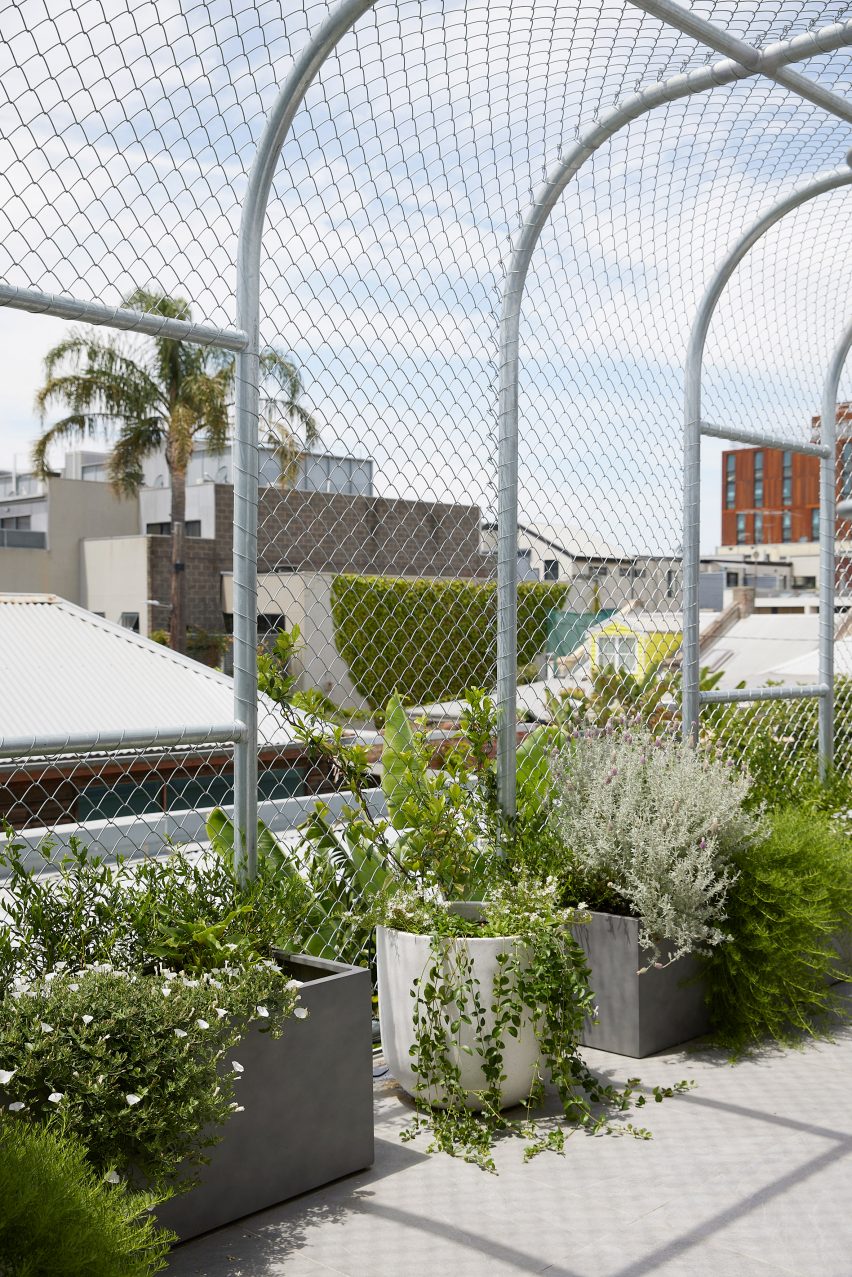

Primary bedroom terrace space and barrel vaulted wire mesh Helvetia

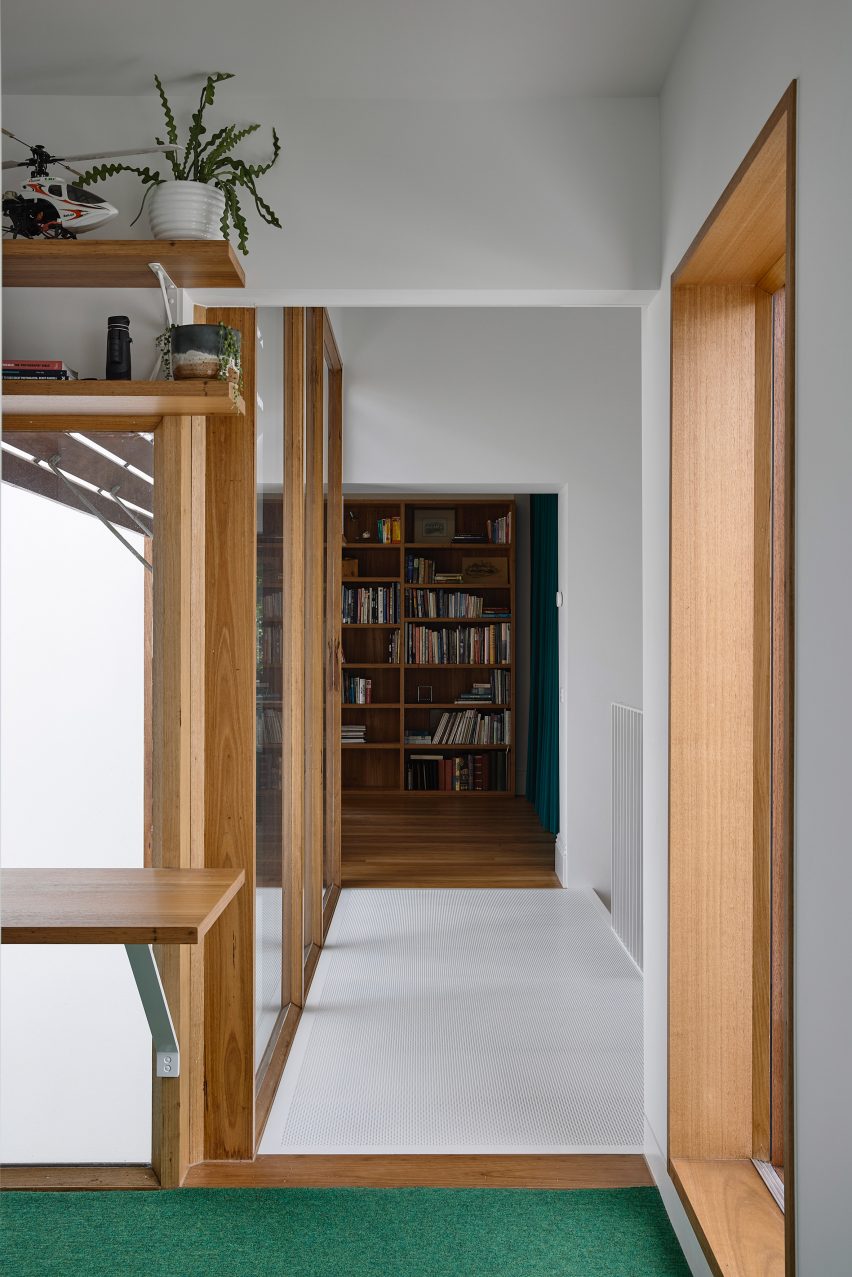

Perforated metal bridge between primary bedroom and studio space of Helvetia house Melbourne
Metal walkway above void in Australian house renovated by Austin Maynard Architects

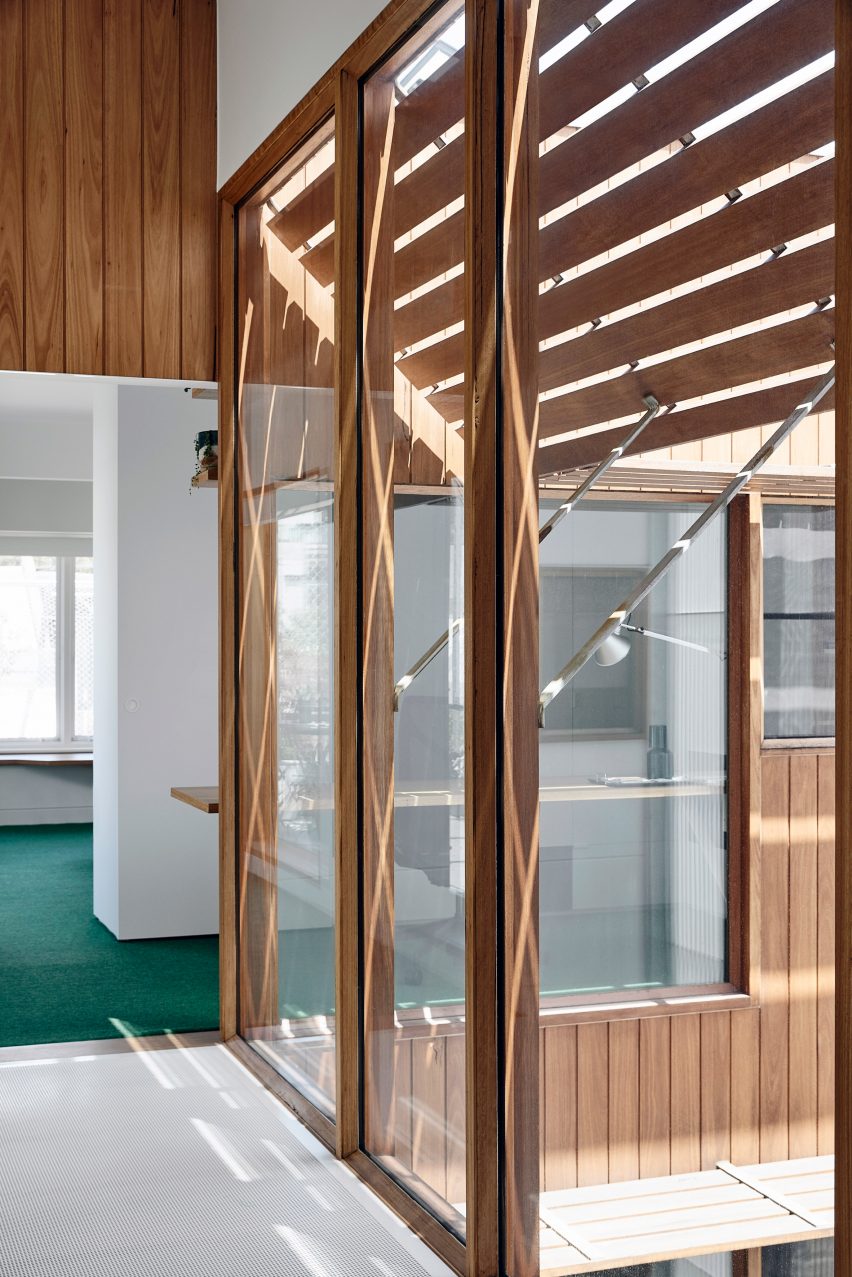

Windows beside metal walkway overlooking atrium in house renovated by Austin Maynard Architects
Kitchen and living area with fish tank and doors to outside in Helvetia house Fitzroy
Metal grate between side laneway and entrance to Helvetia house Melbourne

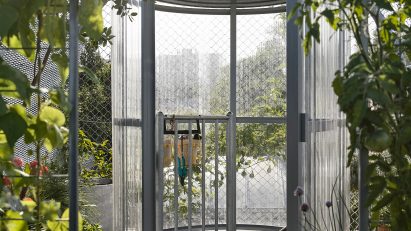

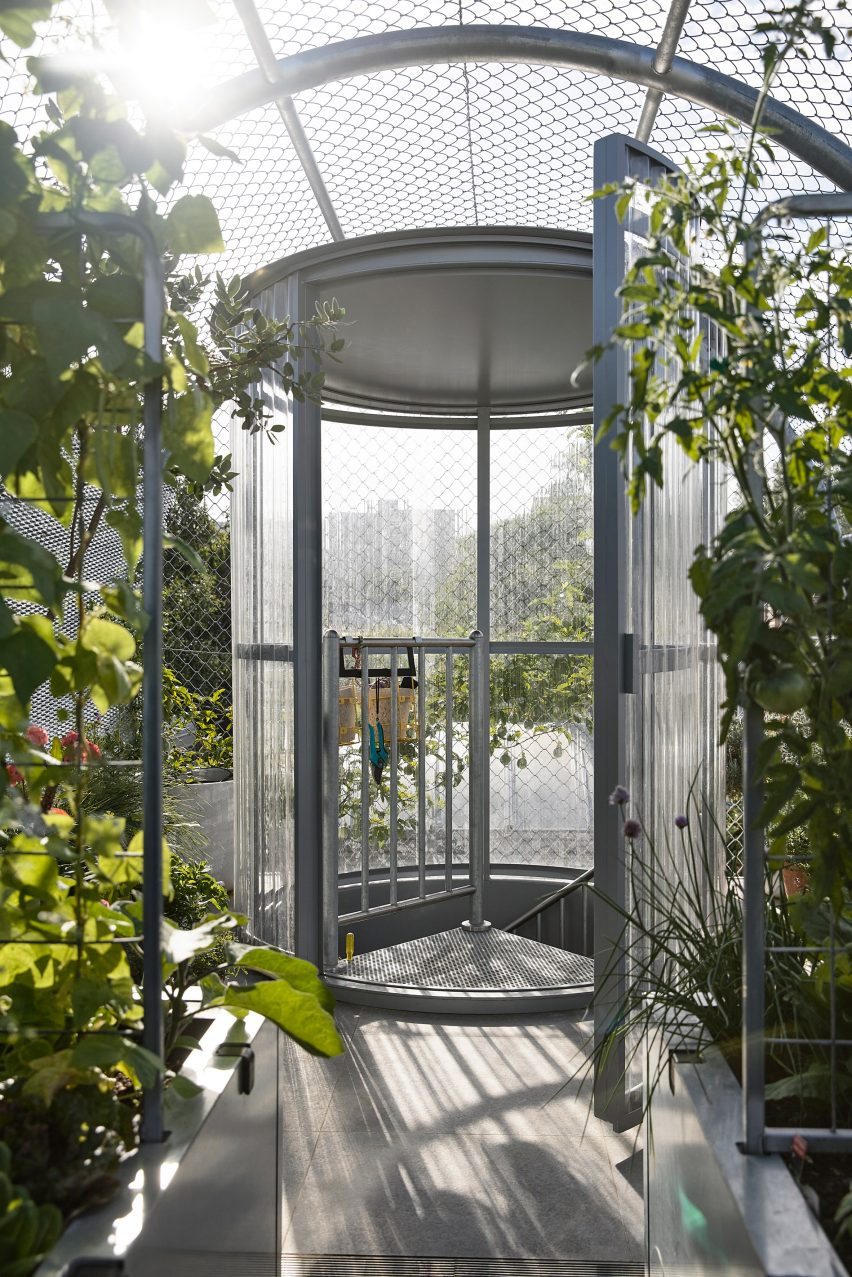

Round doorway entrance to productive rooftop garden in Fitzroy
