J Mayer H completes timber lattice pavilion to mark the 300th year of the city of Karlsruhe

The Baroque urban planning of Karlsruhe, Germany, influenced the latticed timber structure of this pavilion, created by Berlin studio J Mayer H to celebrate the city's 300th anniversary (+ slideshow).

Jubilee Pavillon KA300 by J Mayer H

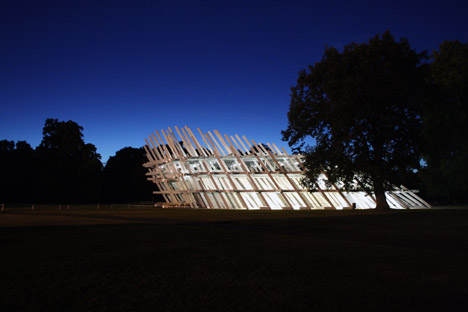

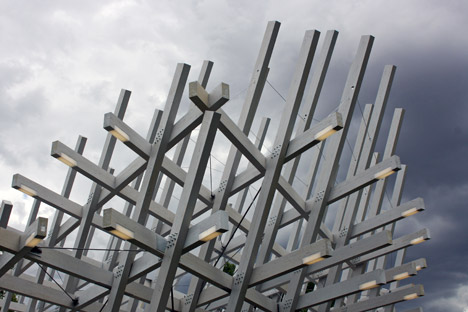

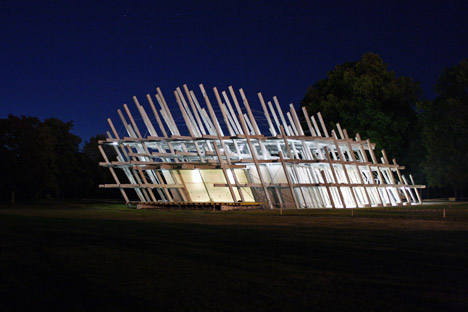

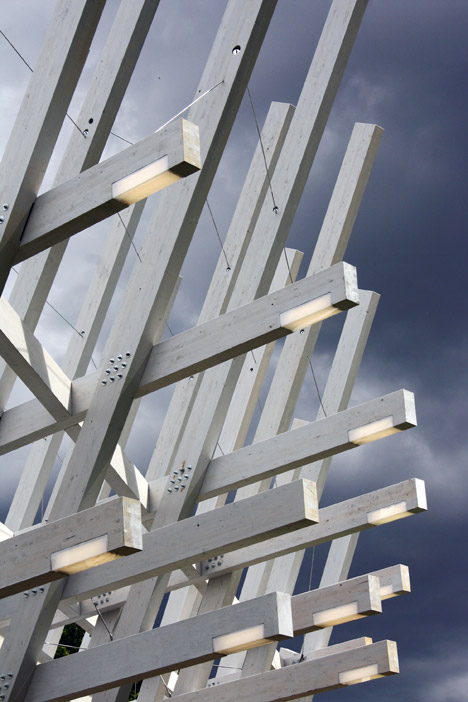

The KA300 Pavilion, which opened earlier this week, comprises a wonky three-dimensional grid of crisscrossing timber members, framing a flexible events space that will host various activities throughout the summer.

Jubilee Pavillon KA300 by J Mayer H

Each of the upright elements points towards the heart of the three-century-old city, which has become famous for a radial layout that surrounds a Baroque palace.

Jubilee Pavillon KA300 by J Mayer H

"The twisted pattern of the pavilion refers to the strictly geometric, radial layout of the Baroque-planned city of Karlsruhe with the palace as the focal point, transforming it into a spatial field of lines," said J Mayer H in a statement.

"On several layers in and on the structure, exhibition platforms, resting spaces, and viewing platforms emerge."

Jubilee Pavillon KA300 by J Mayer H

The city's radial plan includes 32 circulating streets and avenues, as well as the Schlossgarten park. This is where the pavilion has been constructed, in the area north west of the palace, or "Schloss".

Jubilee Pavillon KA300 by J Mayer H

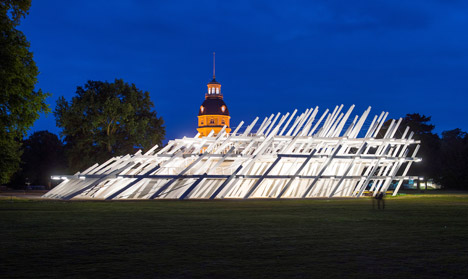

Photograph by Uli Deck

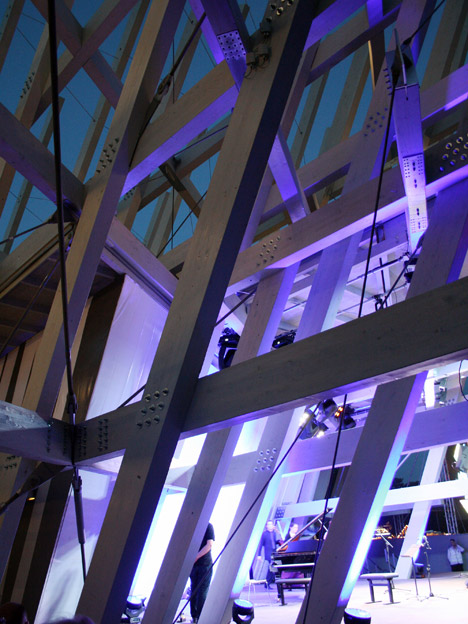

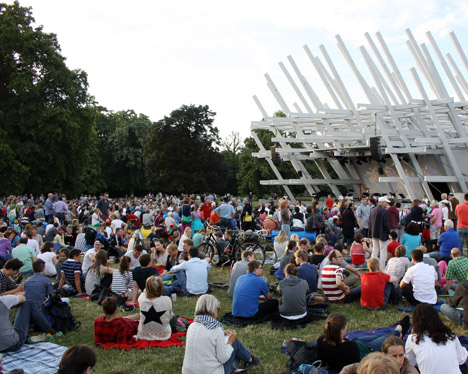

The structure's outline is defined by over 50 vertical columns that surround a hollow interior. This space features a stage, allowing the building to be used as both an indoor auditorium, or for outdoor film screenings and performances.

It also accommodates a cafe, an information point and various informal seating areas, while stairs lead up to a viewing platform on the roof.

Jubilee Pavillon KA300 by J Mayer H

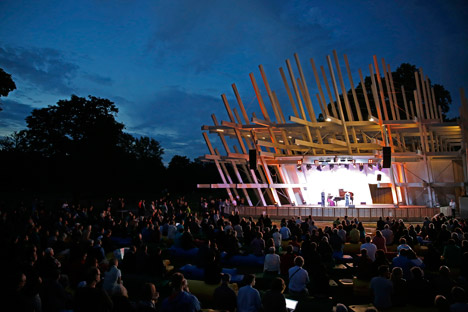

Photograph by Michael Kneffel

J Mayer H won a competition to design the pavilion in early 2014, following on from the firm's Metropol Parasol project in Seville, Spain, that also employed a timber lattice construction.

Jubilee Pavillon KA300 by J Mayer H

The studio worked closely with wood manufacturer Rubner to calculate the exact details of the fabrication, which started in February, and the pavilion opened to the public on 20 June.

The structure will remain in place until September, before being dismantled and moved for use in a new location.

Jubilee Pavillon KA300 by J Mayer H

The studio, led by architect Jürgen Mayer-Hermann, is also currently working on a shopping centre near Berlin's Alexanderplatz.

Photography is by Frank Dinger, apart from where otherwise credited.


Project credits:

Architect: J Mayer H und Partner, Architekten
Partner in charge: Jürgen Mayer H.
Project architect: Sebastian Finckh
Project team: Georg Fassl, Maxim Margorskyi
Client: Stadtmarketing Karlsruhe
Timber construction: Rubner
Lighting designer: Lichttransfer
Building service: Ingenieurbüro Jicha

Jubilee Pavillon KA300 by J Mayer H

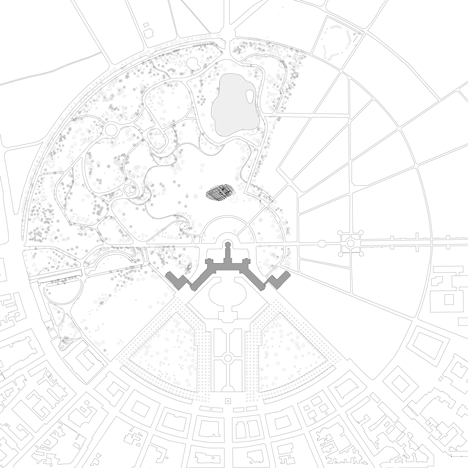

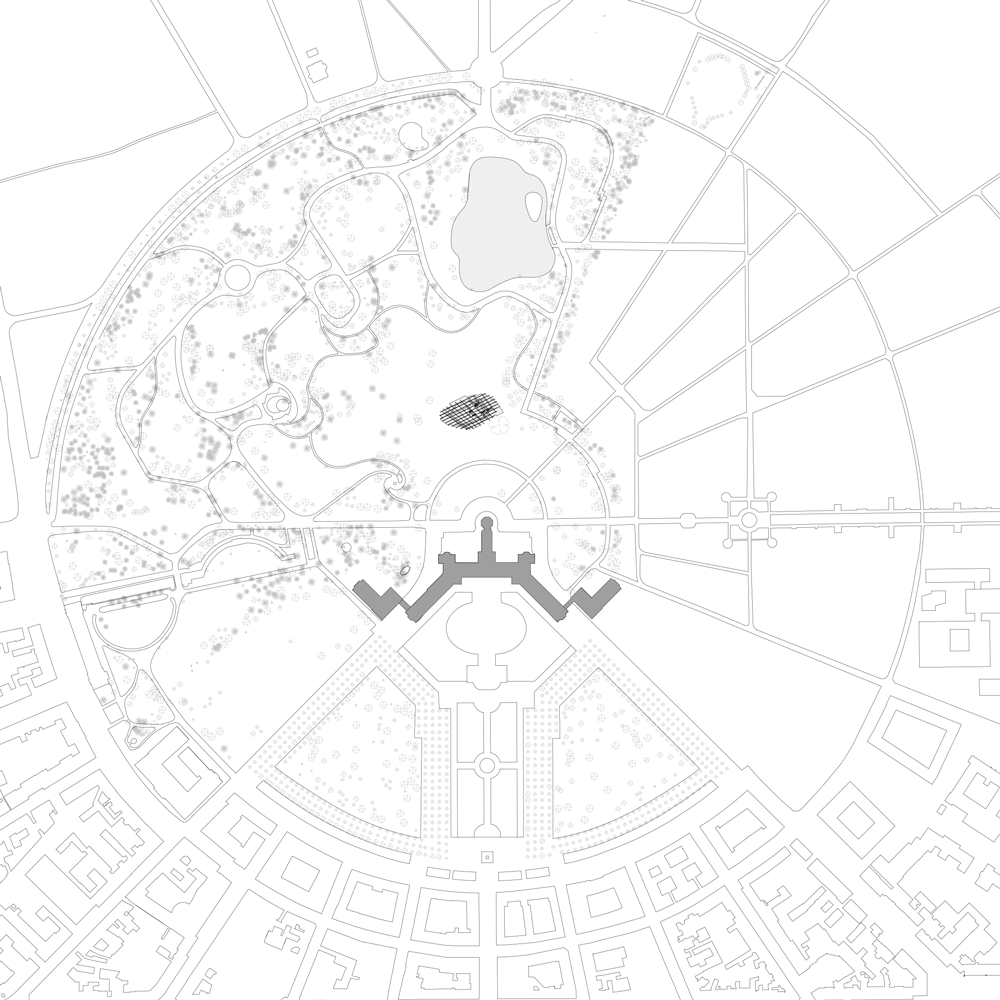

Site plan – click for larger image
Jubilee Pavillon KA300 by J Mayer H

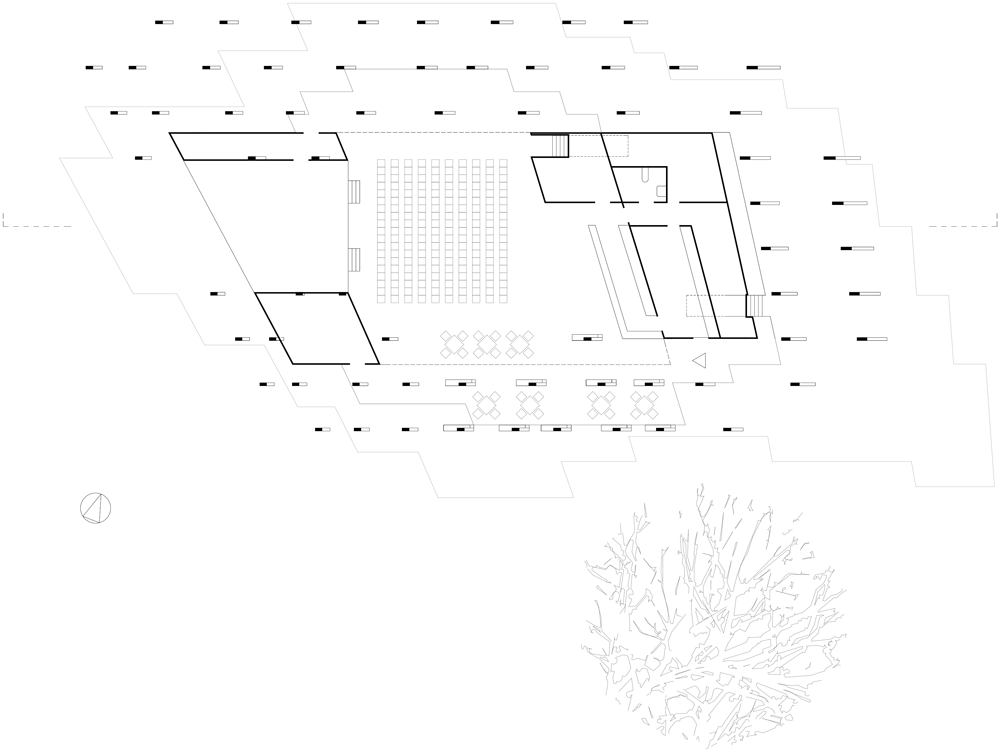

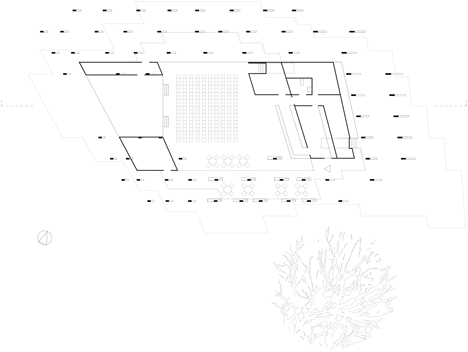

Floor plan – click for larger image
Jubilee Pavillon KA300 by J Mayer H

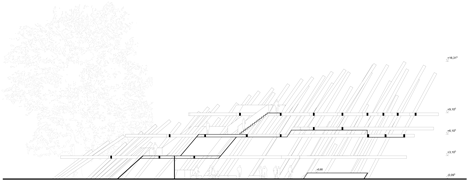

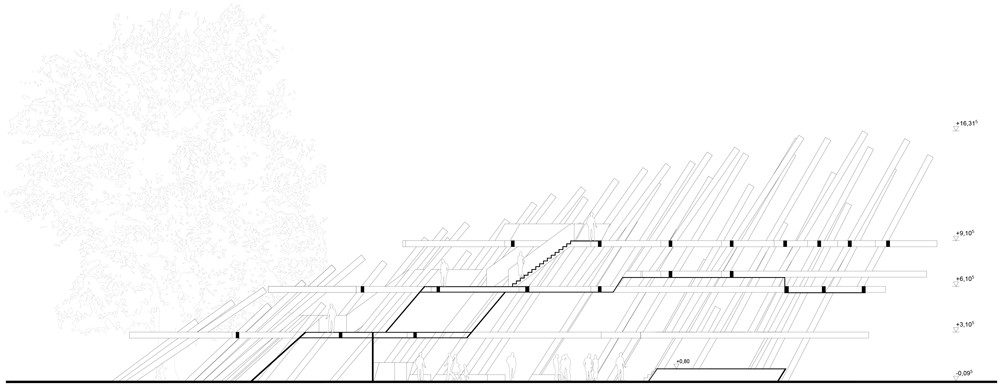

Section – click for larger image
