Four angular white volumes form house in Mallorca by OHLAB

Oliver Hernaiz Architecture Lab has completed a house on the Spanish island of Mallorca, made up of white blocks that are all oriented towards different viewpoints (+ slideshow).

MM House by OHLAB

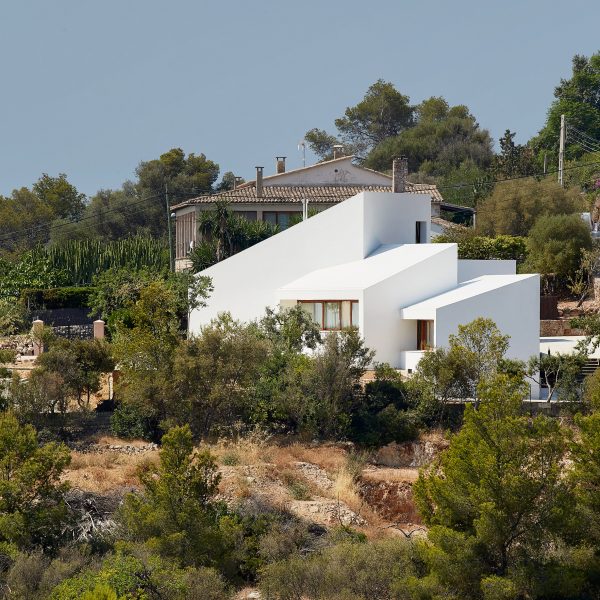

Palma-based Oliver Hernaiz Architecture Lab – OHLAB for short – designed MM House for a sloped site in Palma de Mallorca, aiming to make the most of the views available.

MM House by OHLAB

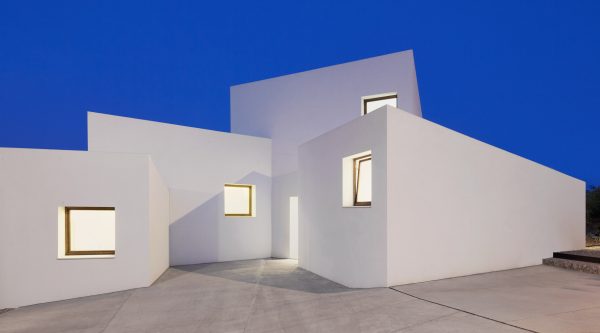

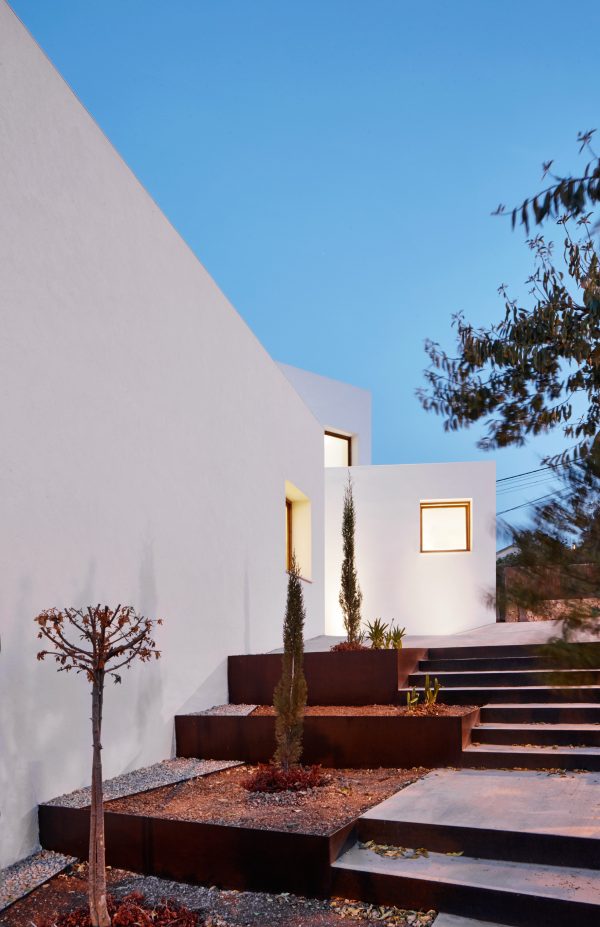

The architects divided the building into four stepped boxes. They each point in different directions, but all feature large windows that offer views to suit the activities that take place inside.

MM House by OHLAB

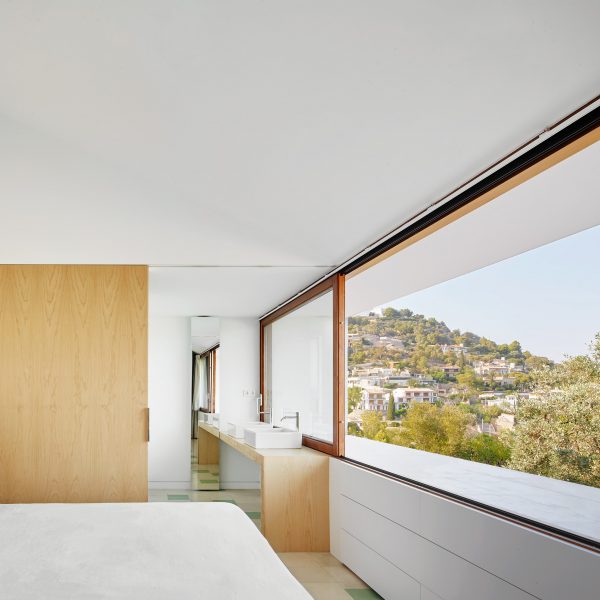

The living-cum-dining room overlooks the sea, the kitchen points to the vegetable patch, and the bedrooms face the more private garden.

MM House by OHLAB

"The project optimises the programme, grouping it in four boxes – kitchen, living-dining, main bedroom and guest bedrooms – which can be used together or independently," said OHLAB.

"Each box is placed carefully on the ground and rotates on its axis with precision to find the best views and orientation for their use," added the team.

MM House by OHLAB

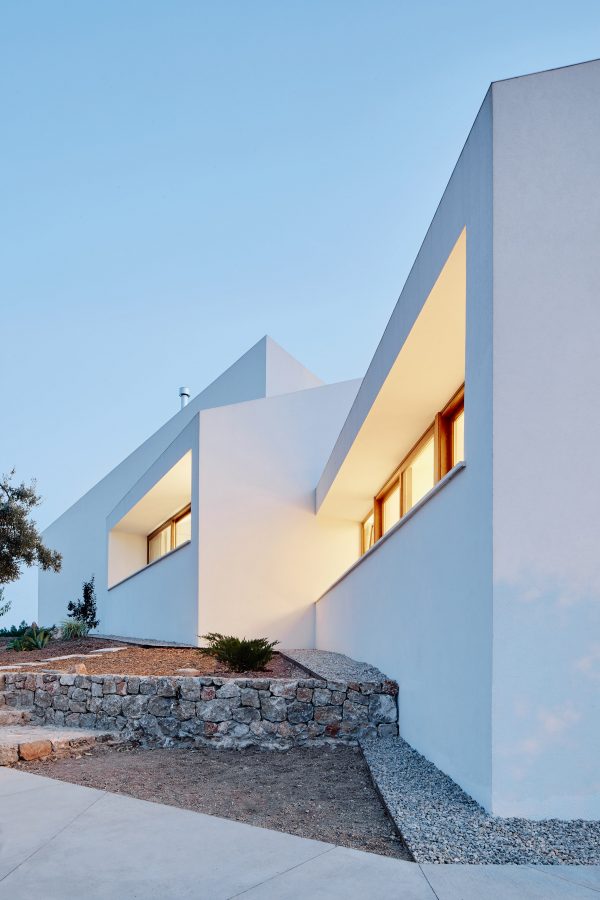

In response to the warm climate, the south-facing openings are recessed, allowing sun to enter in the winter when it is low in the sky, but blocking it in during the summer when it is high.

MM House by OHLAB

Native vegetation and deciduous trees planted along the south side of the house provide additional shade. There are also shutters flanking the east- and west-facing openings.

MM House by OHLAB

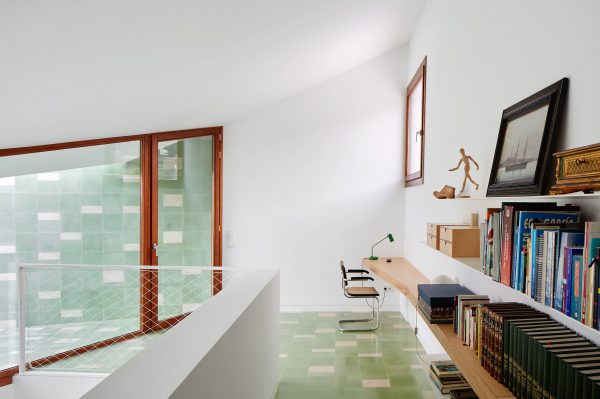

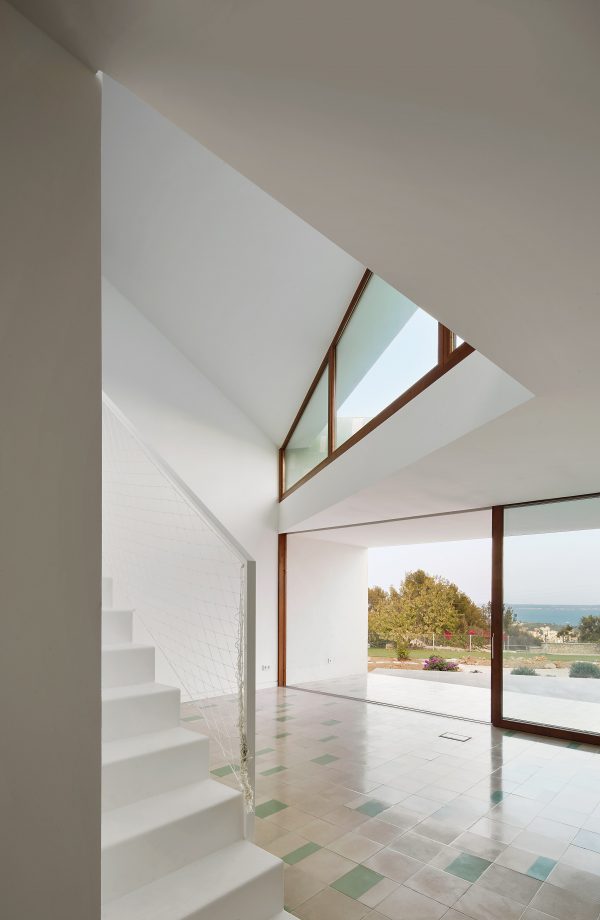

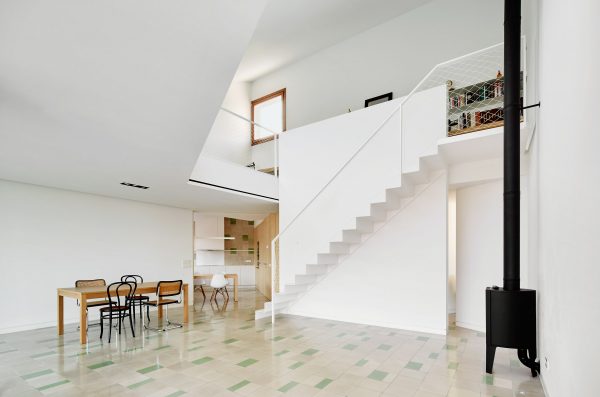

In the largest block, the living area features glazed sliding doors that open to a covered terrace overlooking the sea. The double-height space also has a black wood-burning stone, while a staircase with a net banister leads to a gallery study.

MM House by OHLAB

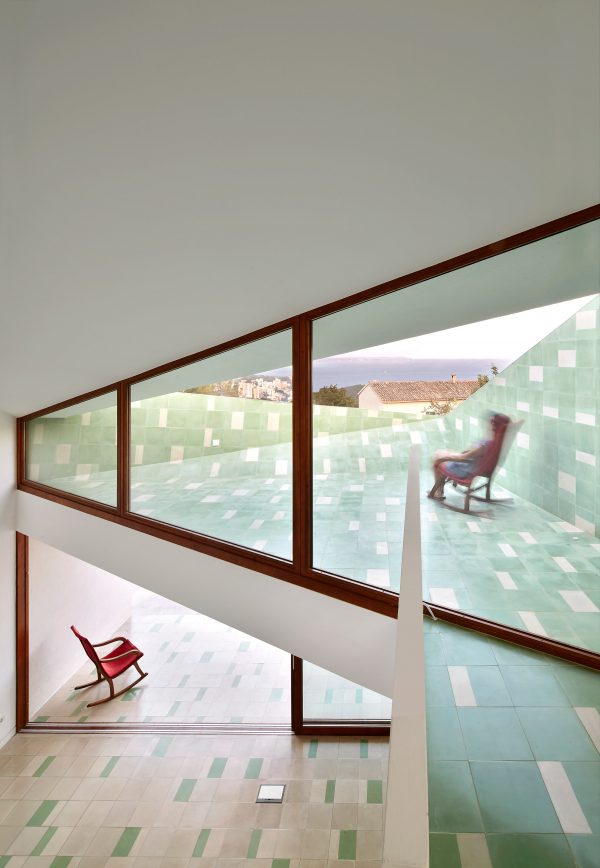

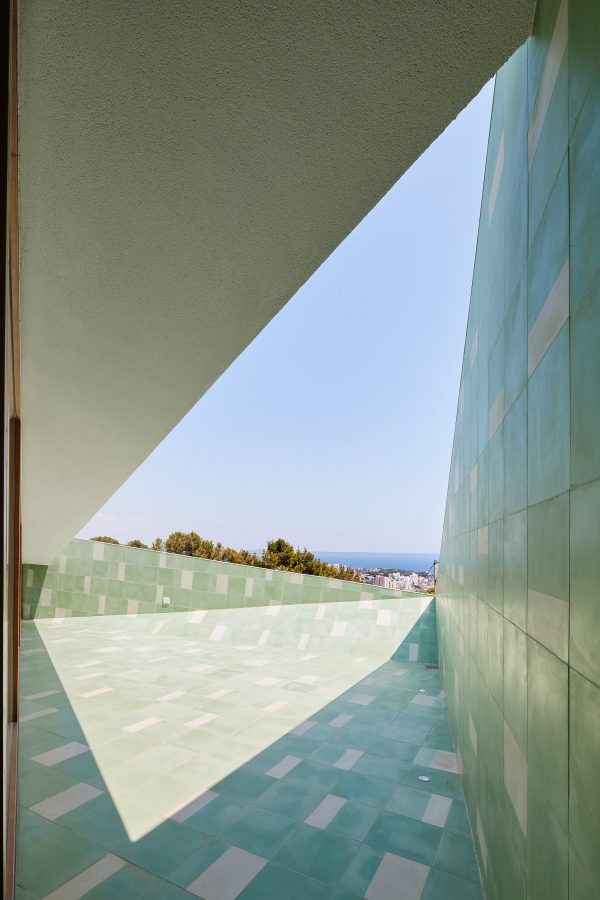

From here there is also access to a viewing terrace, creating by a triangular gap in the roof. Green tiles cover the floor of the outside area, contrasting the cream tiles with small squares of green that feature inside.

MM House by OHLAB

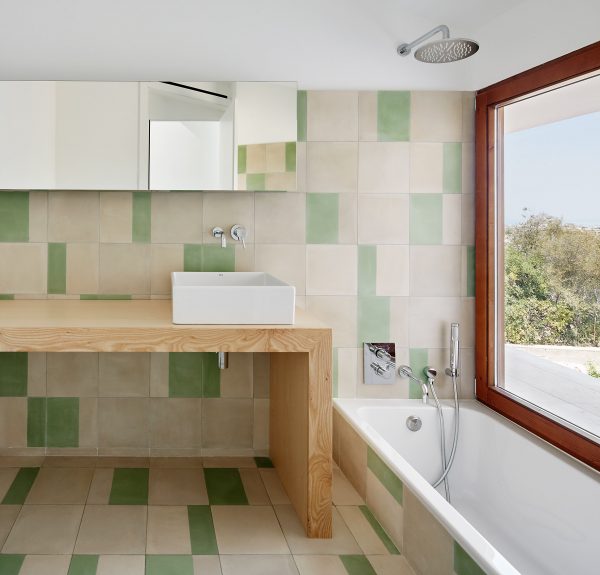

Minimal finishes are used throughout the interior, with white-painted walls matching the house's exterior and wooden furniture complementing the timber-framed windows.

MM House by OHLAB

MM House is designed to meet the low-energy requirements of a Passivhaus – a title granted to buildings that use natural methods of heating and cooling, rather than relying on electrical systems.

MM House by OHLAB

Hot water is obtained almost entirely from tanks placed in the gaps created between the housing and the slope of the terrain.

Three of the pitched roofs collect rainwater for both irrigation and general use, while the fourth roof gathers water for drinking.

MM House by OHLAB

Mallorca forms part of the Balearic Islands – an archipelago that also includes Ibiza and Formentera. Other recently completed projects there include a garden viewpoint on a picturesque hillside and the transformation of an old farmhouse into an art studio and gallery.

Photography is by José Hevia.


Project credits:

OHLAB team: Paloma Hernaiz, Jaime Oliver, Rebeca Lavín, Walter Brandt and Sergio Rivero de Cáceres
Quantity surveyor: Jorge Ramón
Structure: Jesús Alonso
Energy efficiency advisor: Anne Vogt
Project management: Paloma Hernaiz, Jaime Oliver (architects), Jorge Ramón (quantity surveyor)

MM House by OHLAB

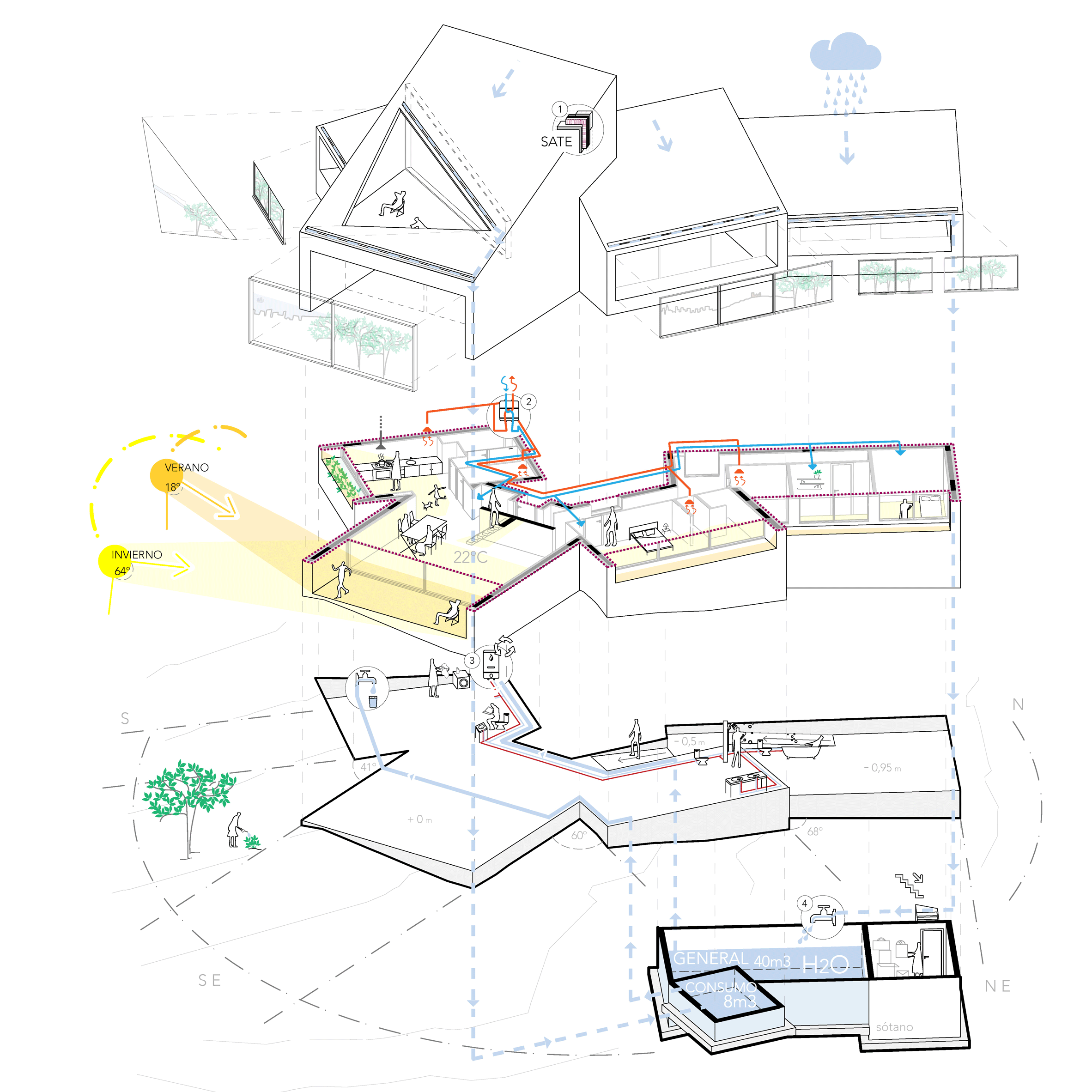

Axonometric diagram – click for larger image
MM House by OHLAB

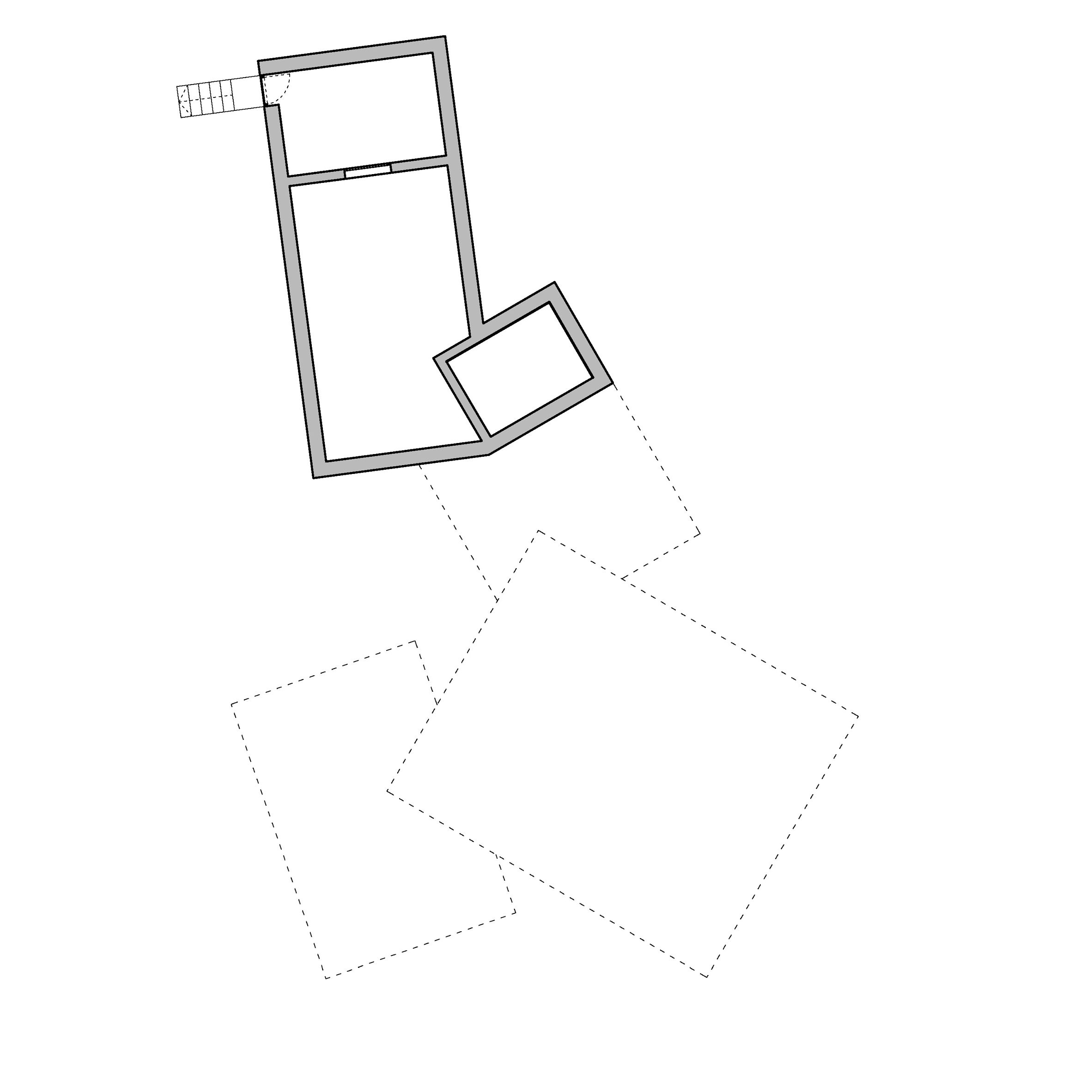

Basement floor plan – click for larger image
mm-house-oliver-hernaiz-architecture-lab-palma-de-mallorca-spain_dezeen_ground-floor-plan

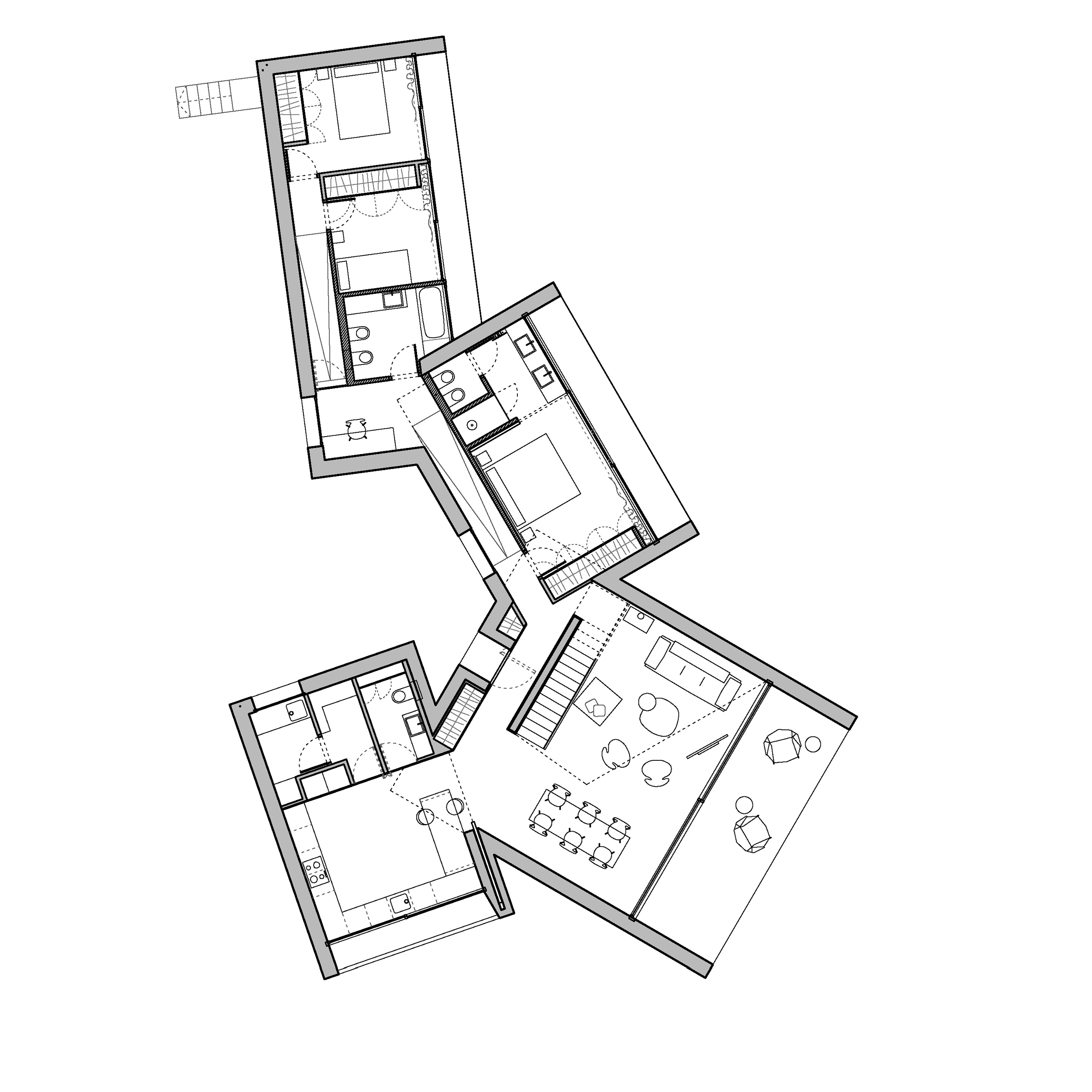

Ground floor plan – click for larger image
MM House by OHLAB

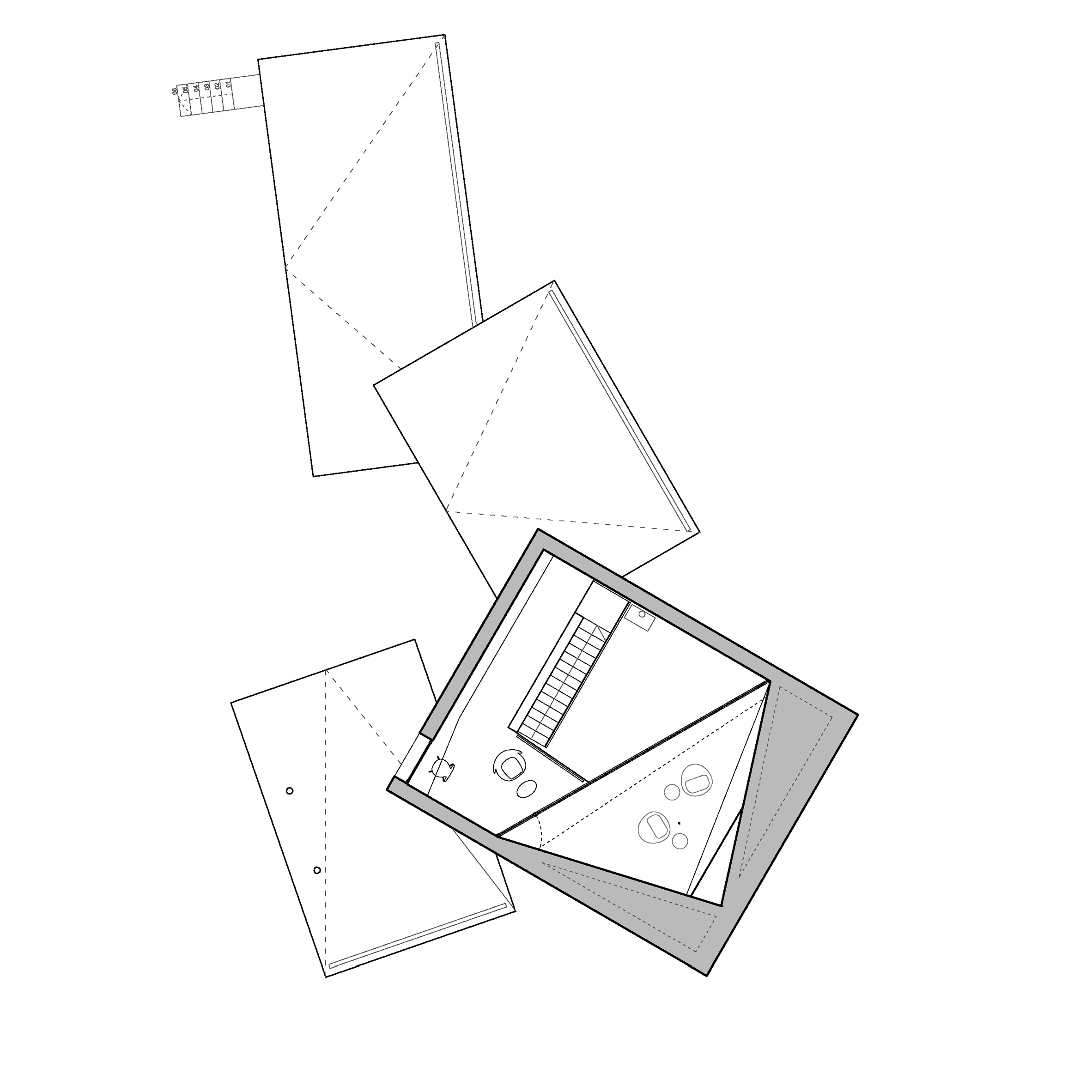

First floor plan – click for larger image
MM House by OHLAB

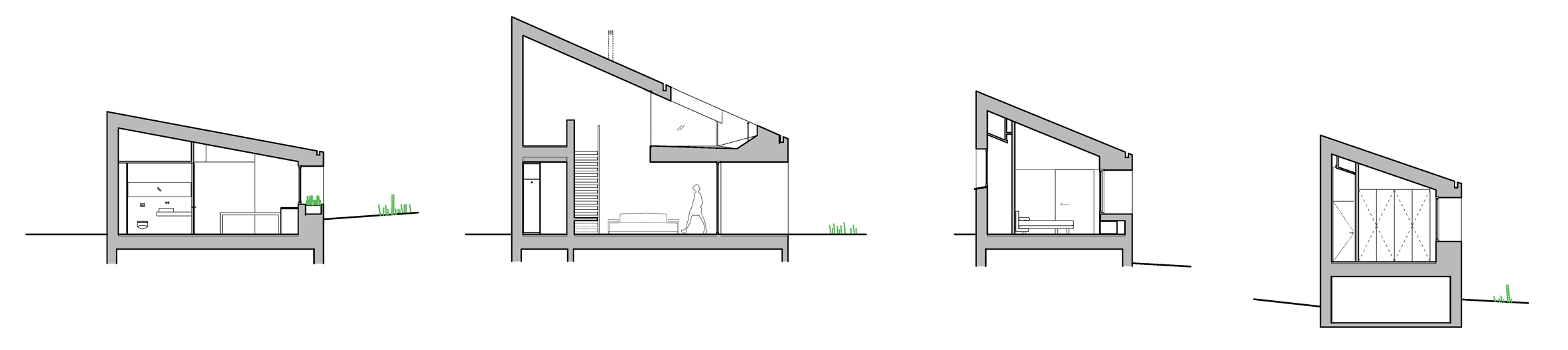

Sections – click for larger image
