The National Maritime Museum of China by Cox Architecture

Cluster of hull-like roofs form The National Maritime Museum of China

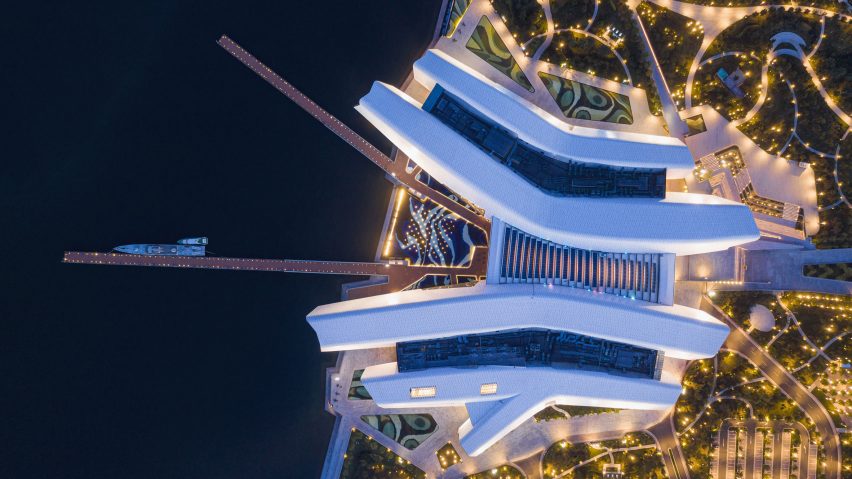

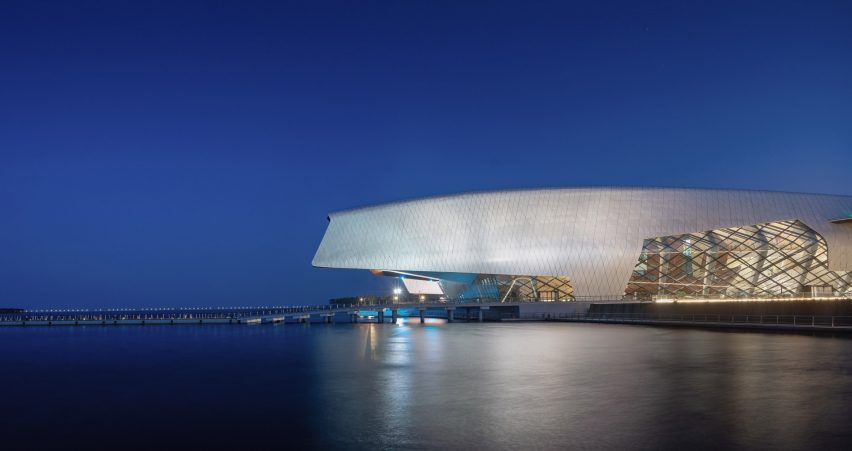

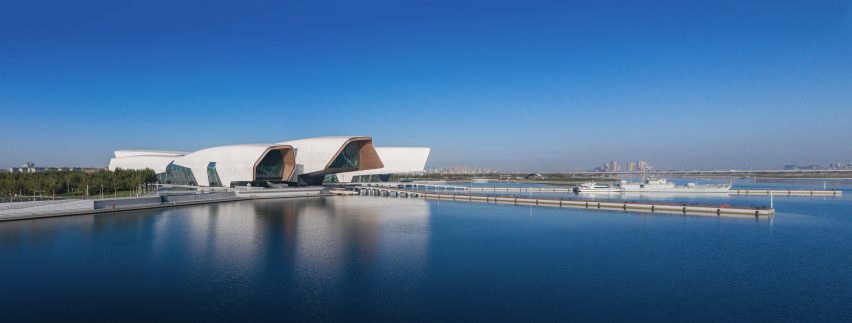

Australian practice Cox Architecture designed The National Maritime Museum of China in Tianjin as four metal-clad wings that fan out to overlook Bohai Bay.

China's first National Maritime Museum is located in the Binhai New Area. This wetland area has been recovered from the bay and extensively developed over the past decade.

The National Maritime Museum of China by Cox Architecture

Cox Architecture won a 2013 international competition to design the museum, which has been six years in the making.

Across an area of 80,000 square metres, the museum houses six display areas and 15 exhibition halls.

The National Maritime Museum of China by Cox Architecture

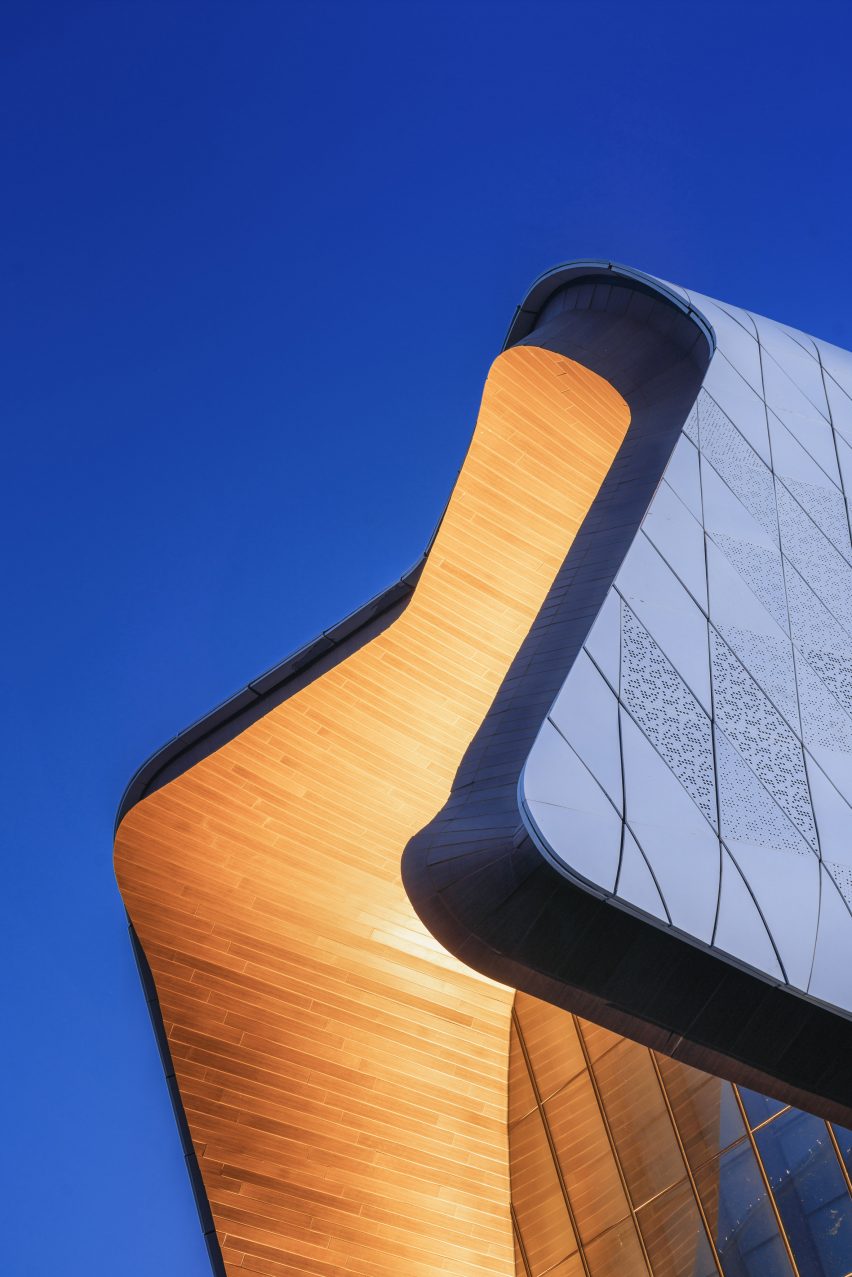

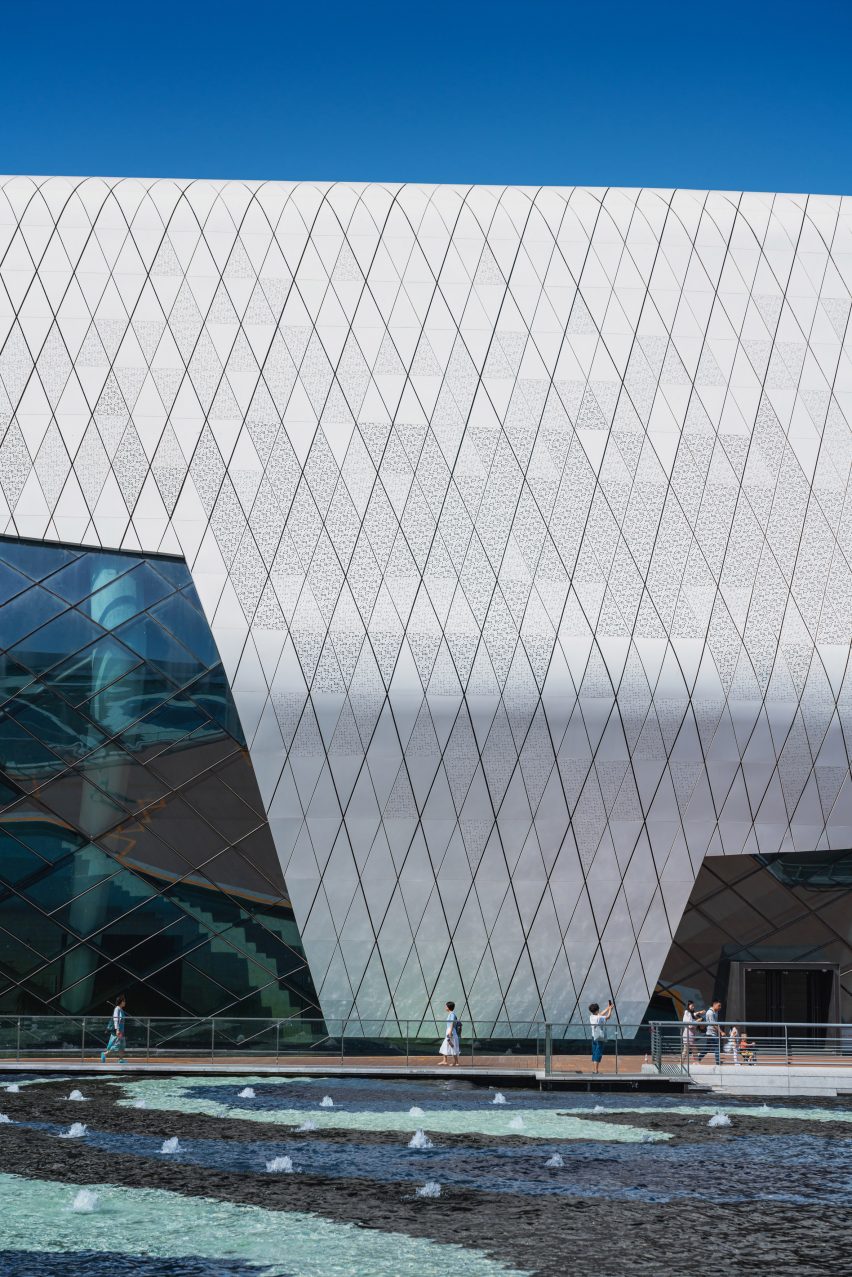

Diamond-shaped panels of silver aluminium cover the exterior of each form, with some perforated and others solid.

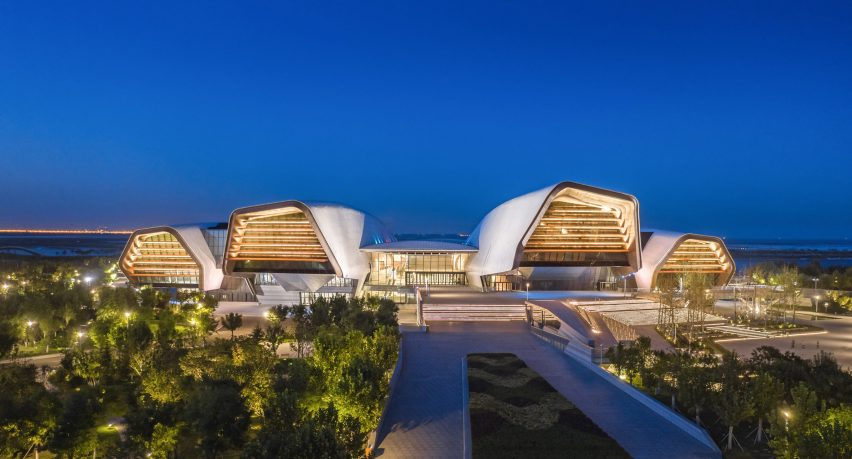

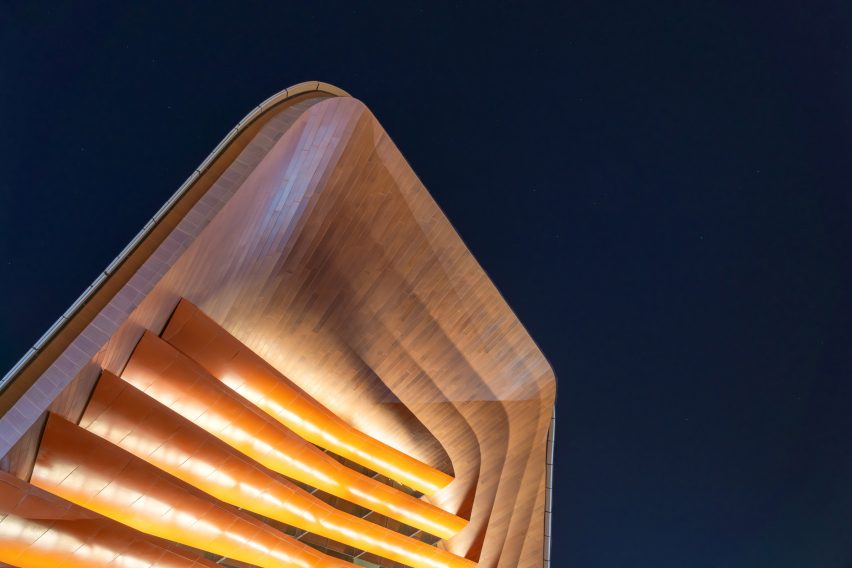

The underside of the of the roofs deep reveals –  designed to cope with heavy snowfall in winter – are lined with of wood.

The National Maritime Museum of China by Cox Architecture

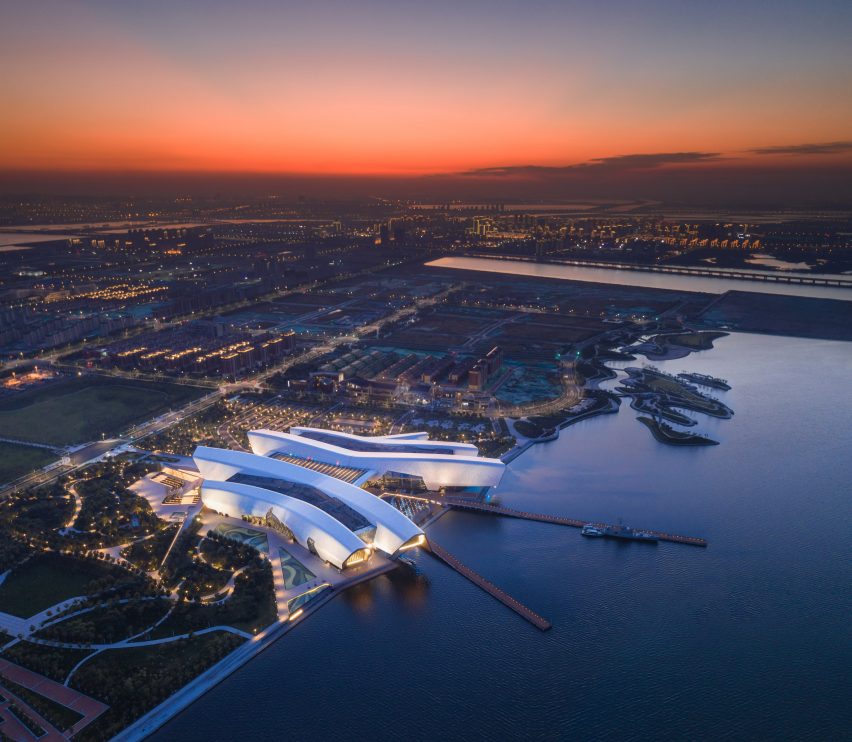

Landscaped areas create a new series of promenade-like routes along the bay, sheltered by the cantilevering forms of the museum.

Winding paths that cut through its wooded parkland surroundings and extending into the bay with two long jetties.

The National Maritime Museum of China by Cox Architecture

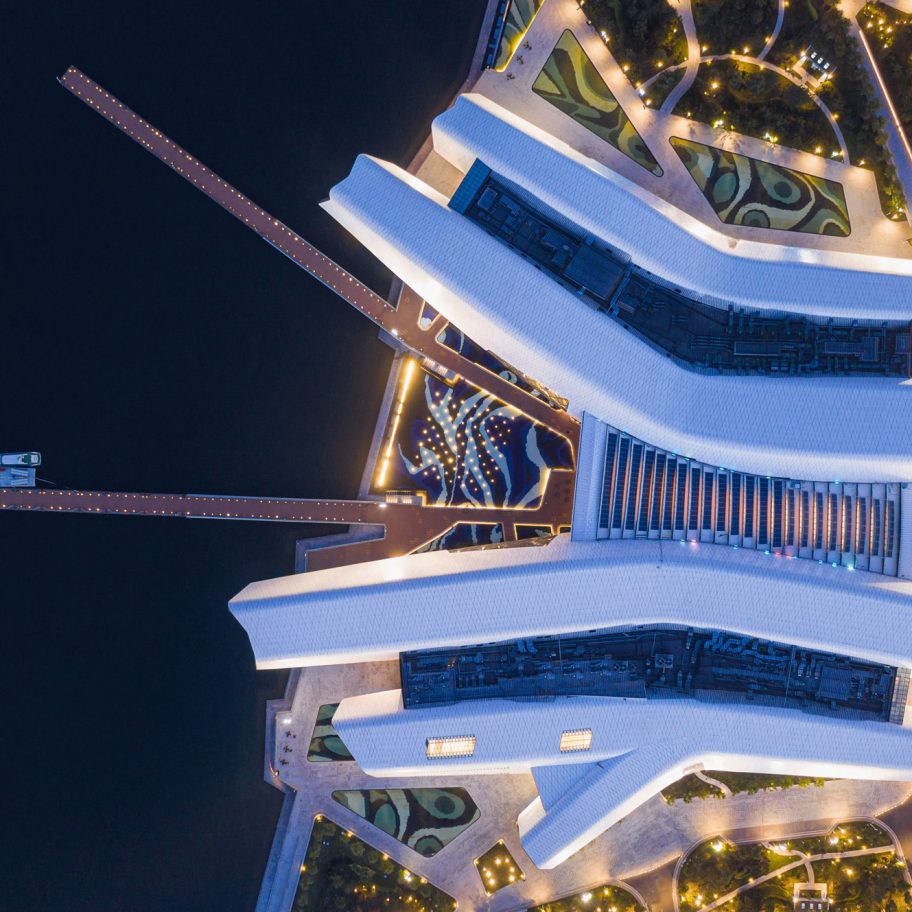

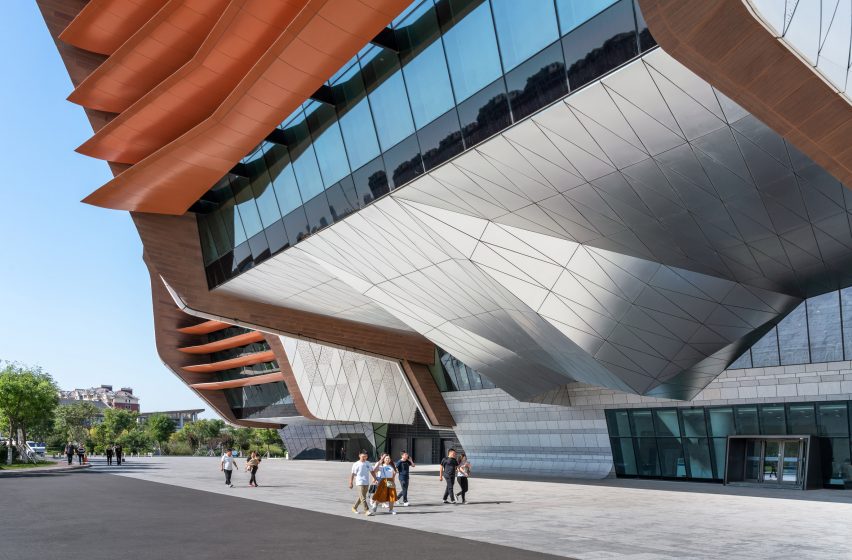

Rather than a single, monolithic structure, Cox Architecture broke the museum down into a cluster of long, thin pavilions, that project towards the bay like upturned hulls of large ships.

"From Philip Cox's initial watercolour sketches, the design evolved and certain compelling metaphors either resolved or emerged," said Cox Architecture.

"Jumping carp, corals, starfish, moored ships in port and and open palm reaching out from China to the maritime world."

The National Maritime Museum of China by Cox Architecture

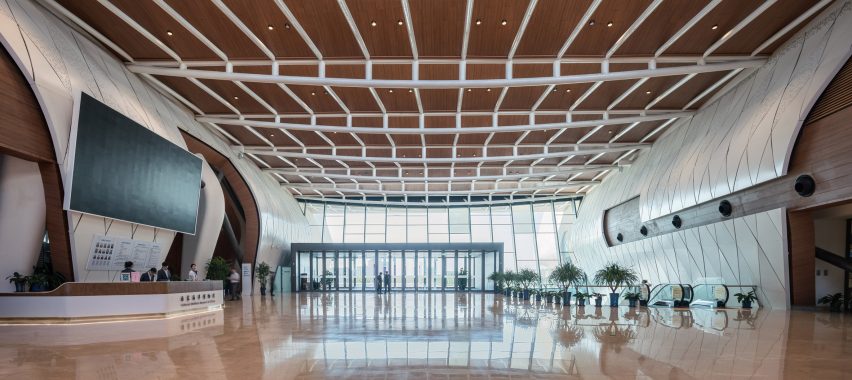

This "open palm" arrangement is focused around a central glazed reception hall, providing access between the three exhibition levels and lower-level storage areas, creating a dramatic visual axis through the building and out towards the bay.

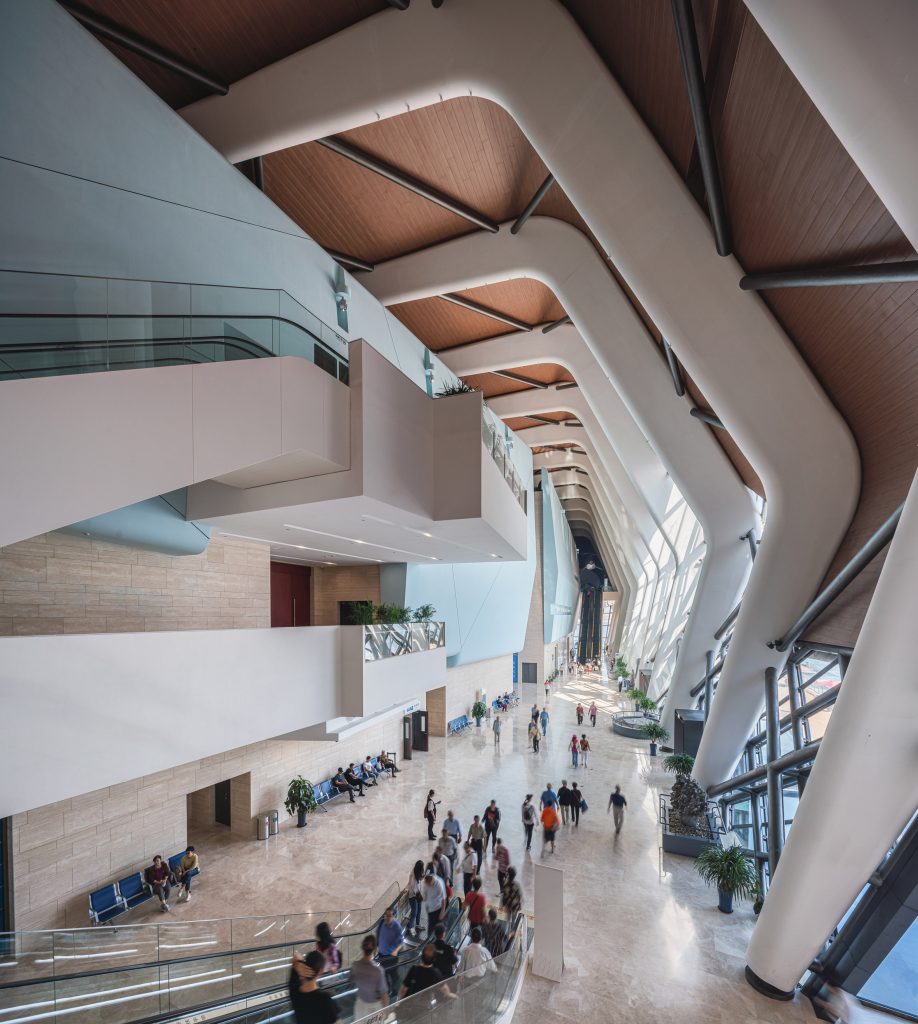

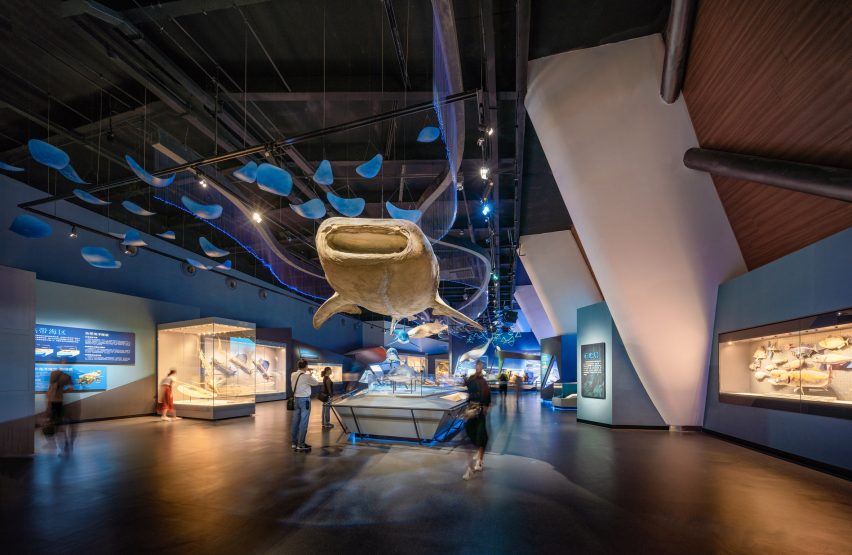

Inside the wings, each of which is dedicated to a particular exhibition theme, a ribbed steel structure creates a dramatic space alongside the core areas housing exhibitions and circulation.

The National Maritime Museum of China by Cox Architecture

A stone floor and white walls create bright, open atrium spaces, overlooked at the upper levels by balconies in contrast to the more enclosed exhibition halls.

"The articulated pavilions provide a constant connection between inside and out," said the practice. "The user experience exists within the landscape and is a key organising device of the plan, helping to orientate visitors on their journey."

The National Maritime Museum of China by Cox Architecture

Cox Architecture was founded by Philip Cox in Sydney in 1967. The practice recently revealed designs for a new airport in Sydney designed with Zaha Hadid Architects.

The National Maritime Museum of China joins several other interestingly-shaped public buildings in the city.

Bernard Tschumi Architects has designed a copper-coloured museum in Tianjiin shaped like a factory with chimneys, and MVRDV built a public library shaped like a giant eyeball.

Photography is by Terrence Zhang.


Project credits:

Architect: Cox Architecture
Cox Team: Hang Ling, Alex Leese, Jack Dodgson, Ashley Beckett, Jayson Blight, Jaegeun Lim, Alex Munoz, Michael Bailey, Philip Cox, Lei Li, Leon McBride, Troy Rafton, James Ryan, Mitchell Page, Julian Farrell, Andrew Butler, Belinda Williamson, David Reasbeck, Ayo Akinola, Mark Sierzcula, Perry Gustafson, Kim Huat Tan, Spyros Barberis, Megan McKenzie, Gary McFeat, William Gray, Michael Rayner, Adrian Taylor, Roger Mai, Joseph Hartley, Karen Appleyard, Matthew Napper, Brendan Gaffney, Katy Roberts, Katie Holzberger, Mark Hadfield, Maxie Navius, Jaclyn Sun, Casey Vallance, Marianella Picon, Robert Callanan, Martin Hayes, Tae Won Kang, Solomon Romion, Brendan Kenny, Vesna Lazarevic, Steve Hunter, Thomas Nelson, James Sia, Tracey Maree, Akiko Spencer, Joachim Clauss, Tim Morgan, Brett Miles, Tommy Miller, Anya Meng.
Client: National Maritime Museum Preparatory Office Chinese Government and Tianjin Municipality
Local design institute partner: Tianjin Architecture and Design Institute (TADI),
Key consultants: Arup, Lord Cultural Resources, Urbantect

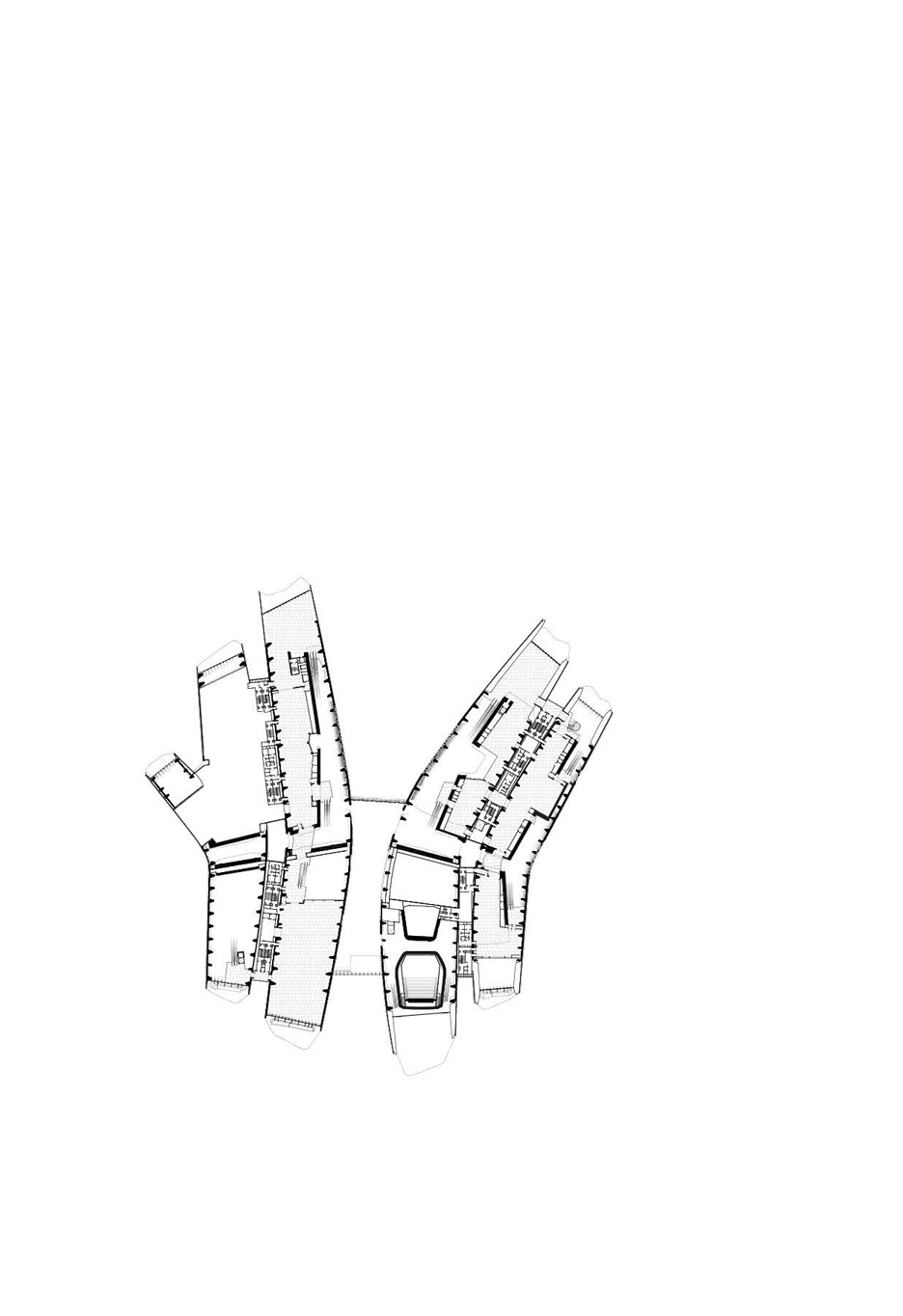

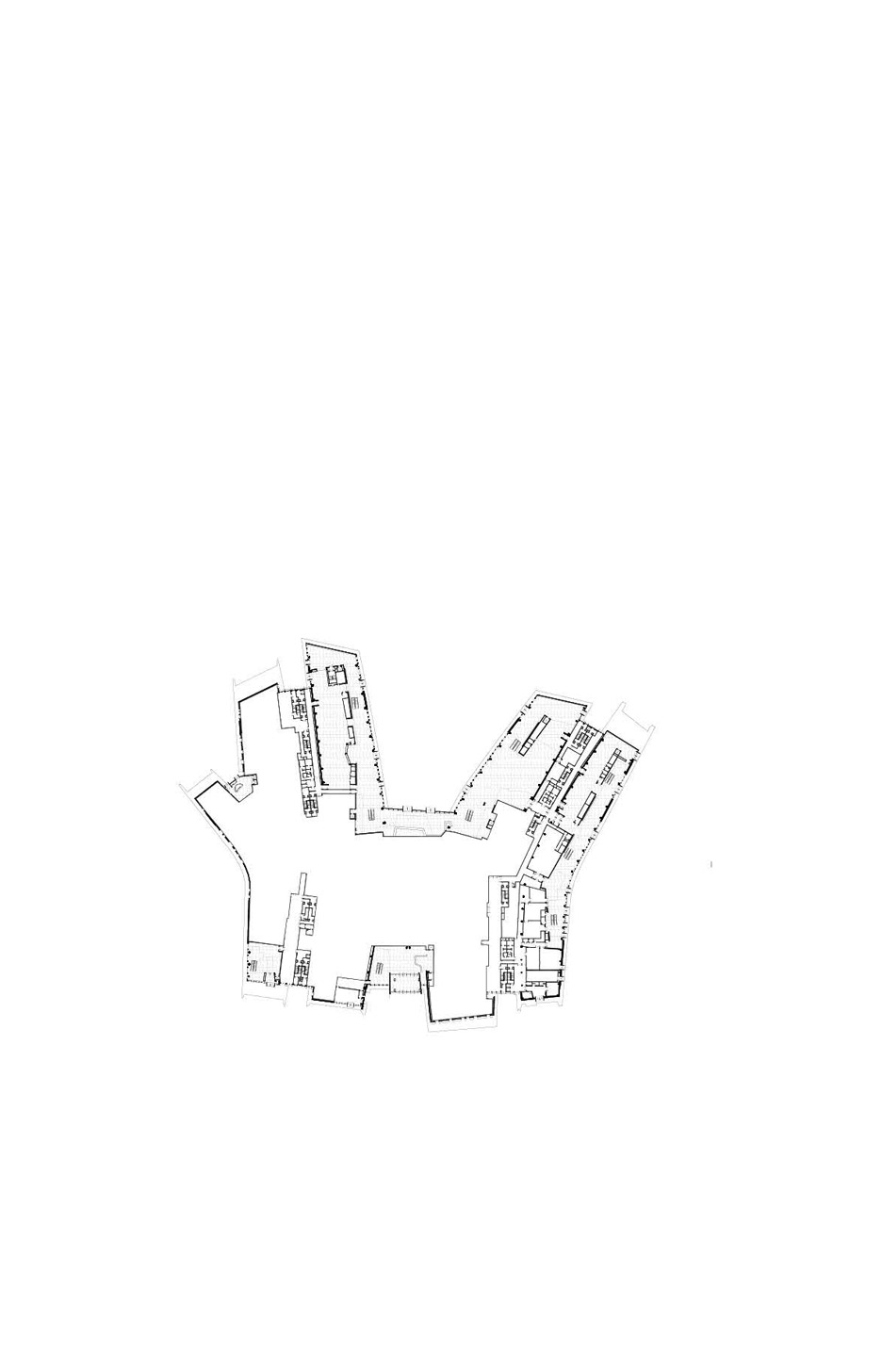

More images and plans

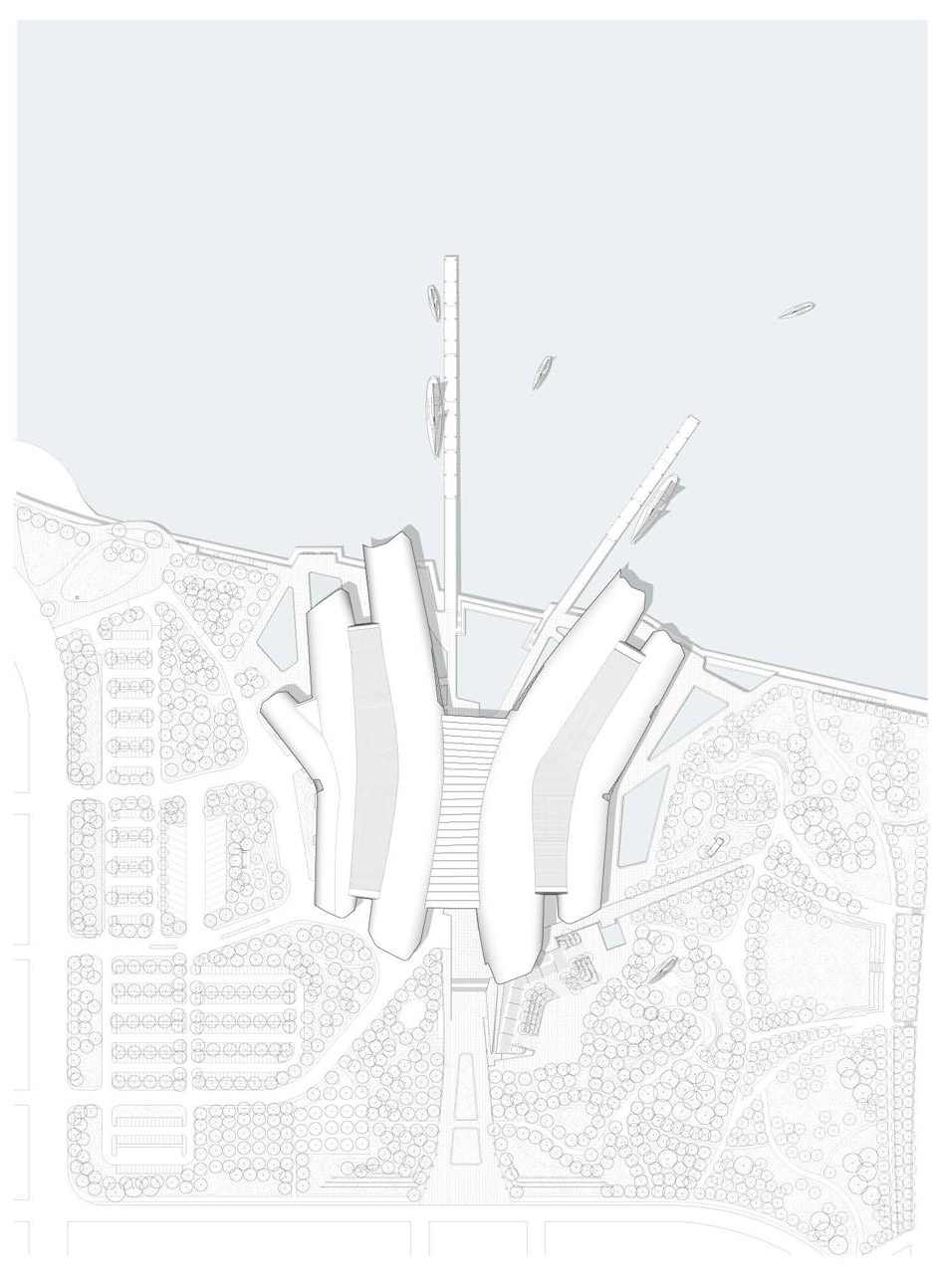

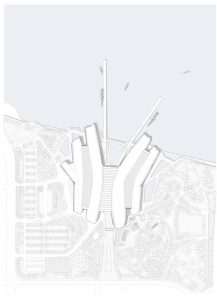

Site plan

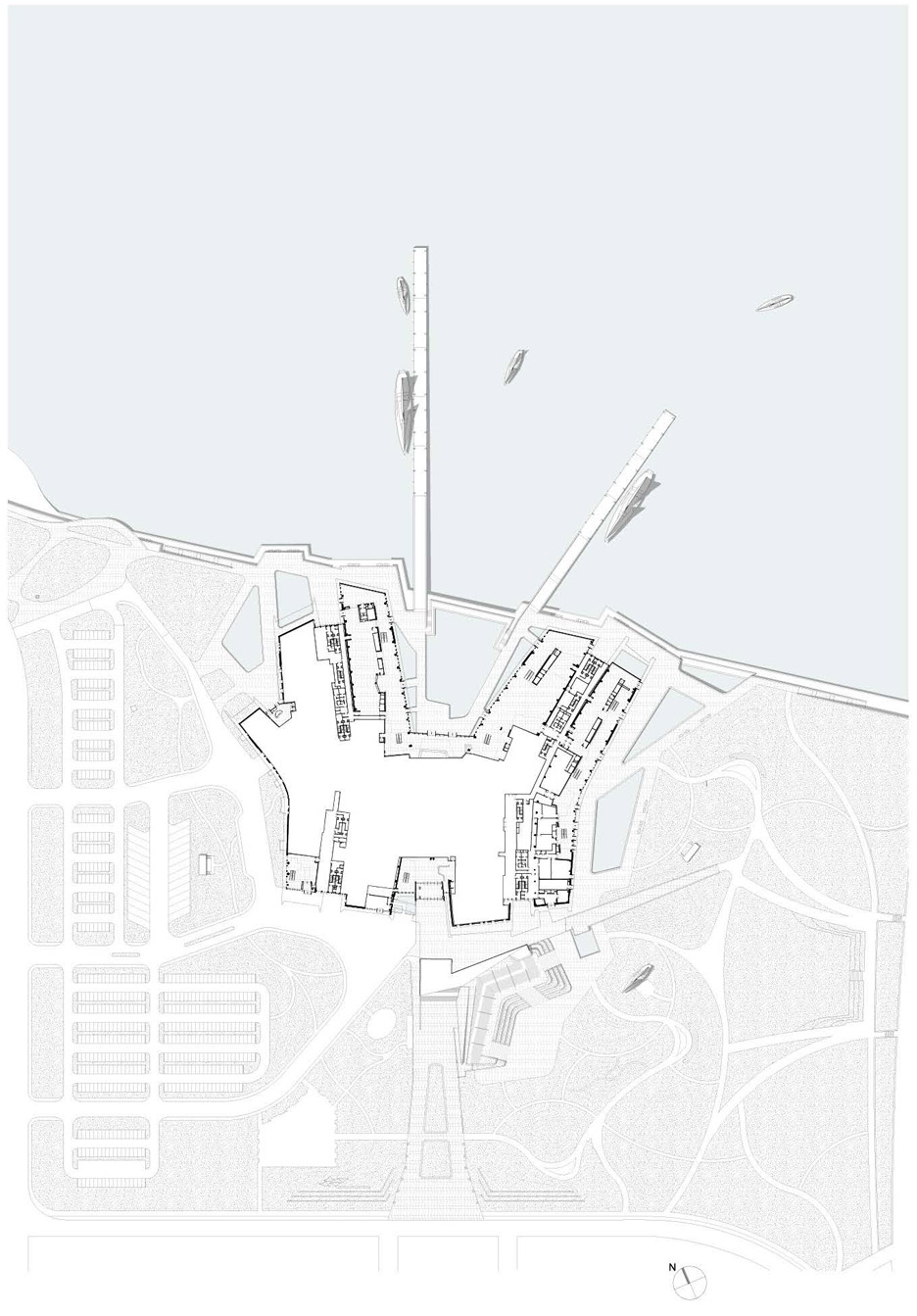

Ground floor

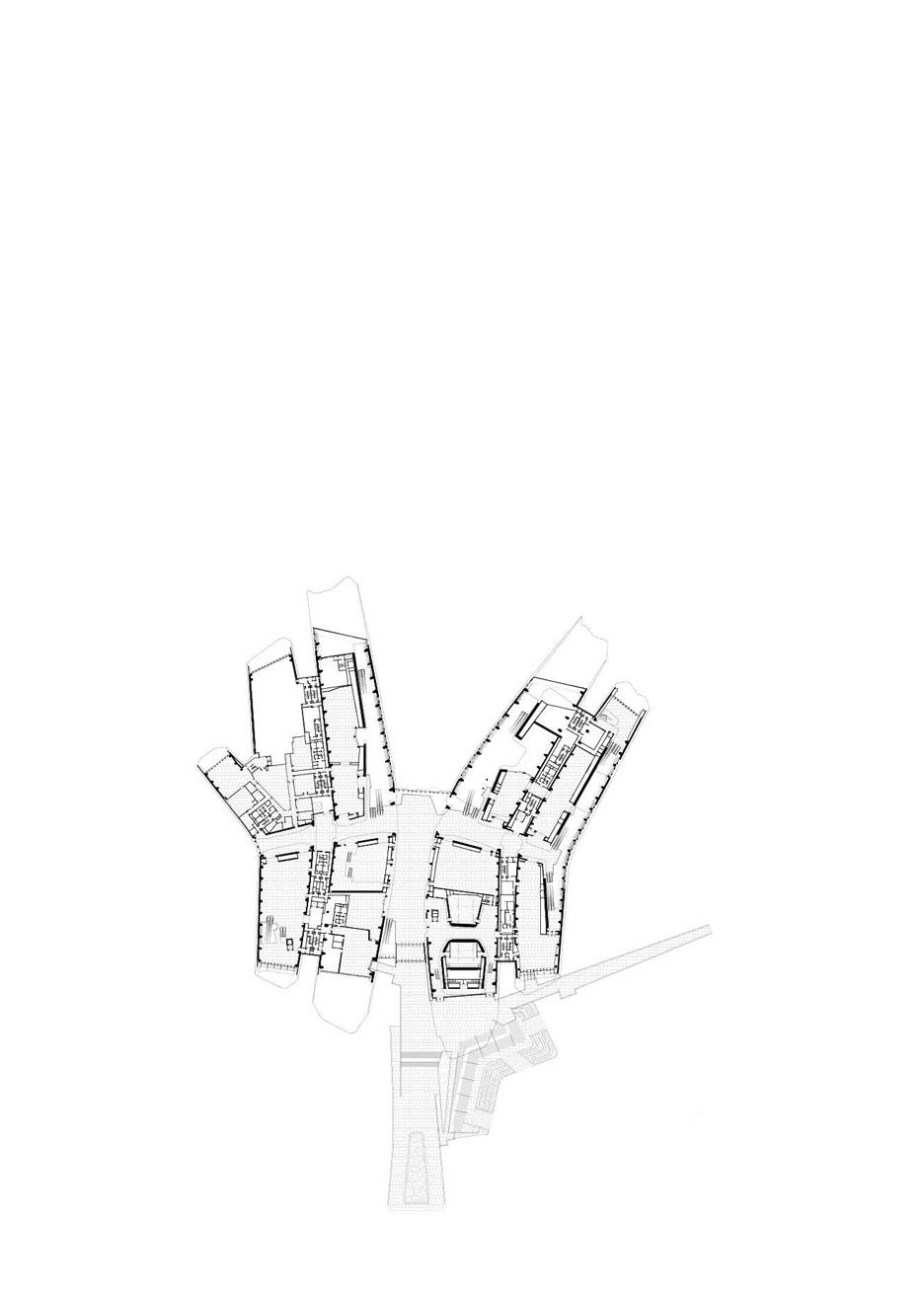

First floor
Second floor
Third floor
