Twin pitched-roof apartment buildings by Joliark look onto a central courtyard

Two buildings with gabled profiles extend along the edges of an angular courtyard at the centre of this residential development in Stockholm by Joliark.

Vastermalms Atrium by Joliark

The Västermalms Atrium project contains 165 apartments and is located on the island of Kungsholmen in the centre of the Swedish capital, next to the headquarters of its developer, the multinational Skanska construction group.

Vastermalms Atrium by Joliark

Two large volumes with similar pitched-roof forms flank a courtyard that accommodates a kindergarten, with parking incorporated below ground. The project was designed by local studio Joliark, which also created a housing complex in the city with flush facades clad in galvanised steel.

Vastermalms Atrium by Joliark

The V-shaped arrangement of the two housing units opens towards the south-west to funnel sunlight into the secluded courtyard, which is protected from noise and pollution generated by traffic on the busy Essingeleden road by a neighbouring office building.

"Two separate building volumes rather than a closed block structure made it possible to maximise the height of each building and still have a sunny courtyard to meet the daylight requirements for the housing scheme," architect Cornelia Thelander told Dezeen.

Vastermalms Atrium by Joliark

Each building varies in height from seven to 15 storeys, with the lowest sections at the highest point of the site where it faces a street called Warfvinges väg.

The site slopes down towards another street and is terraced to incorporate functional spaces above and below ground, including the kindergarten, whose roof forms part of the outdoor public space.

Vastermalms Atrium by Joliark

"With fixed building heights at each end in connection to the different street levels, this design was a way to maximise the building volume," Thelander explained.

"Also, the ridges of the buildings are offset in relation to each other, which forms a distinctive skyline that changes as you move through the surrounding city."

Vastermalms Atrium by Joliark

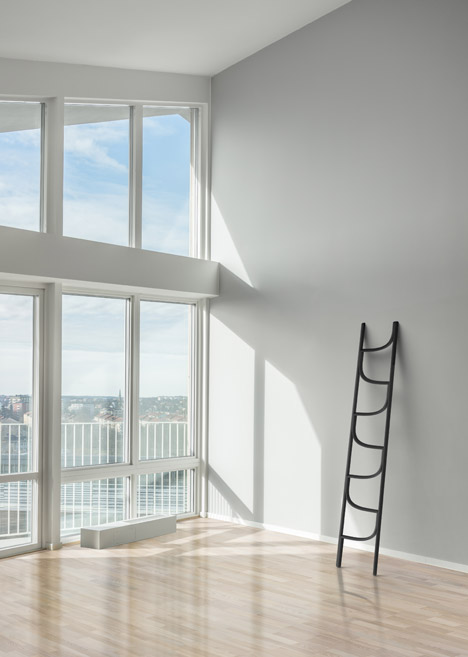

The sloping roofs enable double-height attic apartments to be accommodated on the top levels, from where they have extensive views over Stockholm.

Vastermalms Atrium by Joliark

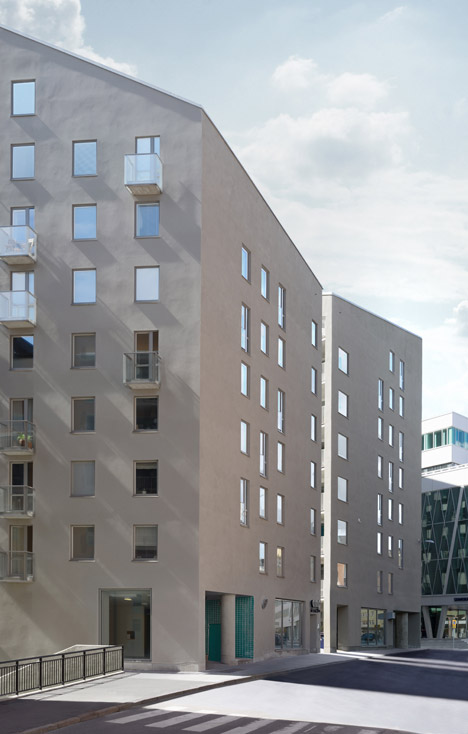

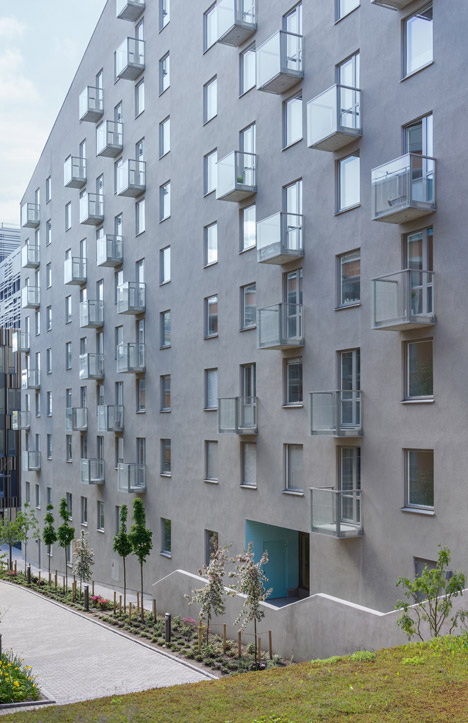

The external elevations of both volumes are predominantly solid to prevent views into the bedrooms. The grey rendered surfaces are interrupted by scattered windows, with small balconies that extend from the facades adjoining larger bedrooms within the apartments.

Vastermalms Atrium by Joliark

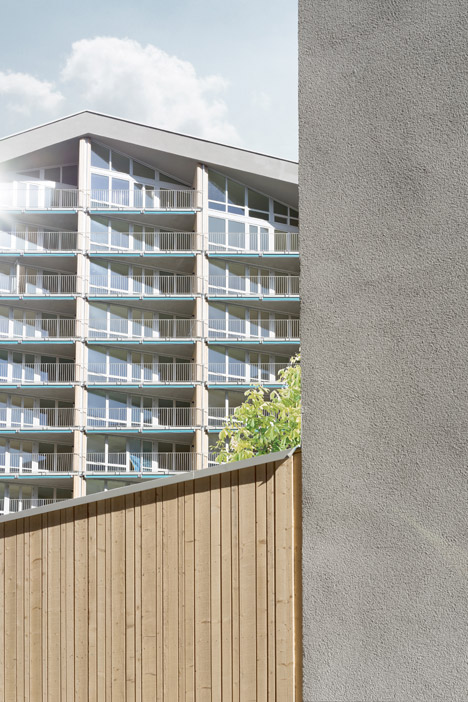

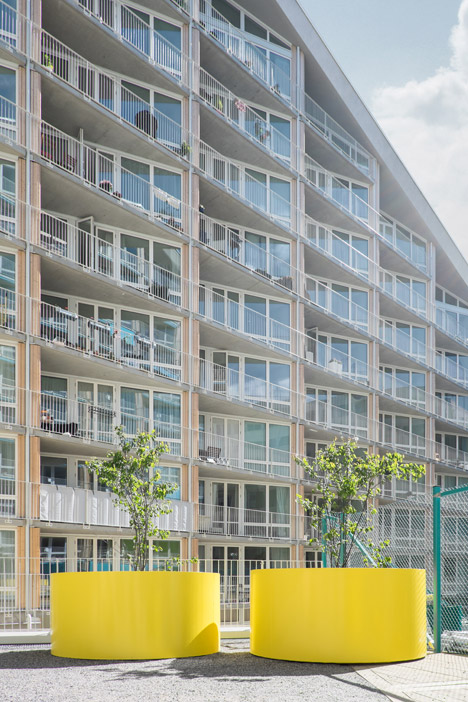

In contrast to the outer facades, the inward-facing surfaces of each building feature a modular arrangement of repetitive elements and plenty of glass that creates a sense of openness and connection with the courtyard.

Vastermalms Atrium by Joliark

The living areas of every apartment culminate in full-height windows that ensure these spaces benefit from the sunlight entering the courtyard.

Vastermalms Atrium by Joliark

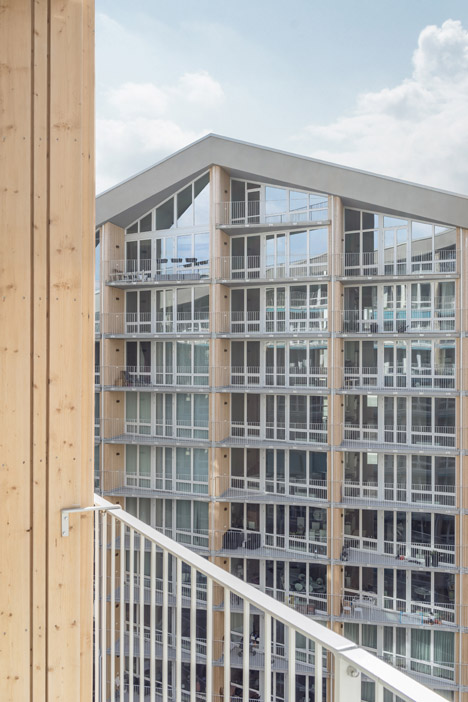

Triangular balconies accessed through doors set in the glass walls are organised to make the most of the views while providing privacy for the occupants.

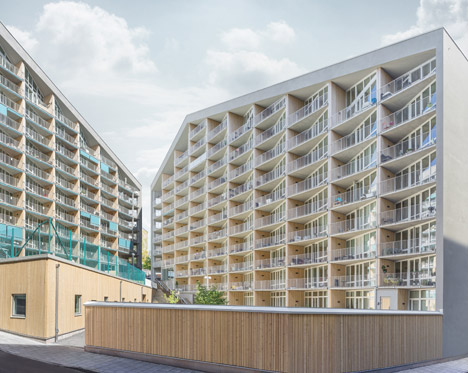

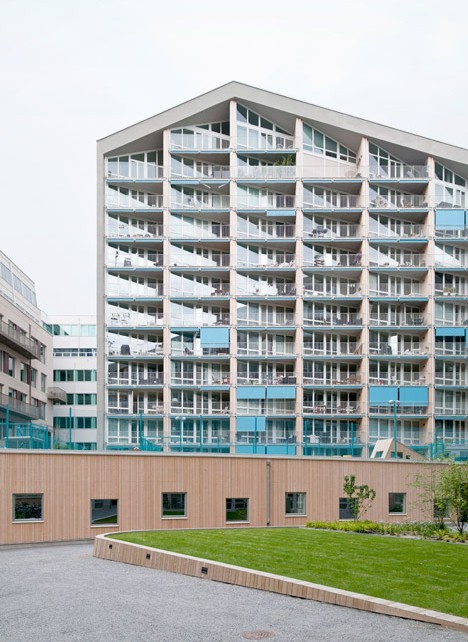

The timber-clad kindergarten is incorporated into the stepped layout of the courtyard, with its exposed vertical facades punctuated by square windows that look out onto landscaped communal areas.

Vastermalms Atrium by Joliark

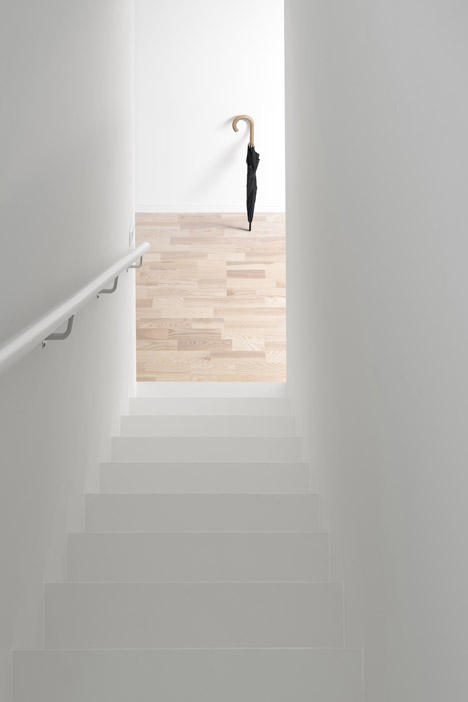

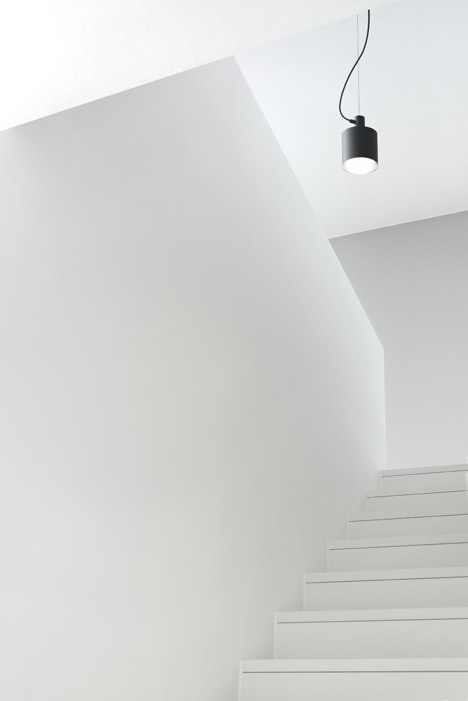

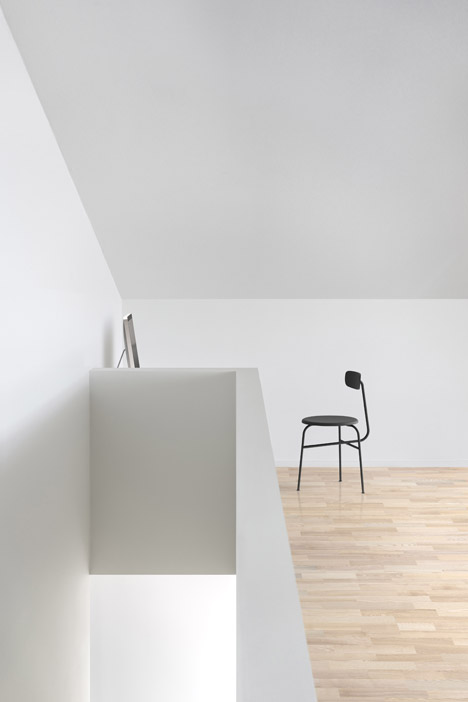

Internal spaces within the apartments are minimally detailed and feature predominantly white surfaces to accentuate the natural light entering through the large windows.

Photography is by the architects.

Vastermalms Atrium by Joliark

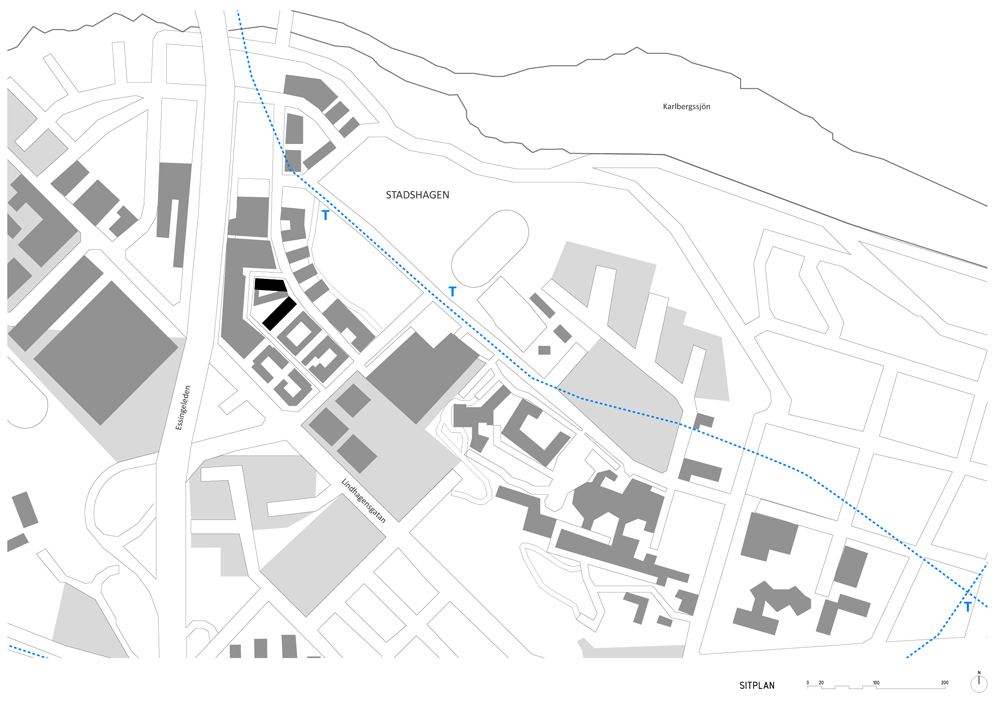

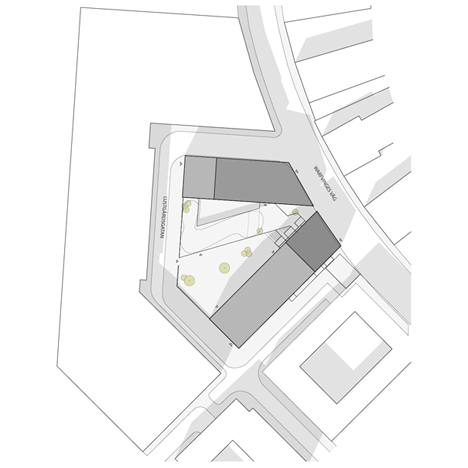

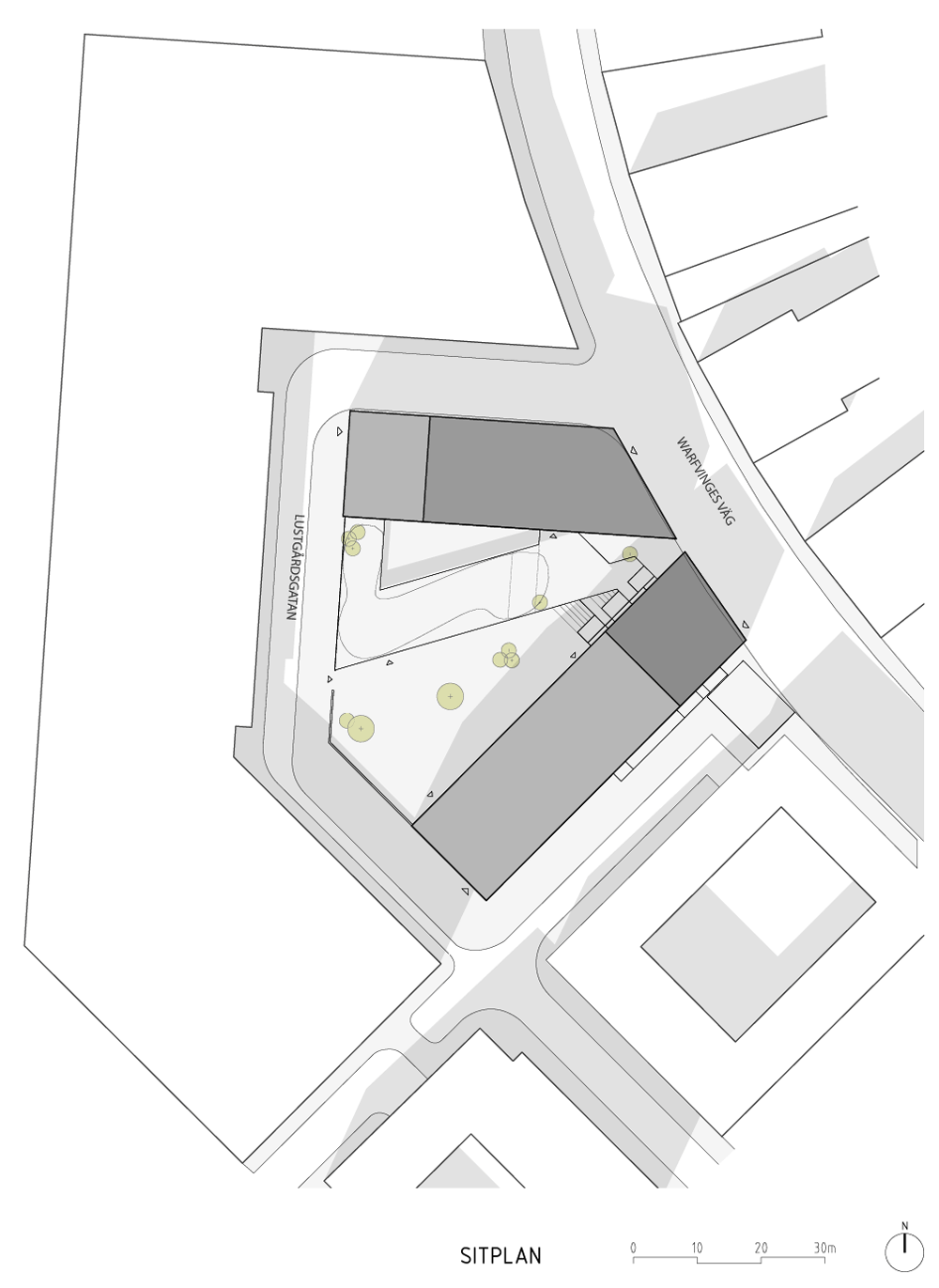

Site plan – click for larger image
Vastermalms Atrium by Joliark

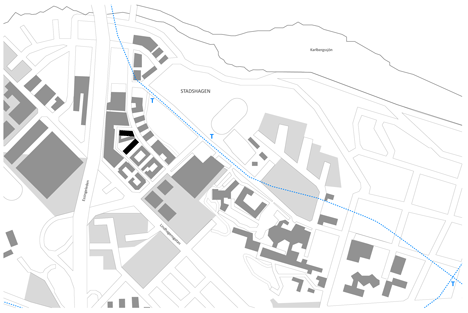

Site plan – click for larger image
Vastermalms Atrium by Joliark

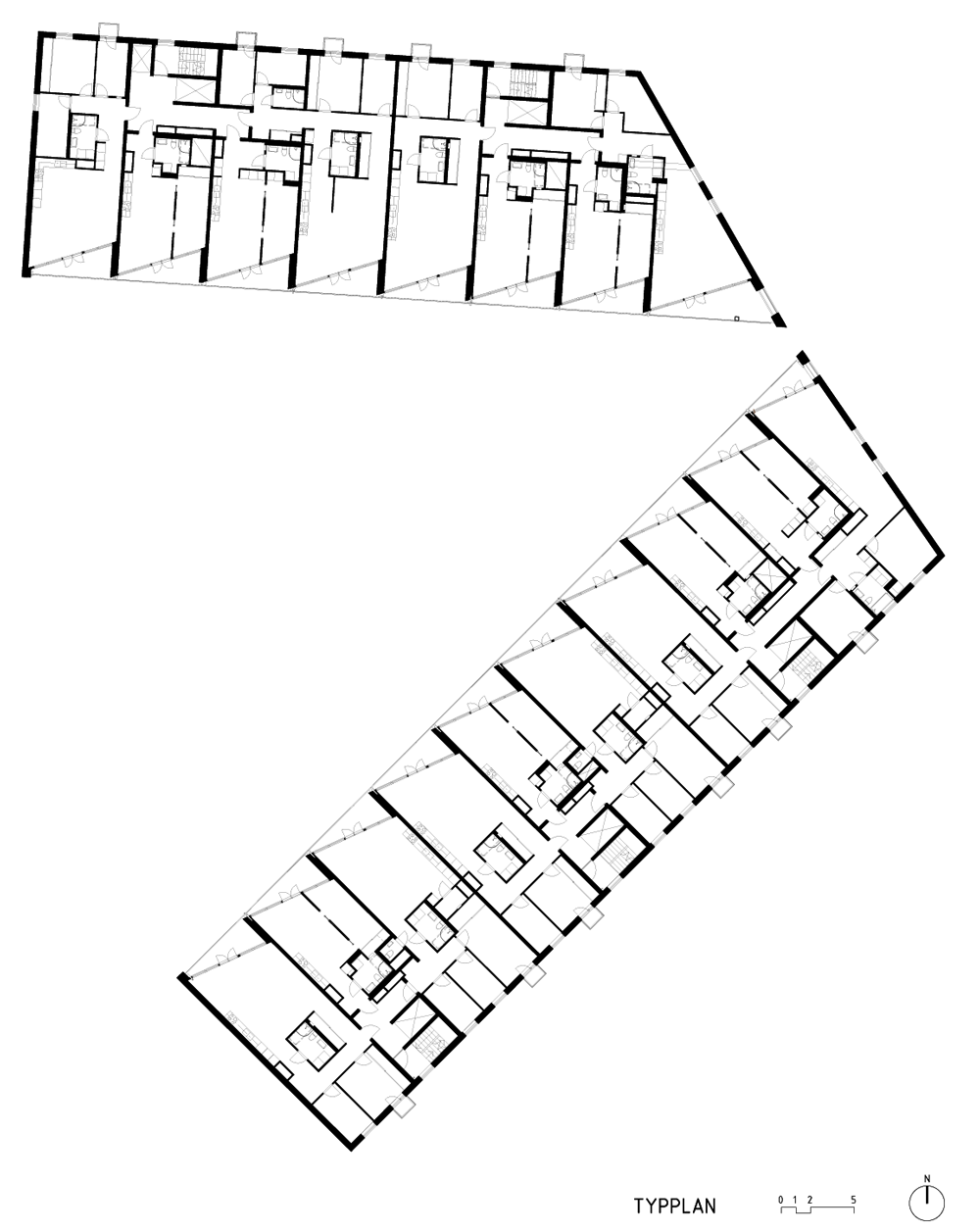

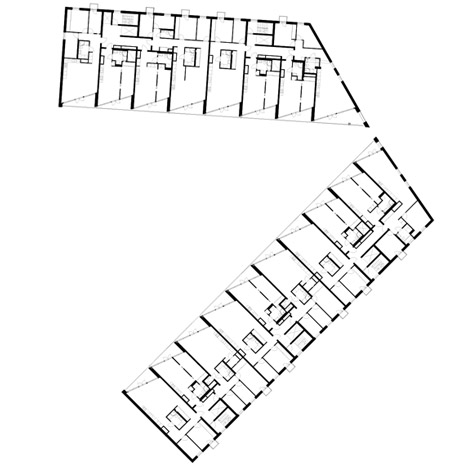

Typical floor plan – click for larger image
Vastermalms Atrium by Joliark

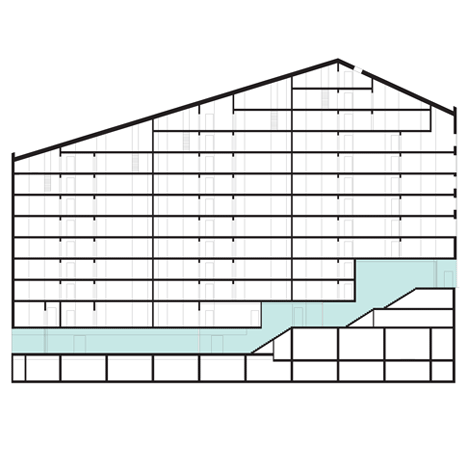

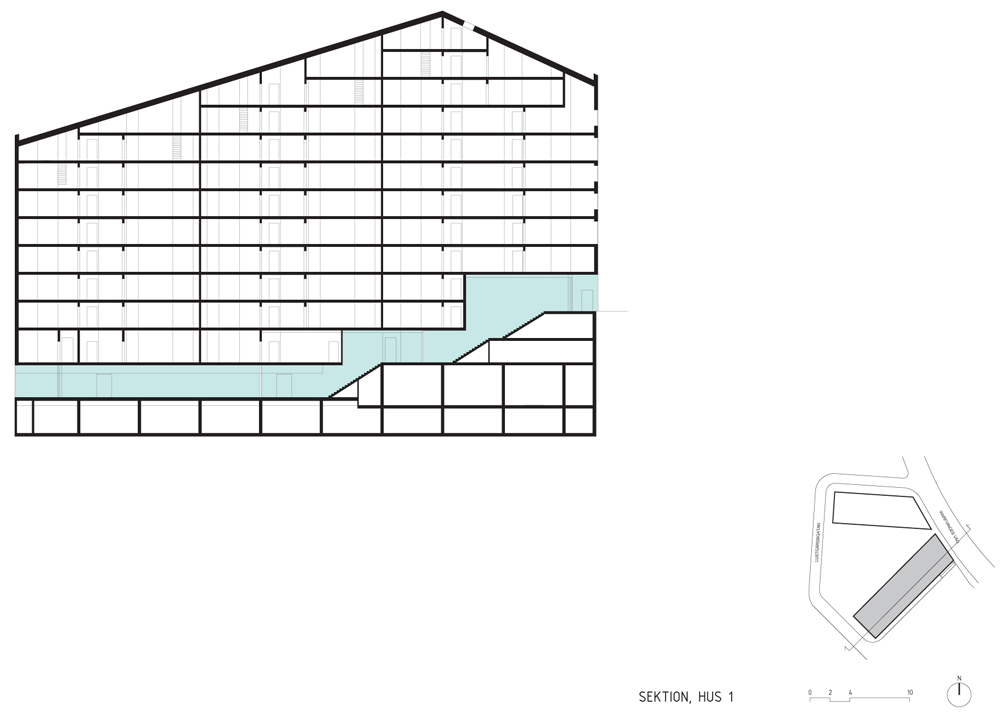

Section one - click for larger image
Vastermalms Atrium by Joliark

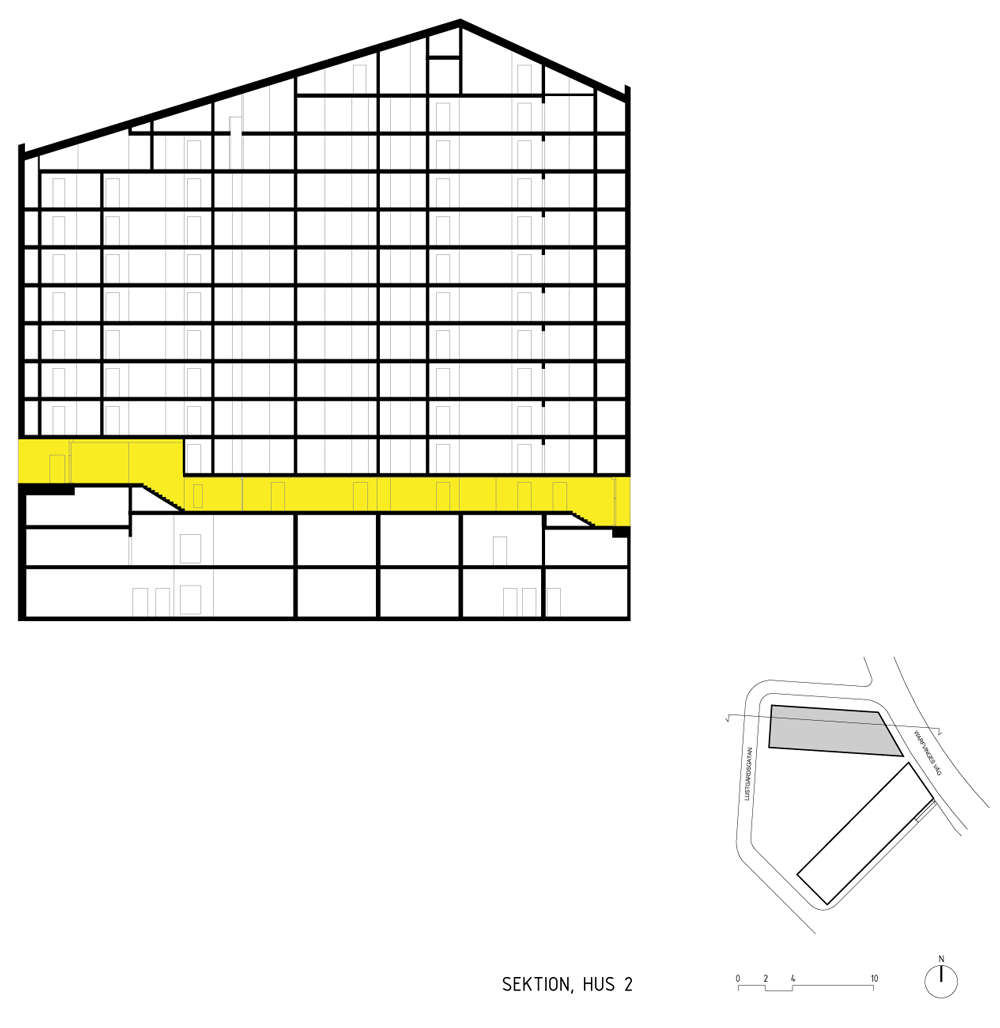

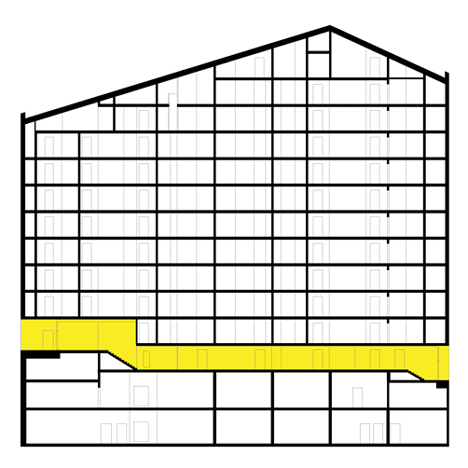

Section two – click for larger image
